BullMach ARES 61 - Tractor-mounted stump grinder

Questions & Answers (1)
ID: 116916

EAN: 8053435091985

MPN: ARES 61

9,0/10
After-sales assistance & Spare parts
BullMach ARES 61 - Tractor-mounted stump grinder
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 24/04/2026 - 28/04/2026
€ 1.888,25
Vat included
Technical data
Body material
Enamelled steel
Operating mode
Tractor-driven PTO
Tractor power
30 to 45 HP
Cutting above the surface
12.7 cm
Rotor size
610 mm
Number of teeth
34
hydraulic pressure valves
yes
Cardan shaft
With clutch
Product Features
Model
Ares 61
Body material
Enamelled steel
Tractor power
30 to 45 HP
Operating mode
Tractor-driven PTO
3-point hitch category
First
Manufacturing country
China
Motor data
Motor speed
540 RPM
Transmission data
Transmission type
Coaxial type direct
Cutting data
Body material
Steel
Number of teeth
34
Underground cutting depth
15.5 cm
Cutting above the surface
12.7 cm
Rotor size
610 mm
hydraulic pressure valves
yes
Free gifts/extra features
Cardan shaft
With clutch
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
103x70x85 cm
Net weight
200 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
87x80x95 cm
Weight including packaging
230 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
You're viewing:
Customers also viewed:
Description

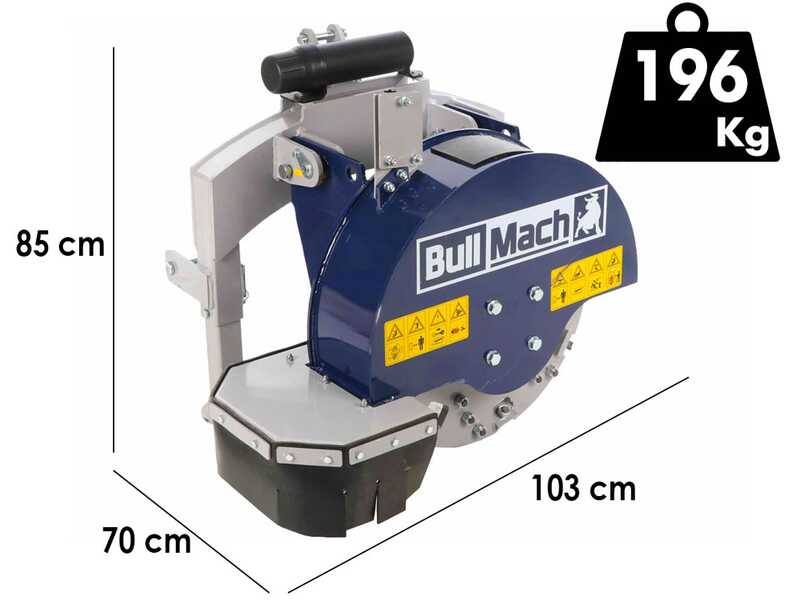

BullMach ARES 61 stump grinder

The BullMach ARES 61 stump grinder is a piece of equipment designed to remove stumps by mechanical shredding. It is compatible with tractor-mounted machines equipped with a three-point hitch and rear power take-off. The unit works by means of a rotating flywheel equipped with hardened steel teeth which, once activated, rotates at high speed, progressively shredding the wood. This model stands out for its fixed attachment, which ensures greater structural rigidity during intensive work.

Visually, the structure is compact and made entirely of steel, painted in glossy blue with light grey finishes. The design is functional, with a shaped upper guard that surrounds the rotating unit. The BullMach logo is clearly visible on the central housing. The safety labels are positioned to be easily legible. The support base is equipped with adjustable feet to ensure stability when the machine is stationary.

The BullMach ARES 61 tractor stump grinder has a 610 mm diameter flywheel, equipped with 34 teeth arranged in a circle, capable of shredding logs of various sizes into wood chips. The weight of 196 kg promotes the progressive sinking of the machine into the stump and increases its stability during operation. The absence of moving joints on the fixed attachment makes it suitable for continuous applications where precision and control are required.

Its distinctive features include:

  • 610 mm flywheel: the high-strength steel rotating disc allows for fast and aggressive wood shredding thanks to its large surface area.
  • 34 hardened teeth: arranged around the entire perimeter of the flywheel, they act in sequence to ensure continuous processing even on large logs.
  • Painted steel structure: protects the internal components from dust and impact, maintaining the integrity of the machine even in harsh environments.
  • Fixed 3-point attachment: ensures rigidity and stability during use, eliminating mechanical play between the tractor and the machine.
  • Weight 196 kg: the heavy weight improves penetration into the wood and reduces vibrations, increasing operational safety.

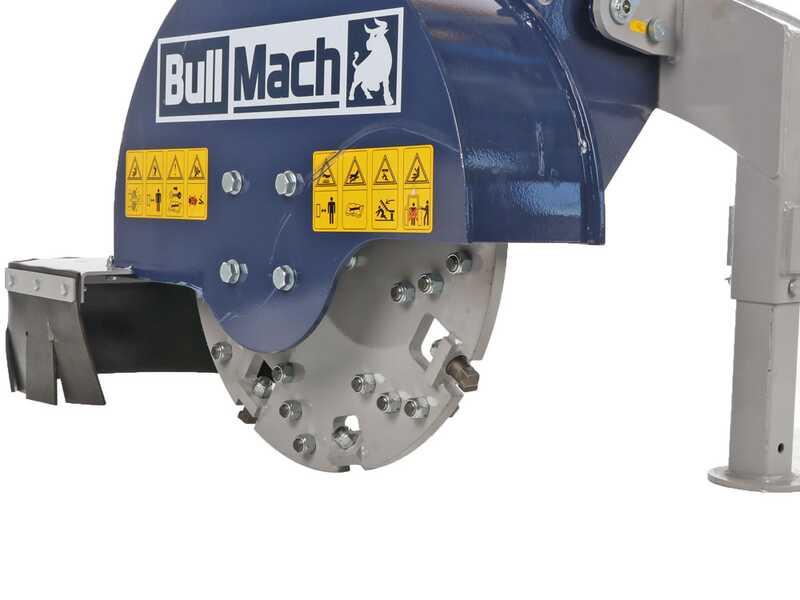

Cutting apparatus and rotor

The Bull Mach stump grinder is equipped with real hammers on the rotor, which guarantee greater durability .

The rotor disc consists of 34 hammers, 8 of which are mounted vertically, while the rest are mounted on the side of the blade to perform any cutting operation.

The milling capacity of these hammers is greater than that of normal blades, thanks to the greater strength of the hammers compared to a simple curved blade.

The machine has a maximum underground cutting depth of 155 mm and can perform cuts of up to 127 mm per pass.

The transmission from the blade to the power take-off is direct and is entrusted to a 5th category cardan shaft with safety bolt.

Detail of the rubber protective skirt on the disc.

The roller has a rotation speed of 540 rpm.

Main Features

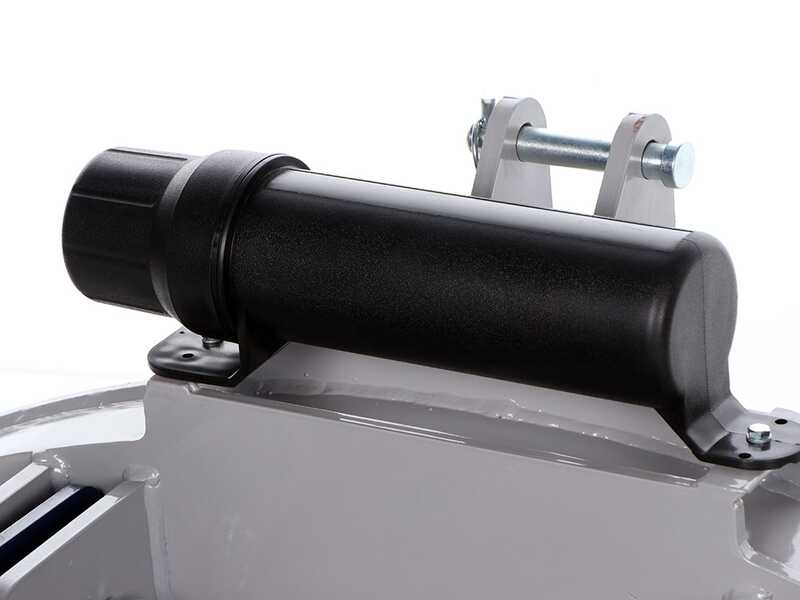

Manual door, practical for keeping the machine's instruction manual always at hand

Support feet

Detail of the joint, which allows the machine to be tilted.

Three-point attachment

Detail of the chainsaw holder, a very convenient addition for carrying out cutting operations in their entirety.

8 mm sheet metal.

Free items & Standard equipment

Free items included

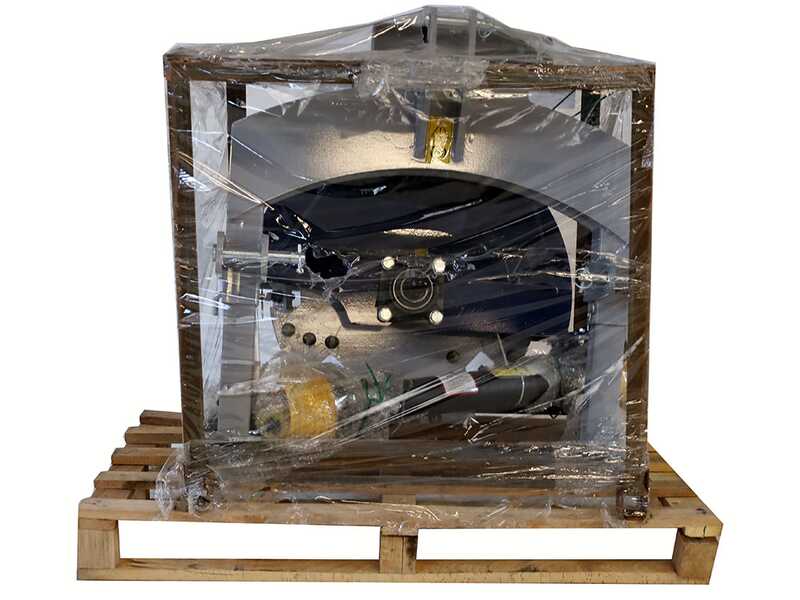

The machine comes with its original cage.

Supplied with:

Cardan shaft with safety bolt

Instruction manual
