Blue Bird SHL 1200 - Petrol shredder - Loncin G420F engine

Add a question
ID: K608757

EAN: 8025518465389

MPN: 884520

8,1/10
After-sales assistance & Spare parts
Blue Bird SHL 1200 - Petrol shredder - Loncin G420F engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G 420 F
Cubic capacity
420 cm³
Nominal power
15 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
100 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety button
Yes
Discharge chute rotation
Manual
Electric start
Yes
Transmission type
Belt
Tow hook
Yes
Weight
177 Kg
Product Features
Model:
SHL 1200
Operating mode:
Spark ignition
Discharge chute:
Medium - rotating
N° of hoppers :
1
Hopper opening size (height):
40 cm
Hopper opening size (width):
50 cm
Electric start:
Yes
Safety button:
Yes
Tow hook:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G 420 F
Motor type:
4-stroke
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Rated power (HP):
12 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Hardened steel
Max. Branch Diameter:
100 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Battery for electric start:
Yes
Discharge chute rotation:
Manual
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
16x8.00-7
Start safety sensor:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Spark plug wrench:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
256x89x148 cm
Net weight:
177 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90x77x123 cm
Gross weight (packaging included) :
200 Kg
Assembly time:
60 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
€ 1.942,73
Vat included
You're viewing:
Customers also viewed:
Description

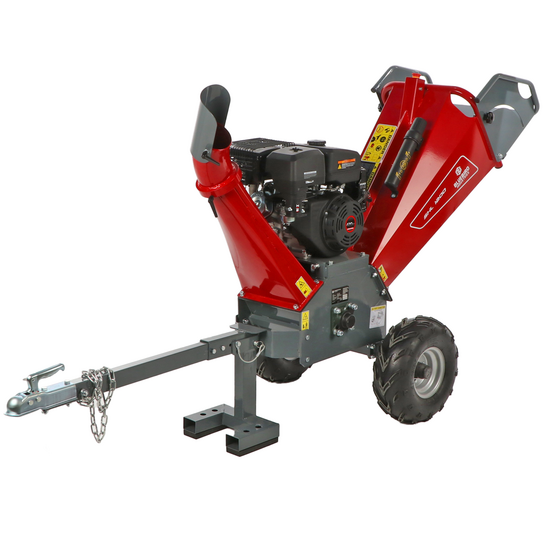

Blue Bird SHL 1200 shredder

The Blue Bird petrol shredder SHL 1200 is a powerful and versatile device, ideal for handling plant residues in the garden and in agriculture. Equipped with a Loncin G420F engine, this bio-shredder delivers 9 kW at 3600 rpm, ensuring consistent high performance.
The petrol engine provides continuous autonomous operation, while electric starting makes it easier to start even in the most difficult conditions.

The drum cutting system, with two 233 mm blades, allows shredding of branches with a maximum diameter of 120 mm. This makes the Blue Bird SHL 1200 bioshredder suitable for even the most demanding pruning jobs. The generous dimensions, with a length of 2560 mm, width of 890 mm and height of 1480 mm, offer stability in use, while the 16 x 8.0-7 wheels guarantee easy mobility on various terrains.

Weighing 200 kg, the Blue Bird SHL 1200 bio shredder is built to last, thanks to the robust materials used in its construction. Distinctive features of this model include:

  • Loncin G420F engine: Powerful and reliable, it delivers 9 kW at 3600 rpm.
  • Electric starter system: Facilitates engine start-up.
  • Drum Cutting Method: Two 233 mm blades for efficient shredding.
  • Shredding capacity. They cut branches up to 120 mm in diameter.
  • Robust structure dimensions of 2560 x 890 x 1480 mm and weight of 200 kg.
  • Large wheels : Measures 16 x 8.0-7 for better mobility.

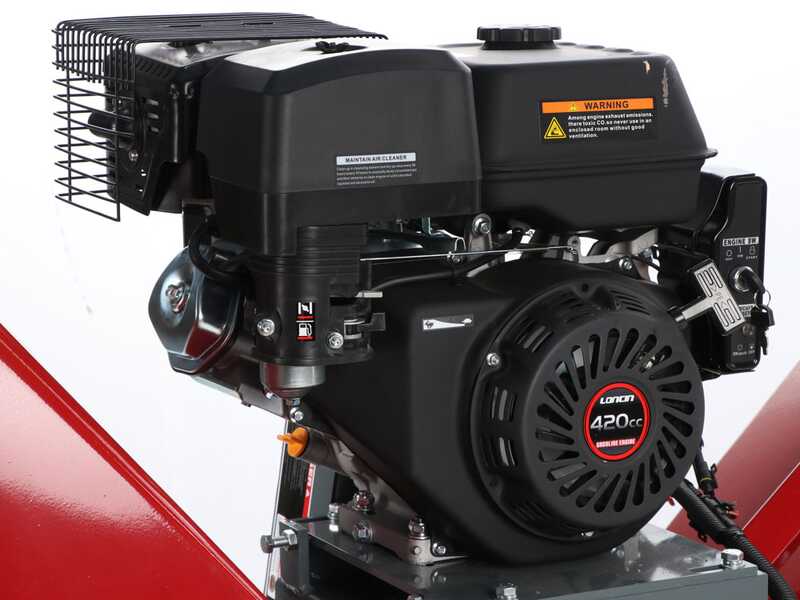

Loncin G420 FD 15 Hp Engine

This shredder, like all petrol shredders with roller rotor, must be strictly used at maximum engine speed; the shredding rotor is large and must reach the maximum speed to ensure high results by harnessing its centrifugal force.

Main features:

  • Model and brand of the engine: Loncin G 420 FD
  • Engine type: Single cylinder 4-stroke - OHV
  • Cylinder type: Aluminium
  • Cylinder capacity: 420 cm³
  • Power: 15 Hp
  • Starter type: electric with key

Thanks to the convenient electric start with key, starting the shredder has never been easier.

Focus on the filter

Nominal Power: 15 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 12 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

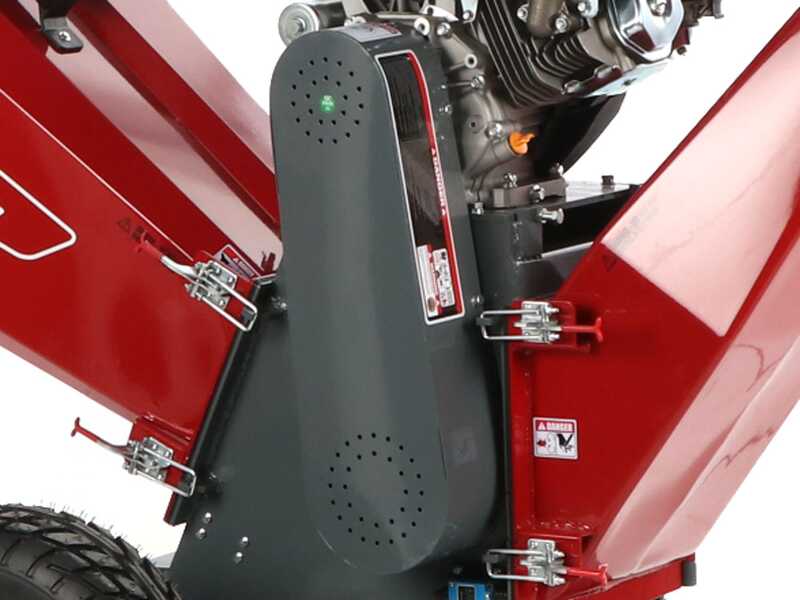

Belt drive

Intermediate double V-belt drive.

This gives the machine great sturdiness, protecting both the engine and the internal shredding unit from any kind of internal shock or kickback.

Higher durability over time compared to the standard system used by all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

The transmission is also equipped with a special expansion clutch contained in the bell housing

Protective casing with double air intake

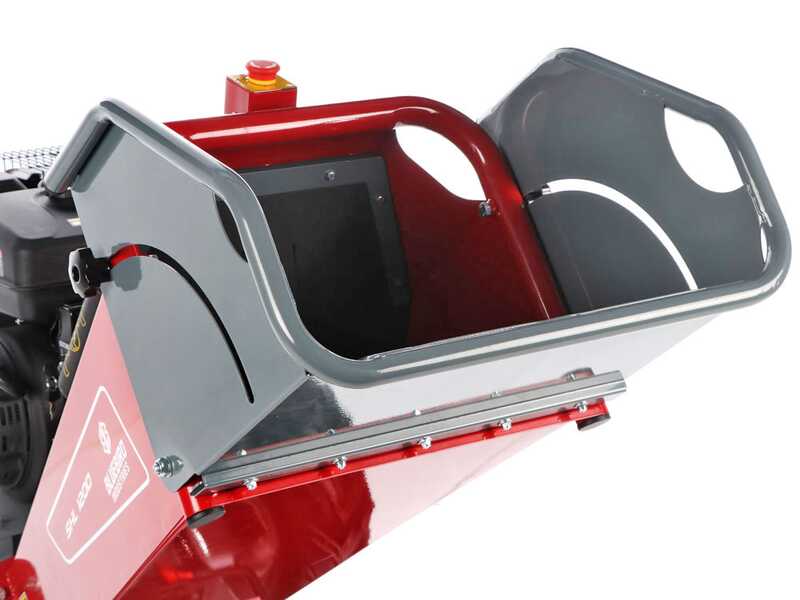

Unified hopper

Steel hopper capable of receiving even very bulky branches and twigs without pre-processing The size of the hopper is 50x35 cm

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the work.
It relieves the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

  • SELF-FEEDING:

Once the branches are inserted into the hopper, the shredder pulls them inside the shredding unit autonomously, This is possible thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Black rubber protective bulkheads placed on the hopper opening.

SAFETY SISTEMS:

  • Stop button

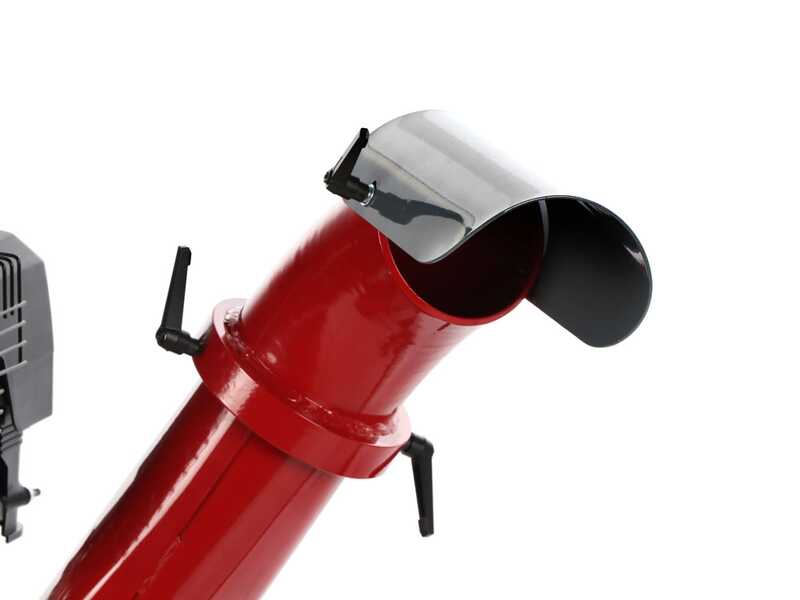

Adjustable Discharge Chute

The garden shredder is equipped with a 1.5 m high and 360° rotating discharge chute,

Some examples:

  • Position 1
  • Position 2
  • Position 3

You will just need to simply release the lever and rotate it in the desired position.

The outlet inclination is adjustable via hooks at the end of the chimney

Some examples to control the distance of the discharged shredded material:

  • Position 1
  • Position 2
  • Position 3

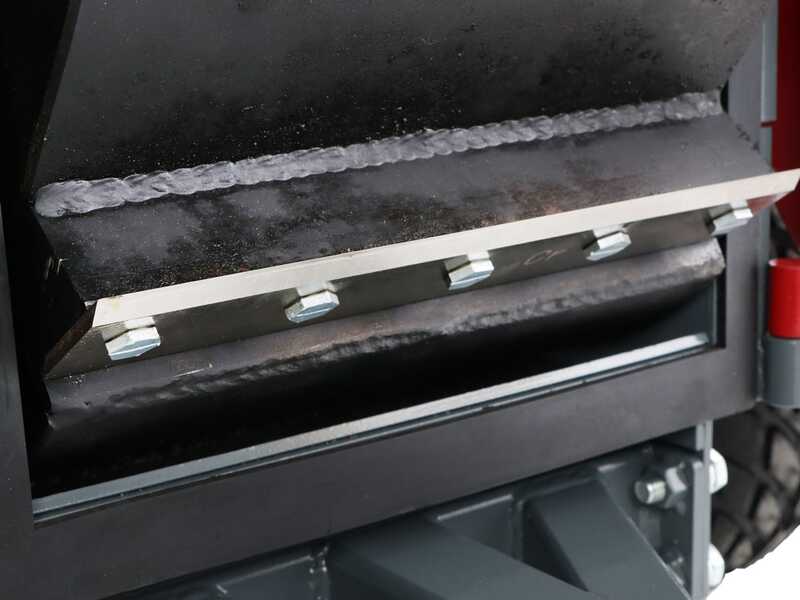

Shredding system with 2 blades and counter-blade

large, thick cutting blades mounted on a rotating steel roller.

It is capable of shredding branches with a maximum diameter of 100mm. The double-blade system (233 mm blade length) is completed by the counter-blade in the shredding chamber.

Internal blade-holder rotor with shaft made by balancing operation.

All shredders equipped with a roller system, like this one, perform best when inserting branches that have already been trimmed and cleaned (not thick and with excessive branching). They are ideal for large branches and not for thin, green, dense or large branches; this is because the roller system is technically not suitable for grinding small or minimal diameters, or green material in general, while they really give their best with real branches of a certain diameter and body.

This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

Roller size: 350 mm

Other features

2 large wheels of: 16 x 8.0 - 7

Focus on the tow hitch.

Lead-acid battery with protective case. (12V 20Ah)

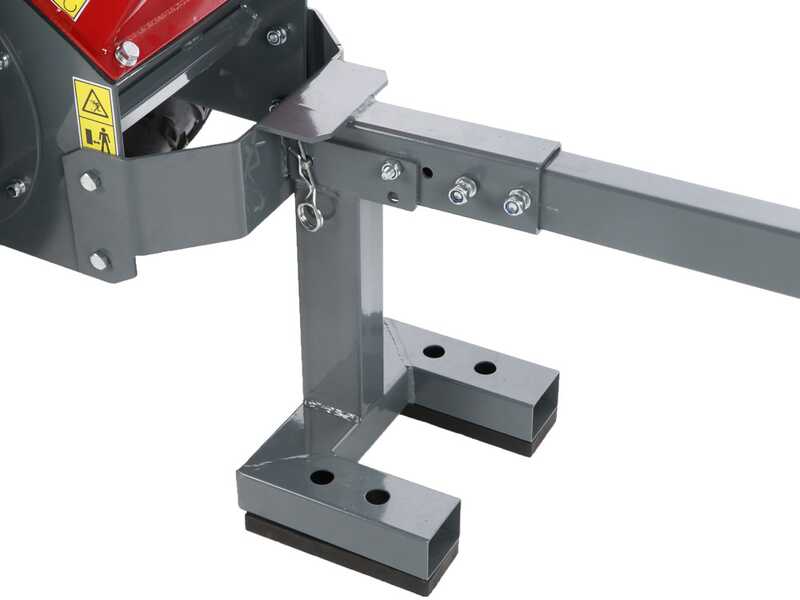

Support feet

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard equipment

The biochipper is shipped in its original wooden crate on pallet together with the instructions manual.
