Blue Bird SHL 1000 - Petrol garden shredder - V200F 196 cc Loncin Engine

Add a question
ID: K607305

EAN: 8025518465402

MPN: 884540

Blue Bird SHL 1000 - Petrol garden shredder - V200F 196 cc Loncin Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
FREE SPARK PLUGFREE SPARK PLUG
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Motor type
4-stroke
Motor brand
Loncin
Motor Model
V200F
Cubic capacity
196 cm³
Nominal power
6.5 HP
Cutting Rotor Type
Heavy roller
No. of blades
2
Max. Branch Diameter
65 mm
Wood Chip size
4 - 5 cm
N° of hoppers
1
Safety button
Yes
Transmission type
Belt
Product Features
Model:
SHL 1000
Operating mode:
Spark ignition
Hydraulic self-dragging:
No
Discharge chute:
Medium - rotating
N° of hoppers :
1
Electric start:
No
Safety button:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
V200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Hardened steel
Max. Branch Diameter:
65 mm
Cutting Rotor Type:
Heavy roller
No. of blades:
2
Blade movement:
Rotating
Counter blades:
1
Wood Chip size:
4 - 5 cm
Equipment
Battery for electric start:
Recoil start system (with rope):
Yes
Front handle:
Yes
Rear wheels size:
4.10-3.50-4
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes

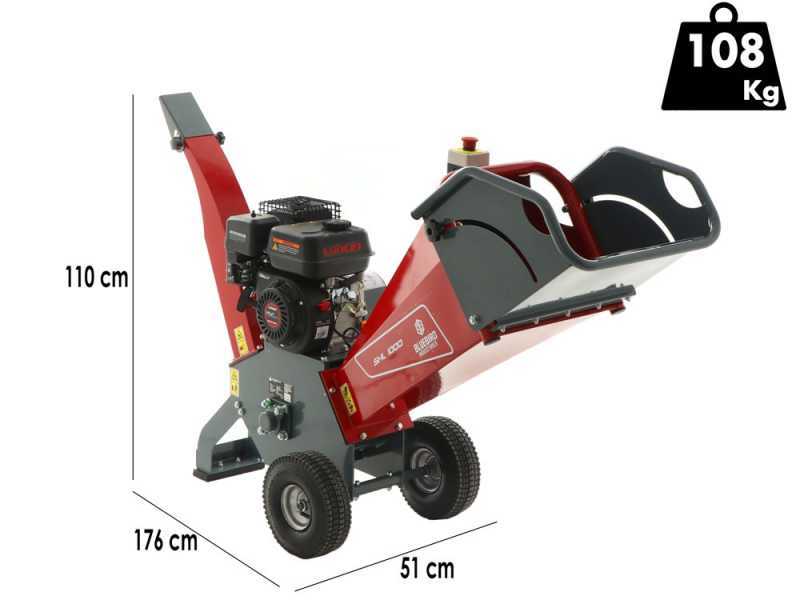

Dimensions and logistics
Product dimensions in cm (L x W x H):
176x513x110
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
147x81.24x113 cm
Gross weight (packaging included) :
123 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 1.117,71
VAT Included
You're viewing:
Customers also viewed:
Description

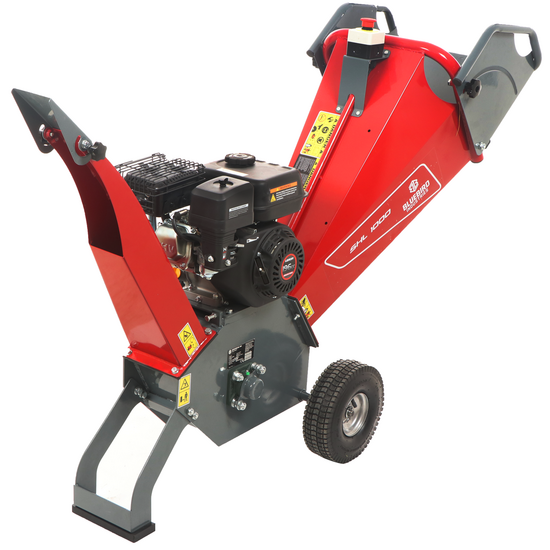

Blue Bird SHL 1000 Bio-shredder

The Blue Bird SHL 1000 shredder is specifically designed to perform shredding work on small and medium diameter branches and logs, making it an indispensable tool for those who need to manage and maintain green areas efficiently.

The Bio Shredder stands out for its extraordinary strength, thanks to a high quality steel rotor system, thus guaranteeing long life and resistance even in the most demanding jobs.

Equipped with a Loncin engine with 6.5 HP power that allows for efficiency and durability.

The maximum cutting diameter is 65 mm on green wood, higher than the average of 50/60 mm of bio-shredders with equivalent power, allowing the processing of large branches and logs.

With an exceptional working capacity, it is able to face intensive work sessions, constantly grinding large-diameter woods at professional levels, guaranteeing high hourly productivity.

The machine is equipped with a drum composed of two blades (233 mm) that make it very efficient, ideal for those who need to carry out green maintenance, removing and grinding biodegradable waste quickly and efficiently.

Thanks to the two medium-sized wheels on the sides, the product remains easy to transport.




Attention: Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case, it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

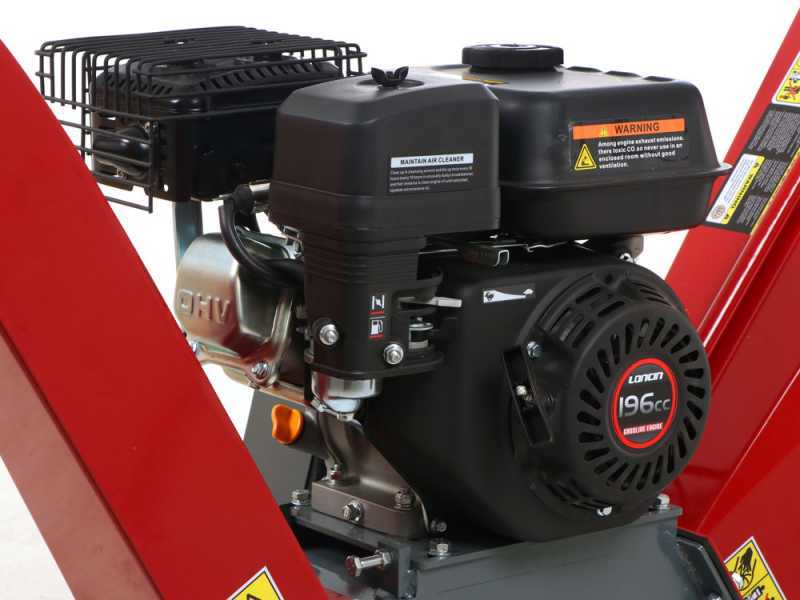

Loncin V200F Engine

Features:

Engine model and brand:
Loncin V200F
Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity
196 cm³
Power
6.5 Hp
Motor Speed
3600 rpm
Starting
Recoil start




Details of the On/Off engine switch

This garden shredder, like all petrol shredders with roller rotor, must be strictly used at max. engine speed; the shredding rotor is large and must reach the max. speed to ensure high results by harnessing its centrifugal force.

Engine oil tank

Filter


ATTENTION!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

The machine is provided with centrifugal clutch. It is important to let the engine running at high speed in order to ensure a proper functioning.

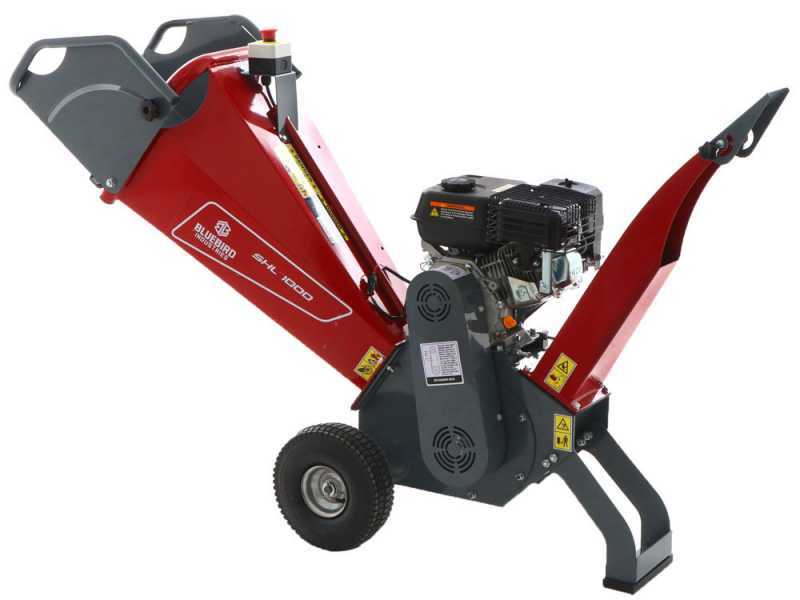

Belt drive

It is the only machine of its category with intermediate 2-belt drive transmission
. This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

Protection cover with dual ventilation air intake.

Clutch contained in the bell

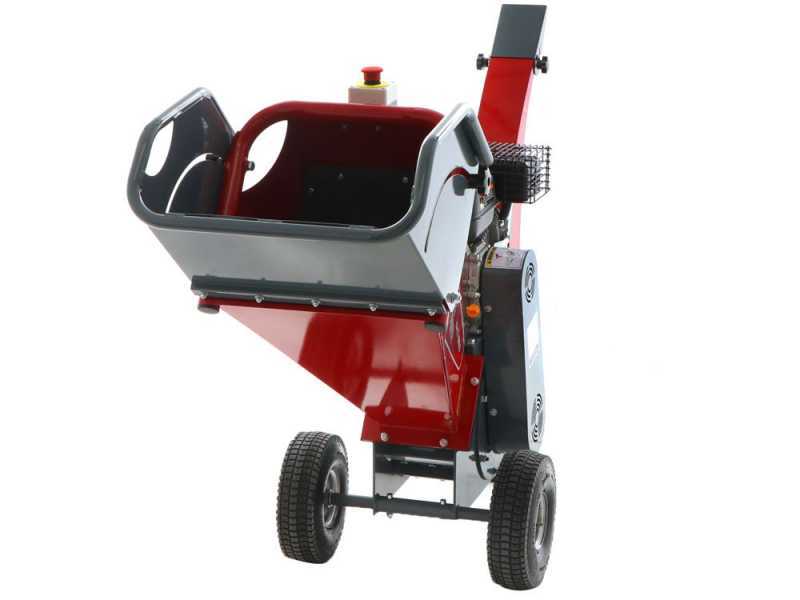

Unified hopper

Steel hopper capable of receiving even very bulky branches and twigs without pre-processing

  • UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It avoids the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

  • SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Black rubber protective bulkheads placed on the hopper opening.

SAFETY SYSTEMS: Equipped with a safety button on the feeding hopper that ensures the possibility to immediately stop the machine when needed.

Hopper that can be opened using the wheels on the sides.

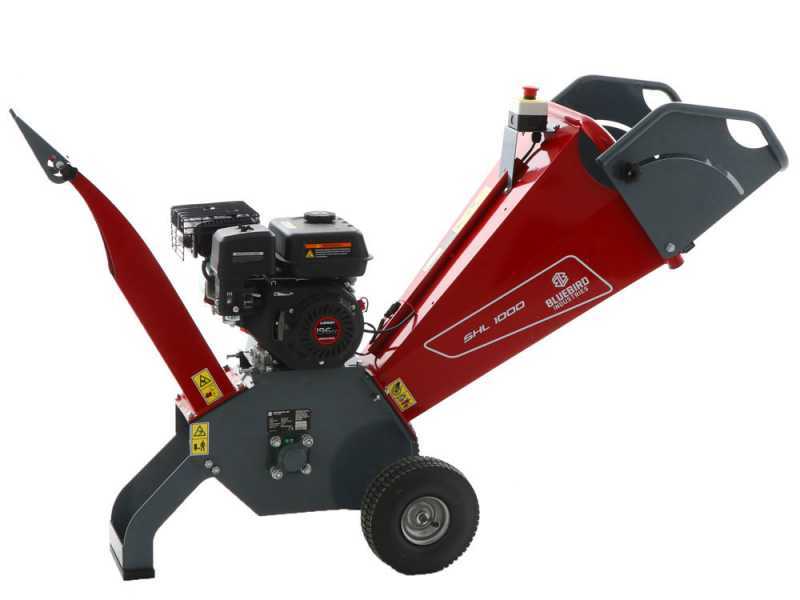

Shredding system with 2 blades and counter-blade

Large and highly-thick 2 shredding blades mounted on a steel spinning rotor.

The double-blade system is completed by the counter-blade in the shredding chamber.

Internal blade-holder rotor with shaft made by balancing operation.

All roller shredders like this one do their best work by inserting branches that have already been trimmed and cleaned (not thick and with excessive branching);
and they are ideal for branches with a bit of texture and body, and not for thin, green, thick or large branches; this is because the roller system is technically unsuitable for grinding small or minimal diameters, or green material in general, while it really give its best with real branches of a certain body.

This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

Details of the blade and counter-blade

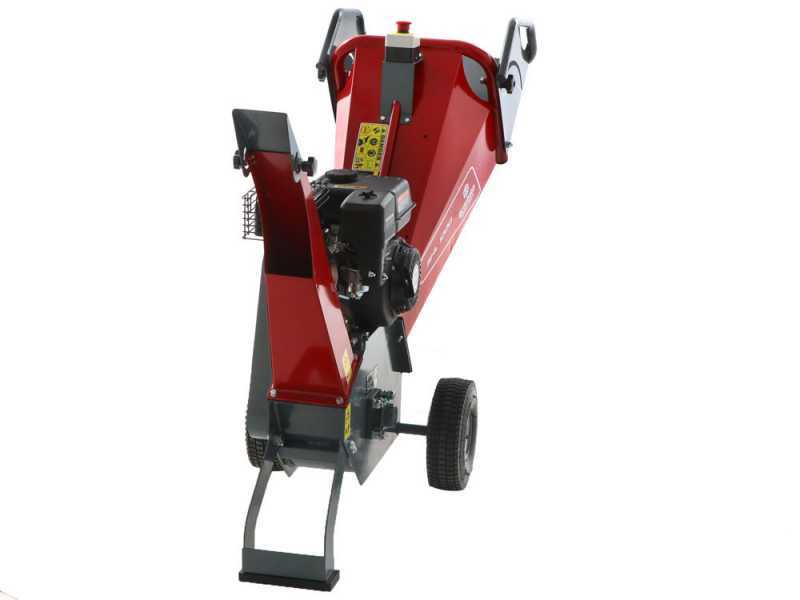

Main features

The exhaust outlet is very high, about 1 metre above the ground, and is equipped with a deflector with adjustable inclination.

It allows discharging the wood chips directly into a box.

Further to the deflector tilt, it is also possible to adjust the discharge chute: indeed it can rotate and simply adjusted either to right or left by manually loosening or tightening the proper knobs.

The front support stand is very large and provides stability to the machine. This allows distributing the weight over a greater surface area, thus preventing the garden shredder sinking into soft grounds.

The Blue Bird garden shredder is equipped with dual grip to facilitate moving operations.

The wood chipper is also provided with 2 pneumatic wheels 4.10- 3.50-4 that ensure easy transport.

Adjustable discharge:

Setting example 1

Setting example 2

Setting example 3

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

  • HONDA GX 330
  • HONDA GX 390
  • Loncin 330 cc
  • Loncin 390 cc
  • Axo 330 cc
  • Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

1° GIFT: SAFETY KIT

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Free items included

The wood chipper is shipped in its original wood packaging on a pallet together with the instructions manual.
