Blue Bird Olimpo 23-56- Battery-Powered Olive Harvester - Fixed Pole - 21V 5Ah

Questions & Answers (1)
ID: K607381

EAN: 8025518495478

MPN: 888480

8,1/10
After-sales assistance & Spare parts
Blue Bird Olimpo 23-56- Battery-Powered Olive Harvester - Fixed Pole - 21V 5Ah
FREE
Multi-purpose Lithium spray grease - 400 mlMulti-purpose Lithium spray grease - 400 ml
Noise-canceling earmuffsNoise-canceling earmuffs
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Head material
ABS
Motion
Double side
Speed (bpm)
2500 bpm
Max. prongs opening
50 cm
Pole material
Carbon
Pole
240
Motor type
Induction
Voltage
21 V
Nominal power (W)
350 W
Motor speed levels
3
Motor type
Battery-powered
Battery type
Li-Ion
Integrated battery
Battery Amperes
5 Ah
Carbon prongs
Product Features
Model:
Olimpo 23-56
Use:
For olive harvester only
Power supply:
Lithium battery
Head material:
ABS
Type:
Li-ion battery-powered
Motor position:
Up - on the head
Motion:
Double side
Integrated battery:
Speed (bpm):
2500 bpm
No. of prongs:
4+4
Prongs length:
32 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Pole:
240
Pole material:
Carbon
Carbon pole:
Pole type:
Fixed
Manufacturing country:
China
Motor data
Motor brand:
Blue Bird
Motor position:
Up - on the head
Motor type:
Battery-powered
Motor type :
Induction
Battery type:
Li-Ion
Motor speed levels:
3
Nominal power (W):
350 W
Power supply:
Battery-powered
Voltage:
21 V
Battery Amperes:
5 Ah
Working autonomy:
3 h
Manufacturing country:
China
Equipment
Rubber-coated soft grip:
Yes
Free gifts/extra features
Ear muffs:
yes
Prongs/rods:
2
Prongs/rods:
2
Tool case:
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
215x50x18 cm
Net weight:
5 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
115x34x11 cm
Gross weight (packaging included) :
6.4 Kg
Assembly time:
15 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 13/12/2024 - 18/12/2024
€ 698,00
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

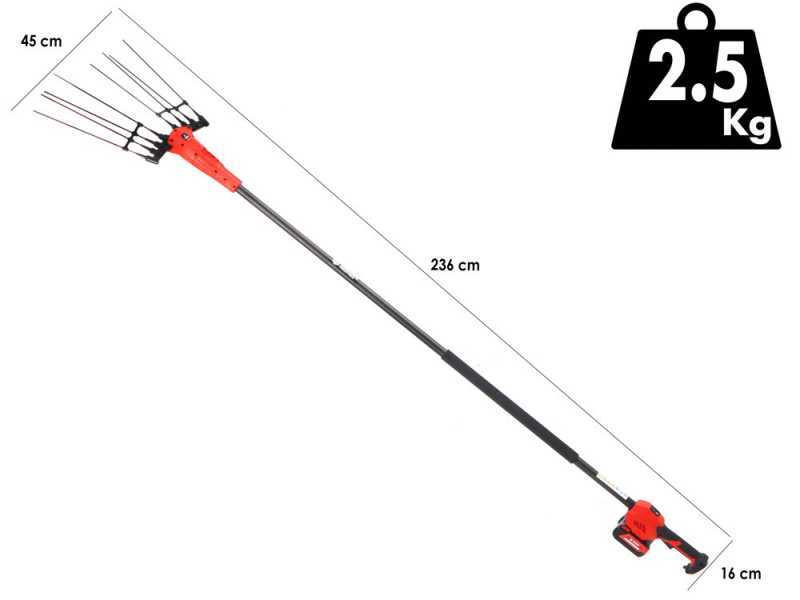

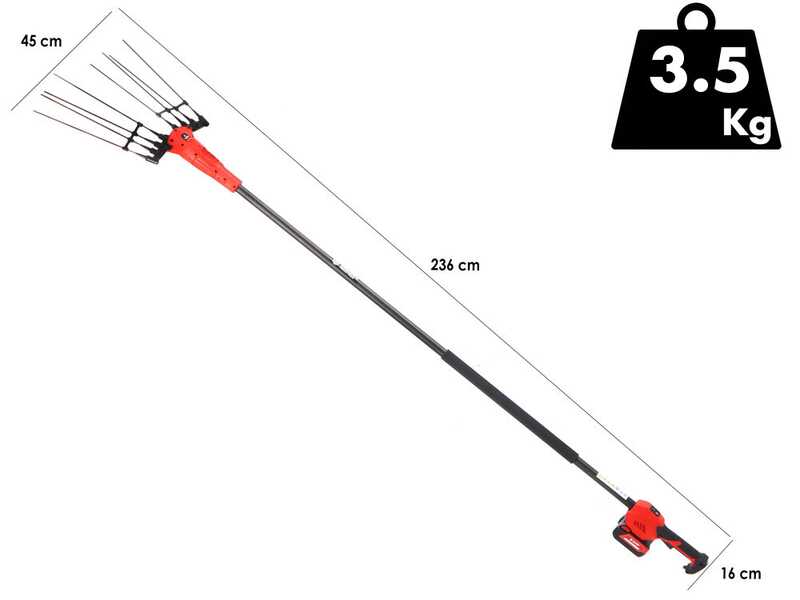

Blue Bird Harvester

The Olimpo 23-56 Blue Bird harvester model combines good operational efficiency with an ergonomic design to improve both productivity and operator well-being.

The rod is made of carbon. It gives the harvester lightness and manoeuvrability. This particular attention to lightness reduces operator fatigue, particularly important during harvesting sessions that require many hours of continuous work. This contributes to a less tiring and more efficient harvesting experience.

Comfort is further emphasized by the addition of a soft grip surface. This surface has been designed to ensure a firm and secure grip, while simultaneously decreasing the tension accumulated in the hands and wrists during prolonged operations.

As far as mechanical performance is concerned, the harvester is equipped with a compact induction motor strategically positioned at the top of the rod. It also facilitates an unhindered penetration between the tree branches, allowing for easier collection.

The working width of 500mm and the possibility of choosing between three different operating modes, this harvester is adjustable to the various needs that each olive grove presents.

Includes 3 x 18V 5Ah batteries.

WARNING:The machine is specified by the manufacturer to operate at a maximum voltage of 21 volts, corresponding to the peak voltage of the built-in battery. The device is designed to operate with a nominal voltage of 18 volts, the same as indicated on the batteries.

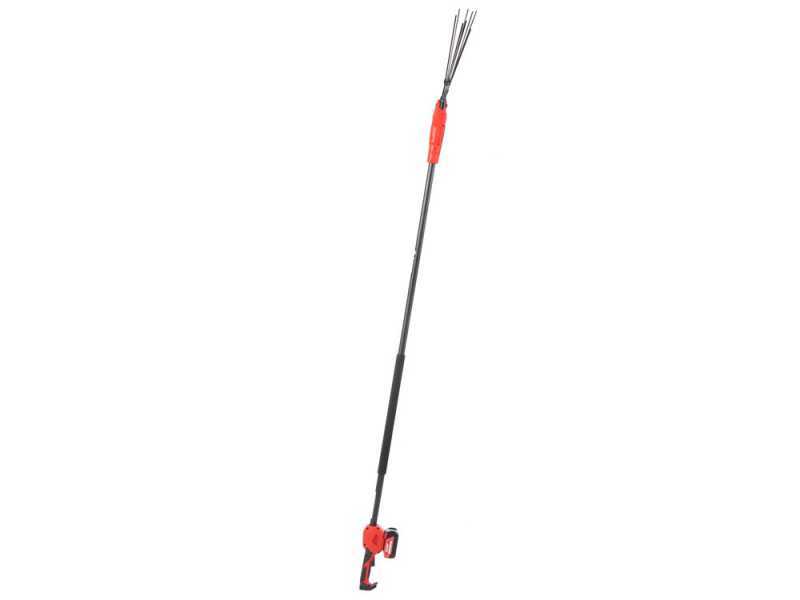

Electric motor and battery

The 21V lithium-ion battery can be recharged at any time (just like the batteries of mobile phones, no memory effect) so it is always ready to use. It lasts an average of 3 times more than a standard battery. The battery is equipped with a comfortable charge indicator.

Main advantages of the electric motor:

  • More reliable than an internal combustion engine. No spark plug, filters, oil dipstick, carburettors, etc. or components which can cause problems.
  • Lighter
  • Zero maintenance, for the same reasons given before.
  • Lower consumption and drastically reduced operating costs compared to internal combustion engines (great results with minimal power required). In addition, the Operator won’t have to buy the fuel (that it should always be fresh).
  • Zero vibrations, thanks to the electric motor. Instead, almost all engine-powered machines, which are not equipped with an anti-vibration system on steel springs, have a very high degree of vibrations, making the work quite unpleasant.
  • Zero fumes, zero impact on the environment and, above all, zero repercussions on the Operator’s health.
  • Much more silent and therefore pleasant to use than an internal combustion engine.

Nominal Voltage: 21V

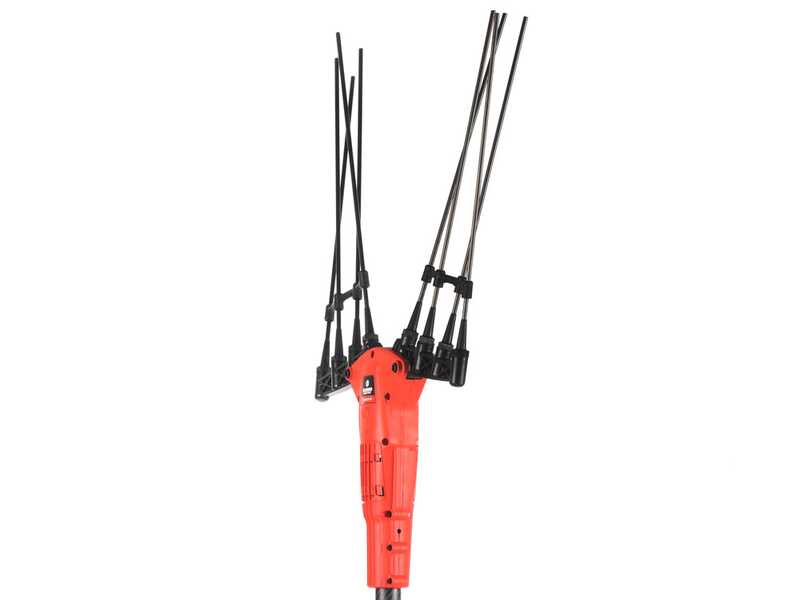

Head and Prong Motion

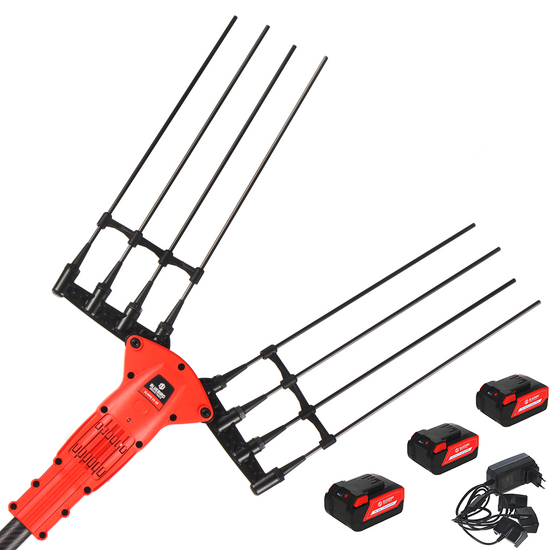

The Blue Bird Harvester consists of 4+4 carbon binder sticks on the head that are easy to replace.

The arms therefore carry a total of 8 carbon fibre rods with facilitated replacement. The prongs are 32 cm long to allow you to enter deep into the foliage.

The collection comb works with a constant horizontal movement.

The induction motor is contained above the head and is very compact to help with the penetration.

Antishock details

Harvester head technical data:

  • Working Width: max 500 mm

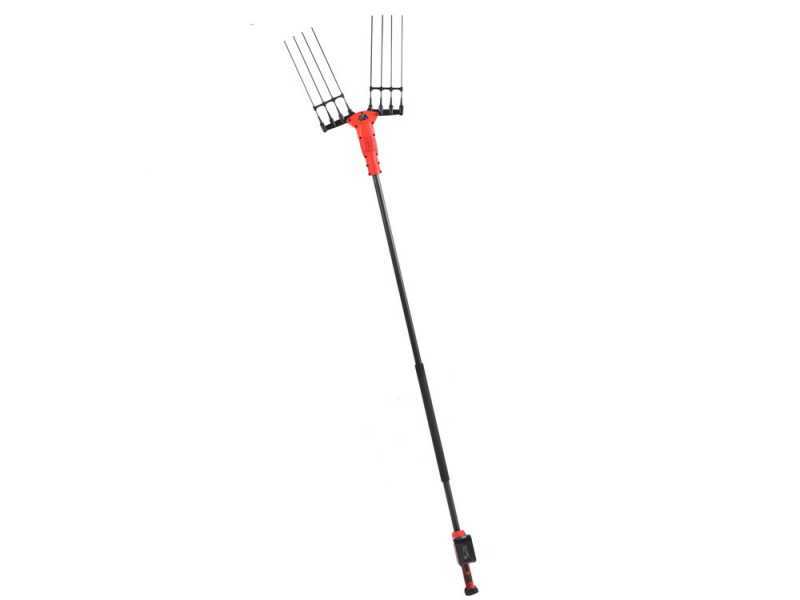

Telescopic Pole

The lightweight 240 cm long carbon rod ensures to reach even the highest points. In addition, the product, because of the material of which it is made of, is very light to guarantee little fatigue to the operator during the work.

The ON/OFF switch at the bottom of the pole allows the Operator, once switched on the machine, to handle it effortlessly as needed. This means that is not necessary to hold a hand on the handle to keep the trigger pushed.

Soft grip part on the pole surface to improve ergonomics .

Power button with display, through this it is possible to select up to 3 modes visible through the display.

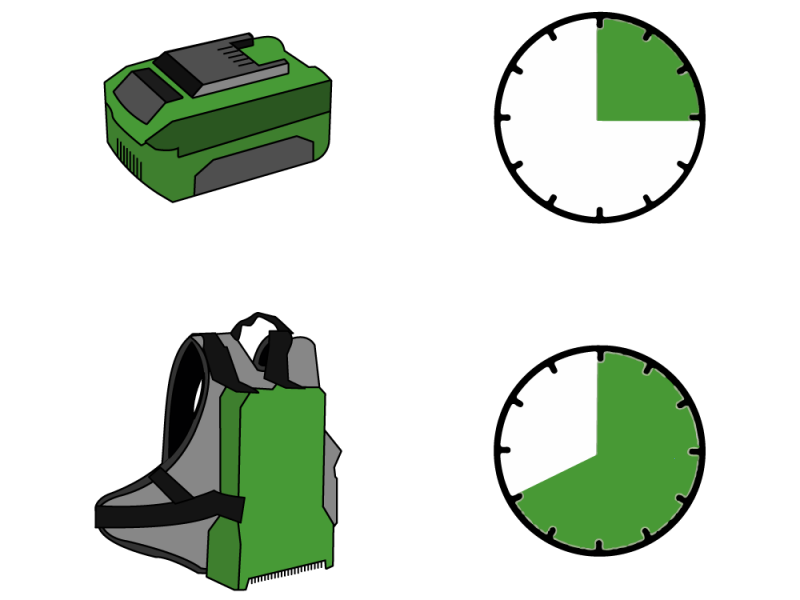

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.
Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.
On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.
However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

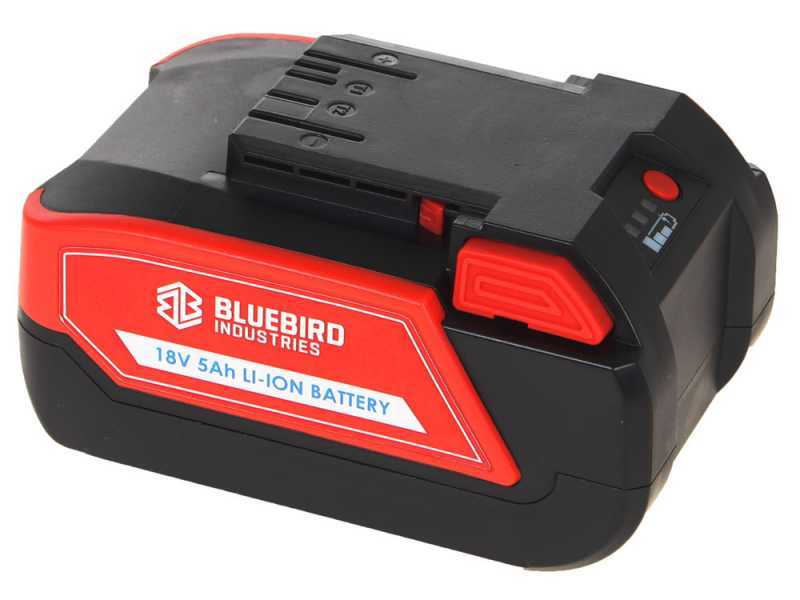

Lithium Battery Advantages

LONGER LIFE: up to 3 times higher than nickel–cadmium batteries, reducing the need to recharge during long periods of use.
Ideal for medium-large gardens.

FULL CHARGE FOR THE ENTIRE BATTERY LIFE: the charge of the lithium-ion batteries does not fade. Unlike nickel-cadmium batteries, which power gradually decreases, lithium-ion batteries’ cells maintain constant power throughout the entire cycle. The same charge for the entire cycle without reducing the motor speed. The battery is running at full power until its complete exhaustion.

LONGER CHARGE LIFE: lithium-Ion batteries last 3-4 times longer than traditional Nickel-Cadmium batteries and their power storage lasts longer so they lose less power. Lithium-ion batteries can be recharged up to 2000 times!

LIGHTWEIGHT: Lithium-ion batteries have the best power-weight rate. They weigh 1/3 of nickel-cadmium ones.

ENVIRONMENTALLY-FRIENDLY: Lithium-ion battery-powered tools are recyclable and are produced without heavy metals.

NO MEMORY EFFECT: lithium-ion batteries can be recharged at any time without negative memory effect. Indeed, they don't fail to provide maximum power even after hundreds of charge cycles.
Few minutes of charge are enough to complete the work.

LOW DISCHARGE RATE: low loss of charge rate (up to 5 times lower than nickel-cadmium batteries) so your machine will be ready to use even after months of storage.

BATTERY CHARGER: lithium-ion batteries chargers allow to reduce energy consumption by an average of 35%.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Free Items Included

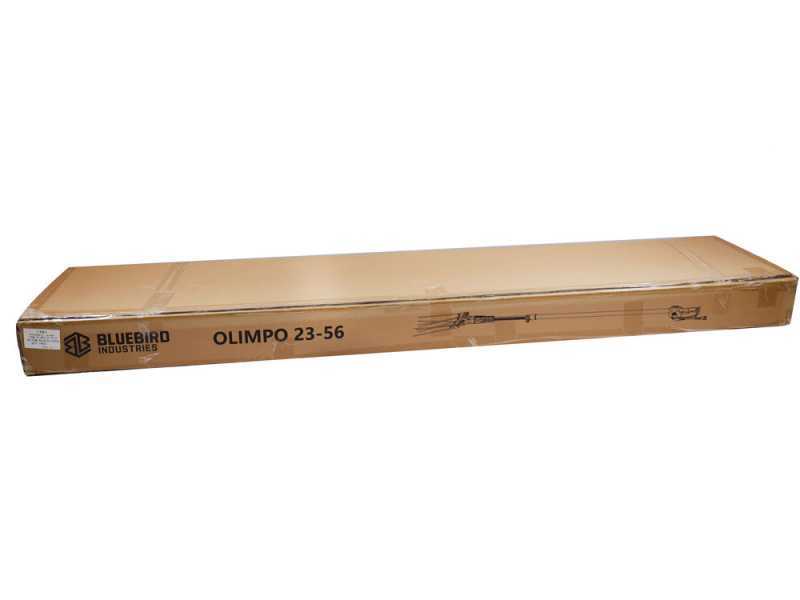

The harvester is shipped in its original packagings.

The package includes:

  • 3 18 V - 5 Ah batteries
  • Battery charger
  • 2 spare prongs
  • Instructions manual
