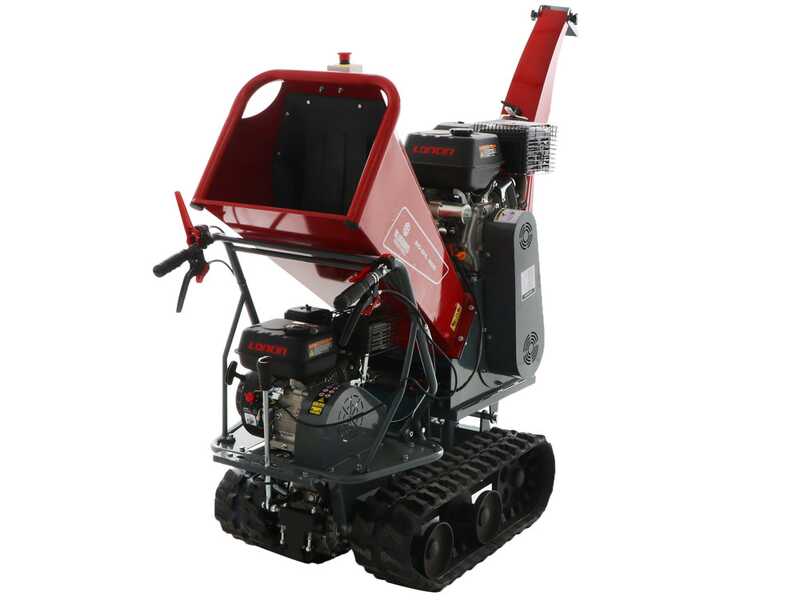

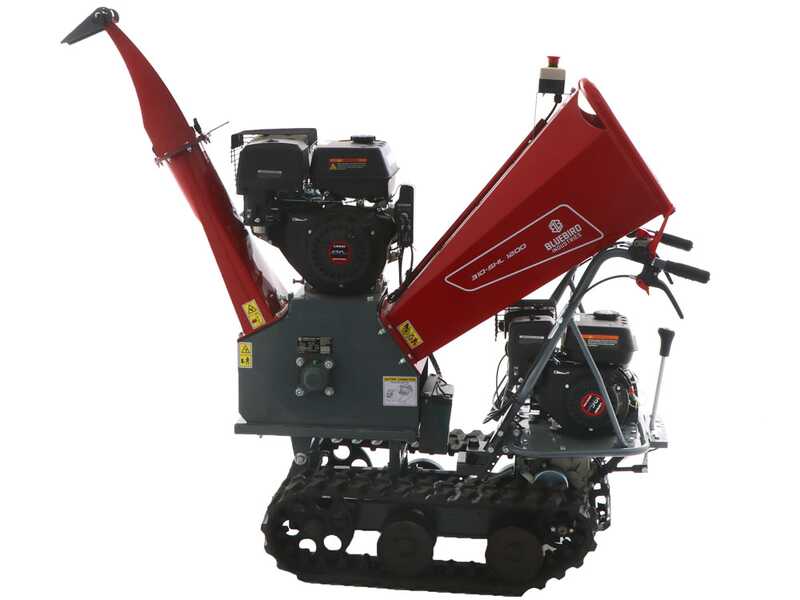

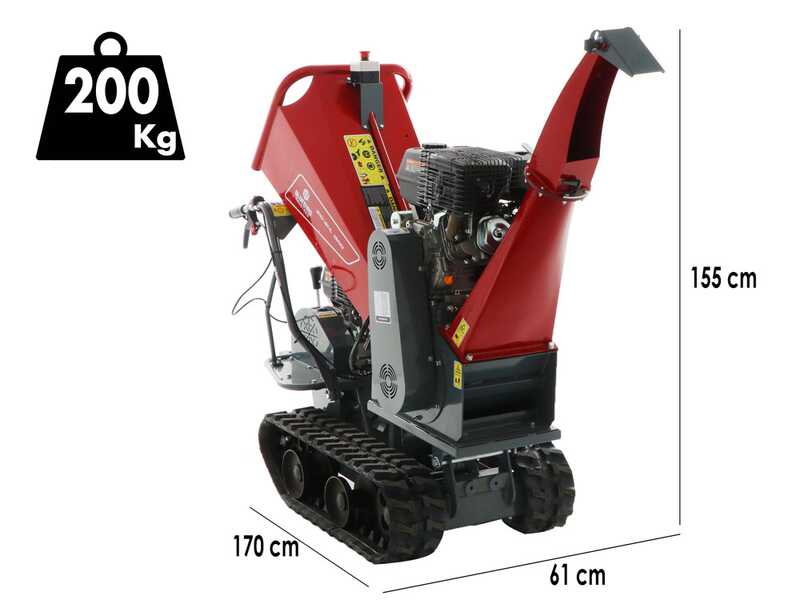

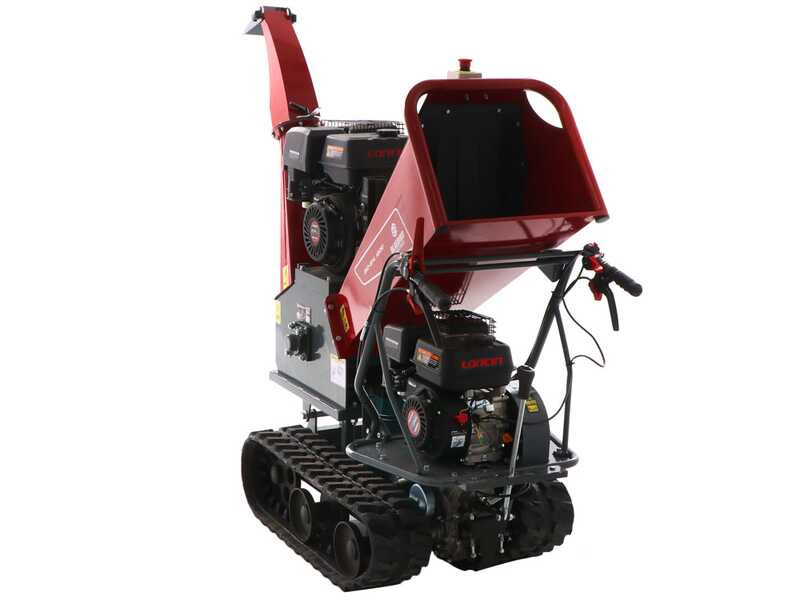

Blue Bird 310-SHL 1200 - Self-propelled track-mounted garden shredder on wheelbarrow - G420F Loncin Engine

The Blue Bird 310-SHL 1200 shredder is the ideal tool for anyone who needs to carry out green maintenance and needs to quickly and efficiently grind the residues of pruning activities.

The design provides a large loading hopper, facilitating the insertion of the material to be processed and, thanks to its ability to crush the material, greatly reduces the time required for its decomposition.

This model of bio-shredder boasts a power of 15Hp and uses a Loncin engine, thus ensuring robust and reliable performance. Mounted on a crawler engine unit, also Loncin with 6.5 Hp power, it is particularly suitable for use on uneven terrain and offers the possibility of mounting the box module provided.

The tracked base has tracks with 2 rollers.

This feature makes it possible to transform the mobile shredder into a practical wheelbarrow with tipping body, facilitating the transport of freshly shredded material or the handling of loads of up to 300 kg.

In addition, the cutting method implemented is based on a drum system, equipped with 2 blades of 233 mm each, thus ensuring an efficient and uniform grinding of the inserted material.

This bio-shredder not only offers an excellent solution for the management of green waste, but also stands as a valuable ally for those looking for a device capable of facilitating the transport of processed material with efficiency and practicality.

Warning

Like all wood chippers and garden shredders, it is not suited for shredding grass, leaves, pine needles, etc. (it is intended to shred branches, but it can also grind leaves, needles and others)

Garden shredders intended use:
- The wood chipper must grind only green branches and not dried ones (which would limit its shredding capacity and lead to quick deterioration of the blades);
- The branches must be preferably long, smooth and not knobby (otherwise the cutting diameter would be reduced);
- The branch cutting diameter indicated is the maximum, so it is advised not to shred larger branches. In this case, it would be better to purchase a shredder with a larger branch cutting diameter;
- The cutting diameter can vary according to the amounts of wood (e.g: oak, olive, plum and peach are hardwood and can reduce the cutting capacity of the wood chipper);

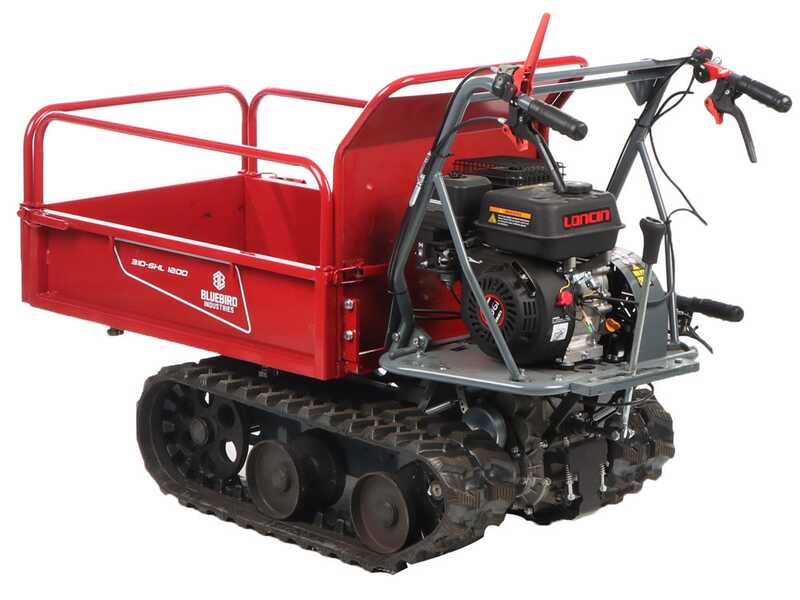

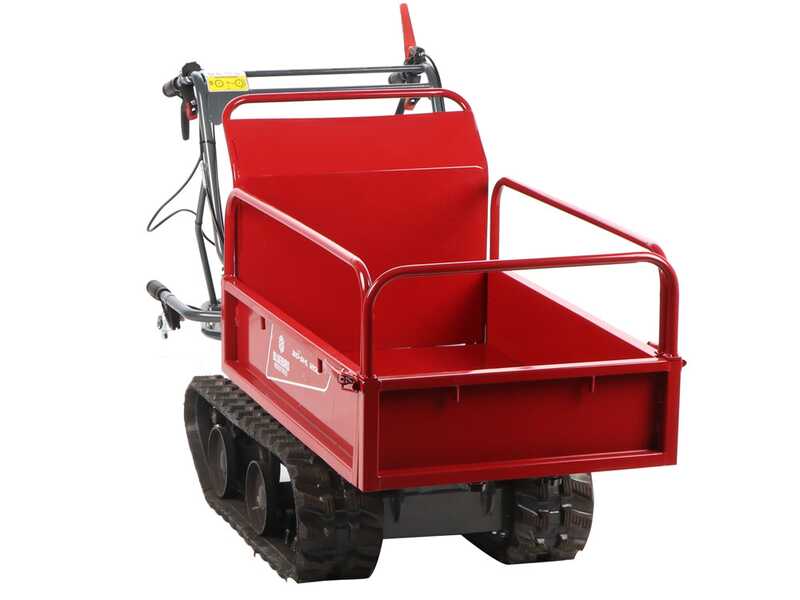

Wheelbarrow has a resistant steel body, reinforced with tubular crossbars in the lower part, making it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading.

The load capacity can be greatly increased thanks to the extendable sides, by means of the knob screws placed under the box.

Handle with lever to overturn the box

Detail of the piston

An example of use is for transporting and loading wood.

Maximum capacity: 300 Kg

Extended barrow dimensions: 940x620x600 mm

Extended barrow dimensions: 1180x880x600 mm

The Loncin V200 engine guarantees high performances, and it is suitable for works where high power is required, achieved thanks to the high displacement of 208 cc.

Features:

Latest generation 4-stroke petrol engine OHV overhead valve shaft and automatic decompressor start.
Easy recoil start thanks to the automatic fuel priming system.

Filter

Tank

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

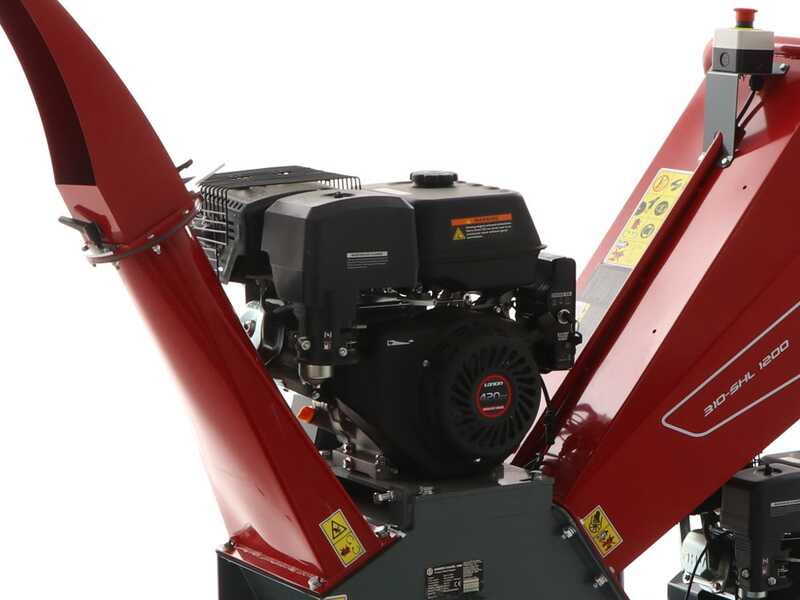

The garden shredder is powered by a powerful Loncin G420F 4-stroke air-cooled engine, 420 cc, with overhead valves and aluminium cylinder.

Features:

The engine of this garden shredder is also equipped with electric start. This machine is equipped with a battery.

Air filter detail:

Engine controls

Focus on the ignition keys

Oil tank

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Controls: easy to operate and ergonomic, they offer precision and controllability in work.

Wide red engine activation lever

The two lower levers are for steering, respectively to the right and left.

The steering can be adjusted depending on the control lever, and it allows moving smoothly. By partially pulling either lever, the steering of the respective track, right or left, will also be partial.

This allows the steering of the wheelbarrow to be steered extremely smoothly, without causing any sudden movements.

Safety brake allows immediate stopping.

Accelerator handle and power supply switch.

Gearbox: large, reliable and precise.

Speeds:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and safety.
These are automatically engaged when the controls are released (leaving the machine in neutral position, even on a steep slope, the machine doesn’t move).

Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

Detail of the knob

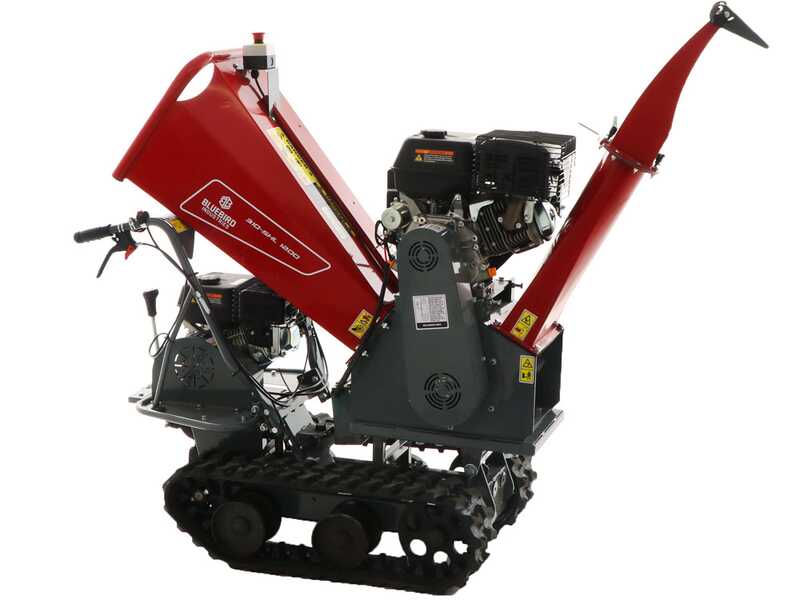

Intermediate double V-belt drive.

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries, as the transmission is directly connected to the shredding cutting system.

The transmission is also equipped with a special expansion clutch contained in the bell housing

Focus on the protection cover with dual ventilation air intake.

Steel hopper capable of receiving even very bulky branches and twigs without pre-processing

• UNIFIED HOPPER:

It considerably simplifies and speeds up the operations.
It avoids the Operator to separate large branches from smaller and green ones (before shredding), while each of them must be entered in their own hopper in standard garden shredders with 2 separate hoppers.

• SELF-FEEDING:

Once introduced the branches into the hopper, the shredder pulls them inside the shredding unit autonomously thanks to the hopper vertical design. Thanks to the gravitational force, the mechanism can pull inside the branches to be shredded.

WARNING: the branches must not be too bulky because this may limit the functionality of the machine.

Black rubber protective bulkheads placed on the hopper opening.

SAFETY SYSTEMS: Equipped with a safety button on the feeding hopper that ensures the possibility to immediately stop the machine when needed.

Details of the bio-shredder mouth.

Large and highly-thick 2 shredding blades mounted on a steel spinning rotor.

The double-blade system is completed by the counter-blade in the shredding chamber.

Internal blade-holder rotor with shaft made by balancing operation.

All roller shredders like this one do their best work by inserting branches that have already been trimmed and cleaned (not thick and with excessive branching);
and they are ideal for branches with a bit of texture and body, and not for thin, green, thick or large branches; this is because the roller system is technically unsuitable for grinding small or minimal diameters, or green material in general, while it really give its best with real branches of a certain body.

This is due to their less "centrifugal" power compared to standard disc and blade models, and to the "greater distance between blade and counter-blade", designed for single branches that are already well cleaned but with a large diameter.

Hopper mouth size: 300x155 mm

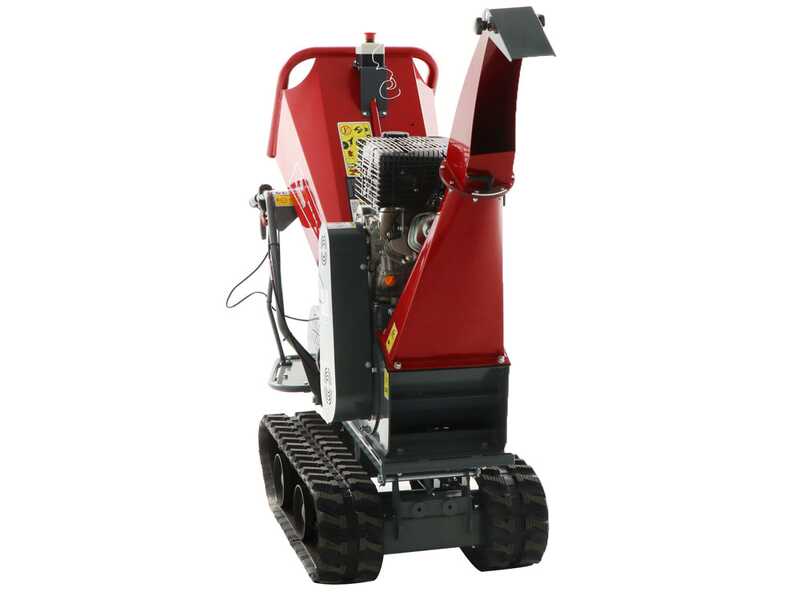

Adjustable discharge chute, 1.5 m from the ground, equipped with adjustable-tilting deflector.

It allows discharging the wood chips directly into a box.

Further to the deflector tilt, it is also possible to adjust the discharge chute: indeed it can rotate and simply adjusted either to right or left by manually loosening or tightening the proper knobs.

Machine equipped with tracks that with their width (180 mm) and tread profile ensure perfect grip and stability on all types of terrain.

The 2-roller tracks, thanks to their width and tread profile, guarantee perfect grip and stability on all types of terrain. Made of reinforced rubber with high grip.
