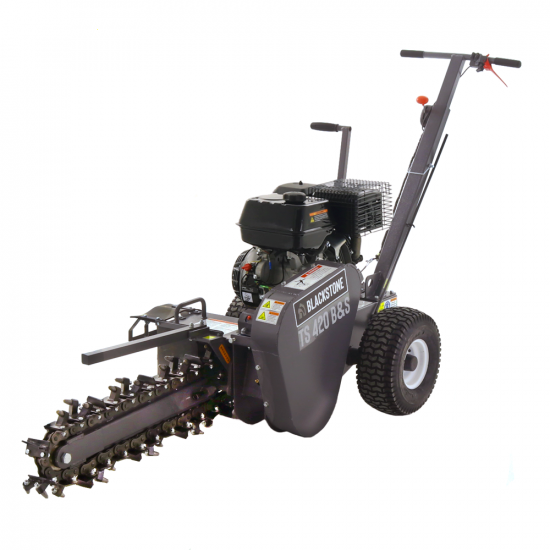

BlackStone TS 420 L - Petrol Catenary - Loncin G420F

Machine with steel frame for heavy-duty use with a durable powder coated finish

The trencher is great for quick excavations intended for laying piping and / or electrical cables. Its cutting action, thanks to 27 blades in carbide alloy, is ideal for very compact hard soils, even if there are stones.

Thanks to a single handle, it is possible to choose up to four handlebar heights, which can change also the trencher excavation depth.

It is easy to use and provides operators with a powerful cutting capacity

Thanks to the 27 blades, the machine can penetrate quietly in the soil, avoiding major property damage.

• Machine digging capacity: 60m/h
• Working width of: 100 mm
• Working length of : 800 mm

Thanks to the compact design, the machine can also be used in confined spaces.

These machines are equipped with low speed and high torque, which provide an optimal penetration into the soil and a lower wear of the chain with better results at the same time.

Laying the cables in the garden or building an irrigation system is a job that requires a lot of effort and time, thanks to the trencher you can do the job in the shortest possible time and with less effort.

Features:

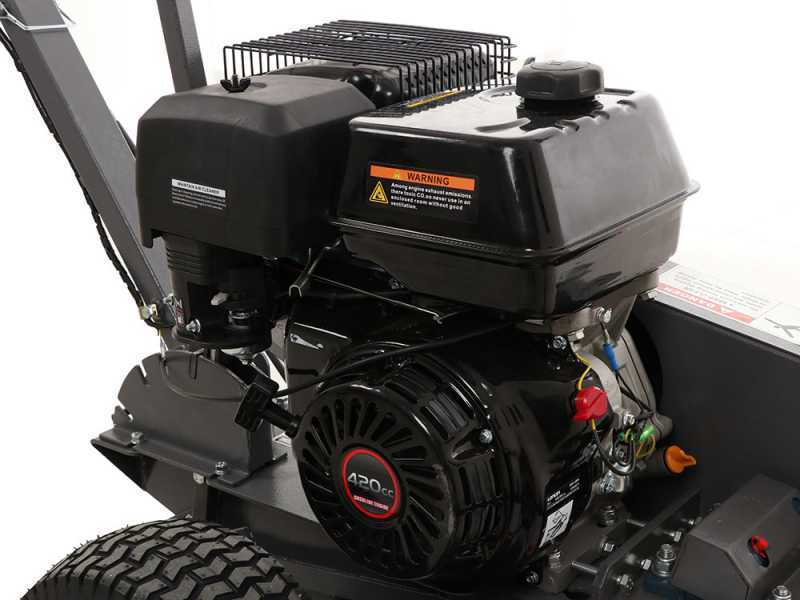

• Model and brand of the engine: Loncin G 420 F
• Single-cylinder engine type : 4-Stroke- OHV
• Cylinder type: Aluminium
• Displacement: 420 cm³
• Power: 15 Hp

Focus on air filter

Focus on the spark plug

Focus on the air adjustment and tank lever

Rated Power: 15 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 13 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

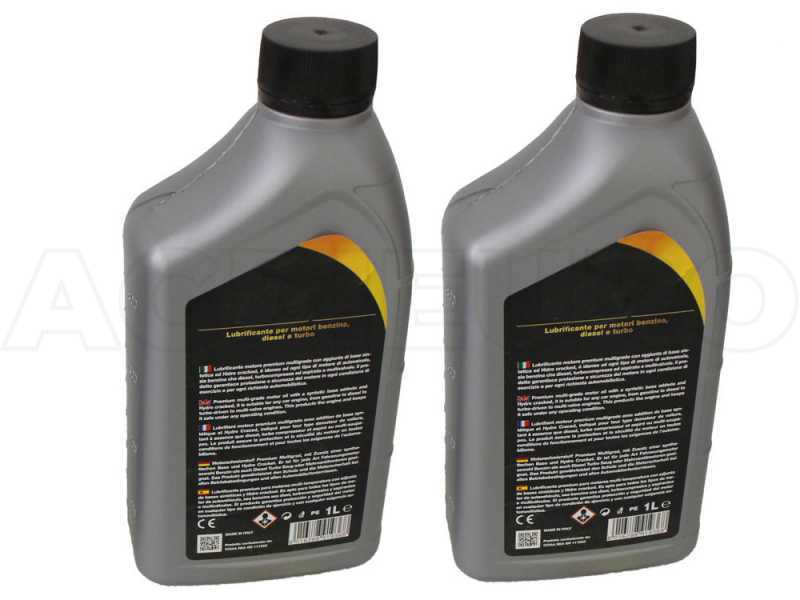

The engine is PROVIDED WITHOUT OIL.
Before starting, please read the instruction manual.

CAUTION: do not use it at maximum speed, in addition to not obtaining an efficient grinding of the branches and not be able to grind larger diameters, may involve a whole series of anomalies:
- lowering speed or stopping the engine during its use;
- rapid deterioration of the transmission belts between the motor and the rotor;
- damage to the centrifugal clutch which, if the engine is not at full speed, you do not get the full expansion of the same by determining the consumption of up to burn and need to be replaced;

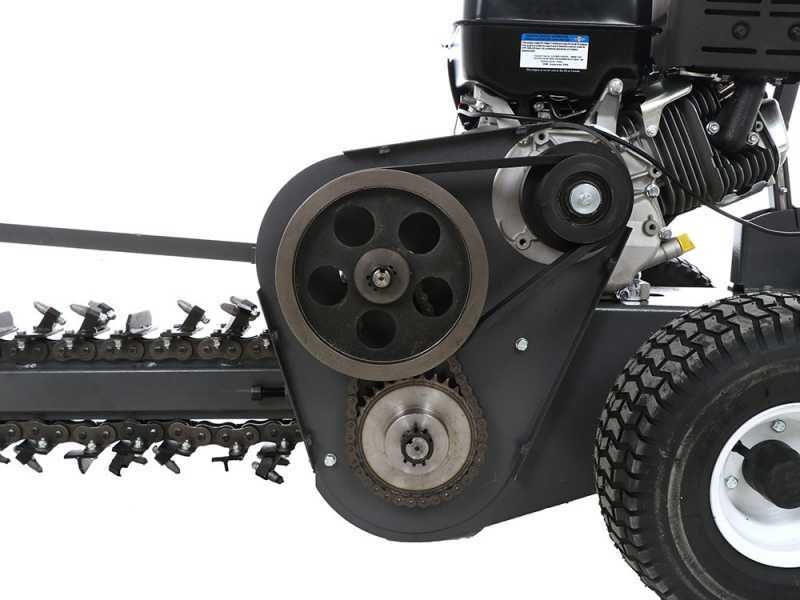

The trencher is equipped with intermediate double belt drive transmission.

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machinery directly connected to the shredding cutting system.

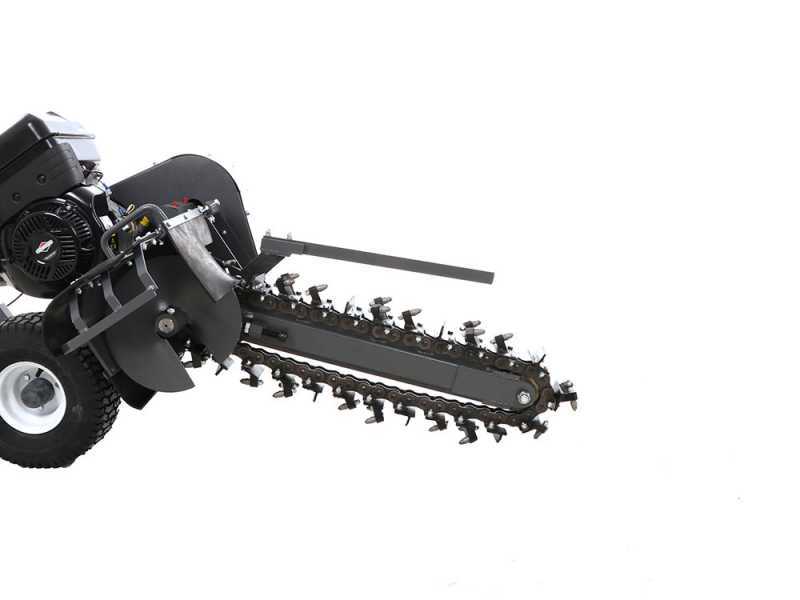

Its cutting action, thanks to 27 blades in carbide alloy, is ideal for very compact hard soils.

The TS 420 B & S trencher has four different digging depths:

• 0mm
• 200mm
• 400mm
• 600mm

Which makes it a great product on the market!

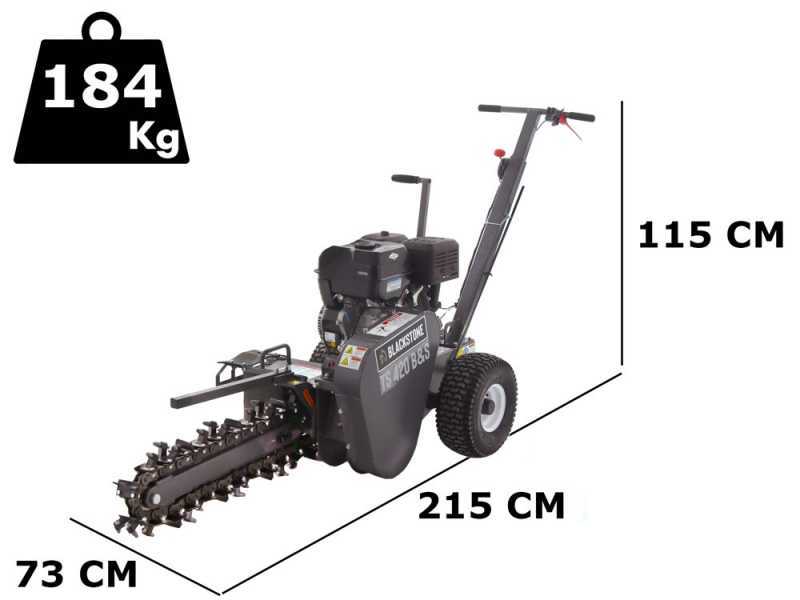

With a compact, narrow design, it can also be used in confined spaces.

The digging capacity of the machine is 60m / h, and it has a working width of 100mm, excellent for quick excavations intended for the laying of pipes and / or electrical cables.

Working length of 775 cm.

Focus on the rotor lubrication system

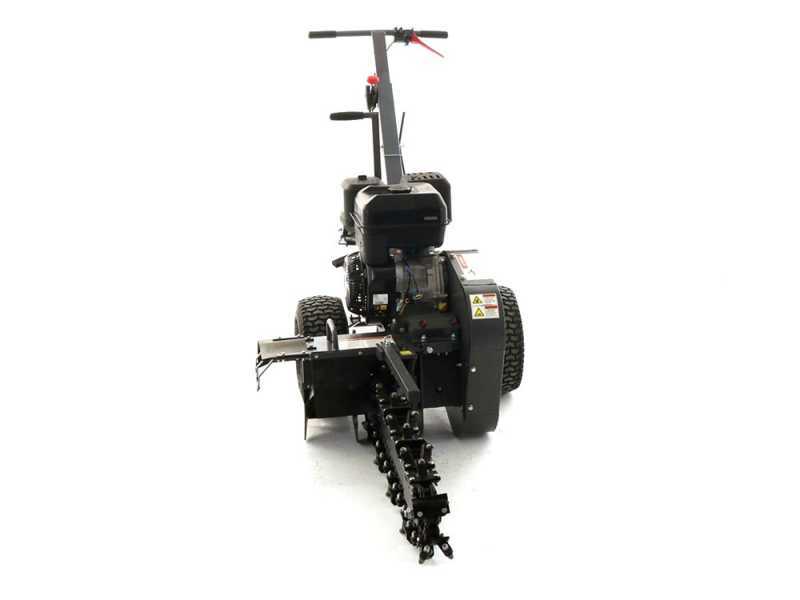

The main controls of the trencher are simple and intuitive.

Thanks to a single handle, it is possible to choose up to four handlebar heights, which can change also the trencher excavation depth.

• 0
• 1
• 2
• 3

Switch to stop the machine

Provided with throttle lever of the engine rpm.

Focus on the brake lever:

• 1 : added brake
• 2 :not added brake

Handlebar and adjustable excavation depth in 4 different positions. #-2

Tires from 15x6.00-6 Perfect for all terrain and with optimal manoeuvrability.

Wheel brake of easy access for safe operation.

Protective casing of belt, to avoid hits and damage

Comfortable and practical handle to ease transportation

Machine manual lifting pole

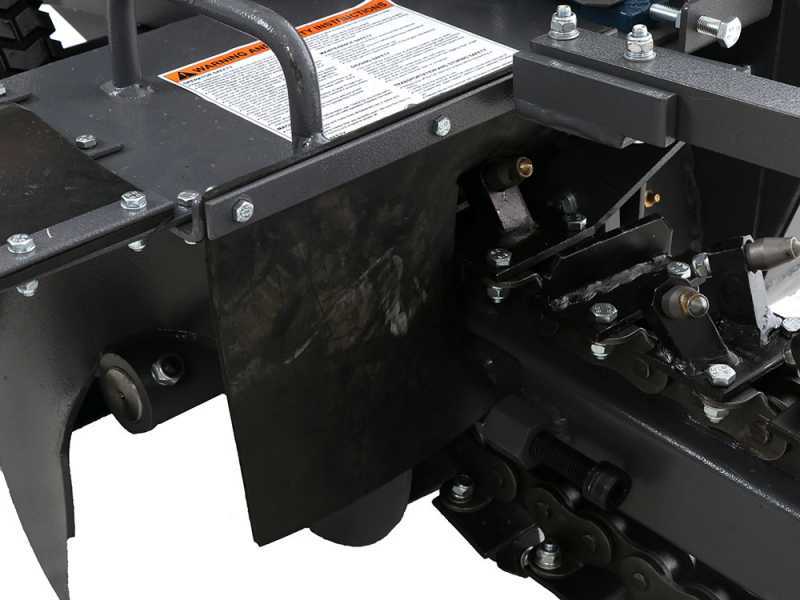

Protection device additional to the cutting apparatus

Focus on the chain tensioner

Focus on the tension adjustment or replacement of the belt

Focus on the lube of the primary shaft supporting the trencher

Chain Length: 2057mm

Chain Speed (Max) 550m/min

Thick steel 5.42mm
