Name: Blackstone TB 3250 F Tracked Power Barrow with Tilting Sides - 320Kg Capacity
Brand: BlackStone
SKU: K503328
Price: 1193.27 EUR
Availability: OutOfStock
Rating: 4.4 (163 reviews)

Description

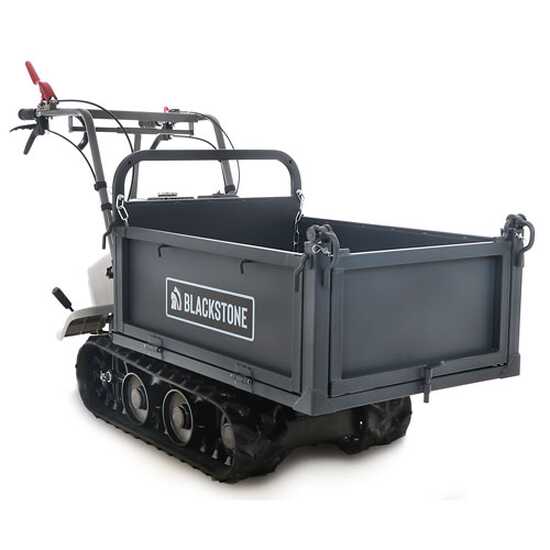

Blackstone TB 3250 F Tracked Power Barrow

Tracked power barrow with a overturning barrow with a actual capacity of 320 kg.

Thanks to its tracks and to the petrol engine of 196cc this wheelbarrow is capable of carrying loads of 320 Kg also on sloping grounds, thus being an indispensable tool for each type of transport (wood, concrete, bricks, rubble, debris, etc.).

The robust steel frame and the gearbox 6 forward and 2 back gears make this wheelbarrow versatile and efficient.

Equipped with a barrow with 3 openable and removable sides which allow to considerably increase the load carrying capacity of this wheelbarrow.

Moreover, another great advantage is the tilting front panel that allows to obtain an extraordinary versatility of work.

The mechanical overturning by means of a lever and the barrow with hinged sides make this model extremely versatile and easy to use.

Blackstone TB 3250 F Tracked Power Barrow with Tilting Sides - 320Kg Capacity

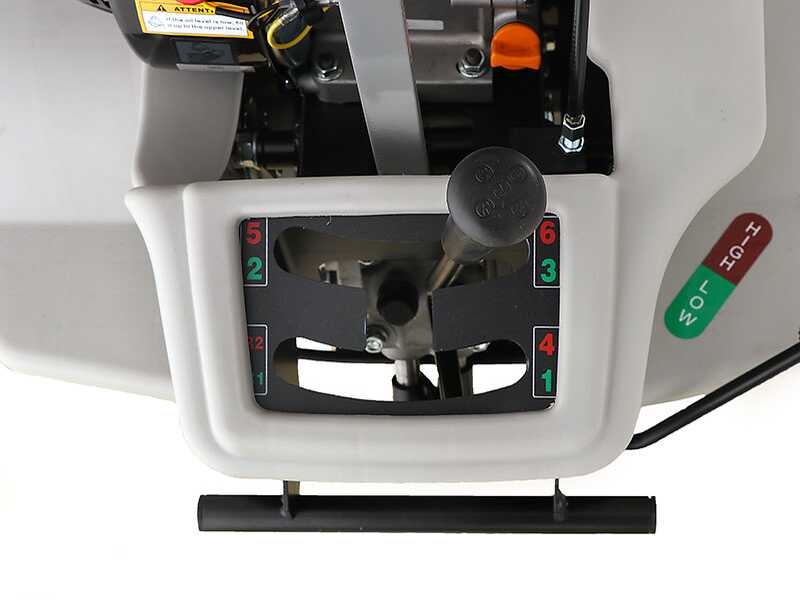

Gearbox, Parking Brake and Transmission

Gearbox: Large, reliable and accurate.

Speed:
6 forward 2 reverse gears

Gearbox large, robust and reliable with thick protection from stones or other objects present on the ground

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

Handy lever to change from lower gears (1, 2, 3) and higher gears (4, 5, 6).

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

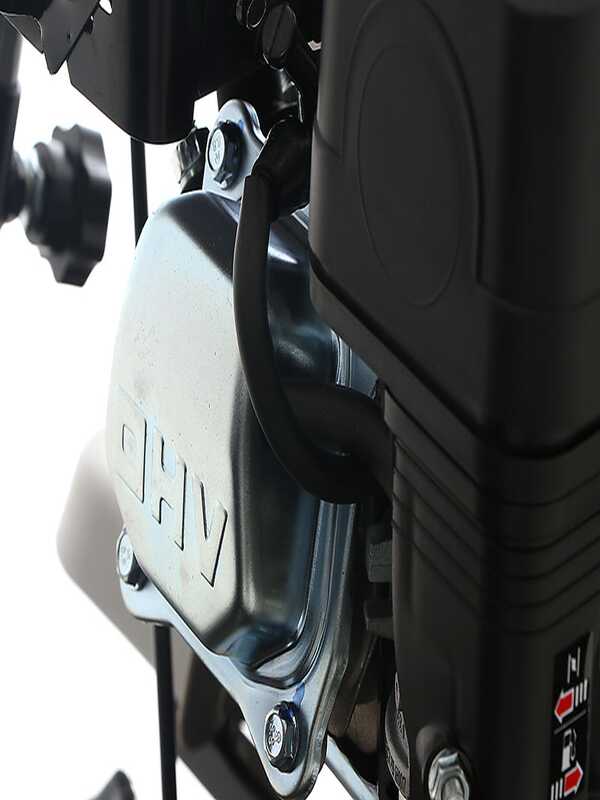

4 Stroke Petrol Engine

The engine is a 4 stroke petrol engine and features the OHV overhead valve technology.

It is positioned in the front area of the wheelbarrow so as to be able to gain immediate access to all mechanical parts and facilitate maintenance operations.

Traditional recoil starter with self-retracting lanyard

Features:

Engine Type

4-Stroke, single cylinder 4 stroke - OHV

Cylinder type:

Aluminum

Cubic Capacity:

196 cm³

Power:

6.5 HP

The motor is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

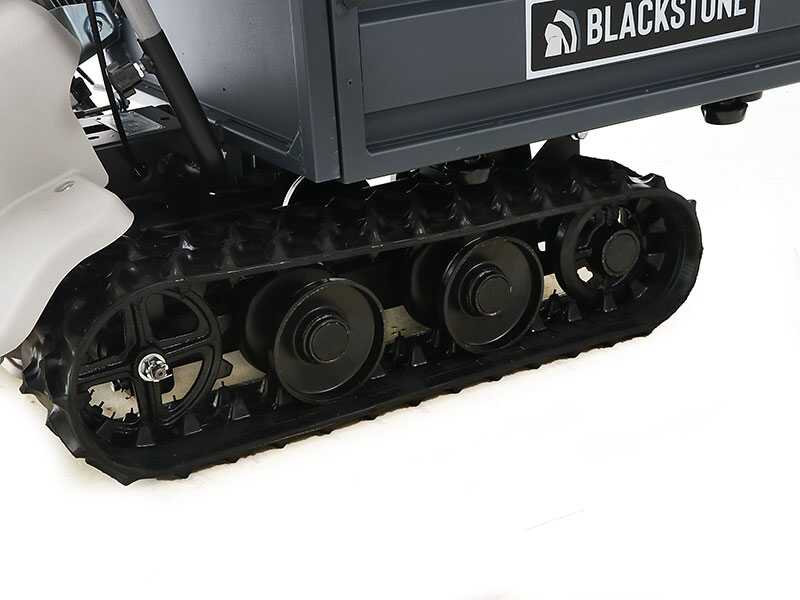

Tracks and Cart

The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground.

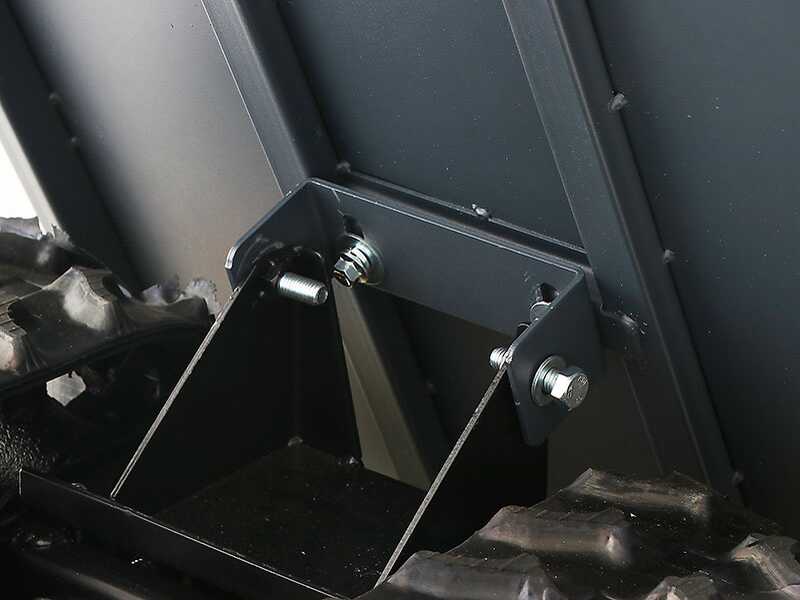

Frame

The robust frame with steel structure in high thickness which limits the vibrations and noise. The low center of gravity also ensures an optimal stability during the work. The position of the engine and of the transmission facilitates maintenance.

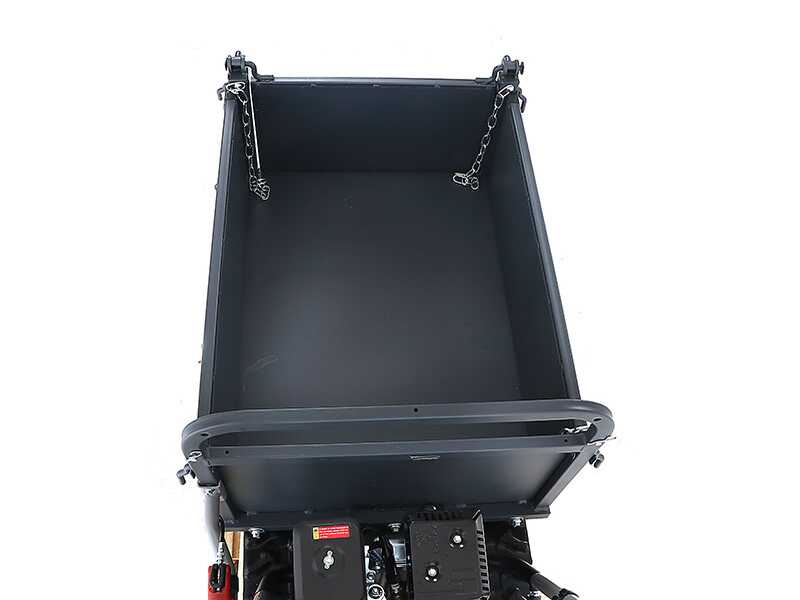

Tipping Barrow with Hinged Sides

High resistance steel barrow. The loading platform is at the minimum distance from the ground to facilitate loading / unloading operations

Mechanical tipping: Manually activated with the appropriate rubberized release lever with spring, and facilitated (in case of heavy loads) by the barrow lifting lever placed on the side.

Opening sides: to significantly increase the size of the load floor, it allows to also optimize the most bulky transport.

Moreover, another great advantage is the tilting front panel which allows to obtain an extraordinary versatility of work during unloading of materials such as sand, earth, debris etc.

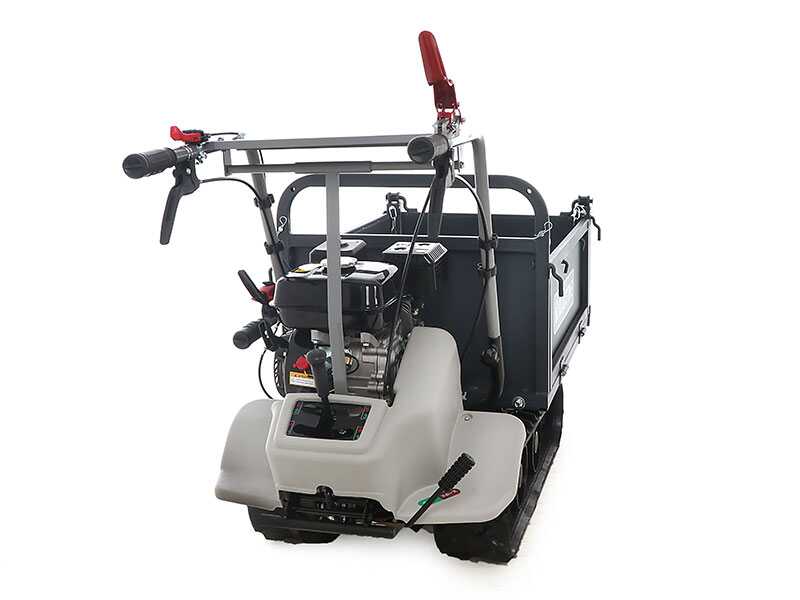

Controls

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the wheelbarrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Accelerator lever and power switch

The High-Low lever supports wheelbarrows when climbing uneven terrain, thus slowing the machine down and improving its grip on the ground.
