Name: BlackStone TB 3250 D Tracked Power Barrow - Manual dumper - Max load capacity 320 Kg
Brand: BlackStone
SKU: K603355
Price: 1330.58 EUR
Availability: InStock
Rating: 4.58 (30 reviews)

Description

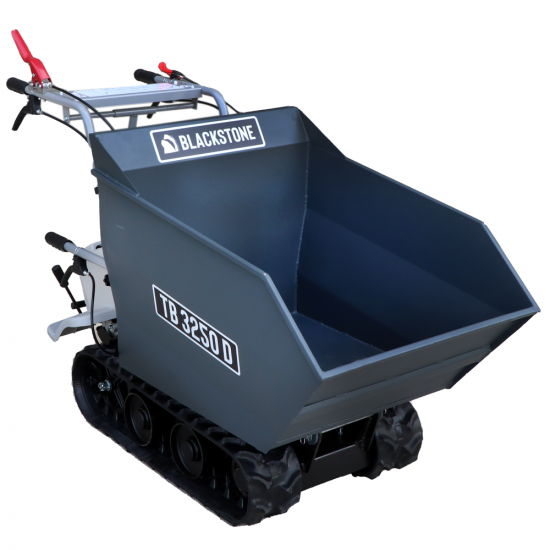

BlackStone TB 3250 D Tracked Power Barrow

BlackStone TB 3250 D Tracked Power Barrow:

This power barrow features an effective load capacity of 320 Kg, thanks to the powerful engine 196 cc, 6.5 HP.

The gearbox consists of 8 gears, 6 forward and 2 reverse speed gears, and this is due to the lever that allows you to choose between high and low gears.

Thanks to highlighted features, the BlackStone tracked power barrow is able to reach 4.9 Km/h, as to carry out high working performance on large areas.

The dumper is equipped with manual overturning with an unloading angle of 60°.

BlackStone TB 3250 D Tracked Power Barrow - Manual dumper - Max load capacity 320 Kg

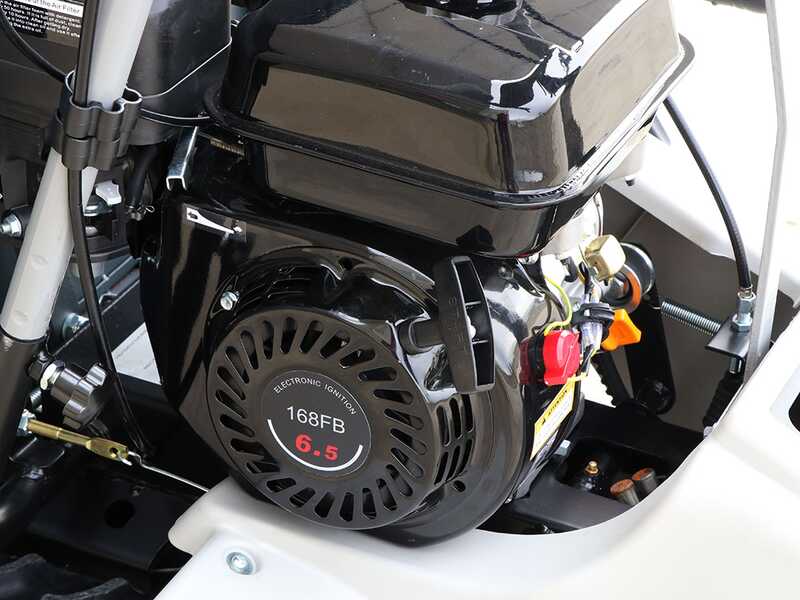

Engine 196 cc

The engine is suitable for works where a great power is required obtained thanks to the high displacement of 196 cc

Features:

Engine type

Single-cylinder 4-stroke - OHV

Cubic Capacity:

196 cm³

Fuel:

Petrol

Power output

6.5 HP

Brand new 4-stroke engine overhead valve shaft OHV starting with automatic decompressor ).

Easy recoil start thanks to the automatic fuel priming system.

WARNING The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Spark plug

Air filter

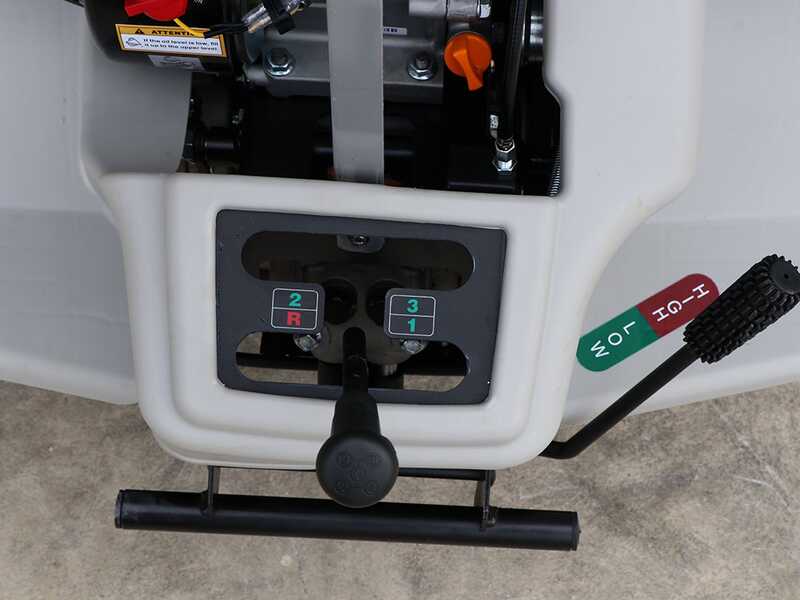

Gearbox and transmission

Gearbox: large, reliable and accurate.
The wheelbarrow is provided with reducer gears, which allows him to double the gears and get to 6 to go forward and 2 for reverse. Thanks to the regulator will be able to always have the right traction in any situation. The use the same concept as off-road vehicles.

Through the lever located to the right of gearbox it will be possible to choose between two speeds. The fastest gears are indicated for the smoothest portions while setting the low speed (Low range) it will be possible to cross with ease even the roughest spots.

Transmission:

Standard lightweight and reliable belt drive transmission

This allows to better manage the steering acting on the single track deactivating the rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

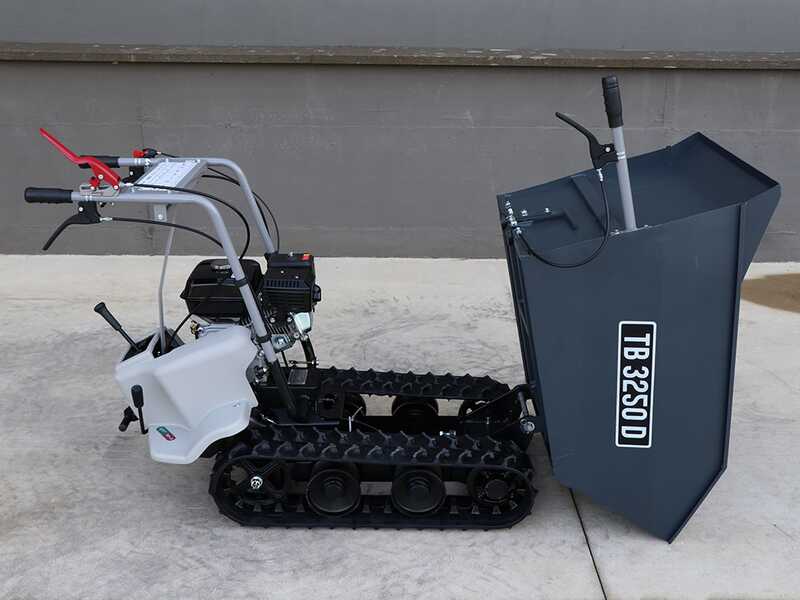

Dumper with tipping system

Barrow in high-strength steel. It is reinforced with tubular cross members in the lower part, which make it suitable for any load or impact. The power barrow has an effective capacity of 320 Kg even on sloping grounds.

The barrow is manually tilted by means of special lever.
In this way, all the working steps will be much facilitated.

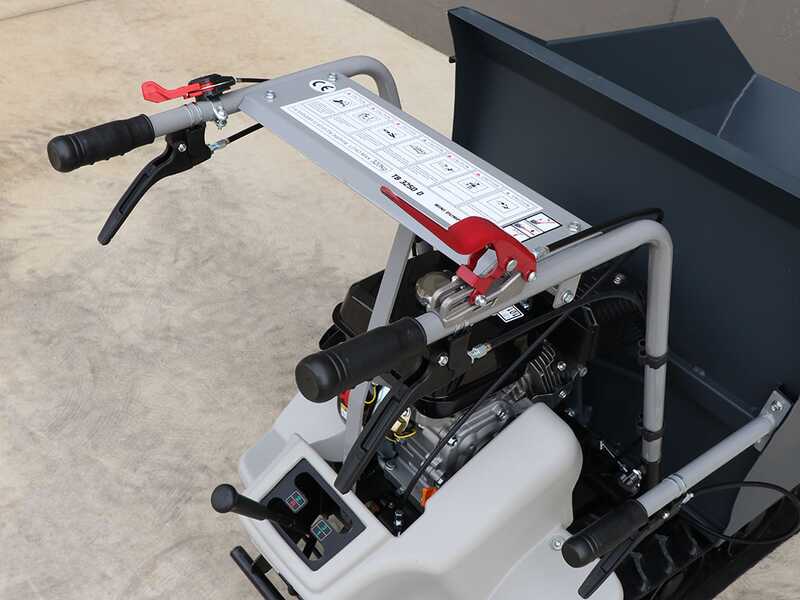

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.Throttle lever and power switch.

The High-Low lever supports wheelbarrows when climbing uneven terrain, thus slowing the machine down and increasing its grip on the ground.
