Name: Blackstone TB 3250 E - Extendable Tracked Power Barrow - Capacity 320Kg
Brand: BlackStone
SKU: K503316
Price: 1283.51 EUR
Availability: InStock
Rating: 4.43 (167 reviews)

Description

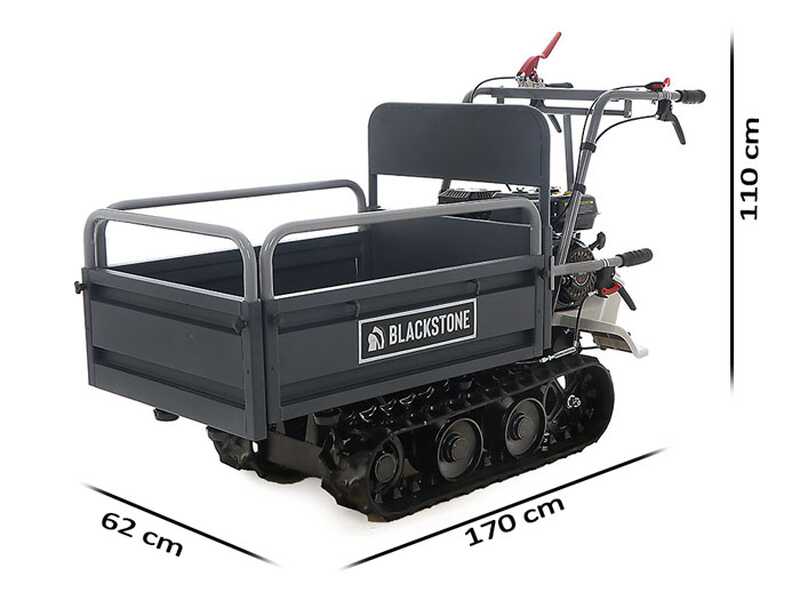

Blackstone TB 3250 E Power Barrow

Power barrow with extendable skip with an effective capacity of 320 kg.

Thanks to its self-propulsion on tracks and the 196cc combustion engine, this power barrow is capable of transporting loads of 320 Kg even on slopes, making it an indispensable tool for all types of transport (wood, cement, bricks, rubble, debris, etc.)

The robust steel frame and the 6 forward gears and 2 reverse gears make this power barrow versatile and efficient.

Equipped with an extendable skip that significantly increases the load capacity of this power barrow.

Additionally, another great advantage is the provision of removable additional sides, allowing for extraordinary work versatility.

Mechanical tipping via a lever and the extendable skip make this model extremely versatile and easy to use.

Blackstone TB 3250 E - Extendable Tracked Power Barrow - Capacity 320Kg

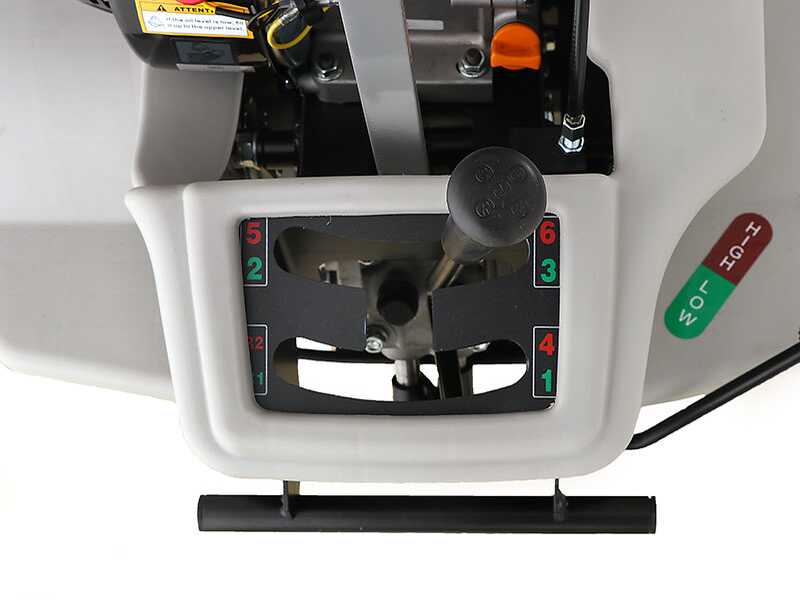

Gearbox, Parking Brakes, and Transmission

Gearbox: large, reliable, and precise.

Speeds:
6 forward gears, 2 reverse gears

Large gearbox, robust and reliable with thick protection from stones or other objects on the ground

Parking brakes:
attached to the gearbox, for greater stability and safety.
These activate automatically when the controls are released (leaving the machine in neutral, even on steep slopes, the machine remains perfectly locked)

Transmission:
Robust and durable, allows steering by acting on the single track, deactivating its rotation

Convenient lever to change gears from low (1, 2, 3) to high (4, 5, 6).

The machine is supplied by the manufacturer with transmission oil at level. However, ALWAYS check oil levels before starting as specified in the instruction and maintenance manual.

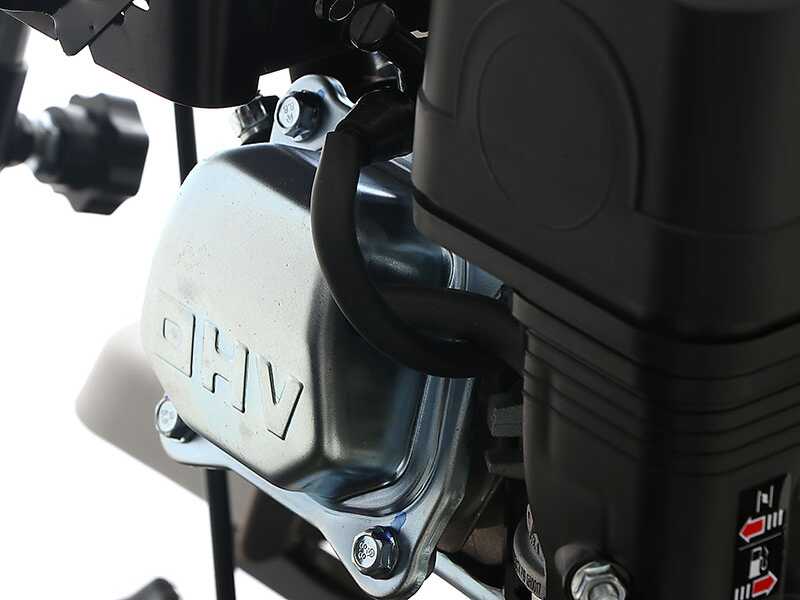

4-Stroke Petrol Engine

The 4-stroke petrol engine features overhead valve technology.

It is positioned at the front of the power barrow to allow immediate access to all mechanical parts and facilitate maintenance operations.

Traditional recoil start with self-winding cord

Features:

Engine type

Single-cylinder 4-stroke - OHV

Cylinder type

Aluminium

Displacement

196 cm³

Power

6.5 HP

The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

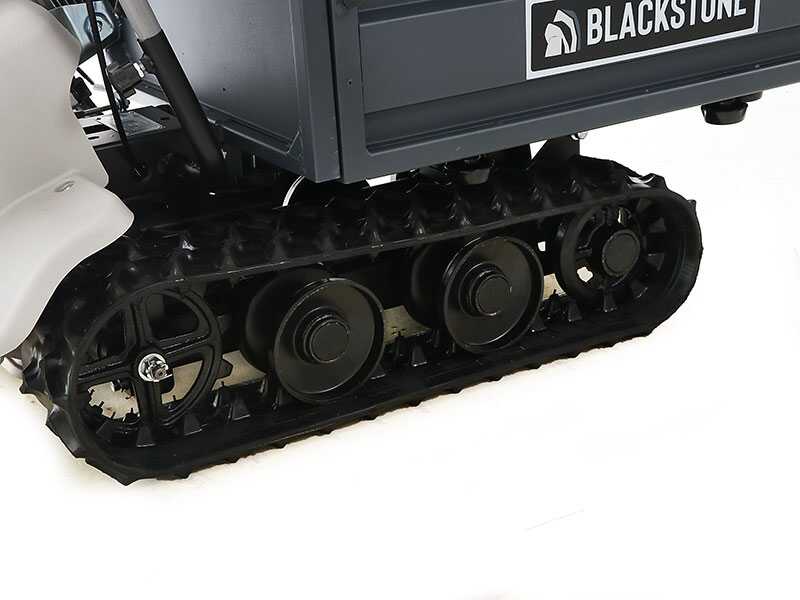

Tracks and Chassis

With their width and tread profile, they ensure perfect grip and stability on any type of terrain. Made of special reinforced rubber with high grip, they can tackle any type of surface and step.

Track dimensions: 164.5x69x103.5 cm

The perfect front/rear balance ensures load distribution and perfect ground adherence.

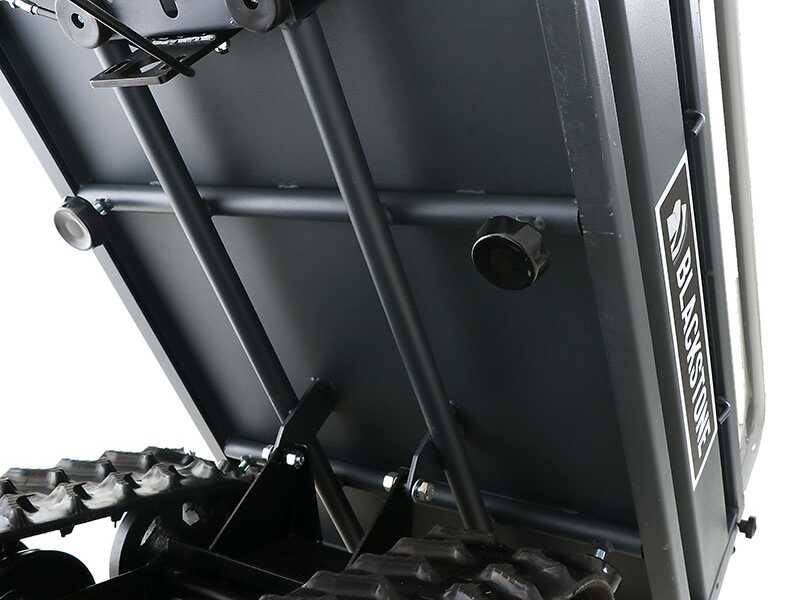

Frame

Robust frame with high-thickness boxed steel structure that limits vibrations and noise. The low centre of gravity also ensures optimal stability during work. The position of the engine and transmission facilitates maintenance.

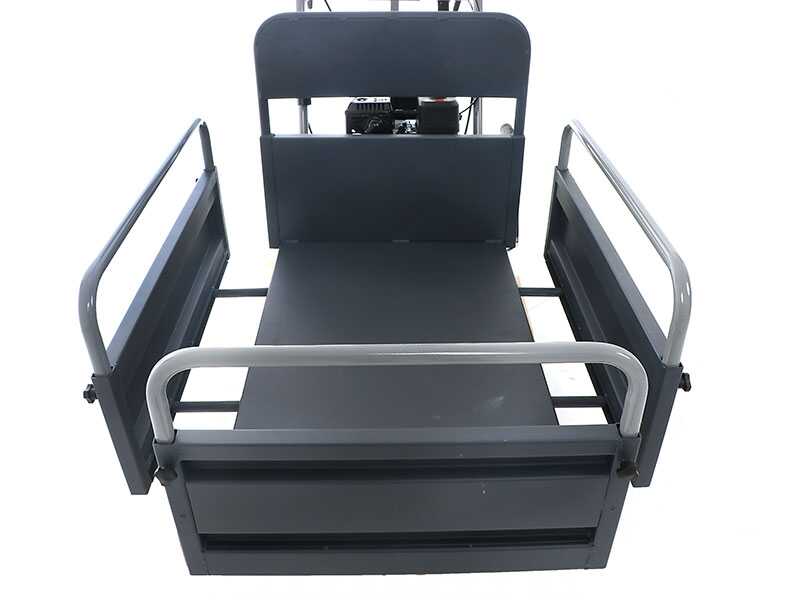

Tilting and Extendable Skip

High-strength steel skip, reinforced with tubular crossbars at the bottom, making it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations.

It is possible to remove the tubular crossbars with a simple gesture.

An example of use is for transporting and loading wood.
By using the additional sides, it is possible to increase the load, significantly reducing the number of transports required for the work.

Mechanical tipping: activated manually with the appropriate rubber-coated release lever equipped with a spring, and facilitated (in case of heavy loads) by the long skip lifting lever located on the side.

Extendable sides: to significantly increase the dimensions of the loading platform, allowing for optimization of even the most voluminous transports

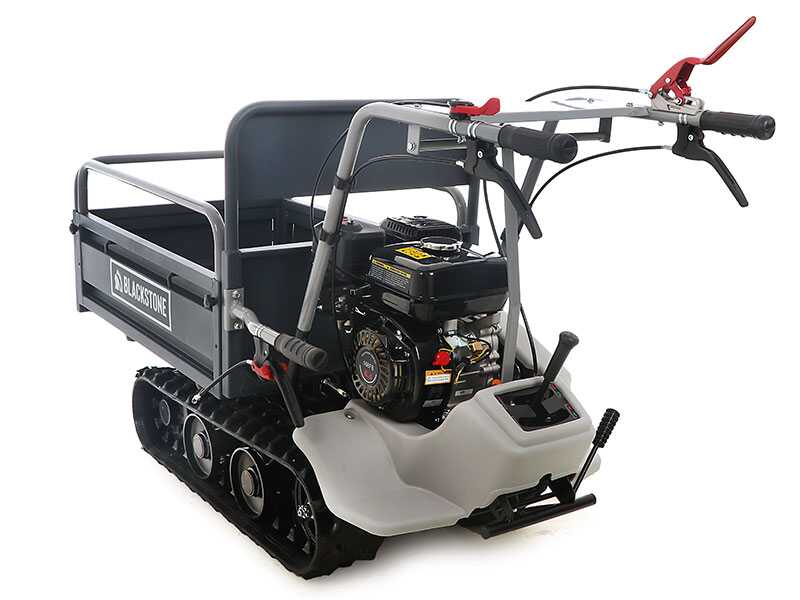

Controls

Controls: easy to operate and ergonomic, offering precision and controllability in work.

Wide red activation lever.

The two lower levers are for steering, respectively to the right and left.

The steering is adjustable according to the control lever and allows for easy movement. Partially pulling one or the other lever will also partially steer the respective track, right or left.
This allows the power barrow to steer extremely easily, without causing abrupt movements.

Safety brake that allows immediate stopping.

Throttle lever and power supply switch

The High-Low lever helps the power barrows to climb on rough terrain, thus slowing down the machine and giving it more grip on the ground.
