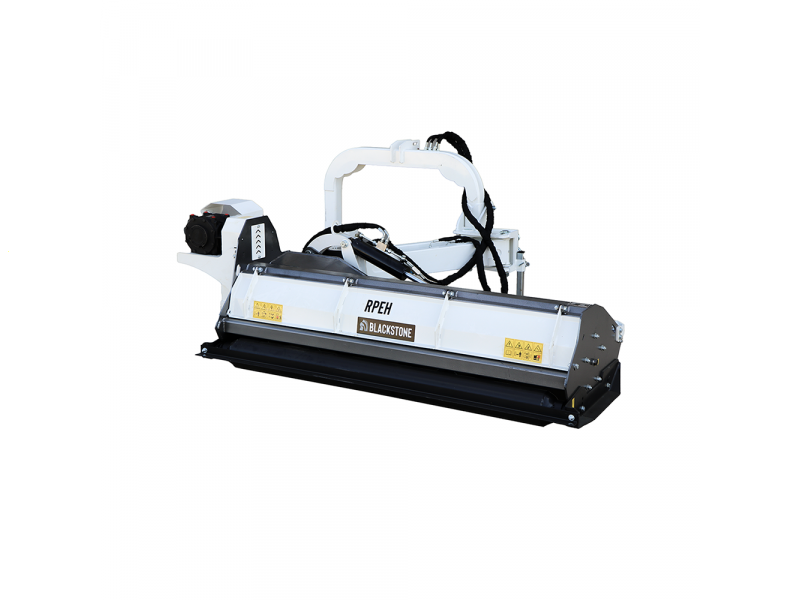

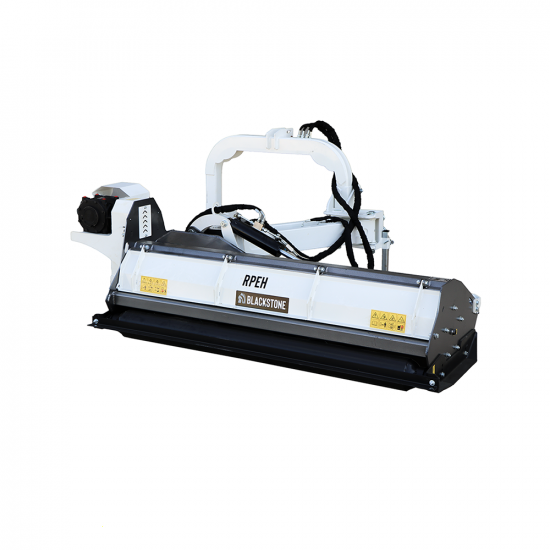

BlackStone RPEH 180 - Tractor-mounted Side Flail Mower - Heavy Series

The BlackStone RPEH 180 tractor side flail mower is a durable and versatile piece of equipment, ideal for the maintenance of roadsides, ditches and sloping ground.

Designed for tractors between 70 and 80 HP, this model provides excellent performance in demanding operating conditions.

With a working width of 180 cm, it allows large areas to be covered in less time, improving the efficiency in agricultural operations.

This flail mower employs 5 belts for power transfer, ensuring reliable and uninterrupted operation.

It is equipped with 18 sturdy hammers designed to efficiently shred grass, shrubs and plant residues.

The total weight of 827 kg gives the machine superior stability, reducing vibration during use.

The BlackStone RPEH 180 comes with a standard cardan shaft, facilitating coupling to the tractor and ensuring optimal power transmission.

The robust design and high-quality materials used ensure a long product life, even under demanding operating conditions.

Distinctive features and advantages:

• 180 cm working width: wide coverage for greater efficiency.
• 5 drive belts: ensure reliable and long-lasting operation.
• 18 hammers: effective shredding of densely grown vegetation and residues.
• Power required 70-80 HP: compatible with a wide range of tractors.
• Standard cardan shaft: facilitates coupling and power transmission.

The BlackStone RPEH 180 side flail mower is the ideal choice for anyone looking for an efficient and durable piece of equipment for maintaining uneven and sloping soil.

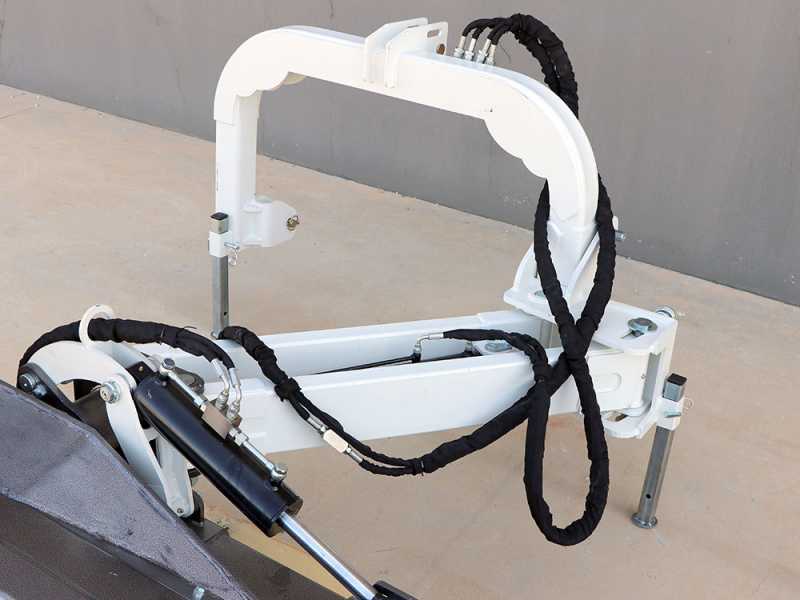

Vertical and side hydraulic shift is operated by 2 pistons.

Equipped with 4 hoses connected to the hydraulic connections on the tractor.

A very sturdy shift system. It features two flexible arms with rotating mechanisms mounted on reinforced steel bushings (Pcm).

The flail mower can work up to 90° vertically upwards - 40° downwards.

Focus on the hydraulic piston locking valve, which ensures the machine will maintain the correct operating position while the tractor is moving.

Equipped with an oil flow control system to the rear piston, to always ensure the right movement speed.

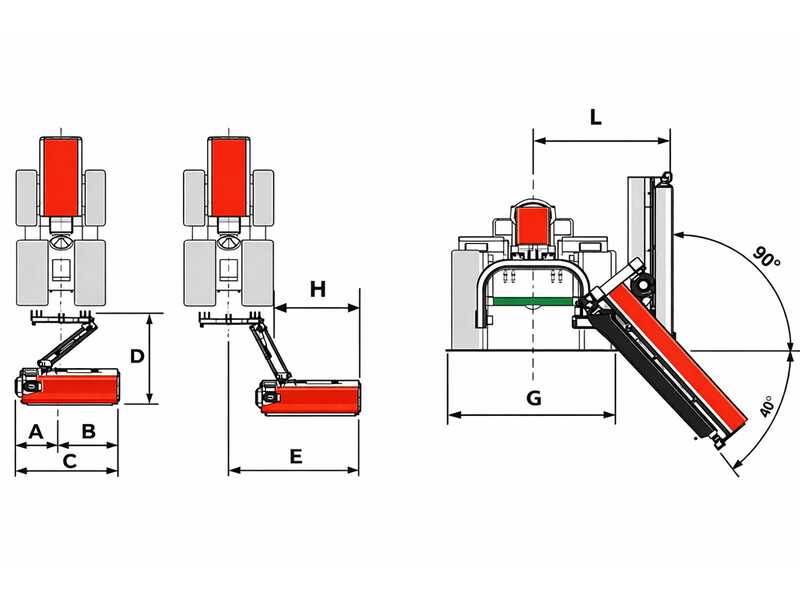

Side-shift adjustment diagram :

• A : 94 cm
• B : 144 cm
• C : 238 cm
• D : 195.5 cm
• E : 304 cm
• G : tractor width
• H : E - 1/2 (G)
• L : 160 cm

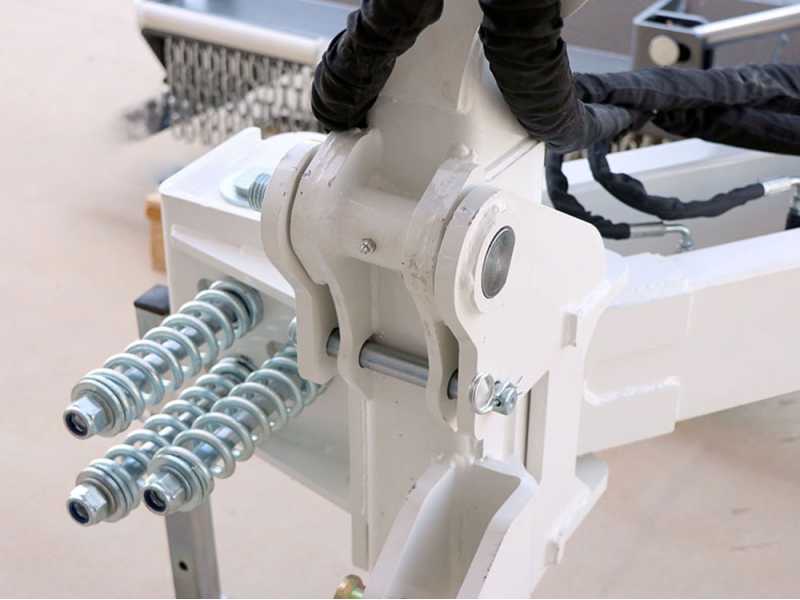

This flail mower model is equipped with sturdy antishock springs, designed to absorb shocks and vibrations when using the flail mower.

These springs are positioned between the flail mower and the tractor arm, offering various benefits in terms of comfort, performance and durability.

During work, the flail mower can be subjected to significant stresses and shocks due to obstacles, potholes, etc., which can be transmitted to the tractor arm and the operator. Anti-shock springs are designed to mitigate these shocks, reducing the impact on the mechanical parts of the mower and improving operator comfort.

They act as shock absorbers, absorbing the energy generated by shocks and redistributing it evenly along the tractor arm. This reduces pressure on flail mower components such as blades, bearings and gears, contributing to a longer service life and reducing the risk of damage or breakage.

In addition, anti-shock springs help to maintain a constant pressure of the blades on the ground, even under irregular stress. This ensures an even shredding and a clean cut of the grass or plants, guaranteeing a high quality result.

No. of hammers fitted on standard equipment: 18

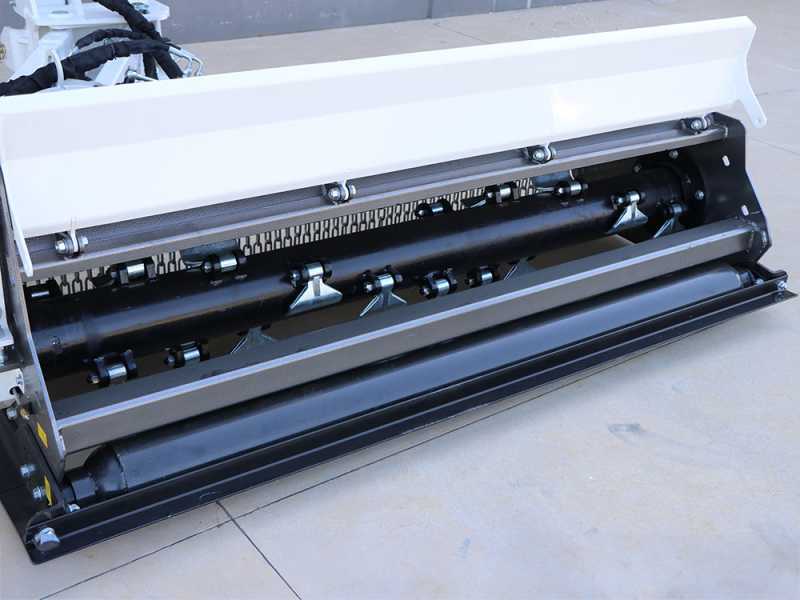

Focus on one of the hammer flails (hammers) mounted on supports welded to the rotor.

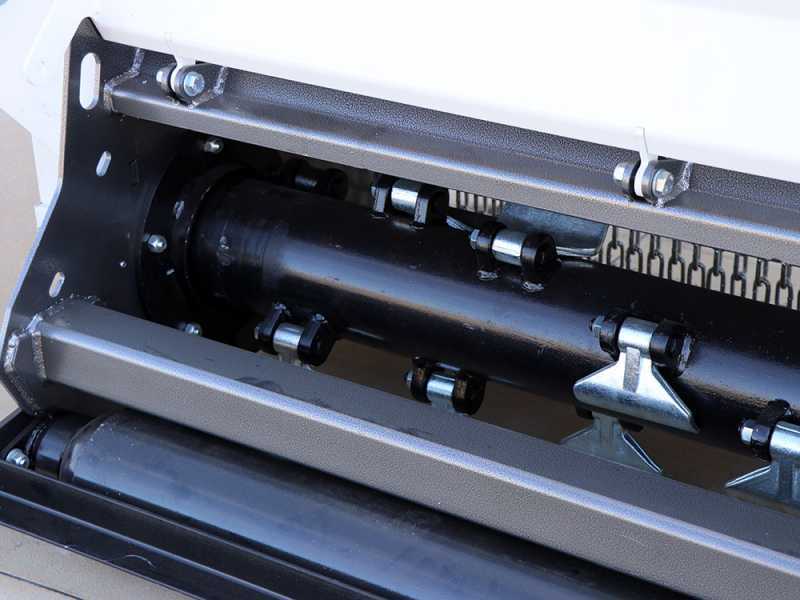

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Hammer width: 13.5 cm

Bolt length: 104 mm

Hammer hole diameter: 16mm

Illustration of the double-spiral rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf.

Thanks to the high rotor speed and the great number of hammers (hammer flails), it reduces the wave effect of the turf and has an excellent shredding action.

Thanks to the sharpened toothed hammers, it ensures high-quality results in gardens, lawns and urban areas.

The supports at the ends of the rotor ensure stability thanks to their highly sturdy and solid nature.

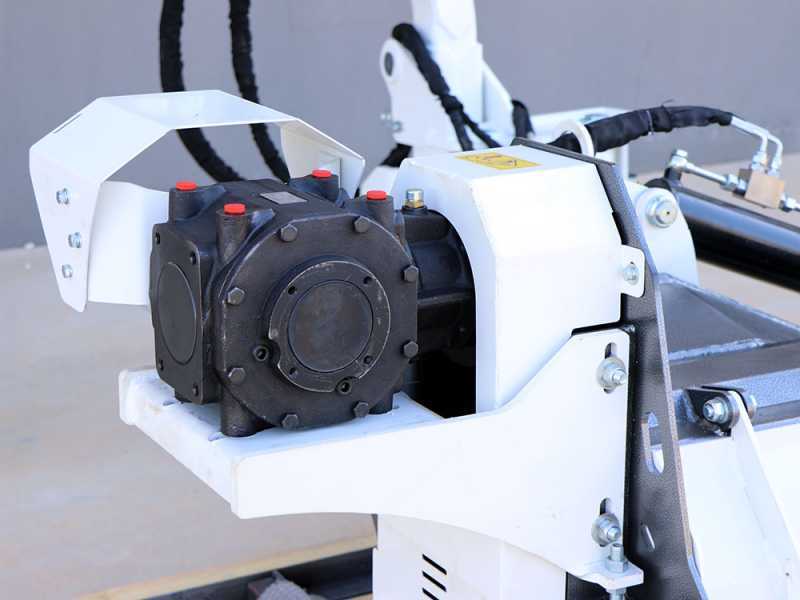

Gearbox with gears in oil bath.

5-Belt side drive with large section belt guard, equipped with various ventilation openings (for regular cooling)

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it's equipped with the same PTO and with standard clockwise rotation (right-side).

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

THE MACHINE IS PROVIDED WITH OIL.

A distinctive feature of this flail mower is its rear adjustable opening.

This not only allows adjusting the rear discharge space area via simple screws, but also facilitates maintenance.

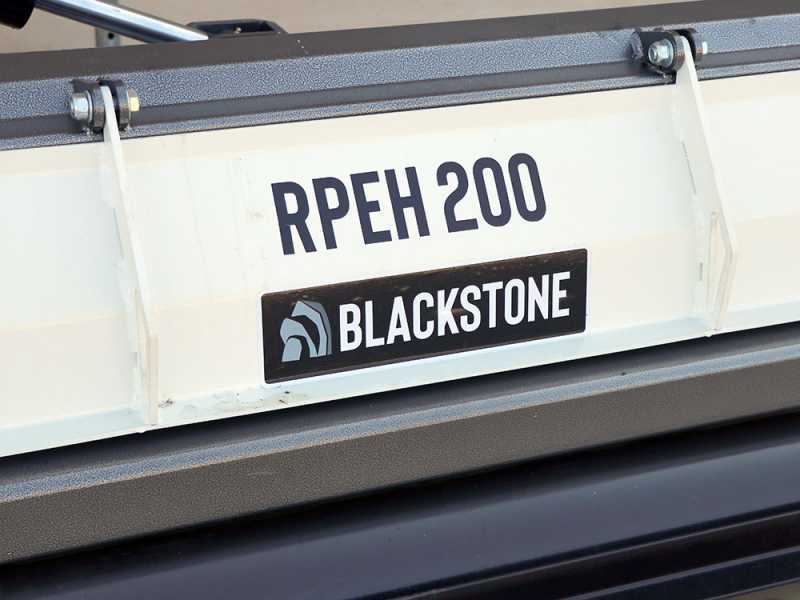

Focus on the handles for lifting the bonnet.

Roller scraper and rear roller supplied as standard equipment.

Support feet.

Focus on the 3-point hitch connections (34.6mm and 27.6 mm diameter).

Focus on the roller support.

Adjustable side support skids on standard equipment.
