HOME Workshop and Do-It-Yourself Electric Air Compressors Heavy-duty belt-driven air compressors (50-300 L) 50 Litre Belt-driven Air Compressors Single-phase 2 HP 50 L Belt Driven Air Compressors BlackStone B-LBC 50-20

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

Semi-Pro
Add a question
ID: K603060

EAN: 8053435093286

MPN: B-LBC 50-20

BlackStone
Catalogue BlackStone
8,9/10
After-sales assistance & Spare parts
54Pictures
2Videos
1Customer pics
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
Free gifts from AgriEuro
Bottle of 600 ml "COMPRIX" professional oilBottle of 600 ml "COMPRIX" professional oil
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
50 L
Max. operating pressure
8 bar
Air intake flow
200 L/min
Cylinder head rpm
980 RPM
Lubrication
Oil
Cooling manifold
Yes
Pump type
Single-stage
Nominal power
2 HP
Operating mode
Single-phase 230 V
Transmission type
Belt
Product Features
Model:
B-LBC 50-20
Air compressor type 2:
Belt-driven
Air compressor type:
Horizontal
Operating mode:
Single-phase 230 V
Operating mode:
Electric 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
50 L
Noise level:
97 dB(A)
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
2 HP
Power supply:
220 V electric
Pump data
Model:
B-LBC 50-20
Air intake flow:
200 L/min
Pump type:
Single-stage
Lubrication:
Oil
Cooling manifold:
Yes
Cylinders material:
Cast iron
Manufacturing country:
China
Transmission data
Belt-driven:
Sì
Transmission type:
Belt
Cylinder head rpm:
980 RPM
Pulleys material:
Aluminium
Transmission protective cover:
Metal net
Equipment
No. of outlet couplings:
2
Front handle:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
82x38x76 cm
Net weight:
45 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
87x40x81 cm
Weight including packaging:
61 Kg
Assembly time:
5 minutes
Out of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt) *
Suggested price:
€ 434,39
€ 325,79
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

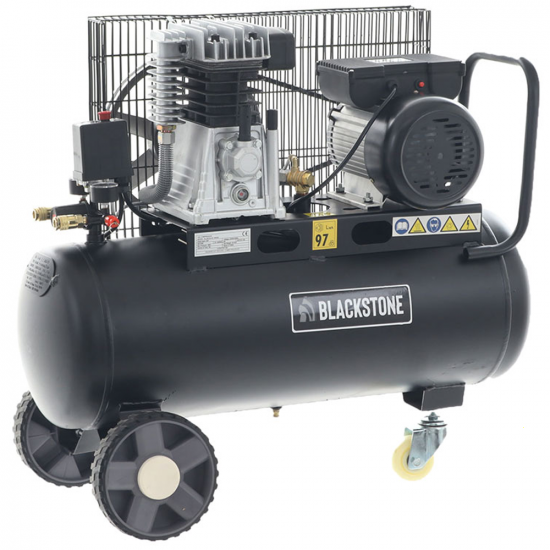

Blackstone B-LBC 50-20 Belt-driven Air Compressor

The Blackstone B-LBC 50-20 air compressor is equipped with a large 50 L compressed air storage tank.

The air compressor weights approximately 45 Kg, but has both rear wheels and 1 pivoting front wheel that allows to easily transport the air compressor without lifting it. There is also an upper handle that facilitates transportation even more.

It is an efficient, belt-driven machine for hobby use at a competitive price.

Powered by a 2.0 Hp electric motor, this air compressor features a compressed air suction capacity of 200 L. It is capable of reaching a maximum pressure of 8 bar.

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

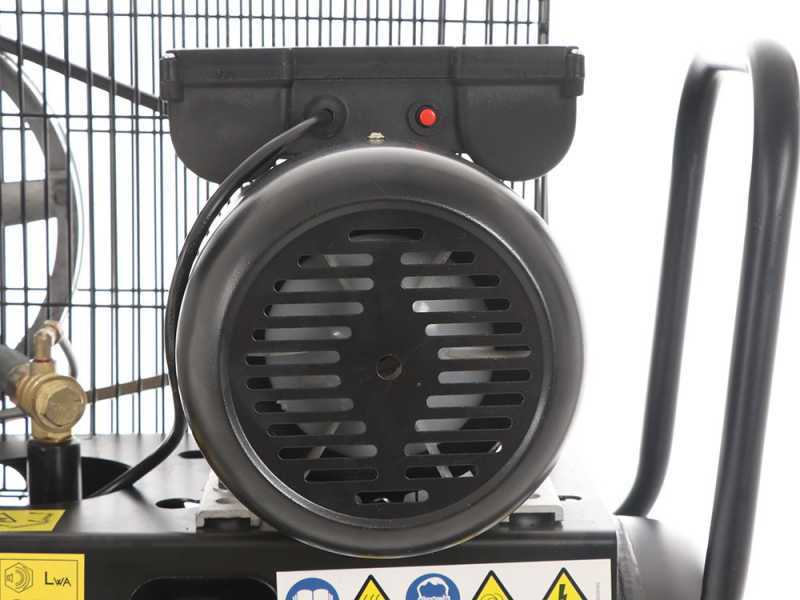

2 Hp electric induction motor

Power supply: 230 V

 Power: 2 Hp

The motor is characterised by a very long service life and low need for maintenance.

This motor is in fact brushless, the brushes being the main component subject to wear in electric motors. The absence of this component grants high durability to the motor.

It is a top product in terms of reliability, low noise, durability, energy efficiency and maintenance.

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

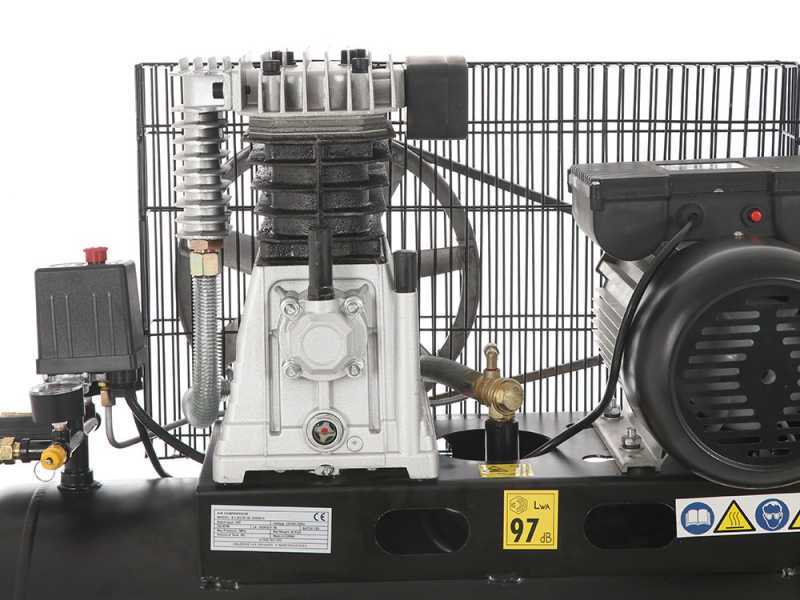

Cylinder head

Air intake flow: 200 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 980 rpm

Equipped with air cooling side manifold (only available on very few air compressors on the market).
The output air will have a lower temperature

The degree of professionalism and more generally the life of the air compressor is largely determined by the number of revolutions per minute of the cylinder head.

The lower the rpm, the longer the life of the air compressor. The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are fitted to the motor and to the cylinder head respectively.

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

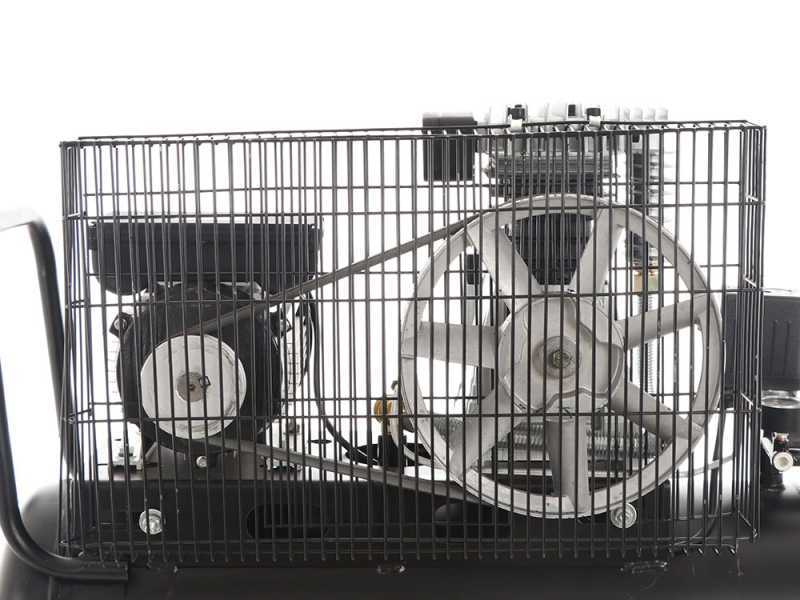

Belt drive

These Blackstone air compressors feature a belt drive.

The use of the belt, combined with an induction motor, contributes to the durability of this air compressor, drastically reducing the number of revolutions of the cylinder head, increasing its life and reducing wear.

The grid protection serves to prevent the drive belt and the transmission from being damaged by external objects that might hit it during operation. It also allows the status of the drive belt to be continuously checked.

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

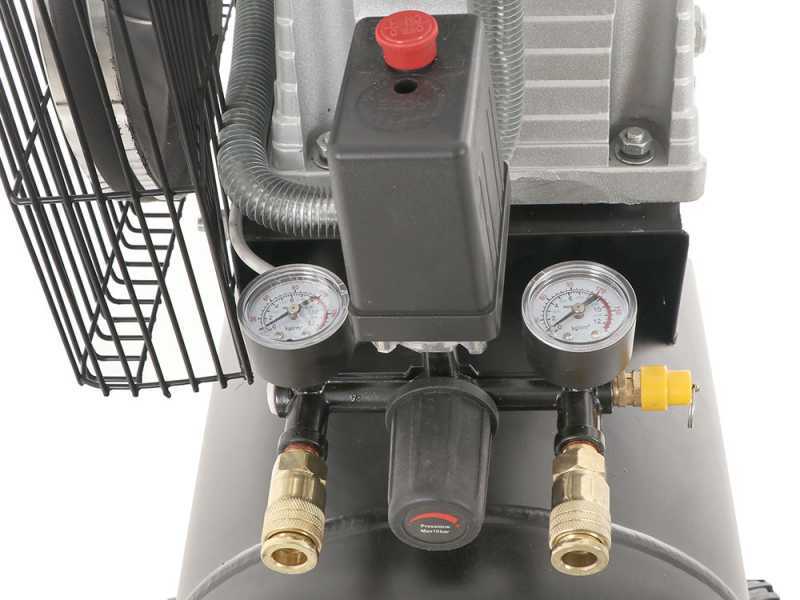

Controls

50 L large tank.

Maximum pressure: 8 bar

The compressor is equipped with a output air pressure adjusting knob which can be checked by means of pressure gauge.

It includes a single on and off button, a safety valve which activates in case of excessive pressure in the tank, and a tank air pressure gauge.

Equipped with two pressure gauges:
-tank pressure gauge
-output pressure gauge adjusted by regulator

Equipped with two female output quick joints as standard

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

Other features

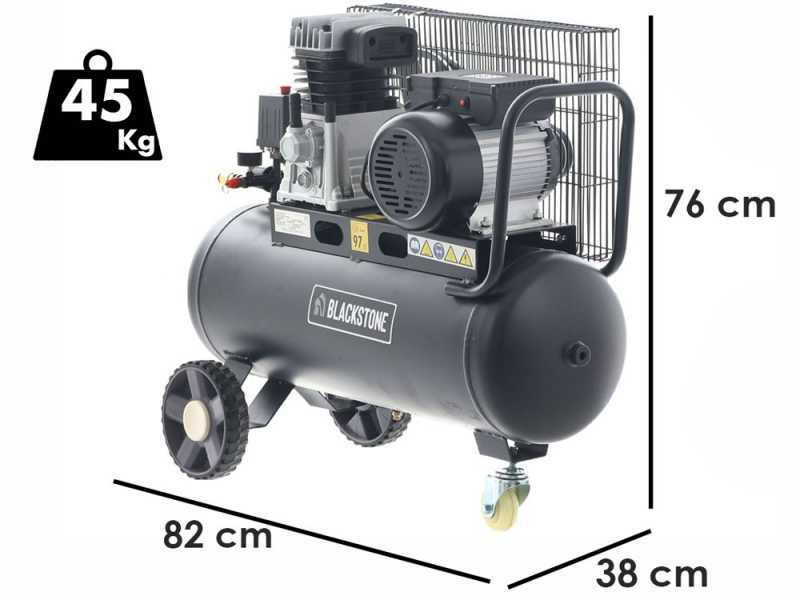

Dimensions (L x W x H): 82 x 38 x 76 cm

Weight: 45 kg

Equipped with a sturdy front handle for easy grip.

Robust rear wheels.

Double front pivoting wheel

Focus on the oil tank cap

Porthole for oil level control

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
Free items & Standard equipment

1° GIFT: air compressor maintenance kit with oil bottle and joints

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet cap. It allows easily connecting the units to hoses with female quick joint.

  • Quick joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

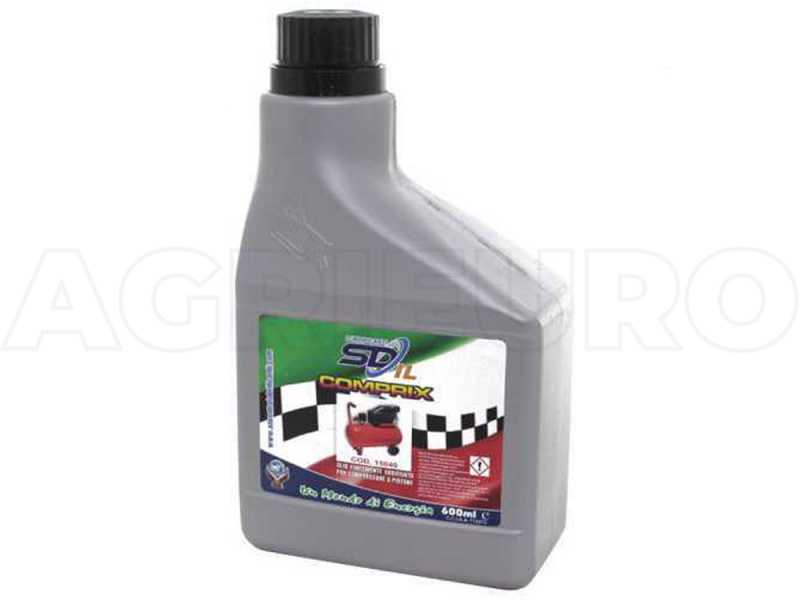

2° GIFT: 600 ml "COMPRIX” oil bottle

COMPLIMENTARY: 600 ml "COMPRIX” oil bottle, professional oil specifically designed for air compressor cylinder heads. Very useful for oil refill and first oil replacement (the air compressor is shipped already filled with oil).

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L

Standard equipment

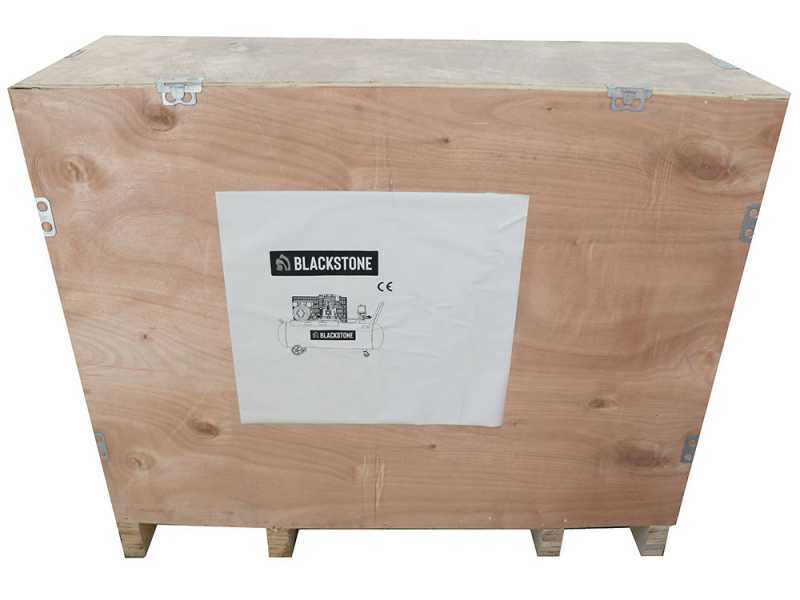

The air compressor is shipped in its original packaging.

Instructions manual included.

BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L BlackStone B-LBC 50-20 - Electric Belt-driven Air Compressor - 2 Hp Motor - 50 L
