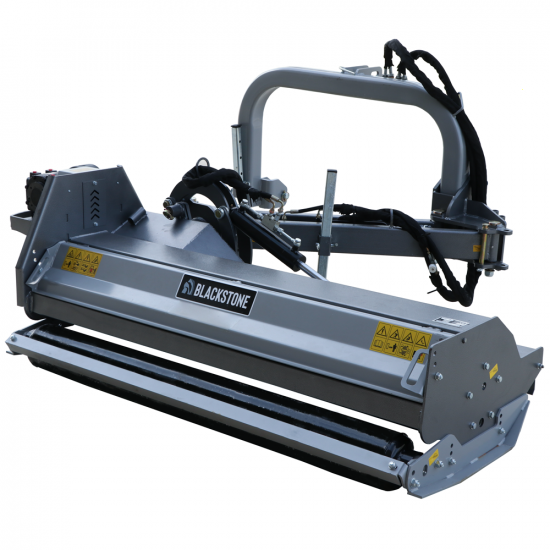

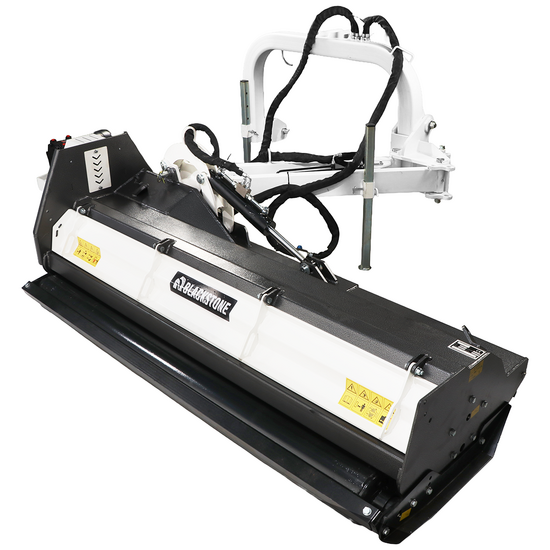

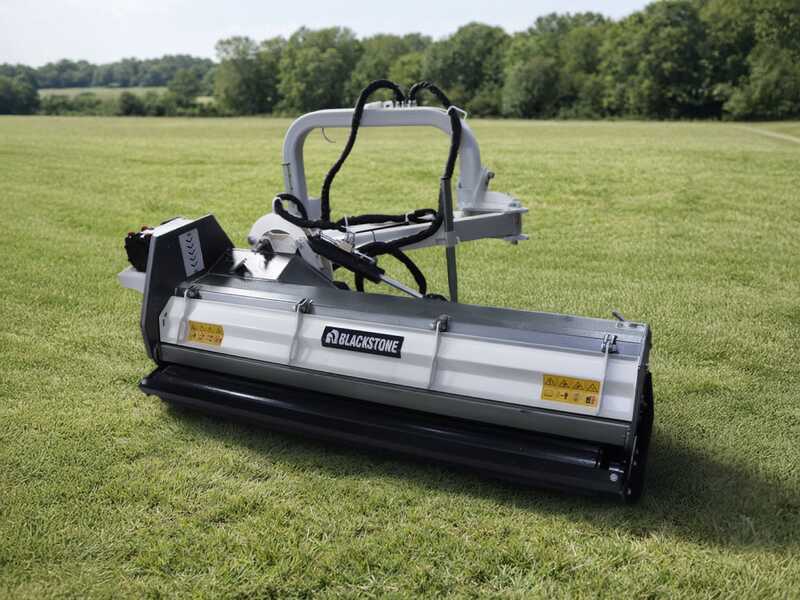

BlackStone BVH 220 H - Tractor-mounted side verge flail mower with Arm - Heavy series

The BlackStone BVH 220 H side flail mower with arm is a tool intended for green maintenance, ditches and hedges.

It features excellent quality/price ratio and it is suitable for all users who require a high flexibility of use and possibility to adjust the machine operating mode according to their needs.

This heavy-duty model is very versatile among other flail mowers as it can operate both vertically and horizontally. This mobility allows the flail mower to be used for cleaning roadsides, embankments and ditches, where the machine operates sideways to the tractor or even for cutting hedges or bushes.

• Ideal for municipal works, ditches, embankments and sloping terrain.

It is suitable for different operations, such as:

• Grass mowing
• Stalks chopping
• Pruning waste chopping
• Hedge cutting
• Ideal for ditches, embankments and sloping terrain

The 3-point hitch is hydraulically operated by 2 sturdy pistons mounted on the machine.

The flail mower is provided with a 4-belt drive transmission.

TECHNICAL SPECIFICATIONS (brief overview):

• Real working width: 220 cm
• Total width: 260 cm
• Weight: 650 kg

ON STANDARD EQUIPMENT:

• Category 1° 3-point hitch
• 4-belt drive transmission
• Rotor with toothed hammers
• PTO
• CE compliant safety equipment

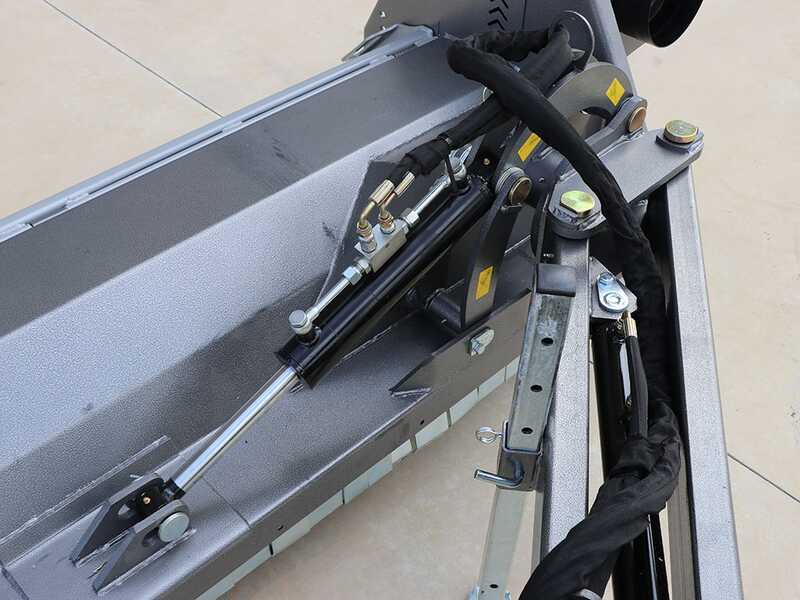

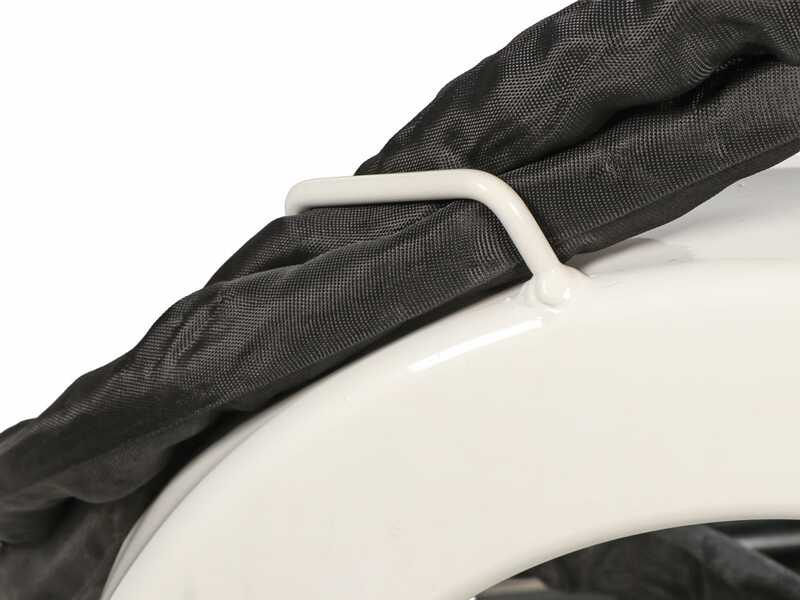

Vertical and side hydraulic shift is operated by 2 sturdy pistons. Equipped with 4 hoses connected to the hydraulic connections on the tractor.

A very sturdy shift system. It features two flexible arms with rotating mechanisms mounted on reinforced steel bushings (Pcm).

The flail mower can work up to 90° vertically upwards - 40° downwards.

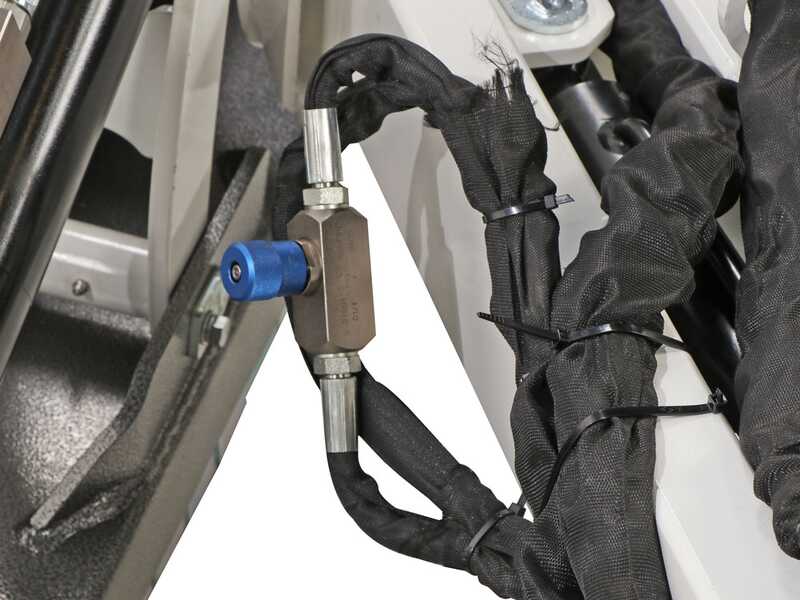

Focus on the hydraulic piston locking valve, which ensures the machine will maintain the correct operating position while the tractor is moving.

Equipped with an oil flow control system to the rear piston, to always ensure the right movement speed.

Focus on the hydraulic piston locking valve, and hydraulic piston, which ensures the machine will maintain the correct operating position while the tractor is moving.

No. of hammers fitted on standard equipment: 16

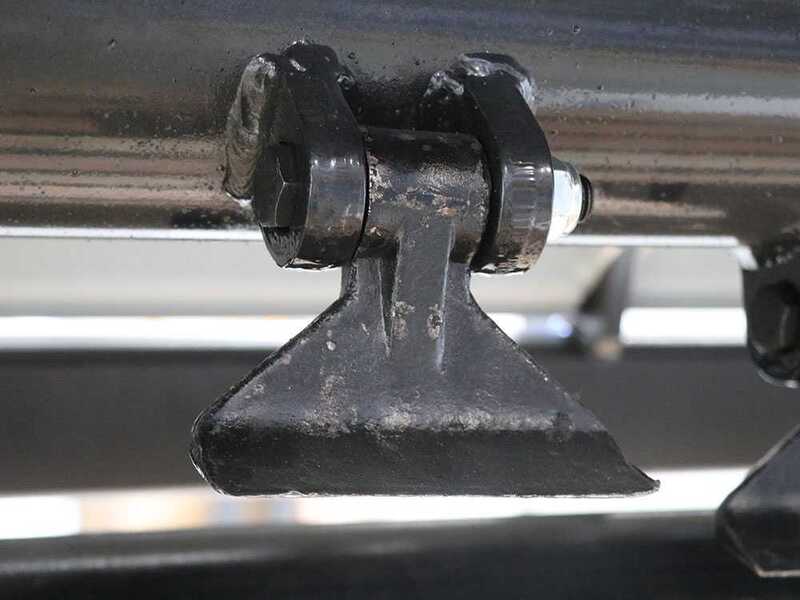

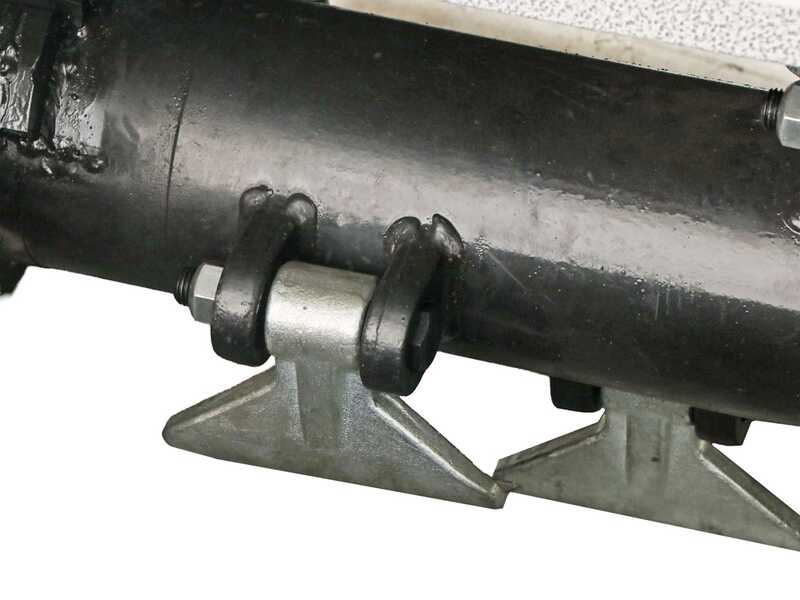

Focus on one of the the hammer flails (hammers) mounted on supports welded to the rotor.

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Hammer width: 13,5 cm

Hammer flail's hole diameter: 16mm

It finely shreds grass and prunings, while simultaneously rolling the grass. Thanks to the high rotor speed and the high number of hammers (hoes), it reduces the wave effect of the grass sward and has an excellent shredding action.

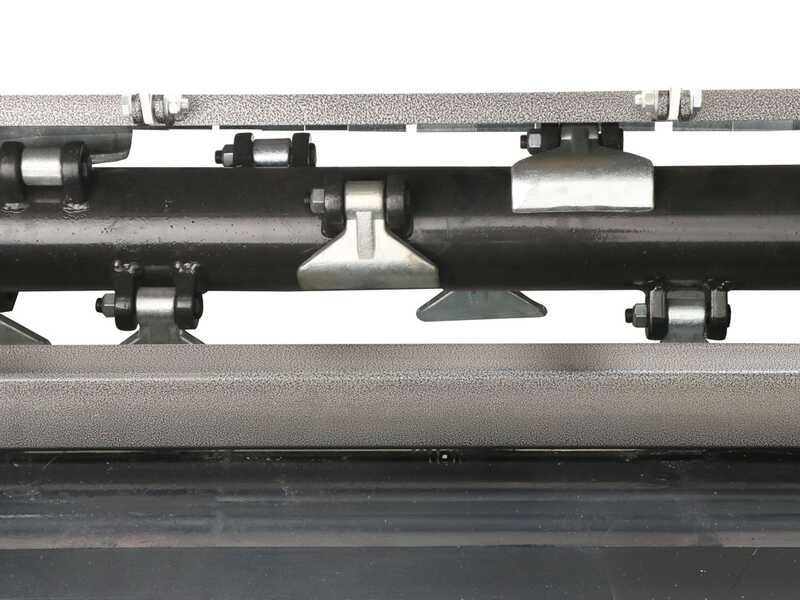

Figurative image of the double-spiral rotor.

It finely shreds grass and cuttings, while simultaneously rolling the turf.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

The rotor with hammers features a 123 mm diameter.

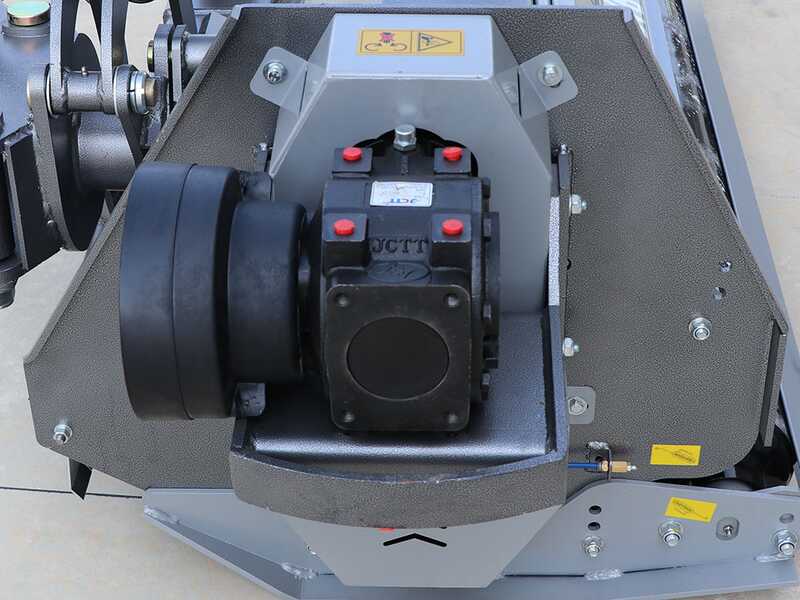

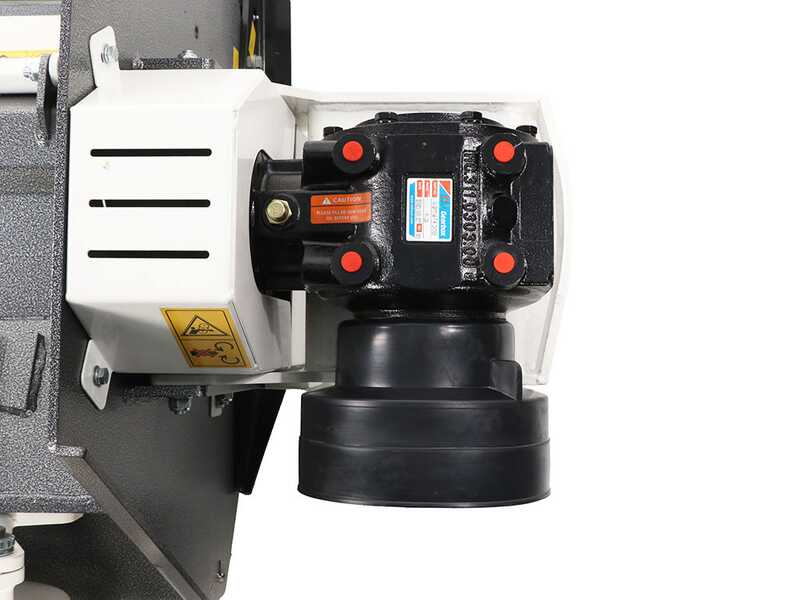

Reduction gearbox in oil bath.

4-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

THE MACHINE IS PROVIDED WITH OIL.

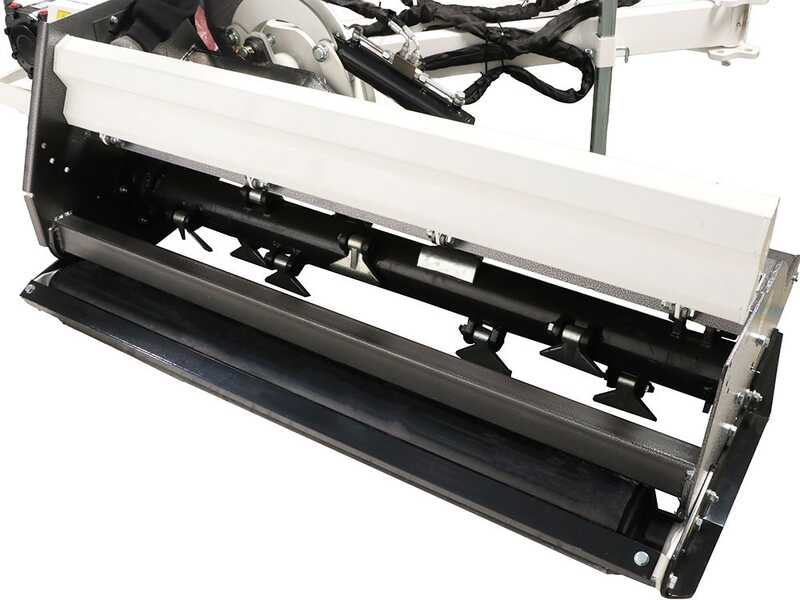

A distinctive feature of this flail mower is its rear adjustable opening.

This not only allows adjusting the rear discharge space area by means simple screws, but also facilitates maintenance.

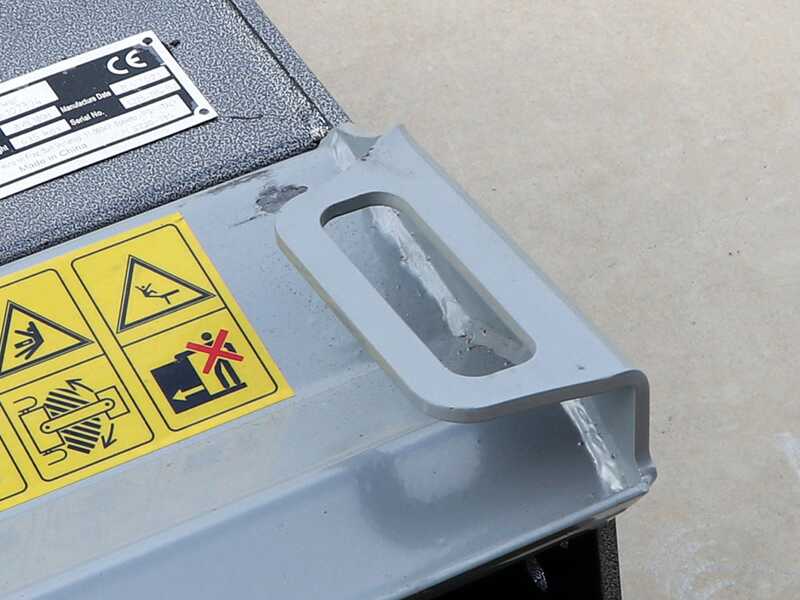

Focus on the handles for lifting the housing.

Self cleaning roller and 163 mm diameter rear roller supplied on standard equipment.

Sturdy set of front protective plates.

Support feet.

Focus on the 3-point hitch connections (34.6mm and 27.6 mm diameter).

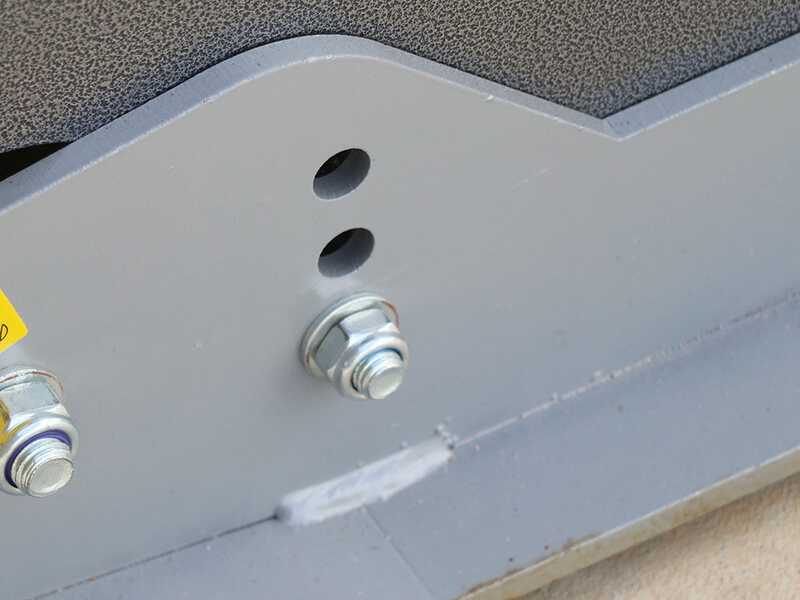

Focus on the roller support.

Adjustable side support skids on standard equipment.
