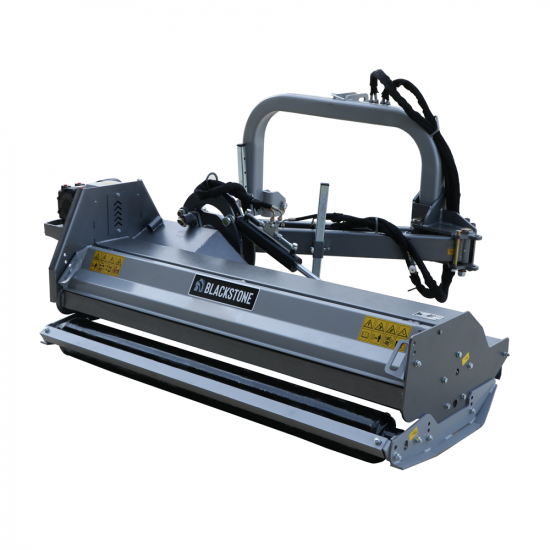

Name: BlackStone BVH 180 H - Tractor-mounted side verge flail mower with Arm - Heavy Series
Brand: BlackStone
SKU: 107304
Price: 3578.55 EUR
Availability: InStock
Rating: 4.26 (17 reviews)

Description

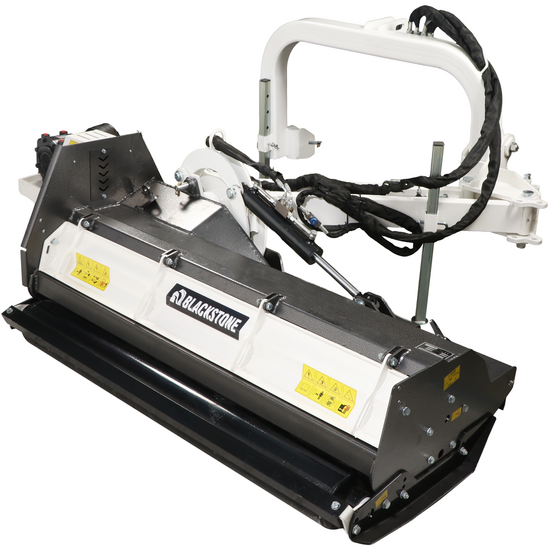

Tractor-mounted side flail mower with arm

The BlackStone BVH 160 H side flail mower with arm is a tool intended for green maintenance, ditches and hedges.

It features excellent quality/price ratio and it is suitable for all users who require a high flexibility of use and possibility to adjust the machine operating mode according to their needs.

This heavy-duty model is very versatile among other flail mowers as it can operate both vertically and horizontally. This mobility allows the flail mower to be used for cleaning roadsides, embankments and ditches, where the machine operates sideways to the tractor or even for cutting hedges or bushes.

Ideal for municipal works, ditches, embankments and sloping terrain.

It is suitable for different operations, such as:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Ideal for ditches, embankments and sloping terrain

The 3-point hitch is hydraulically operated by 2 sturdy pistons mounted on the machine.

The flail mower is provided with a 4-belt drive transmission.

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 160 cm
Total width: 200 cm
Weight: 616 kg

ON STANDARD EQUIPMENT:

Category 1° 3-point hitch
4-belt drive transmission
Rotor with toothed hammers
PTO
CE compliant safety equipment

BlackStone BVH 180 H - Tractor-mounted side verge flail mower with Arm - Heavy Series

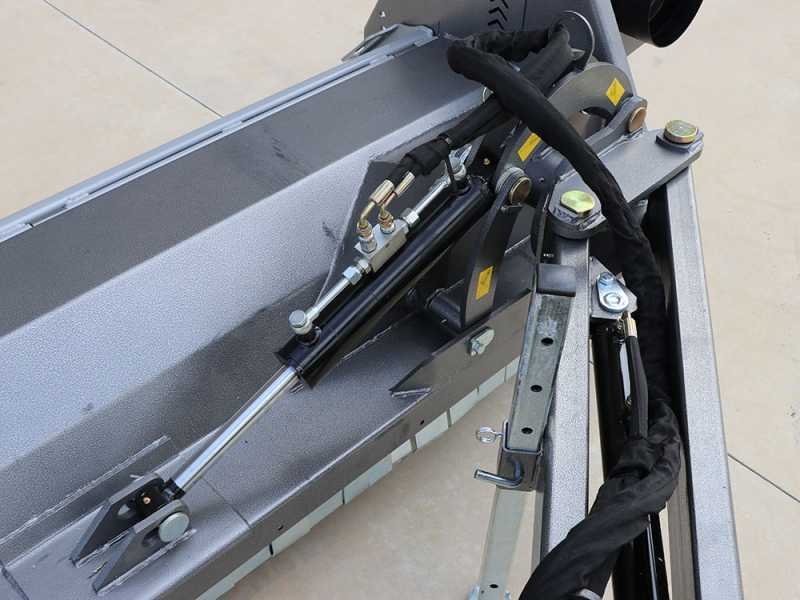

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 sturdy pistons. Equipped with 4 hoses connected to the hydraulic connections on the tractor.

A very sturdy shift system. It features two flexible arms with rotating mechanisms mounted on reinforced steel bushings (Pcm).

The flail mower can work up to 90° vertically upwards - 40° downwards.

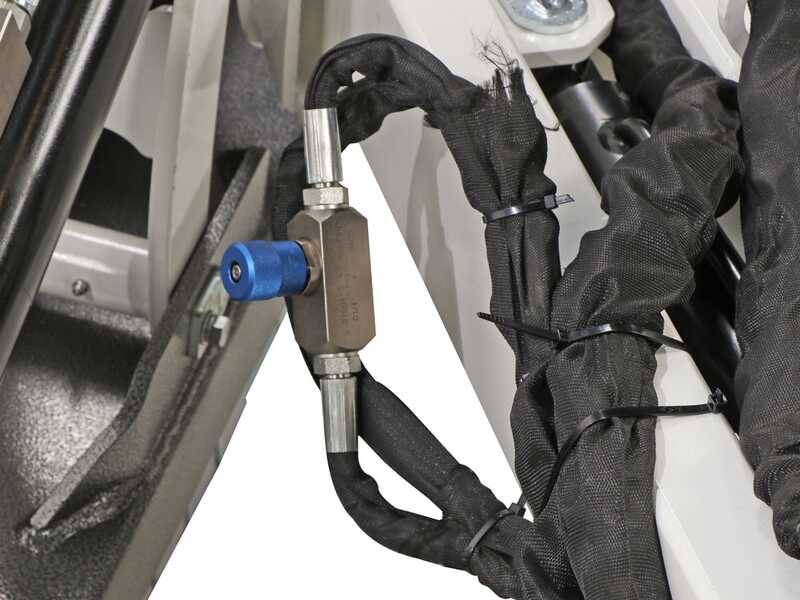

Focus on the hydraulic piston locking valve, which ensures the machine will maintain the correct operating position while the tractor is moving.

Equipped with an oil flow control system to the rear piston, to always ensure the right movement speed.

Focus on the hydraulic piston locking valve, and hydraulic piston, which ensures the machine will maintain the correct operating position while the tractor is moving.

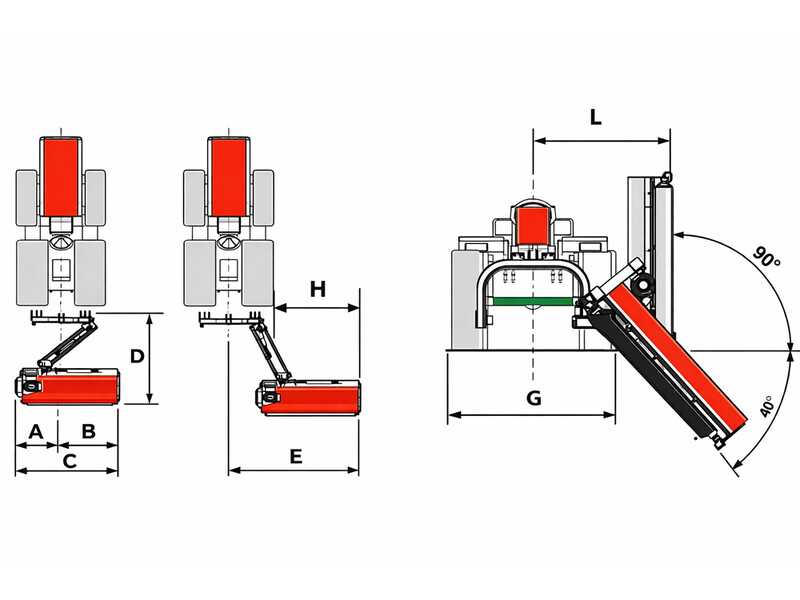

Side-shift adjustment diagram :

A : 87 cm
B : 138.7 cm
C : 225.7 cm
D : 178.5 cm
E : 303 cm
G : tractor width
H : E - 1/2 (G)
L : 188 cm

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 16

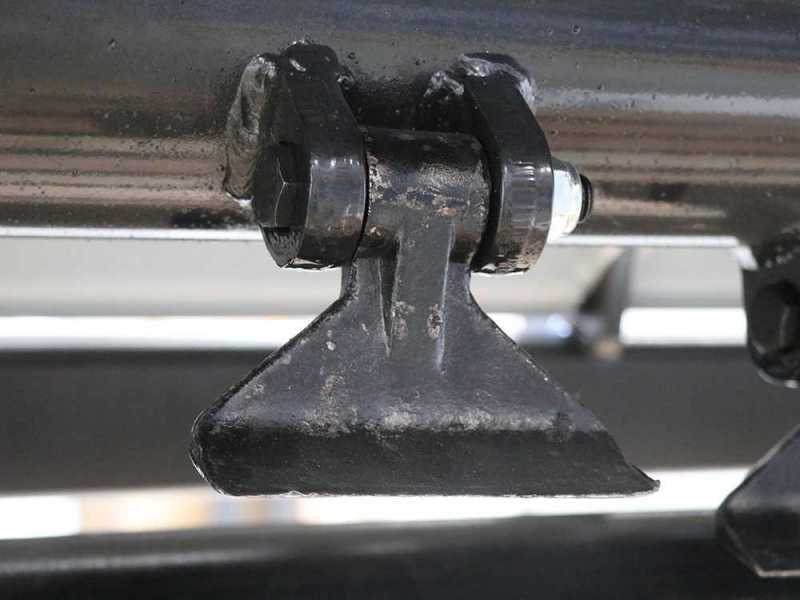

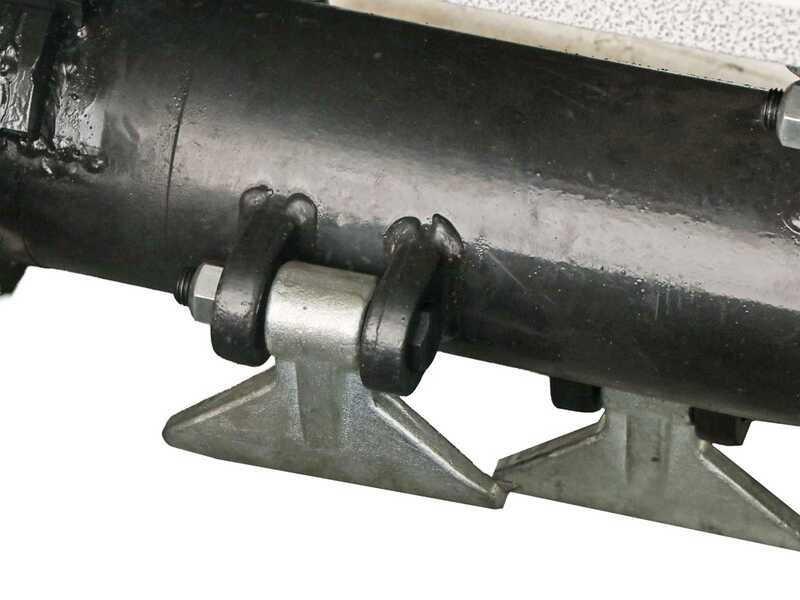

Focus on one of the the hammer flails (hammers) mounted on supports welded to the rotor.

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Hammer width: 13.5 cm

Hammer flail's hole diameter: 1.6 cm

It finely shreds grass and prunings, while simultaneously rolling the grass. Thanks to the high rotor speed and the high number of hammers (hoes), it reduces the wave effect of the grass sward and has an excellent shredding action.

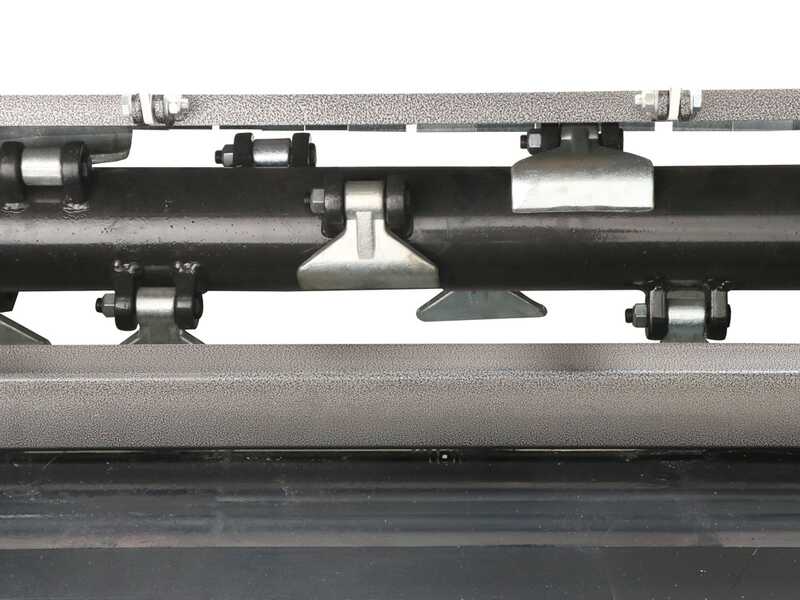

Rotor, hammer flails supports, side bearings

It finely shreds grass and cuttings, while simultaneously rolling the turf.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

The rotor with hammers features a 123 mm diameter.

Figurative image of the double-spiral rotor.

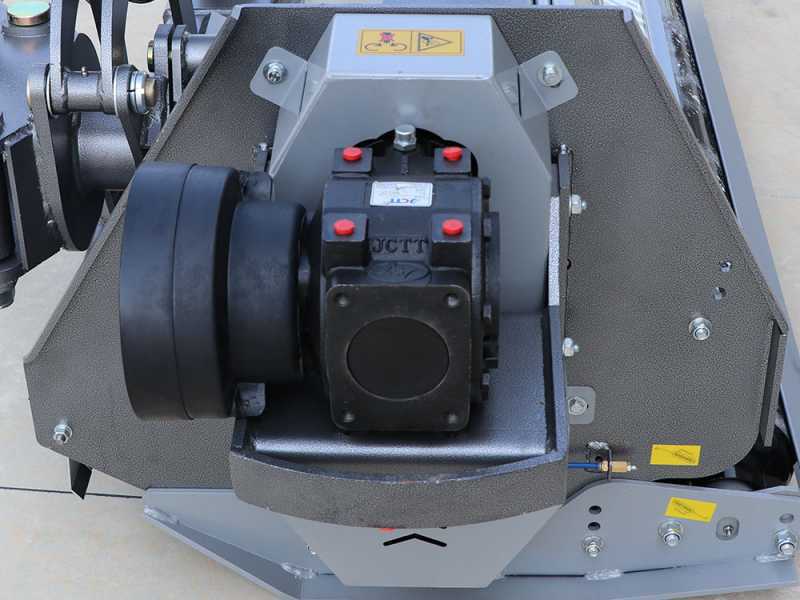

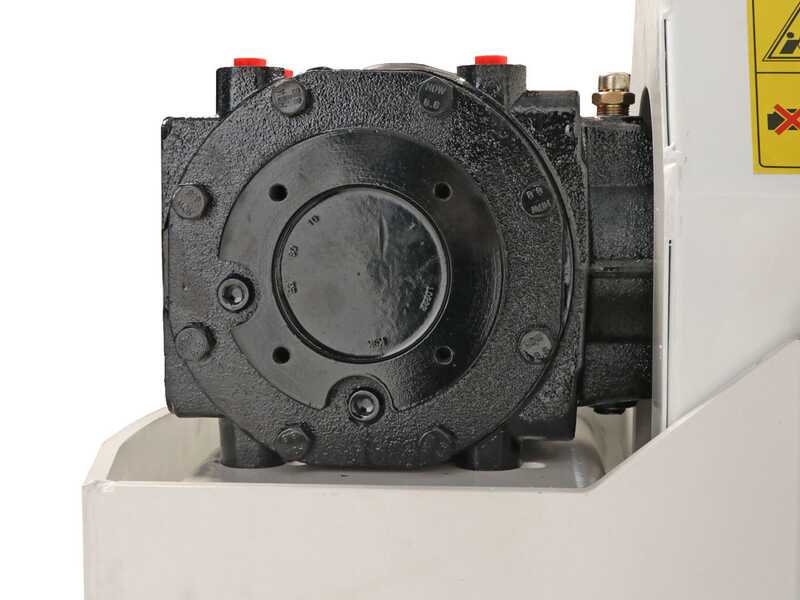

Side belt transmission and gearbox

Reduction gearbox in oil bath.

4-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

THE MACHINE IS PROVIDED WITH OIL.

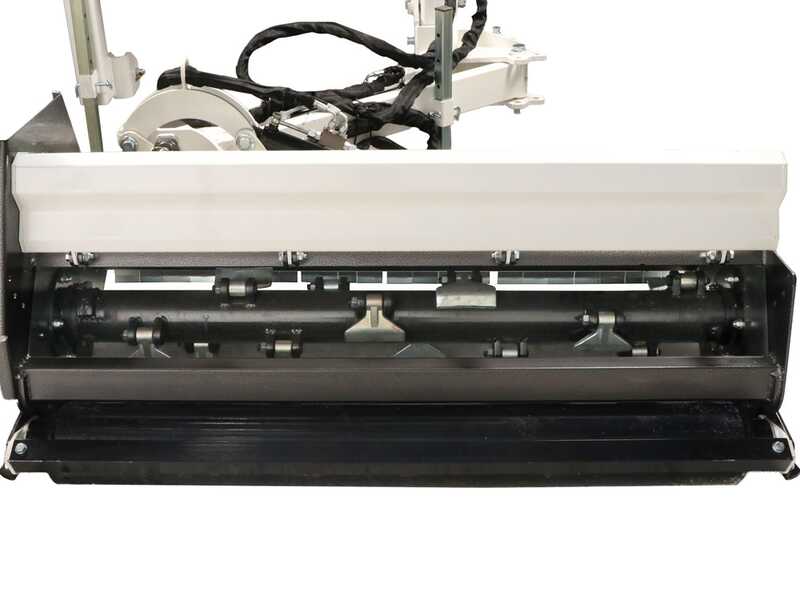

Opening housing

A distinctive feature of this flail mower is its rear adjustable opening.

This not only allows adjusting the rear discharge space area by means simple screws, but also facilitates maintenance.

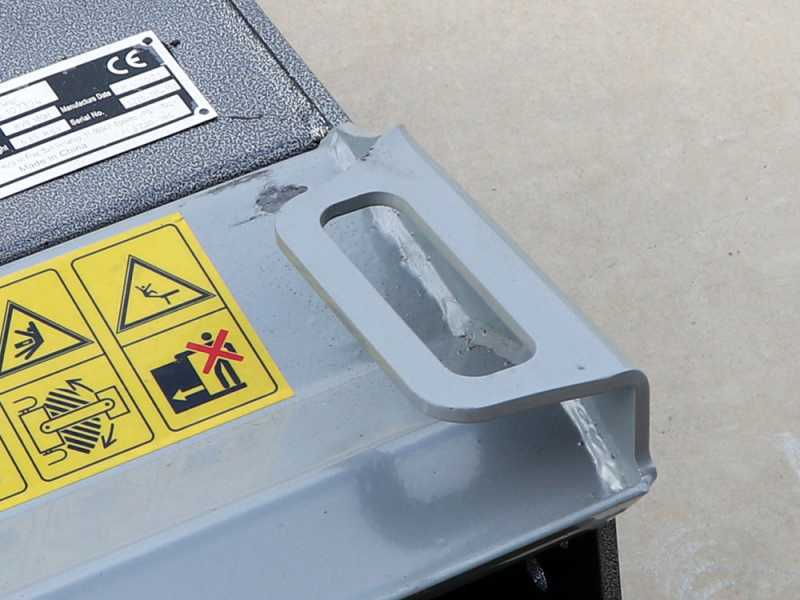

Focus on the handles for lifting the housing.

Stabilisers - rear roller - 3 point-hitch

Self cleaning roller and 163 mm diameter rear roller supplied on standard equipment.

Sturdy set of front protective plates.

Support feet.

Focus on the 3-point hitch connections (34.6mm and 27.6 mm diameter).

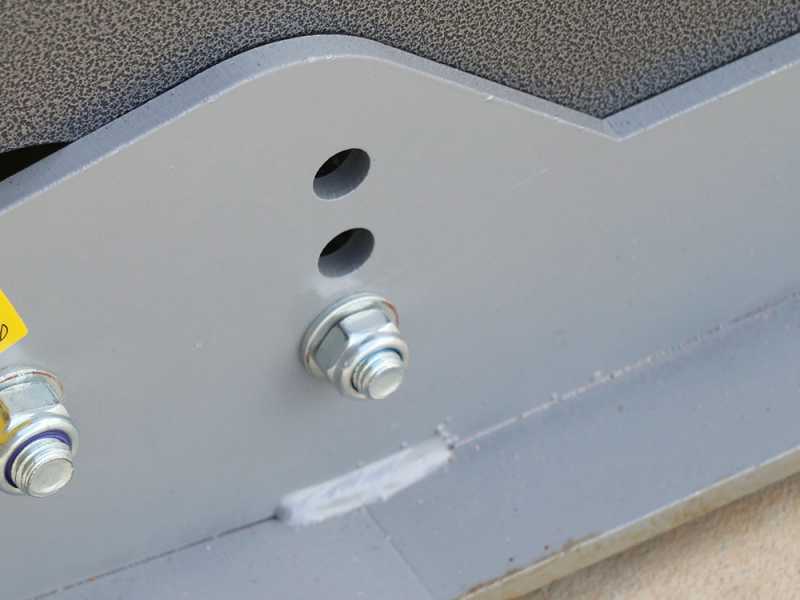

Focus on the roller support.

Adjustable side support skids on standard equipment.

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Standard Equipment

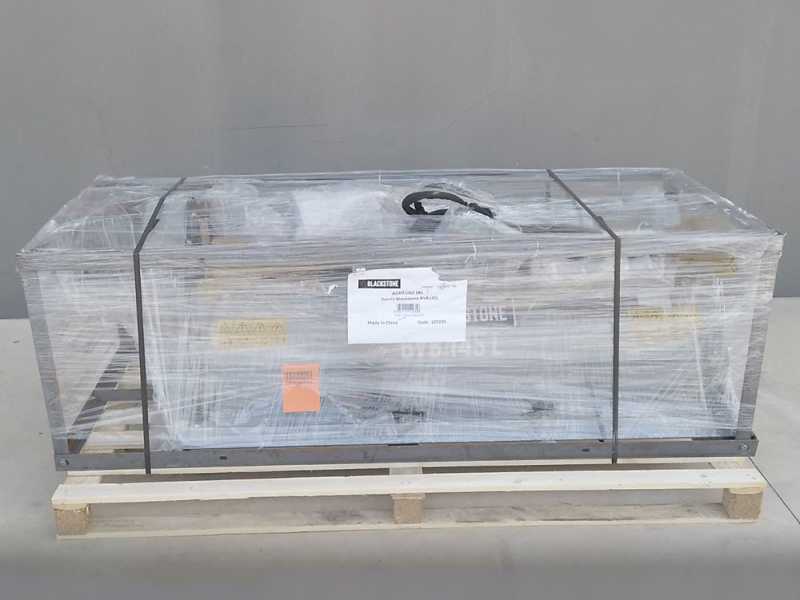

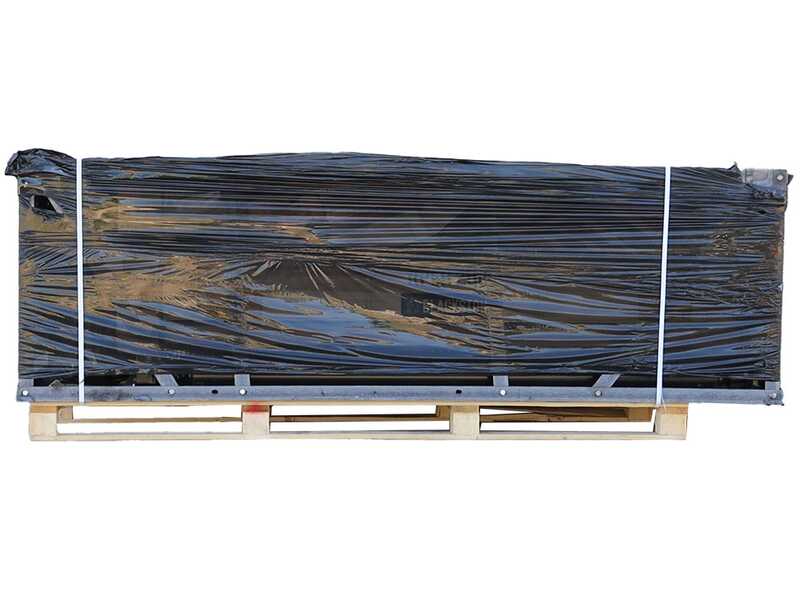

The flail mower is shipped in its original packaging, which includes the cardan shaft.
