Description

Tractor-mounted side arm flail mower

BP-LA 135 HYDRO tractor-mounted side arm flail mower:

This medium-sized heavy-duty model is very versatile among other flail mowers as it can operate both vertically and horizontally.

This mobility allows the flail mower to be used for cleaning roadsides, embankments and ditches, where the machine operates sideways to the tractor or even for cutting hedges or bushes.

This flail mower features a very good quality/price ratio and it is suitable for everyone who needs a machine with a high flexibility of use.

Heavy-duty machine, designed for clearing wild grass on roads, ditches and hedges.

Ideal for municipal works, ditches, embankments and sloping terrain.

It is suitable for different operations, such as:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Ideal for ditches, embankments and sloping terrain

The three-point linkage is hydraulically operated by two sturdy pistons mounted on the machine.

The flail mower is provided with a 3-belt drive transmission.

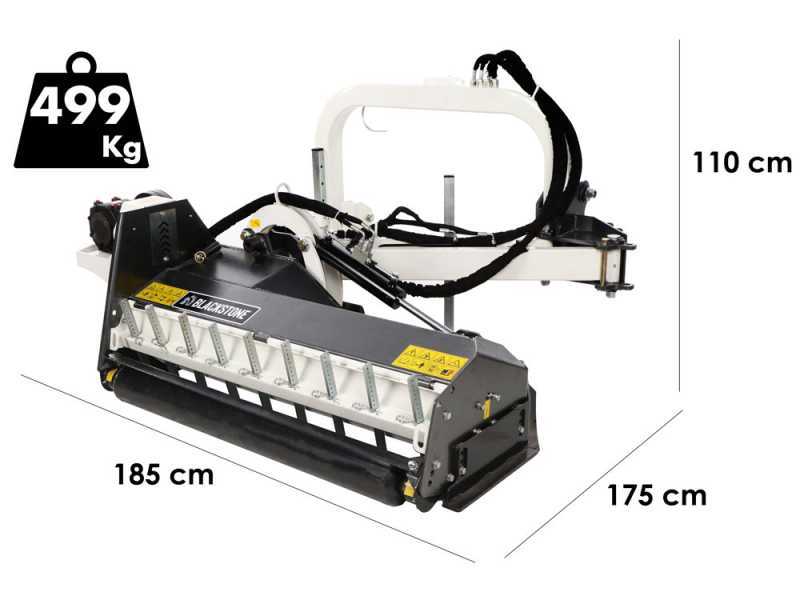

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 135 cm
Total width: 185 cm
Weight: 499 Kg

ON STANDARD EQUIPMENT:

Category 2° 3-point hitch
3-belt drive transmission
Rotor with toothed hammers
PTO
CE compliant safety equipment

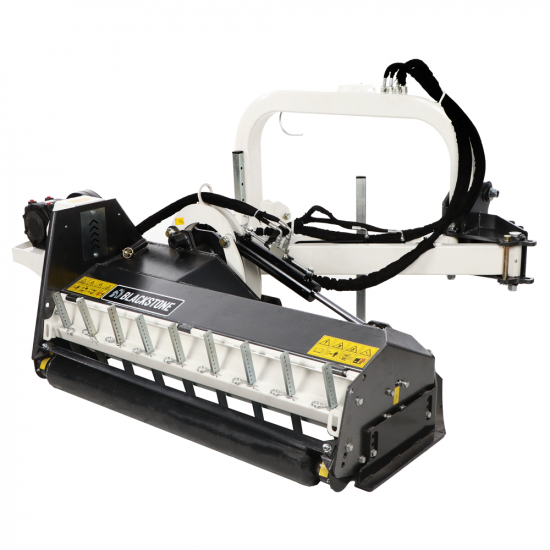

BlackStone BP-LA 135 Hydro - Tractor-mounted side verge flail mower with Arm - Medium-Heavy Series

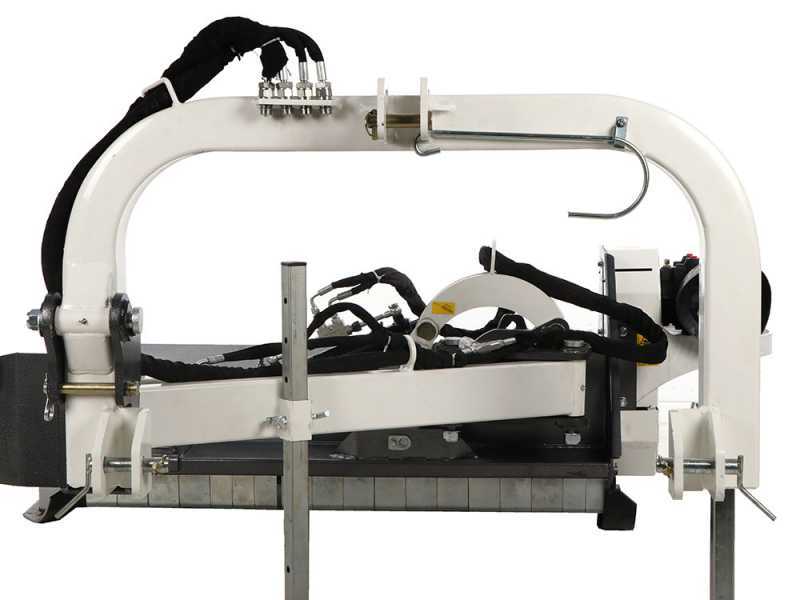

Hydraulic side and vertical shift

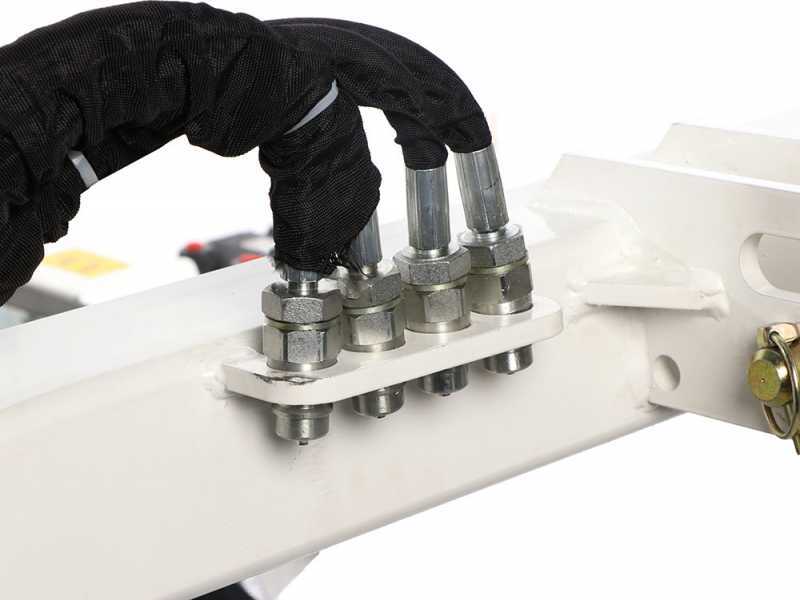

Vertical and side hydraulic shift is operated by 2 sturdy pistons. Equipped with 4 hoses connected to the hydraulic connections on the tractor.

A very sturdy shift system. It features two flexible arms with rotating mechanisms mounted on reinforced steel bushings (Pcm).

The flail mower can work up to 90° vertically upwards.

Focus on the hydraulic piston locking valve, which ensures the machine will maintain the correct operating position while the tractor is moving.

Equipped with an oil flow control system to the rear piston, to always ensure the right movement speed.

Focus on the hydraulic piston locking valve, and hydraulic piston, which ensures the machine will maintain the correct operating position while the tractor is moving.

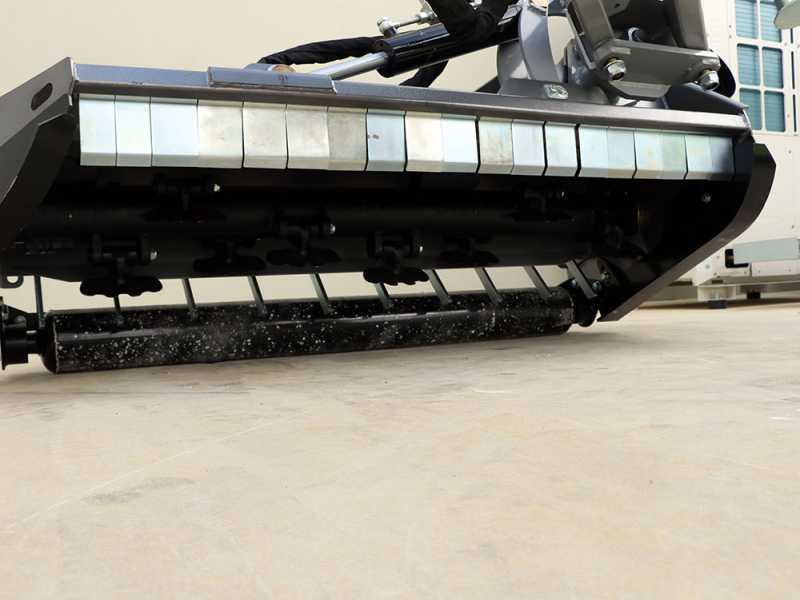

Cutting tools: toothed hammer flails

No. of hammers fitted on standard equipment: 12

Focus on one of the the hammer flails (toothed hammers) mounted on supports welded to the rotor.

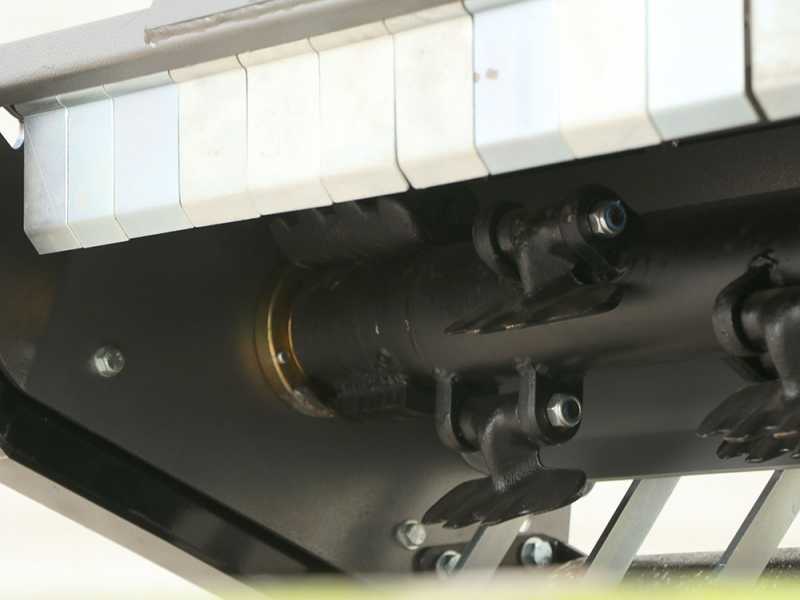

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the external rotor anchor plate, with central opening provided with greaser

Hammer width: 15.8 cm

Hammer flail's hole diameter: 16mm

Rotor, hammer flails supports, side bearings and counter blades

It finely shreds grass and cuttings, while simultaneously rolling the turf, even thanks to the counter blade.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

The highly sharpened toothed hammers ensures high-quality results in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

The rotor with hammers features a 108 mm diameter.

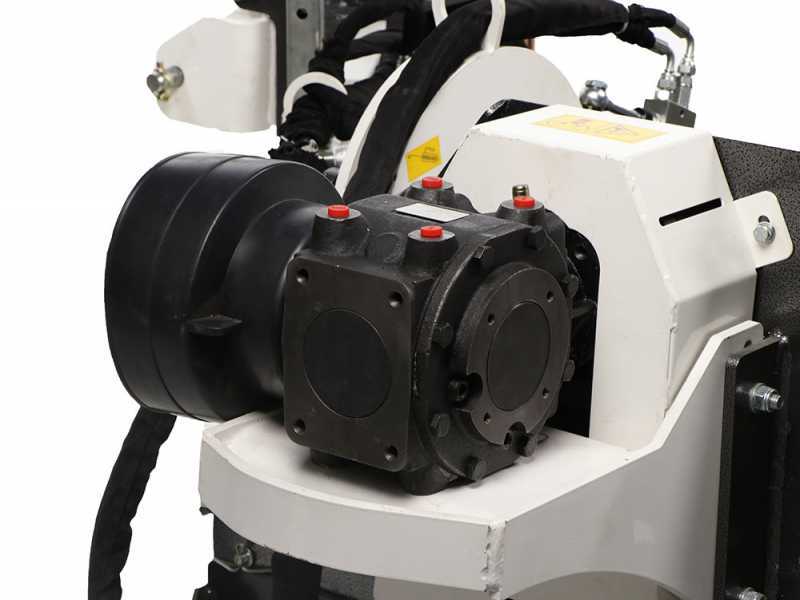

Side belt transmission and reduction gearbox

Reduction gearbox in oil bath.

3-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

THE MACHINE IS PROVIDED WITH OIL.

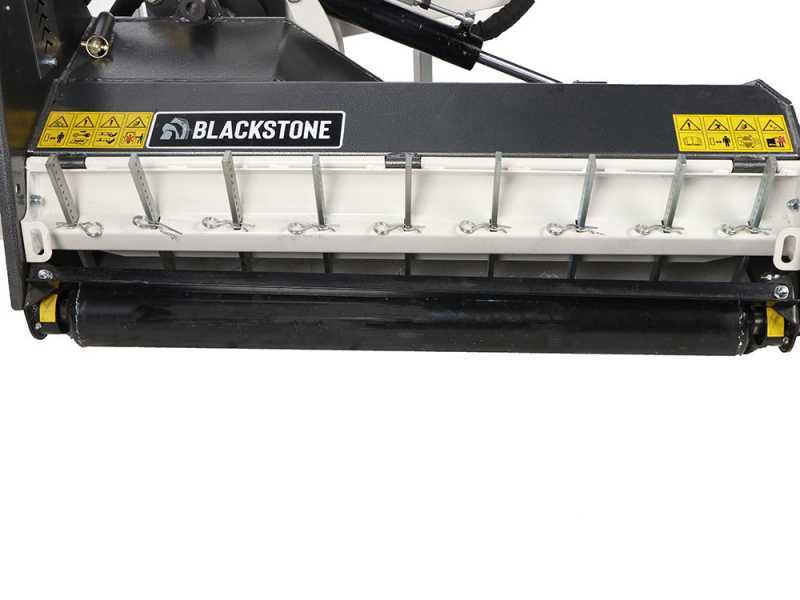

Openable rear housing

A distinctive feature of this flail mower is its rear adjustable opening.

This not only allows adjusting the rear discharge space area by means simple screws, but also facilitates maintenance.

Other features

Self cleaning roller and 108 mm diameter rear roller supplied on standard equipment.

Sturdy set of front protective plates.

Support feet.

Focus on the joints for the 3-point hitch (the two side joints are 100 cm apart and the tip is 60 cm above their axis, the base joints are cm above the ground).

Focus on the roller support.

Adjustable side support skids as standard.
