Blackstone BP-CD 180 - Tractor-mounted flail mower - Inter-Row Disc - Heavy series

Questions & Answers (1)
ID: K606896

EAN: 8054141546981

MPN: BP-CD 180

Blackstone BP-CD 180 - Tractor-mounted flail mower - Inter-Row Disc - Heavy series
Tractor power
From 40 to 65 HP
Sturdiness/Series
Heavy
Weight
577 Kg
Cutting width
180 cm
Shift
Hydraulic
Transmission type
Belt
Standard cutting tools
Hammer flails
Opening rear flap
Hammer flail weight
1.2 Kg
Cardan shaft
Yes
Product Features
Model:
Blackstone BP-CD 180
Type:
trincia con disco interfilare
Tractor power:
From 40 to 65 HP
Sturdiness/Series:
Heavy
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Required power:
40-60 HP
Cardan shaft rotation:
Standard
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Cutting width:
180 cm
No. of blades:
18
Standard cutting tools:
Hammer flails
Hammer flail weight:
1.2 Kg
Hammer flails:
Equipment
Counter-blade:
Single row
Side drive belts:
4
Hydraulic Piston for moving:
Yes
Opening rear flap:
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
243x190x94 cm
Net weight:
577 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
204x100x60 cm
Gross weight (packaging included) :
577 Kg
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 3.762,19
VAT Included
You're viewing:
Customers also viewed:
Description

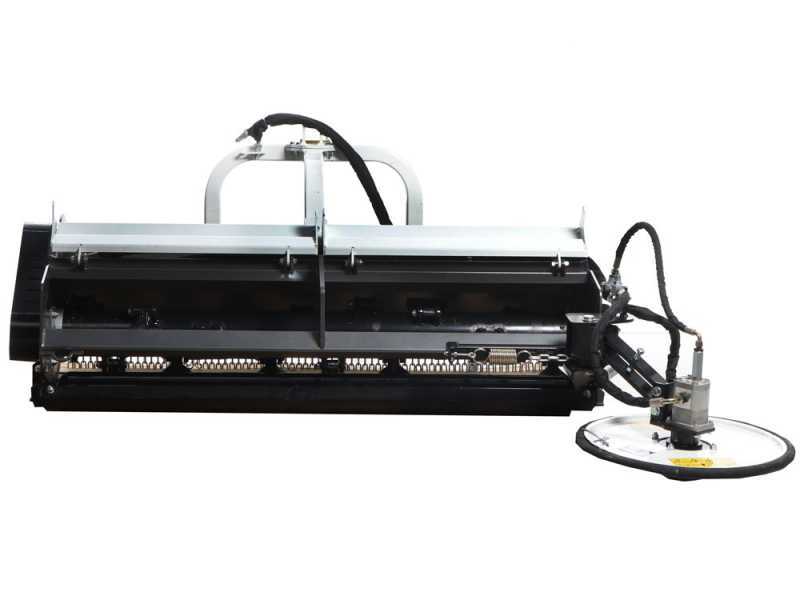

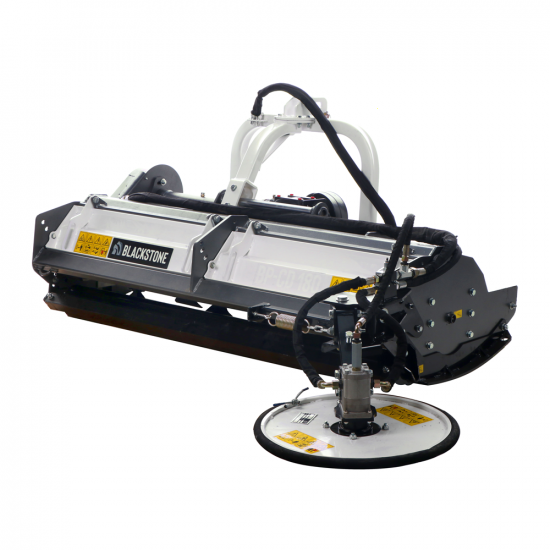

BP-CD 180 Flail Mower with Inter-Row Disc

The Blackstone tractor-mounted flail mower with hydraulically driven, horizontal axis BP-CD series is the perfect tool for shredding light weeds, grass and small shrubs on lawns, forests, orchards and fallow land.

Blackstone BP-CD 180 flail mower is an agricultural tool used to shred grass, crop residues and other plants. It is equipped with a rotating disc with two sharp blades that cut the material as required. It allows grass or weeds to be mown between crop rows, reducing inter-crop conflict and improving crop health and yield.

Blackstone BP-CD 180 features an inter-row disc with a spring-loaded mechanical retracting system.

The inter-row header provides a number of advantages:

  • The purpose of grass cutting is to maintain a manageable height of the grass with minimum soil disruption.
  • The adjustable processing height allows certain species to develop favourably against others.
  • By using the inter-row disc, "mulching" is possible, i.e. leaving the cut organic material on the surface. This makes it possible to repress the development of various weeds, exploit the shading effect of organic material and, thanks to the decomposition of residues in the soil, enrich the soil with useful nutrients.

Heavy-series flail mower, suitable for mainly hobby use, equipped with hydraulic side-shift, 4 drive belts, rear roller and double opening bonnet.

TECHNICAL DATA (brief overview):

Real working width: 180 cm

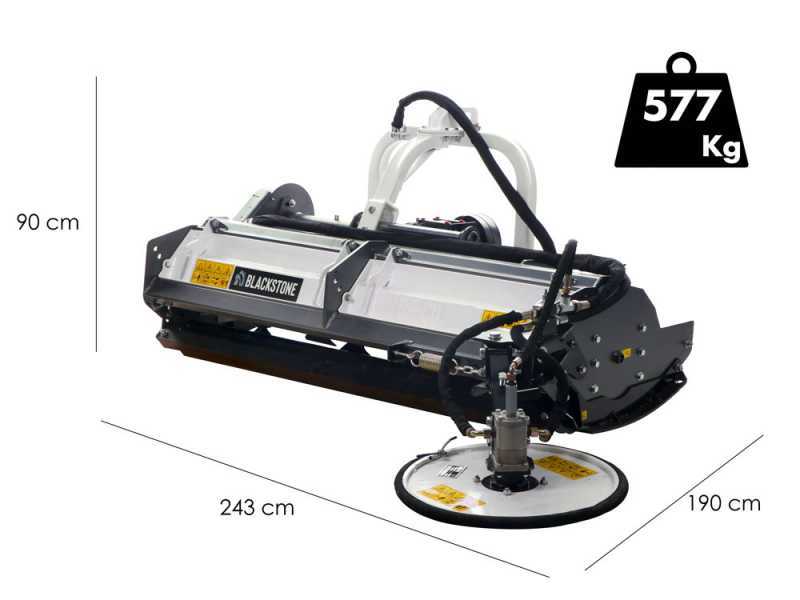

Effective overall width: (With inter-row disc): 243 cm
Weight: 577 kg
Hydraulic side shift
Adjustable 2° category 3-point hitch with hydraulic piston
4-belt drive
Required power: 40-60 HP

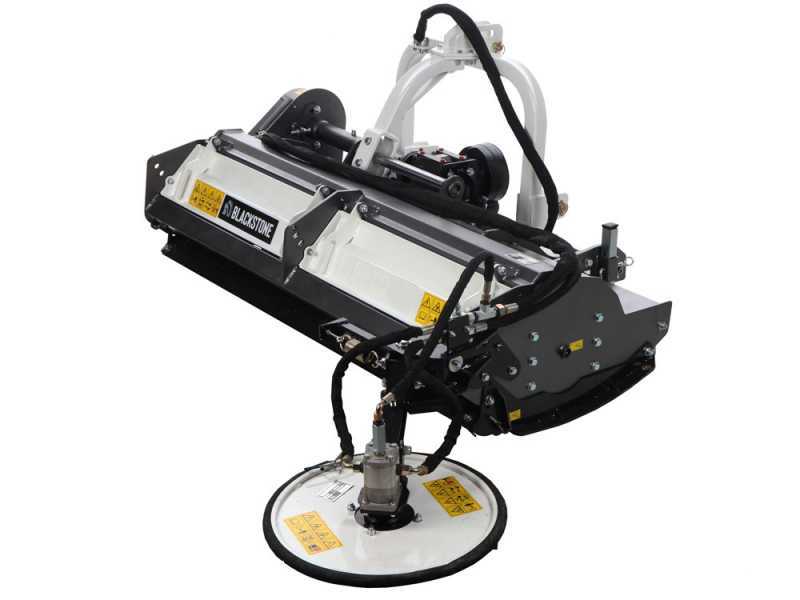

Inter-row disc - 3 hydraulic hoses

The Blackstone BP-CD 180 inter-row disc is a versatile component useful for cleaning areas around tree trunks, fence posts and spaces between rows; its main purpose is to reduce weed or grass interference, promoting the growth and health of main crops.

Thanks to a return spring, when it comes into contact with the boot of the plant, it retracts without causing damage to the crop.

The inter-row disc is installed on a system of parallels that makes it mobile, allowing it to adapt to any unevenness in the ground, with the possibility of adjusting the working height by means of a special screw.

The attachment to the flail mower comprises two parallel moving axles and the base of the disc is levelling, thus ensuring a floating movement of the disc itself, which allows it to adapt to any unevenness in the soil.

Hydraulic pump and 66 cm hydraulic hose pair with standard quick couplings, third 72 cm pipe for the return.

Need 25/40 litres of oil to run the pump.

Inter-row disc cutting diameter: 60 cm

Inter-row disc total weight : 37 kg

2 horizontal blades with cutting edges on both sides.

Double opening bonnet, rotor and side bearings

The Blackstone BP-CD 180 flail mower's double bonnet, placed at the top of the cutting compartment, allows access to the machine's internal components in a more convenient and practical way so as to carry out maintenance, inspection and cleaning of any crop or vegetation residue.

Focus on one of the two support feet.

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

Hydraulic side shift and 3 point-hitch

The Blackstone BP-CD 180 flail mower is equipped with hydraulic shift.

The three-point hitch slides on two sturdy tubulars, one longer (126 cm) at the bottom, which runs along almost the entire body, the other shorter (45 cm) at a higher position.

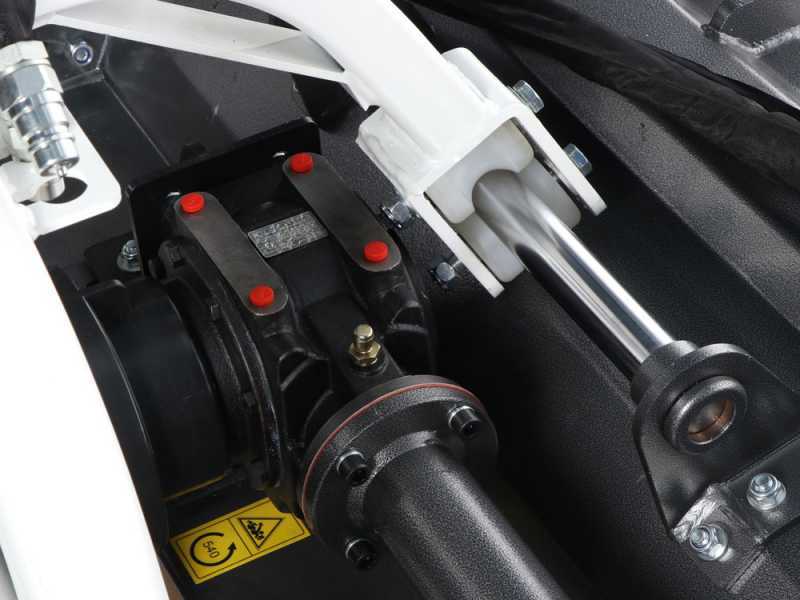

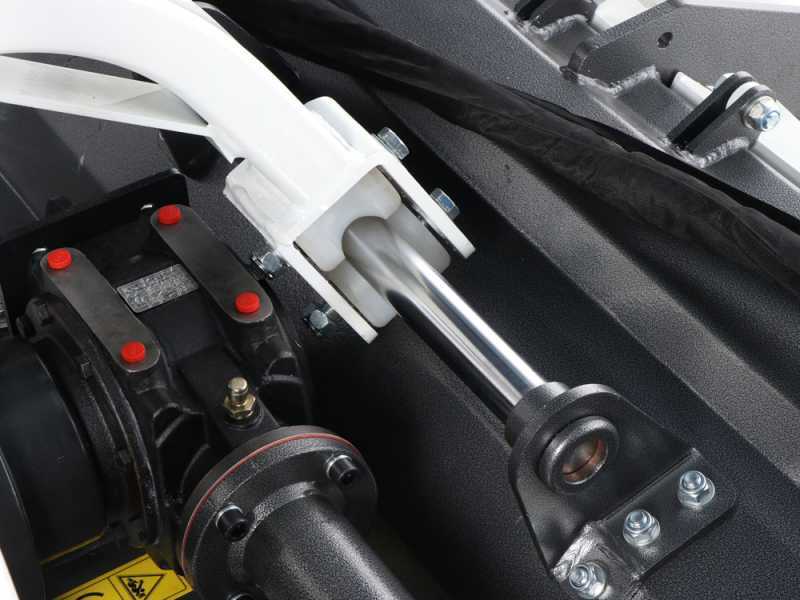

Focus on the piston that controls the hydraulic shift (28 cm) of this flail mower. This allows the position of the cutting unit to be adjusted and moved laterally compared to the machine frame. This feature allows the cutting unit to be aligned with the vegetation to be cut and to work efficiently even under the most demanding shredding conditions.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 2° category 3-point hitch, wheelbase size 67 cm.

Height of the two lowest pins from the ground: 30 cm

Height from the highest pin from the ground: 85 cm

Stabilisation accessories - rear roller and side skids

Height-adjustable rear supporting roller provided on standard equipment.

Focus on the roller fixing bearing

Support roller protection rod.

Focus on the roller grease nipple.

Focus on one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 4-belt side drive (most tractor-mounted flail mowers on the market are equipped with a 3-belt drive)

Focus on the protective casing.

Sturdy set of front protection slaps made of steel.

The front protection chains of this flail mower are safety systems employed to prevent debris or other objects projection from the front section of the machine during the working process, thus ensuring several safety and protection advantages.

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 14.

Weight: 1200 g each.

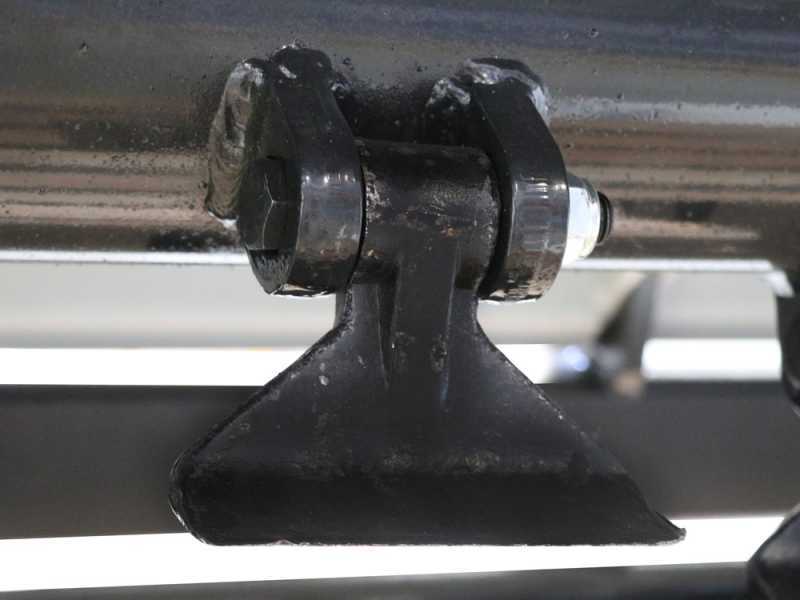

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm

Blade width 13.5 cm

Focus on the single row of underframe counter-hammers.

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Free items & Standard equipment

Free items included

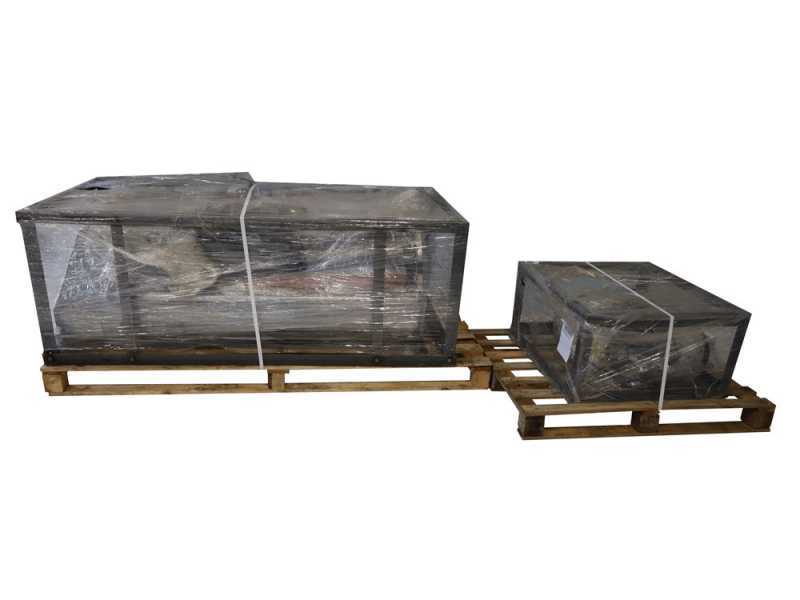

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.
