Blackstone BM-CD 160 - Tractor-mounted flail mower - Inter-Row Disc - Medium series - Hydraulic Shift

Questions & Answers (2)
ID: K606845

EAN: 8054141546950

MPN: BM-CD 160

Blackstone BM-CD 160 - Tractor-mounted flail mower - Inter-Row Disc - Medium series - Hydraulic Shift
Tractor power
From 40 to 65 HP
Sturdiness/Series
Medium
Weight
362 Kg
Cutting width
160 cm
Shift
Hydraulic
Transmission type
Belt
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Product Features
Model:
Blackstone BM-CD 160
Type:
trincia con disco interfilare
Tractor power:
From 40 to 65 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Hydraulic shift:
Yes
Hydraulic shift:
Required power:
20-60 HP
Cardan shaft rotation:
Standard
Manufacturing country:
China
Pump data
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Cutting width:
160 cm
No. of blades:
20
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Equipment
Side drive belts:
3
Hydraulic Piston for moving:
Yes
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

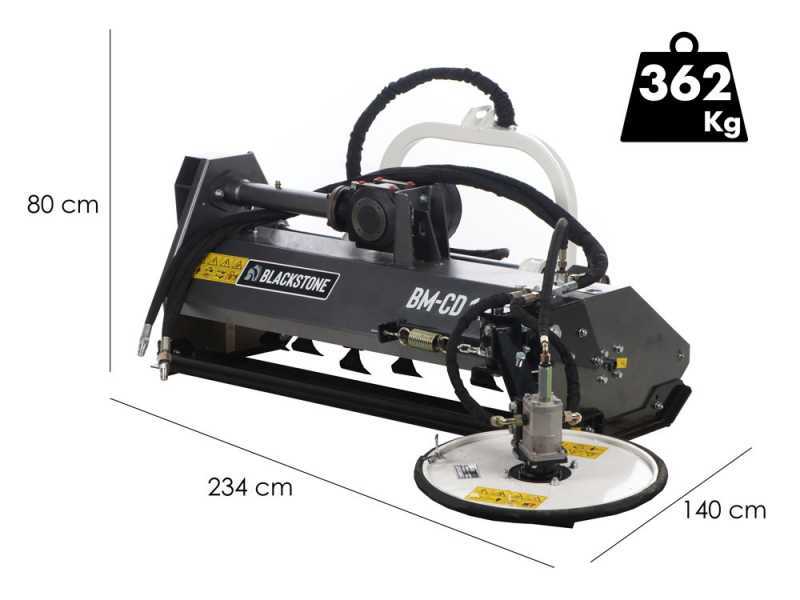

Product dimensions in cm (L x W x H):
234x140x80 cm
Net weight:
362 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
183X84X60 cm
Gross weight (packaging included) :
355 Kg
Assembly time:
30 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 2.810,38
VAT Included
You're viewing:
Customers also viewed:
Description

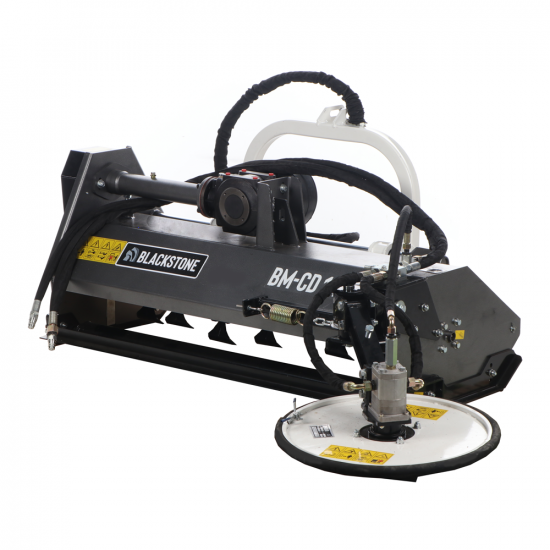

Blackstone BM-CD 160 Tractor-Mounted Flail Mower

The Blackstone tractor-mounted flail mower with hydraulically driven, horizontal axis BM-CD series is the perfect tool for shredding light weeds, grass and small shrubs on lawns, forests, orchards and fallow land.

Blackstone BM-CD 160 flail mower is an agricultural tool used to shred grass, crop residues and other plants. It is equipped with a rotating disc with two sharp blades that cut the material as required. It allows grass or weeds to be mown between crop rows, reducing inter-crop conflict and improving crop health and yield.

Blackstone BM-CD 160 features an inter-row disc with a spring-loaded mechanical retracting system.

The inter-row header provides a number of advantages:

  • The purpose of grass cutting is to maintain a manageable height of the grass with minimum soil disruption.
  • The adjustable processing height allows certain species to develop favourably against others.
  • By using the inter-row disc, "mulching" is possible, i.e. leaving the cut organic material on the surface. This makes it possible to repress the development of various weeds, exploit the shading effect of organic material and, thanks to the decomposition of residues in the soil, enrich the soil with useful nutrients.

Medium-sizedseries flail mower, suitable for mainly hobby use, equipped with hydraulic side-shift, 3 drive belts, rear roller and double opening bonnet.

TECHNICAL DATA (brief overview):

  • Real working width: 160 cm
  • Real width (side skids already assembled): 234 cm
  • Weight: 362 kg
  • Side hydraulic shift
  • 1° Category 3-point hitch
  • 3-belt drive transmission

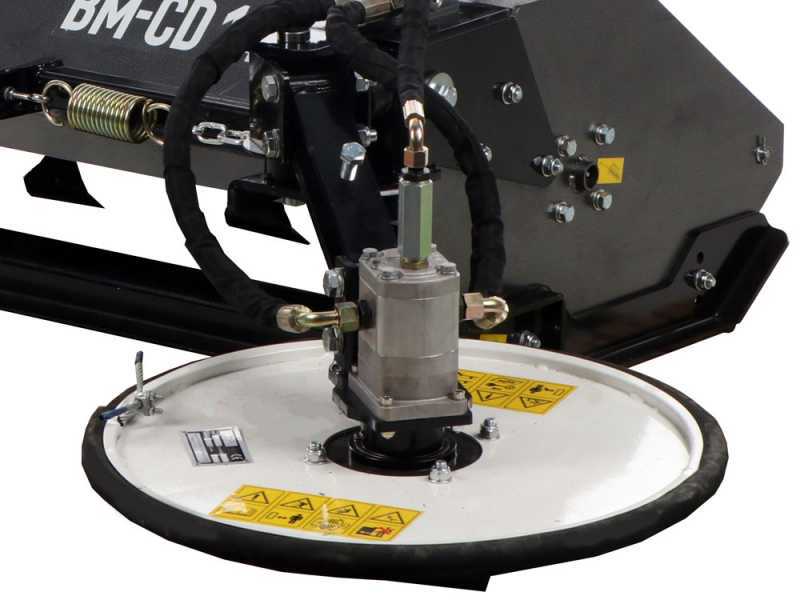

Inter-row disc

The Blackstone BM-CD 160 inter-row disc is a versatile component useful for cleaning areas around tree trunks, fence posts and spaces between rows; its main purpose is to reduce weed or grass interference, promoting the growth and health of main crops.

Thanks to a return spring, when it comes into contact with the trunk of the plant, it retracts without causing damage to the crop.

The inter-row disc is installed on a system of parallels that makes it mobile, allowing it to adapt to any unevenness in the ground, with the possibility of adjusting the working height by means of a special screw.

The attachment to the flail mower comprises two parallel moving axles and the base of the disc is levelling, thus ensuring a floating movement of the disc itself, which allows it to adapt to any unevenness in the soil.

Hydraulic pump and 66 cm hydraulic hose pair with standard quick couplings, third 72 cm pipe for the return.

Need 25/40 litres of oil to run the pump.

Inter-row disc cutting diameter: 60 cm

Inter-row disc total weight : 37 kg

2 horizontal blades with cutting edges on both sides.

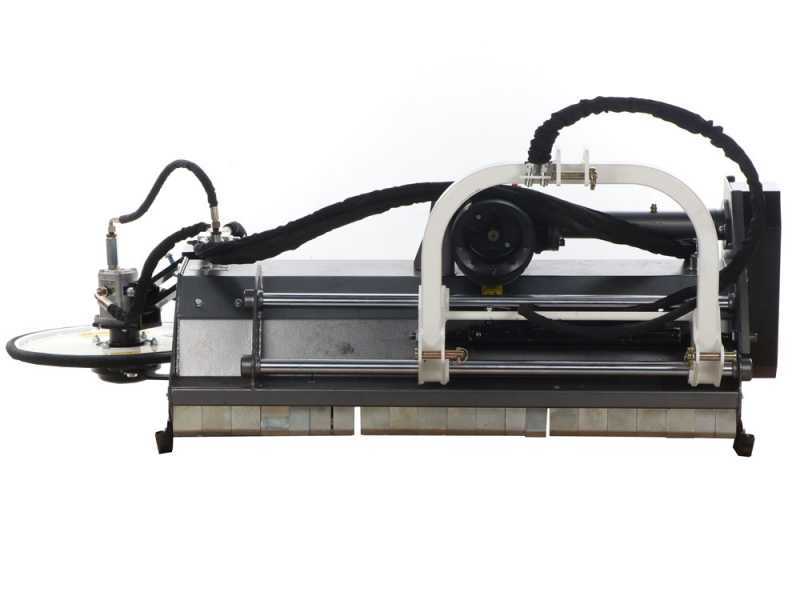

Hydraulic side shift and 3 point-hitch

The Blackstone BM-CD 160 flail mower is equipped with hydraulic shift.

The three-point hitch slides on two sturdy tubes, both 117 cm long.

Focus on the piston that controls the hydraulic shift (32 cm) of this flail mower. This allows the position of the cutting unit to be adjusted and moved laterally compared to the machine frame. This feature allows the cutting unit to be aligned with the vegetation to be cut and to work efficiently even under the most demanding shredding conditions.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch,

Wheelbase size 61 cm.

Height of the two lowest pins from the ground: 30 cm

Height from the highest pin from the ground: 76 cm

Stabilisation accessories - rear roller and side skids

Height-adjustable rear supporting roller provided on standard equipment.

Support roller protection rod.

Focus on one of the two standard adjustable side support skids.

Gearbox in oil bath.

B-section 3-belt side drive.

Focus on the protective casing, with central opening for grease nipple.

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

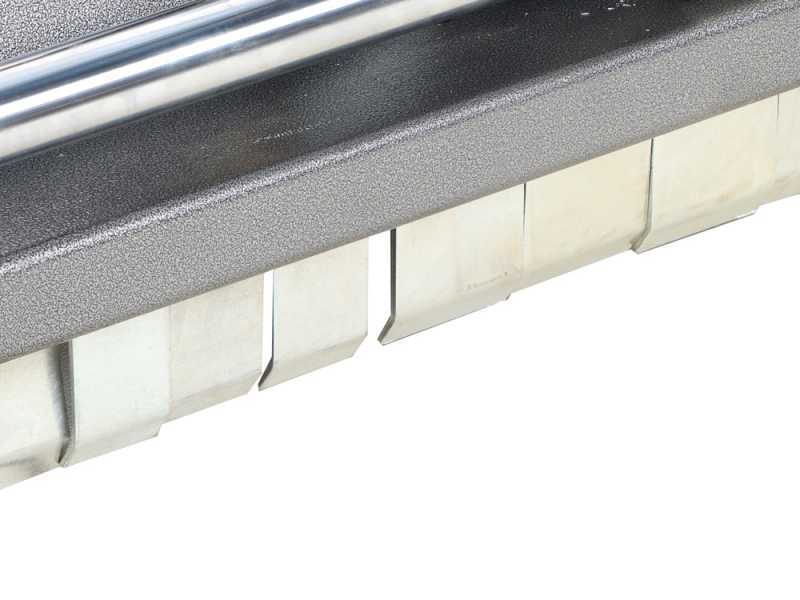

Sturdy set of front protection slaps made of shaped steel.

Focus on the external anchoring of the rear roller, with central opening provided with greaser.

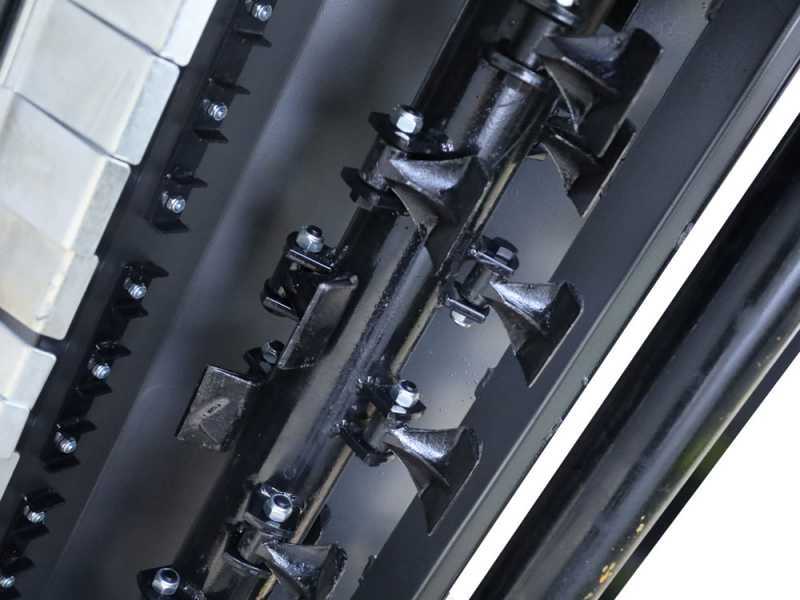

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 20.

Focus on the cutting hammers, mounted on the rotating roller.

Hole width: 16 mm.

Blade width 13,5 cm

Weight of the single hammer flail: 800 g

These hammers are fixed to a rotor inside the machine.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Free items & Standard equipment

Free items included

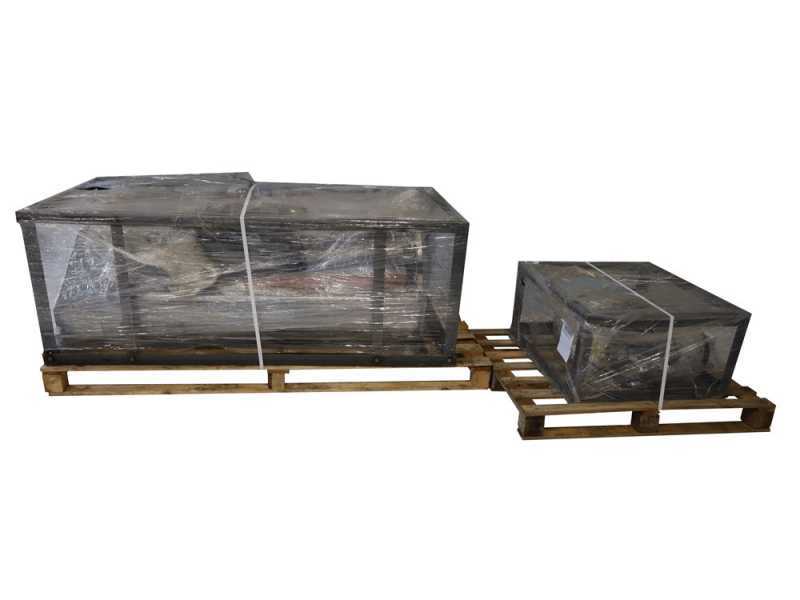

The flail mower is shipped partially assembled on pallet (you’ll only have to assemble the 3-point hitch and a few other small components)

Cardan shaft included in the package.
