Name: Blackstone BHTL-125 - Medium-Heavy Series Tractor Rotary Tiller - Hydraulic Displacement
Brand: BlackStone
SKU: K600450
Price: 2299.24 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

Description

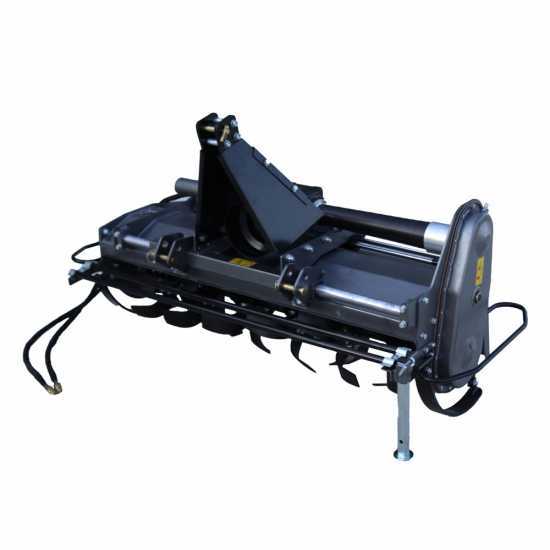

Blackstone BHTL-125 Tractor rotary tiller with hydraulic movement

Blackstone BHTL-125 is a rotovator with hydraulic movement suitable for tractors with 25-35 HP.

The side hydraulic movement makes this machine very versatile and suitable to different effortless operations.

Blackstone BHTL-125 needs easy maintenance and is provided with easy accessible greasing points.

It is provided with stabilizing support for long-lasting storage.

Real working width: 125 mm

The Blackstone BHTL-125 heavy rotary tiller is a sturdy machine designed for working with medium and big-sized tractors.

suitable for semi-professional or hobby use
for medium and small extensions

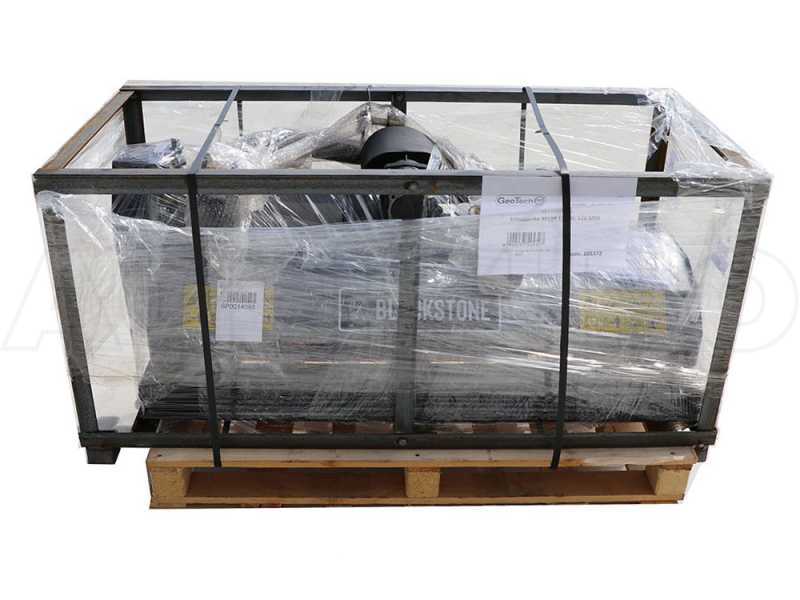

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Blackstone BHTL-125 - Medium-Heavy Series Tractor Rotary Tiller - Hydraulic Displacement

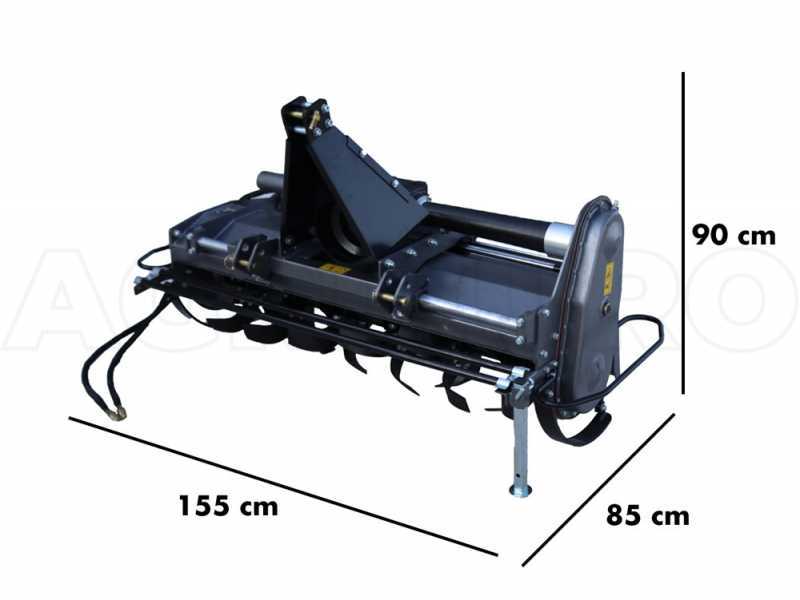

Technical features

Rotary tiller's features:

Outer dimension: 125 cm
Real working width: 155 cm
Weight: 332 kg
Indicated demand: 35-40 HP
Working height: 15 cm
Hoes for flange: 6
Number of hoes: 30
Hoes disc number: 5

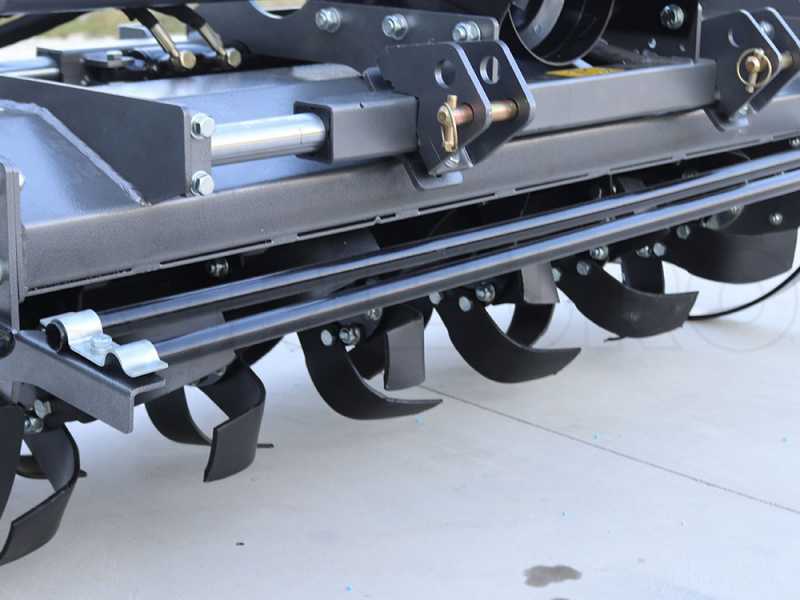

Hydraulic side shift and 3 points hitch

Equipped with hydraulic side shift.

The 3 point hitch is located on a very sturdy tubular going along the full structure.

Focus on the side shift controller hydraulic cylinder.

Universal type PTO ( 1 3/8" Z6 )

Connections are universal type for all tractors on market.

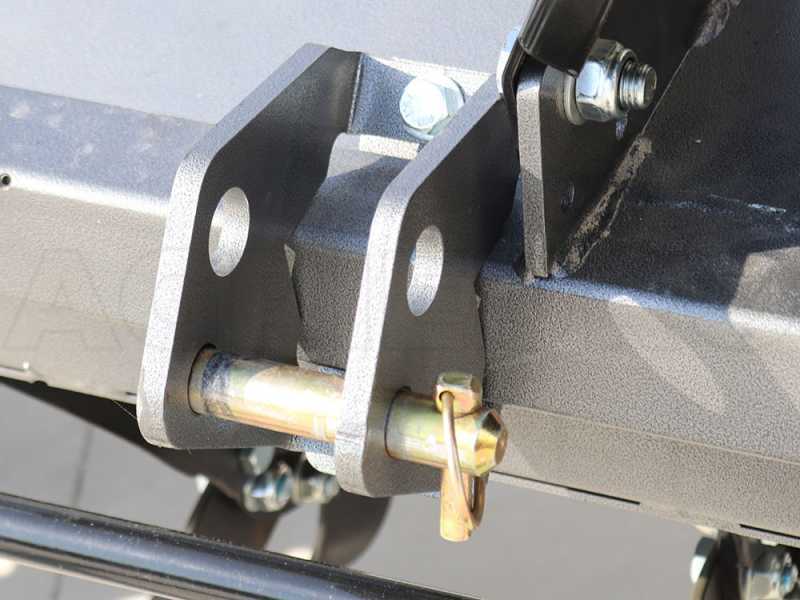

Focus on the sturdy 3 points hitch of first category.

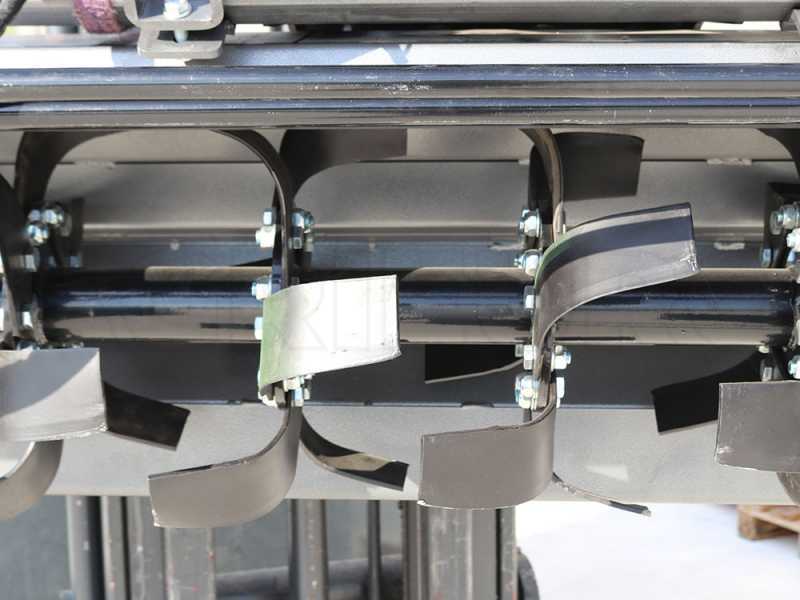

Hoes

Steel hoes:

5 blades attachments (6 hoes each attachment)

Focus on the side support of the rotor's fixing by the inside.

Focus on the outer rotor's anchoring, with greaser hole in the middle.

ATTENTION:

All rotovators have to work on "clean soil", that is to say without stones and rocks of a size that could damage not only the hoes but in the worst case even the rotor, frame or several transmission components (ball bearings, oil retainers, etc.).

Transmission and other features

Height adjustable side skids

Movable rear hood with levelling action on the hoed ground

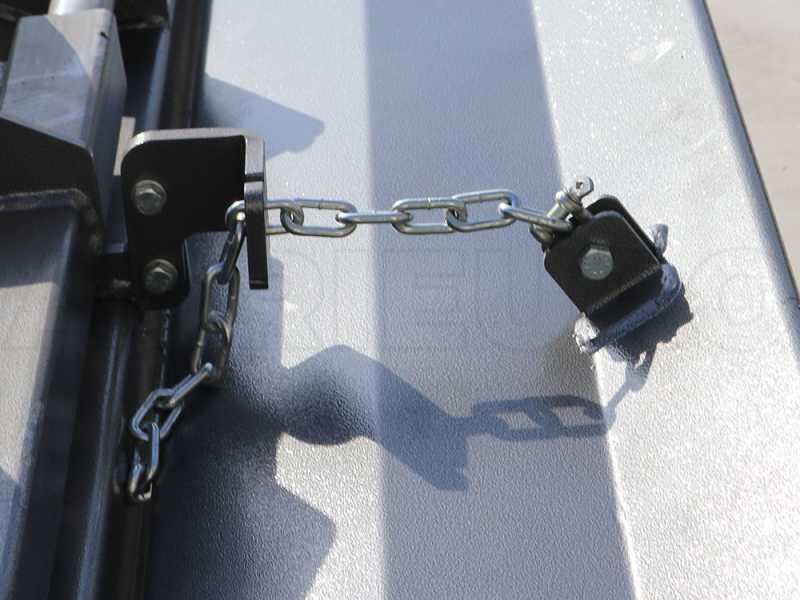

Adjustable hood by means of proper chain

Sturdy oil bath big chain side transmission

Cast iron oil bath sturdy gear box

Cardan provided on standard equipment is equipped with safety bolt.

The torque limiter shear bolt is designed to protect the machine from damages due to mechanical overload caused by unforecasted or excessively high torque. This means if the torque force is higher than the one the bolt can bear, the bolt snaps off. To reactivate transmission, the shear bolt shall be replaced with a new one having the same features.

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.
