BlackStone BD-ST 8000ES Diesel Water Pump for Dirty Waters, 80 mm Fittings - Euro 5

BlackStone BD-ST 8000ES Diesel Water Pump for Dirty Waters, 80 mm Fittings - Euro 5
Safe shipment: box secured to wooden pallet
Motor brand
Producer-manufactured
Motor Model
D400
Cubic Capacity
418 cm³
Nominal power
9.5 HP
Power supply
Diesel
Electric start
Yes
Reinforced square tubular frame
Yes
For dirty water
Yes
Battery type
Lead-acid
Voltage
12 V
Water pump type
Self-priming
Material
Aluminium
Pipe fittings (joints) diameter
80 mm
Head lift
25 mt
Maximum suction depth
8 m
Aluminium fittings
Yes
Contrifugal pump with cast iron pump
Yes
FREE:
Free items: 2 bottles of 600 ml engine oil each
FREE:
Free items: 2 bottles of 600 ml engine oil each
€ 1.176,51
VAT Included
Prompt Delivery
27 items in stock
|
Free Shipping
You should receive it by 07/07/2022
ID: K601083

EAN: 9999237546317

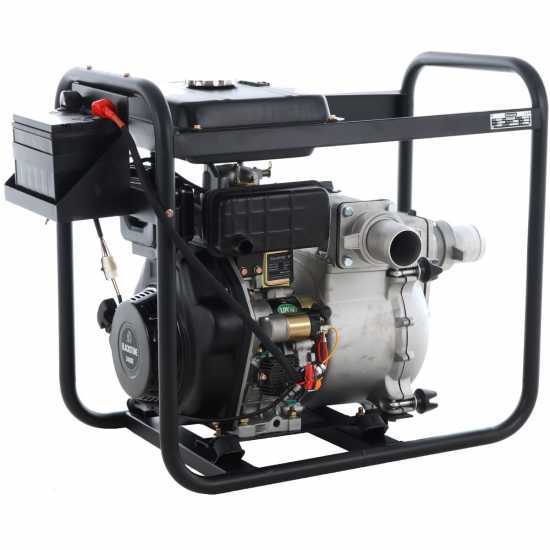

Blackstone BD-ST 8000ES Diesel Water Pump

Blackstone BD ST-8000ES water pump for dirty waters is a specific machine to drain dirty water and it stands among the standard petrolpumps for the large dimensions and exceptional volume of its pump unit.

This pump can also operate with liquids which may contain solid parts, such as stones and sand, and it is ideal for emptying muddy excavations of construction sites, muddy bottom ponds, cesspits and so on. It is also equipped with a specific metal filter, resistant to shocks and wear due to debris that dirty waters contain.

Another distinctive feature of this product is the electric start with key, which ensures easy and quick starting. In addition to this, the high performance of the powerful 418 cc diesel engine that delivers a power of 9.5 Hp guarantee a maximum flow rate of up to 1166 L per minute. Also, this water pump provides a maximum head lift of 25 m and a suction depth of up to 8 m.

This particular model features a sturdy wraparound frame made of steel, giving the pump stability, safety and protection against impacts. Despite its robustness, this machine is easy to transport, as well as being a good compromise between size and power.

Finally, Blackstone BD-ST 8000ES is easy to use; in fact, it is sufficient to fill it using the dedicated tap placed on the top of the pump and, if necessary, drain the excess water from the drip valve.

Items included: 2 80 mm fittings, 3 metal clamps and 2 rubber gaskets for fittings in addition to the steel suction filter.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:

  • Model: D400
  • Type: 4-stroke - Euro 5
  • Cubic capacity: 418 cc
  • Power: 9.5 Hp
  • Fuel: diesel
  • Fuel tank: 14 L
  • Oil tank: 1.65 L

Blackstone BD-ST 8000ES water pump stands among other models because it is equipped with electric start with key, which allows for a quick and optimal starting thanks to the 12V 30 Ah battery. Moreover, the machine has a 14 L tank, from which you can comfortably check the level.

Focus on the starting engine and the battery slot, fixed to the outside of the water pump frame.

Focus on the air filter (removed) and the oil filter (removed).

How to start the water pump without using the electric start:

  1. Move the engine adjustment lever until you reach the start position.
  2. Move the valve opener downward.
  3. Pull the starting lever until you feel a slight resistance, then pull hard.

Water Pump Technical Features

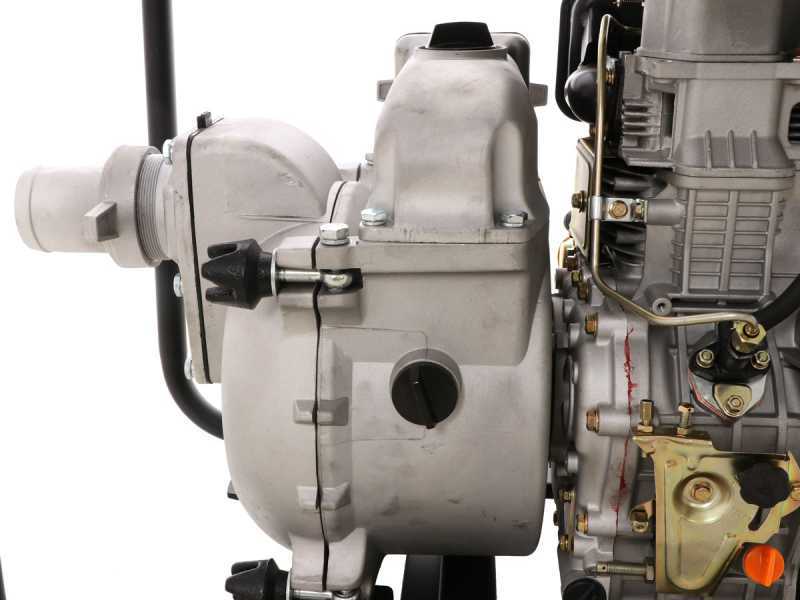

The pump mounted on the BD-ST 8000ES is made of cast aluminium alloy, which makes it lightweight and robust at the same time. While the flow control system and the impeller are in highly resistant cast iron.

Its materials and its exceptionally high volume make it suitable for pumping liquids which may also contain solid parts without problems.

  • Suction: 80 mm - 3 inches
  • Discharge: 80 mm - 3 inches
  • Maximum suction height: 8 m
  • Maximum flow rate: 1166 L/min
  • Maximum head lift: 26 m

Focus on the 80 mm suction and discharge fittings. Please note that in this model the intake valve is very easy to remove andclean. In fact, it may happen that the air vacuum which forms can be compromised by some debris.

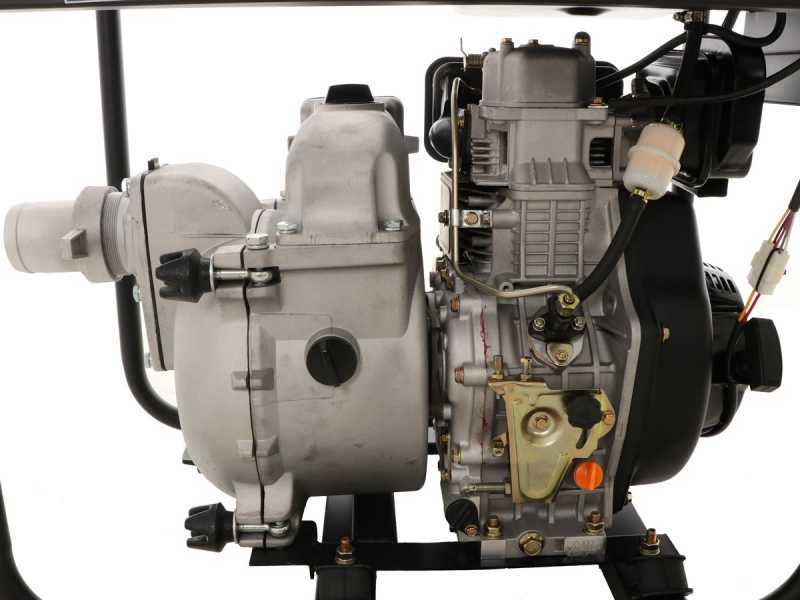

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

Focus on the steel bottom filter which allows the passage of debris with a maximum diameter of 35 mm.

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Assembly tutorial of the BlackStone BD-ST 8000ES Diesel Water Pump for dirty waters - Euro 5
Product Features
Model:
BD-ST 8000ES
Power supply:
Diesel
Electric start:
Yes
Reinforced square tubular frame:
Yes
For dirty water:
Yes
Anti-corrosion pump for chemicals:
No
Double delivery mode:
No
Manufacturing country:
China
Motor data
Motor brand:
Blackstone
Motor Model:
D400
Cubic Capacity:
418 cm³
No. of cylinders:
1
Nominal power:
9.5 HP
Fuel:
Diesel
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Decompression lever
Tank capacity:
14 L
Oil tank capacity:
1.65 L
Battery type:
Lead-acid
Voltage:
12 V
Working autonomy:
30 h
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Water pump type:
Self-priming
Material:
Aluminium
Revolutions per Minute:
3600 RPM
Pipe fittings (joints) diameter:
80 mm
Max debris diameter:
35
Flow Rate:
1166 L/min
Head lift:
25 mt
High delivery head:
No
Maximum suction depth:
8 m
Manufacturing country:
China
Equipment
Electric start battery:
Yes
Recoil starter (with rope):
Yes
Aluminium fittings:
Yes
Contrifugal pump with cast iron pump:
Yes
Free gifts/extra features
Couple swivel fittings:
yes
Cable ties:
yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

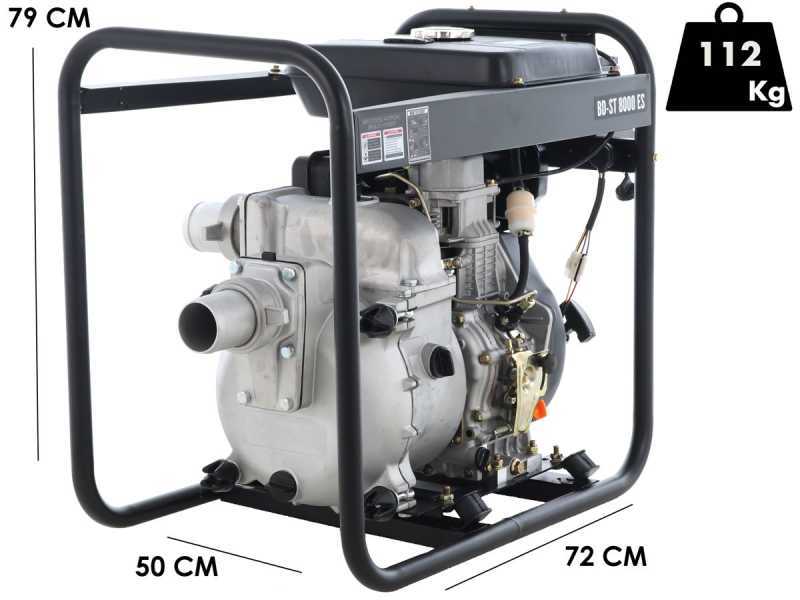

Product dimensions in cm (L x W x H):
79x50x72 cm
Net weight:
112 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
81x52,5x74,5 cm
Gross weight (packaging included) :
116 Kg
Assembly time:
5 minutes

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The water pump is shipped in its original packaging with instructions manual, equipped with tools for assembly and maintenance:

  • 12V 30Ah battery
  • keys for electric start
  • 2 80 mm fittings
  • 3 metal clamps
  • 2 rubber gaskets for fittings
  • steel bottom filter
