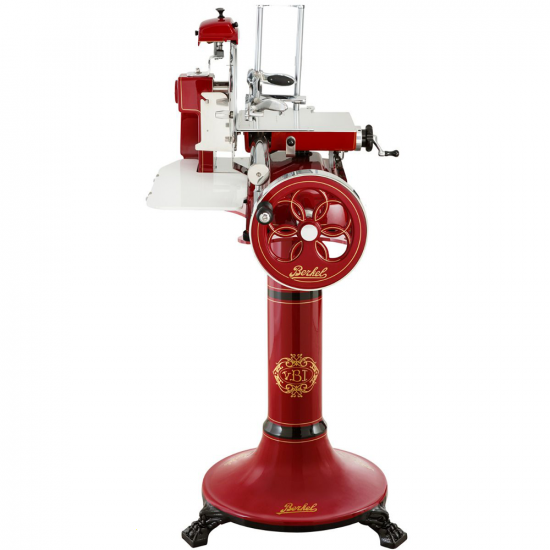

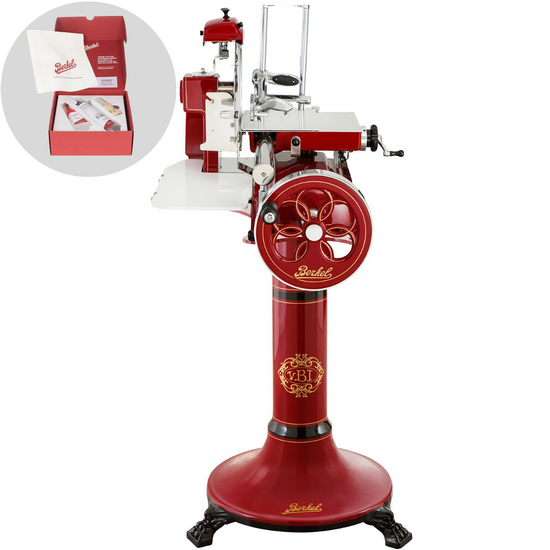

BERKEL B3 - Flywheel Meat Slicer With Pedestal With 300 mm Chrome-Plated Steel Blade - Red

BERKEL B3 Red flywheel meat slicer

Thanks to the harmonious and balanced design, the machine features the elegance of the flywheel meat slicers by Berkel.

This machine fully represents the home line of Berkel flywheel meat slicers.

The vintage-inspired design features old-fashioned and classy details.

The 300 mm hard chrome blade guarantees a high cutting capacity, which makes it also suitable for catering.

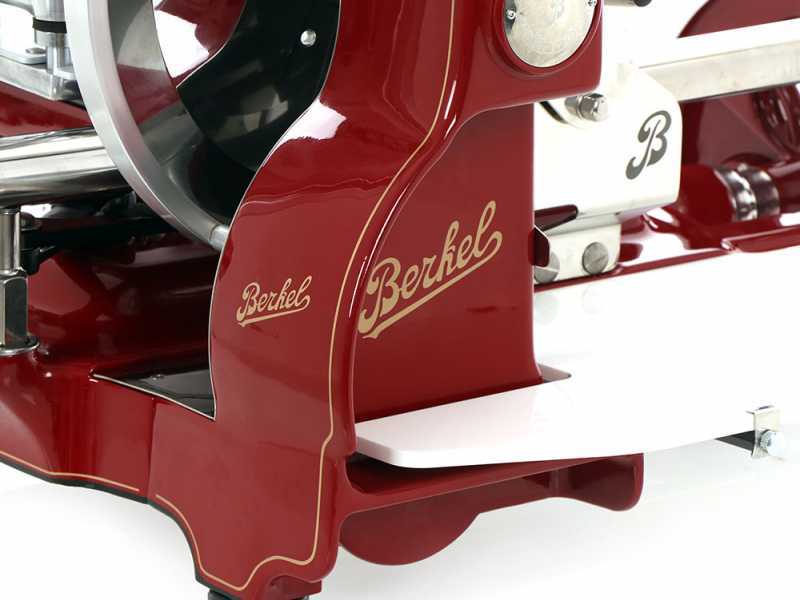

Decorations and golden details are a classy touch to embellish all the features of the machine.

In addition, an NFC tag is integrated into the machine body, so as to guarantee authenticity.

The flywheel protrudes below the working table only about 33 mm to allow the opening of the lower drawers. This is one of the few examples of Berkel great attention to detail.

The machine body is made of a special aluminium alloy and the feet are made of rubber for total stability while working.

The meat slicer is equipped with an integrated sharpener with separate movements, so as to keep the blade original precision and shape.

The machine is equipped with a sliding blocking arm with minimum thickness calibrated to minimise food waste, equipped with iron tips to prevent the food to slip

BERKEL flywheel B3 is designed to allow you to place the food carriage directly under the blade, optimising preparation and serving time.

The whole unit is easy to remove and clean.

It is ideal for slicing all types of cured meats, meat, cheese, etc.

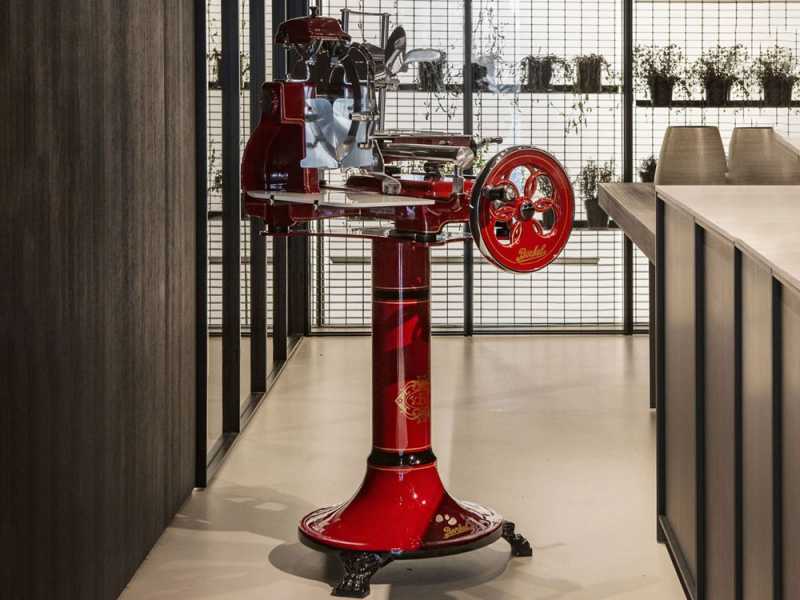

Pedestal designed specifically for use with B3 Flywheel Slicer - Tribute - B114.

The accessory enhances the elegance of the legendary slicers.

Some details may differ from what is shown in the photo.

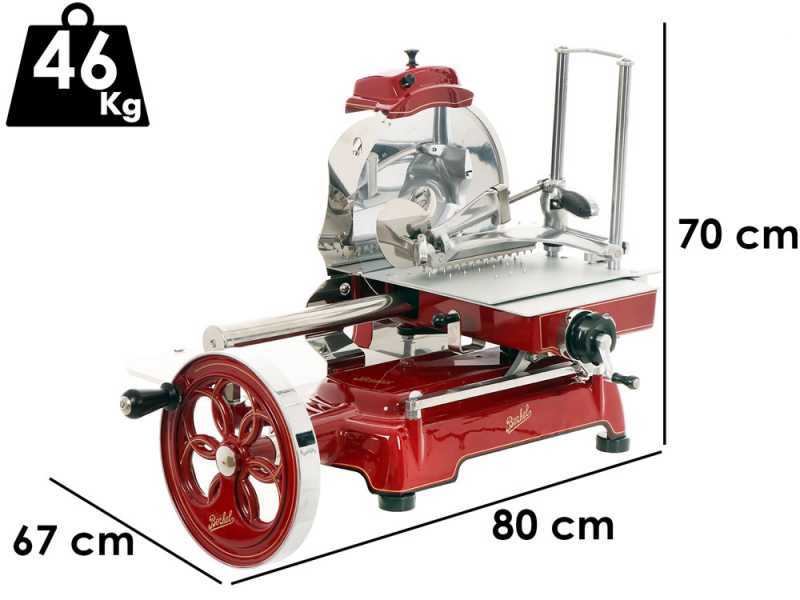

Size and weight: 580x580x780h mm and 45 kg

• Chrome-plated steel blade (100Cr6 steel)
• Blade diameter300 mm.
• Fixed ring blade protector
• Toothed stainless steel carriage, removable to facilitate cleaning

The machine features a chrome-plated steel blade.

The anodized aluminium knob adjusts the automatic carriage operation, allowing cuts from a minimum of 0 mm to a maximum of 1.5 mm

The food carriage slides on a guide.

This system has many advantages:

• smooth sliding with no need for continuous lubrication
• more compact structure
• the possibility of placing the food carriage directly under the blade

The plate is moved by a connecting rod activated by some gears operated by the flywheel, the blade transmission instead consists of a thick chain.

The blade has a cut of 210 mm for round food and 270x210 mm for square food

This meat slicer is entirely made of anodized aluminium, the absolute best material for this type of machines, which guarantees a durability and a resistance to corrosion absolutely superior to the other materials used.

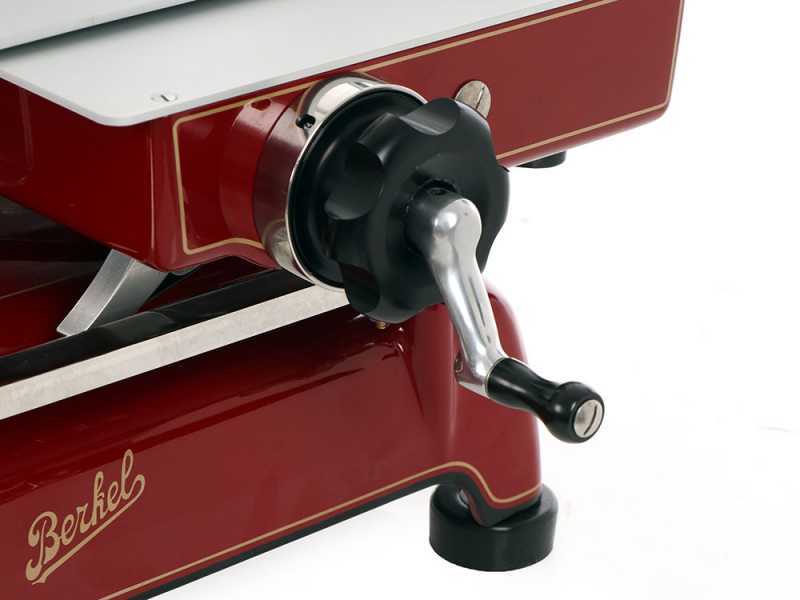

The cutting plate has an automatic movement that can be adjusted using an anodized aluminium handle.

This movement takes place through a piston that comes into contact with an arm connected to a toothed wheel that advances the plate.

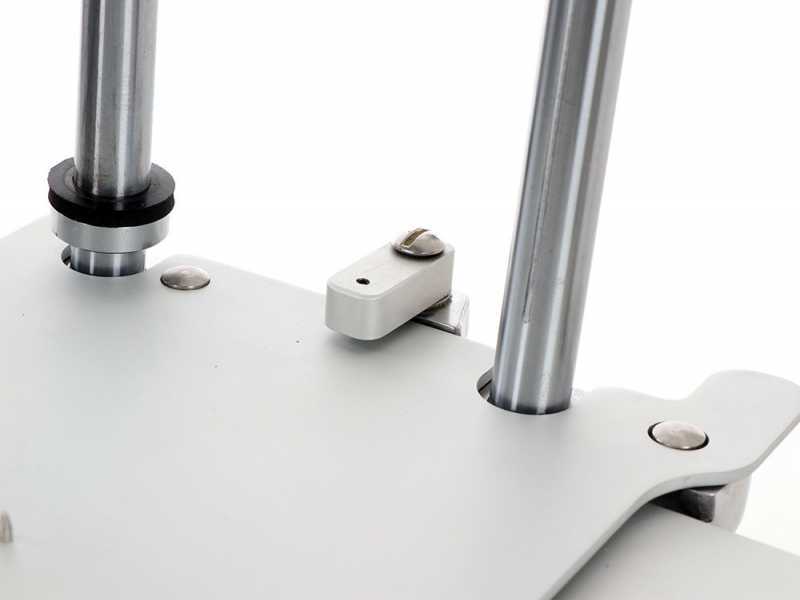

The arm for holding food has a stroke stop positioned at the shortest possible distance from the blade to minimise as much as possible waste without letting the iron teeth come into contact with the cutting plate and the blade

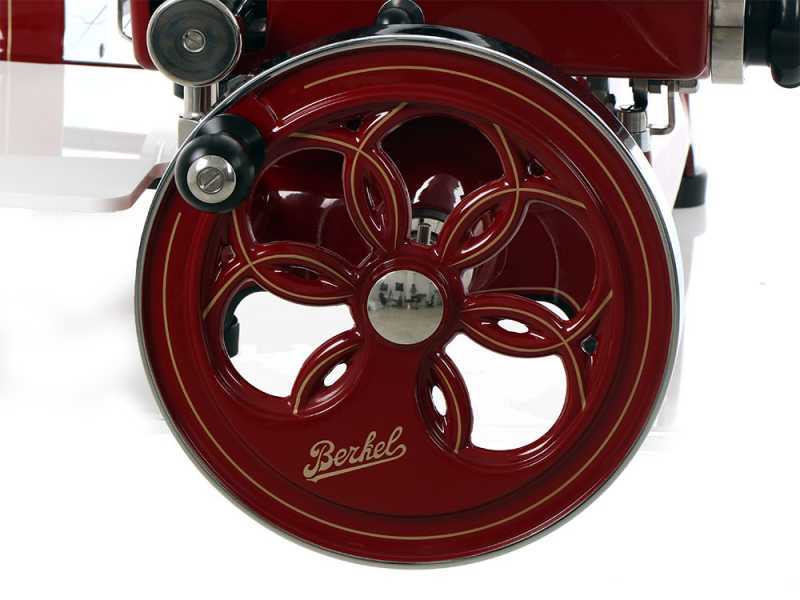

The meat slicer operation is controlled by the characteristic Berkel floral flywheel

The transmission is belt and gear, ensuring maximum performance and superior reliability, essential for professional and continuous use.

A toothed stainless steel plate placed on the carriage and easily removable to facilitate cleaning.

The same happens for the food tray.

The meat slicer is equipped with a removable sharpener.

This accessory is required in order to always obtain a perfectly sliced product.

Details of the sharpening procedure:

Place the sharpener in the sharpening position.

Bring the sharpener close to the blade, proceed to sharpening the blade.



Please read the instructions manual carefully before sharpening.

This meat slicer features rubber feet to prevent slipping.

Iconic tower with Berkel design

Focus on the sturdy connecting rod that manages the movement of the carriage
