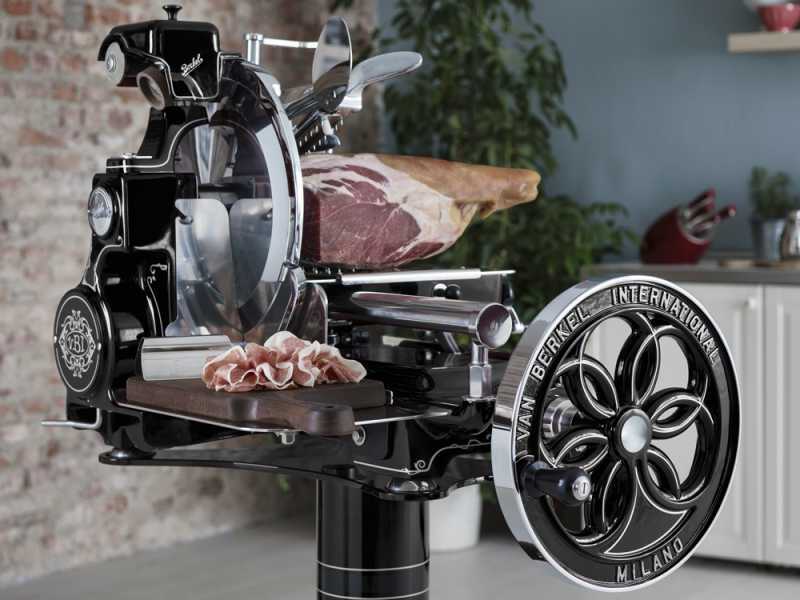

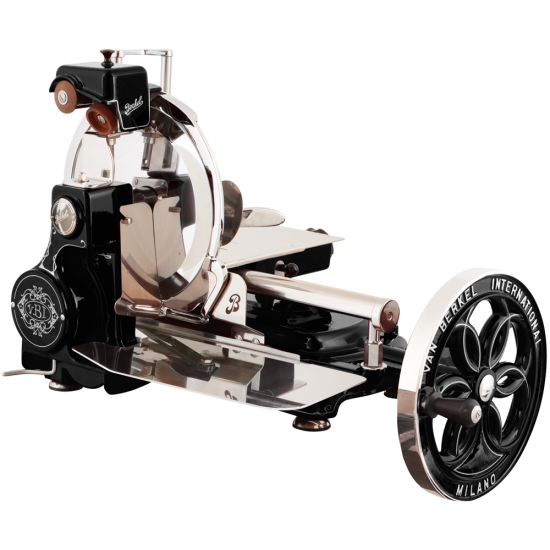

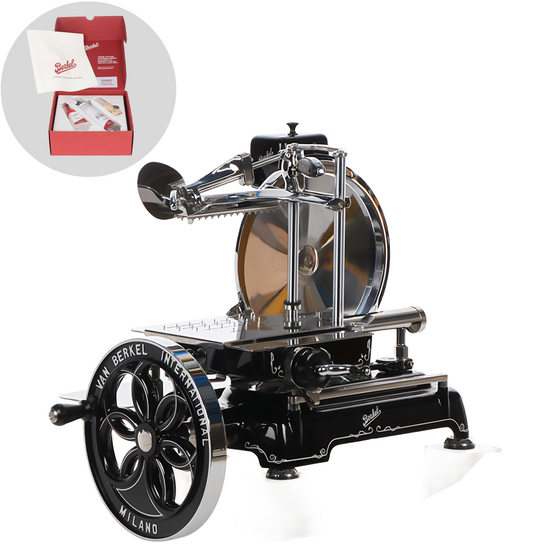

BERKEL B114 Black - Flywheel Meat Slicer - 320 mm Chrome-plated Steel Blade

The Berkel B114 black flywheel slicer brings the myth of the classic Berkel of 1898 to life, combining a harmonious design with exceptional cutting performance.

Decorations and silver-coloured details embellish it, giving it an additional touch of class.

Equipped with a 320mm chrome-plated steel blade (100cr6), this machine guarantees a large cutting capacity, which makes it suitable for extensive and professional use.

The machine body is made of a special aluminium alloy, while the feet are made of stainless steel and rubberised on the underside, to ensure maximum stability while working.

The cutting apparatus of the Berkel B114 flywheel slicer is integrated with a removable sharpener with a single-motion system, guaranteeing reliability.

The machine is equipped with a sliding food pusher with minimum thickness to minimise food waste, with iron teeth capable to hold the food to be sliced.

The authenticity of the slicer is guaranteed by an NFC plate integrated and drowned in the melting of the machine body.

BERKEL flywheel B114 is designed to allow you to place the food carriage directly under the blade, optimising preparation and serving time.

Ideal for slicing all types of cured meats, meat, cheese, etc.

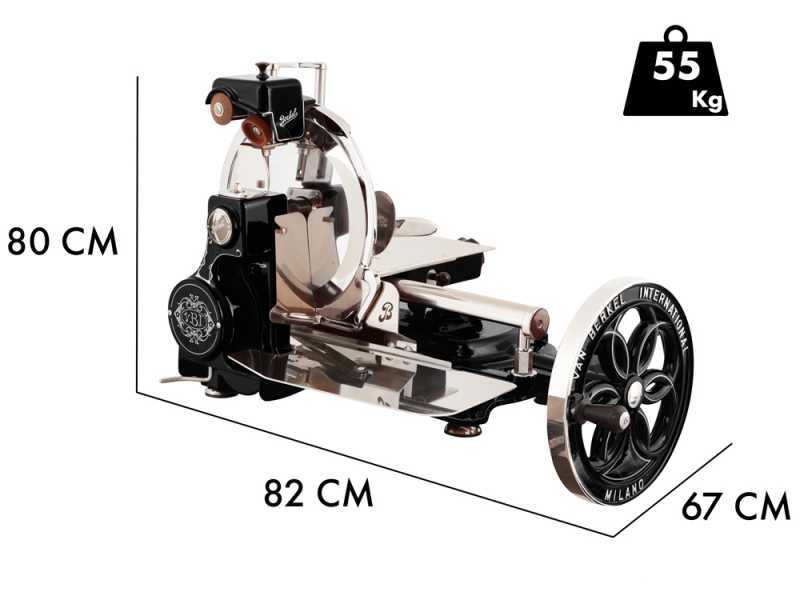

The height of the machine is 700 mm up to the feet, while the flywheel protrudes for the remaining 95 mm below the support base.

• Chrome-plated steel blade (100Cr6 steel)
• Blade diameter 320 mm
• Chrome-plated steel blade protection ring chrome with release system.
• Removable toothed stainless steel plate
• Removable Stainless steel Collector plate

The lever that unlocks the safety ring of the blade is placed under the tower of the meat slicer.

Cutting is performed by a 320 mm diameter serrated steel blade

An anodized aluminium knob 11 positions adjusts the thickness of the slice from a minimum of 0 mm to a maximum of 1.5 mm. It also adjusts the fast feed system of the cutting plate, ensuring millimetre precision.

The food carriage slides on a guide.

This system has many advantages:

• smooth sliding with no need for continuous lubrication
• more compact structure
• the possibility of placing the food carriage directly under the blade

The plate is moved by a connecting rod activated by some gears operated by the flywheel, the blade transmission instead consists of a thick chain.

The blade has a circular cutting capacity of 215 mm, while the rectangular one is 280x215 mm.

This meat slicer is entirely made of aluminium alloy, the absolute best material for this type of machines, because it guarantees durability and corrosion resistance that is absolutely superior to all other materials used.

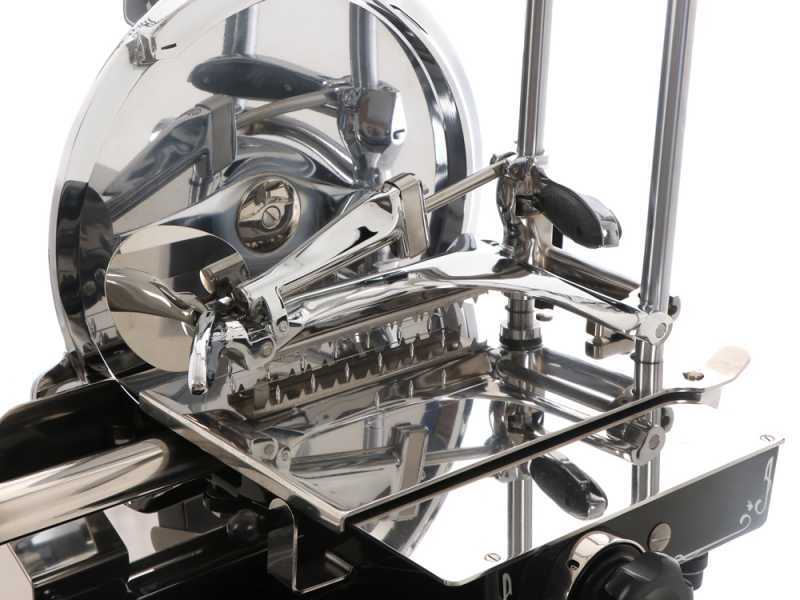

The cutting plate has an automatic movement that can be adjusted using an anodized aluminium handle.

This movement takes place through a piston that comes into contact with an arm connected to a toothed wheel that advances the plate.

The arm for holding the foodstuffs has a stroke stop positioned at the shortest possible distance from the blade so as to minimise scrap as much as possible without letting the iron teeth come into contact with the cutting plate and blade

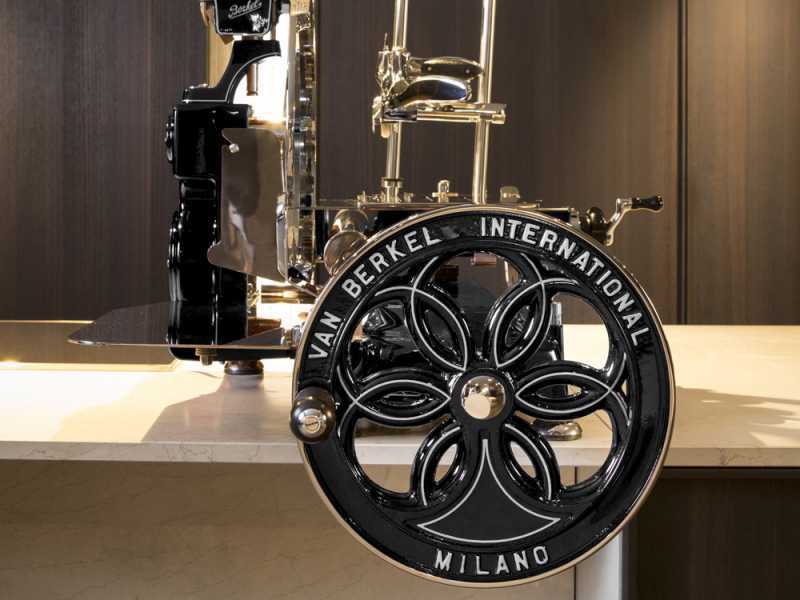

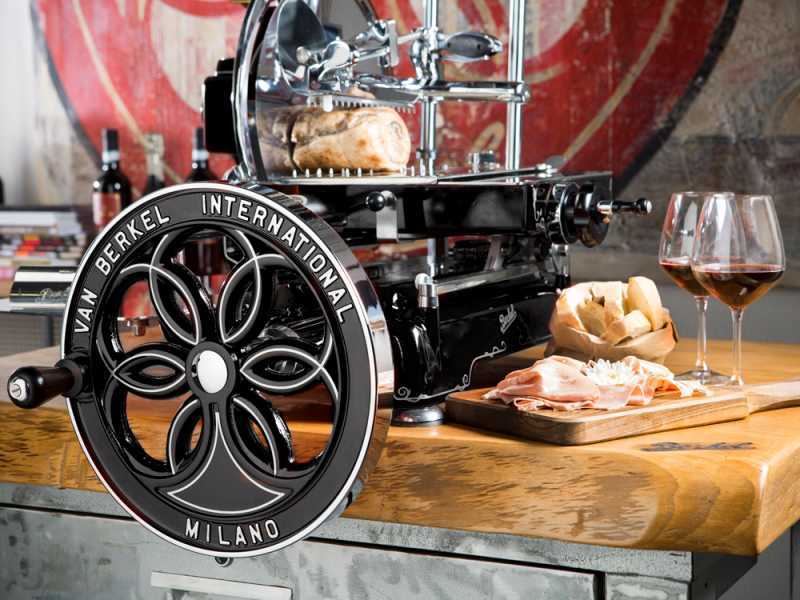

The characteristic Berkel floral flywheel allows the movement of the trolley and the rotation of the blade.

In addition, it locks in any position thanks to the internal balance.

The belt and gear drive ensures maximum performance and superior reliability, indispensable features for continuous professional use.

A toothed stainless steel cutting plate placed above the carriage and easily removable to facilitate cleaning.

The same applies to the collecting plate

Chrome-plated steel blade protection ring, with release system by means of a lever placed under the tower.

The slicer is equipped with a removable sharpener with a two-movement sharpening system.

This accessory is required in order to always obtain a perfectly sliced product.

Focus on the sharpening procedure:

Place the sharpener in the sharpening position.

Bring the sharpener close to the blade and proceed sharpening.

ATTENTION

Please read the instructions manual carefully before sharpening.

This slicer features stainless steel rubber feet to prevent slipping.

• Iconic tower with Berkel design
• Focus on the sturdy connecting rod that manages the movement of the carriage
• Silver-coloured decorations and details
