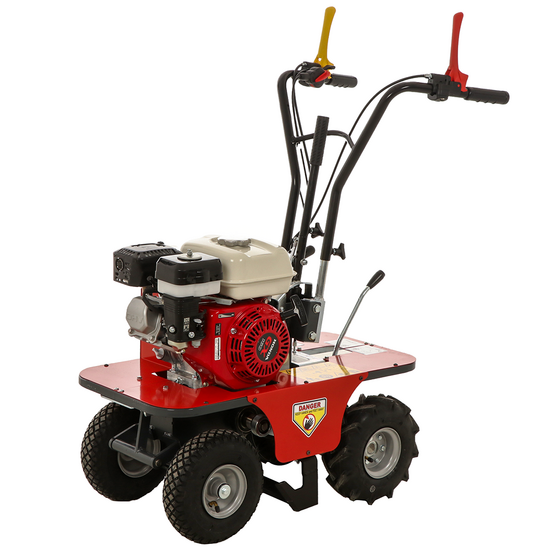

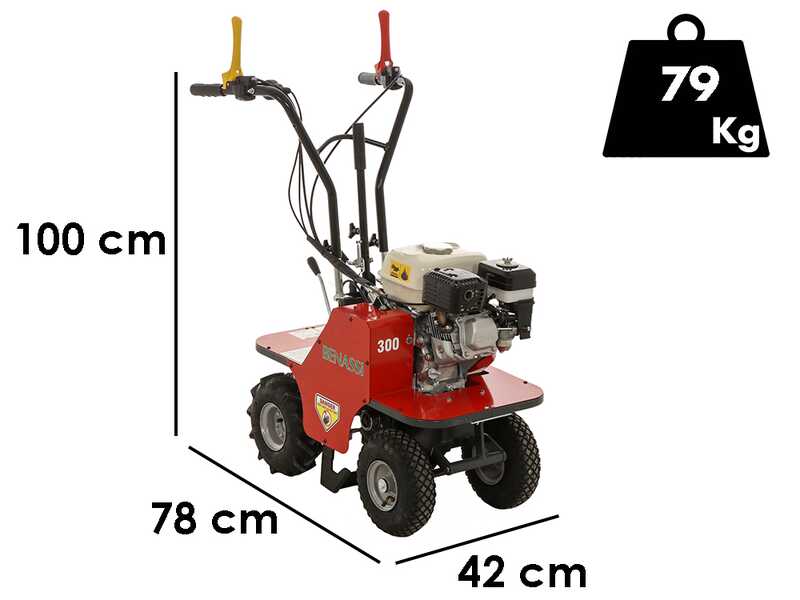

Benassi L300 - Self-propelled Petrol turf cutter - Honda GX160 - 5.5HP

The Benassi L300 petrol turf cutter is a machine designed for the precise removal of turf, ideal for laying lawns and professional ground maintenance.

The L300 model is equipped with a 3.6 kW Honda GX160 petrol thermal engine, known for its reliability, quietness and durability.

Its compact structure and 30 cm cutting width make it particularly suitable for small work areas, while maintaining high levels of operating precision. Cutting is performed by a blade that can be adjusted to a depth of up to 35 mm in 6 different positions, controlled by a mechanical rack system located in the central area of the handlebar.

The machine is distinguished by the presence of 2 forward gears that offer a forward speed of between 1.8 and 2.8 km/h. This allows the work to be adapted to the consistency of the soil and the type of sod to be cut. The belt drive and gears in oil bath ensure long life and low maintenance.

The painted steel frame has a solid and well-balanced structure. The design is functional and sturdy, while the garden-type front wheels and tractor-type rear wheels ensure high grip and stability on grassy or loose ground.

The height-adjustable handles mounted on anti-vibration supports allow for more comfortable working even for long periods, reducing operator fatigue.

Here are the possible applications of the turf cutter:

• Removal of turf for lawn renovation or restoration
• Preparing the ground for new sowing
• Installing systems or structures in the garden
• Creation of borders or boundaries in the lawn
• Removal of surface roots and weeds

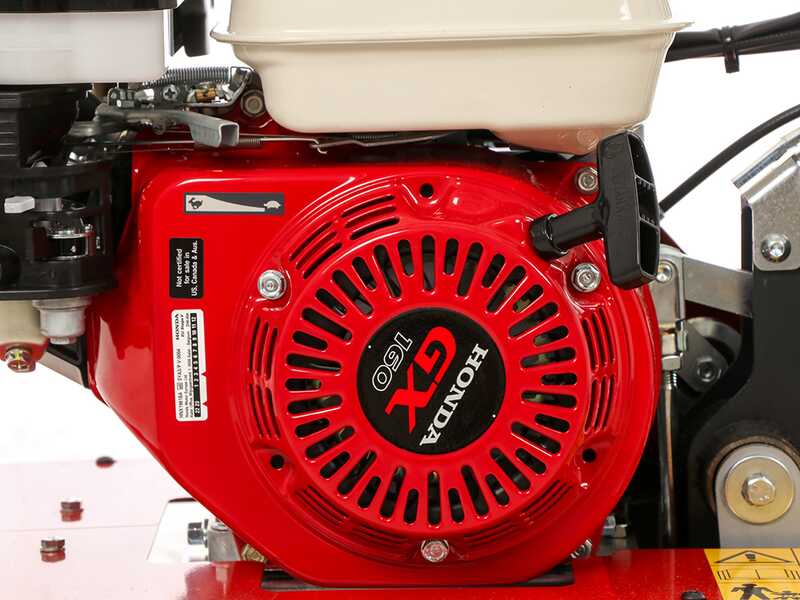

The Honda GX 160 engine is standard
super-professional SUPER-POWERFUL engine with OHV overhead valve technology.

Features:

The Honda "GX" series is highly professional and has been developed for heavy-duty work in construction, agriculture, generators, welding machines, etc., characterised by great durability and reliability

The engine is SUPPLIED WITHOUT OIL.
Read the instruction manual carefully before starting.

Nominal power: 5.5 HP
The most correct term would be "Commercial Power", meaning the classic standard definition of power officially used until a few years ago by all the most well-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 4.8 HP (at 3600 rpm)
This corresponds to the real power expressed at the motor shaft. It is the figure indicated as official in the manual or in the technical data provided by the motor manufacturer.

* This figure may vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

Gearbox: large, reliable and precise.

Speed:
1st gear: 1 .8 km/h
2nd gear: 2.8 km/h
neutral (N)

Rear-wheel drive

Large, sturdy and reliable gearbox with gears in oil bath

Parking brakes:
Attached to the gearbox for greater stability and safety.
These are activated automatically when the controls are released (leaving the machine in neutral, even on very steep slopes, the machine remains perfectly stationary)

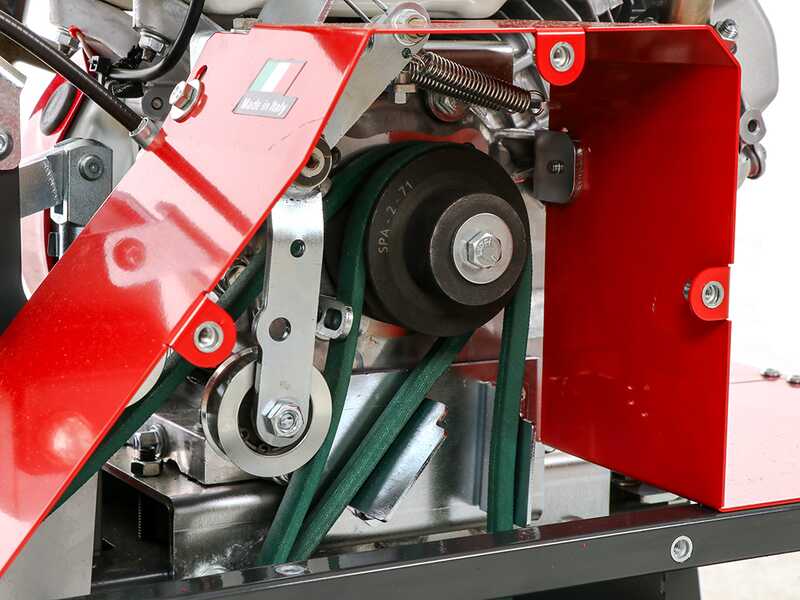

Transmission:
The belt and pulley system drives the movement of the wheels and the machine blade

Details:

• Gear lever
• Transmission oil filler cap
• Emptying cap
• Oil level check screw

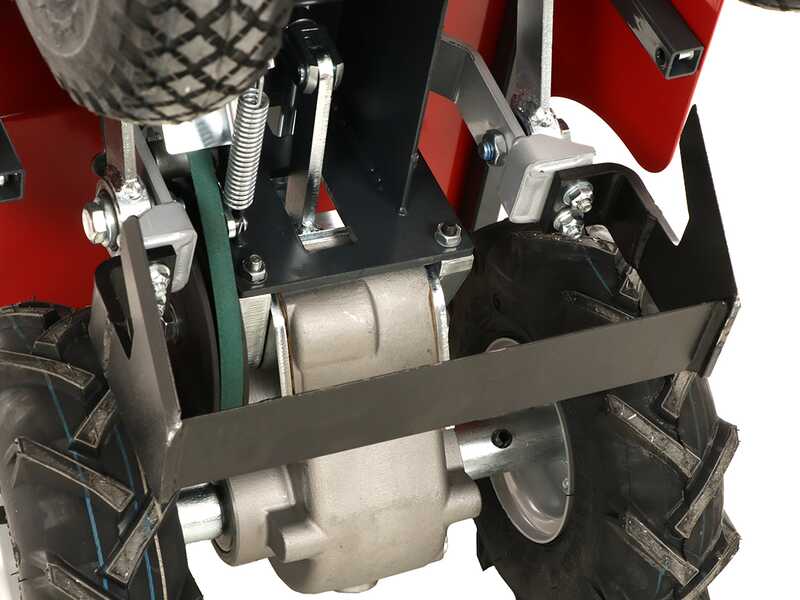

The blade is made of high-strength steel, which guarantees high durability and wear resistance, even under intensive use.

The turf blade is an essential component designed to ensure precise and clean cuts in the ground, allowing you to effectively remove portions of turf without compromising the roots underneath.

The sod lifter has an alternating horizontal blade movement, ideal for cutting the turf at the base, separating it from the ground cleanly and effectively.

The connecting rod-crank system connected to the motor generates the oscillating movement of the blade.

The blade movement is activated by the lever on the handlebar.

Cutting width: 30 cm

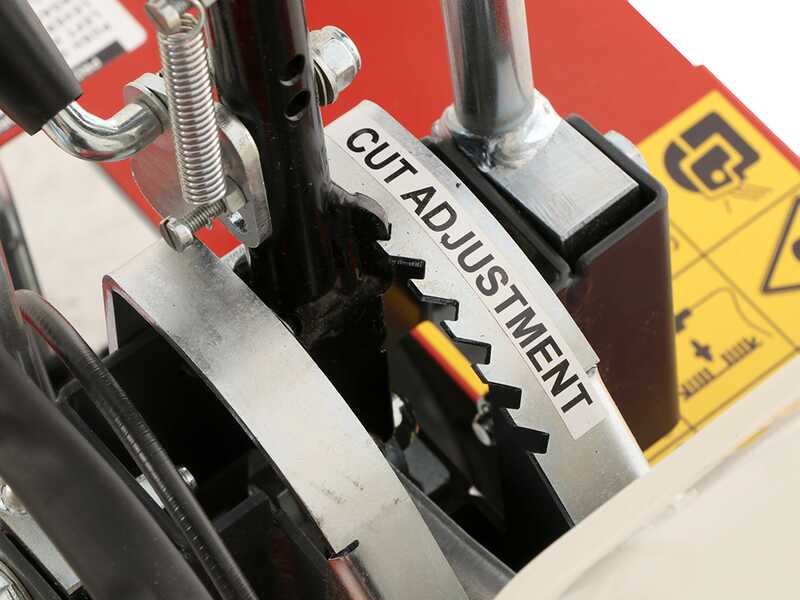

The Benassi mulching machine has 6 cutting depth settings available, up to a maximum of 35 mm.

The centralised adjustment is incredibly fast and intuitive.

Simply press the lever to automatically raise the machine to the desired height.

The lever is also equipped with a locking/unlocking system, making the machine safer and more efficient.

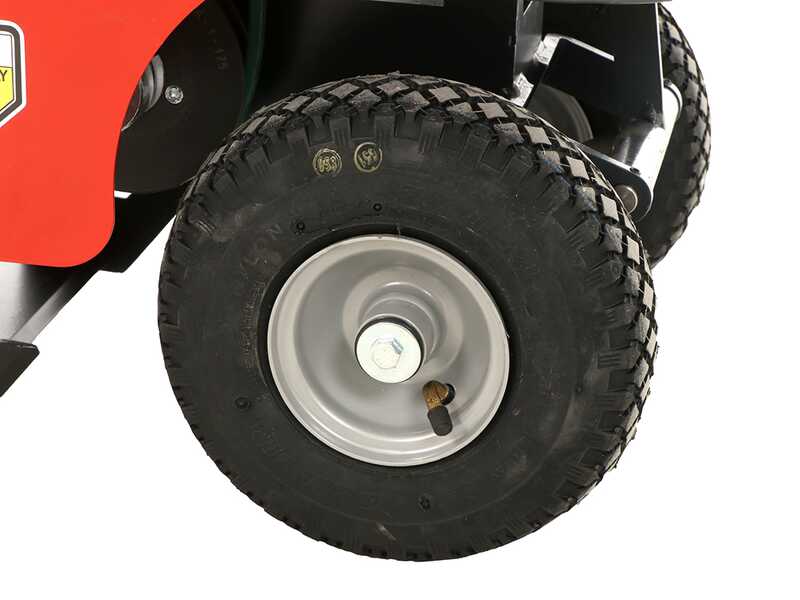

Rear wheels:

Pneumatic drive wheels with tread Generously sized tractor: 11 x 4.10/3.50-4

They guarantee excellent traction on all types of surfaces, even loose or soft ground

Front wheels:

Garden wheels with dimensions: 11 x 3.00-4

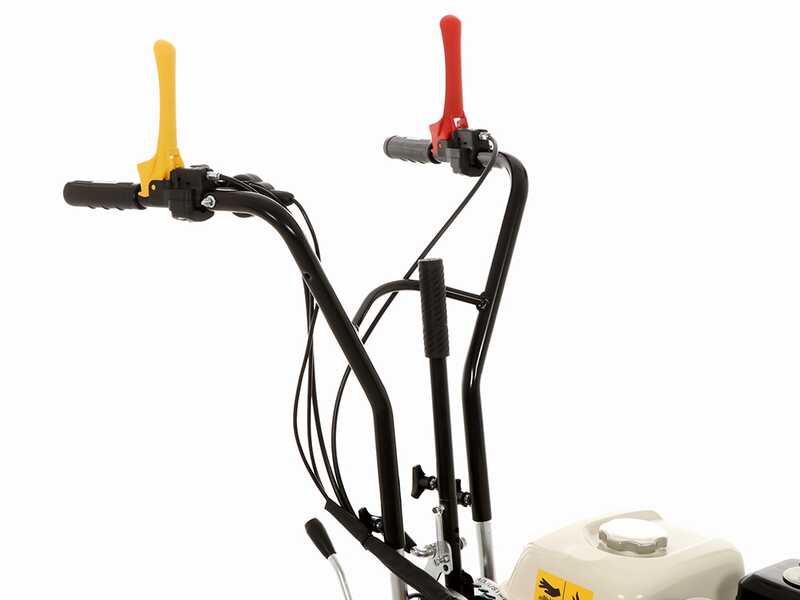

Detail of the handlebars, where all the main functions of the machine are located.

Accelerator with START/STOP switch

Yellow lever: blade engagement and disengagement

Red lever: clutch lever that also acts as a safety lever; when released, it immediately stops the machine from moving forward

Black central lever: cutting height adjustment with locking system

Gear selector lever: first, second, neutral

Height adjustment of the handlebars and locking via the two screws provided#

Protective casing

Made in Italy
