Name: Barbieri Flex 3+2 - Petrol Two-wheel Tractor - Honda GX270 - 8.4HP
Brand: Barbieri
SKU: K606504
Price: 3269.67 EUR
Availability: InStock

Description

Barbieri Flex 3+2 Two-Wheel Tractor

Barbieri Flex 3+2 two-wheel tractor is an en efficient machine, suitable for everyone, both gardening lovers and sector experts.

This two-wheel tractor provides a rapid direction reversing system, comfortably manageable through the handlebars that allow to change the direction of travel quickly and easily without using the gearbox lever.

The high-performance HONDA GX270 engine delivers 8.4 HP, an impressive power that allows to operate quickly and easily, doing whatever this machine was designed to do.

This model is equipped with 3 forward and 2 reverse gears, an oil-bath lubricated gearbox and a sturdy casing.

Its space-saving dimensions make it suitable for working in greenhouses and cultivating plants in rows

Not only are the handlebars adjustable, but also reversible, allowing the use of the two-wheel tractor with front and rear attachments.

Barbieri Flex 3+2 is equipped with large tractor wheels that ensure an efficient grip transmission to any terrain, both on slopes and flat grounds.

Barbieri Flex 3+2 - Petrol Two-wheel Tractor - Honda GX270 - 8.4HP

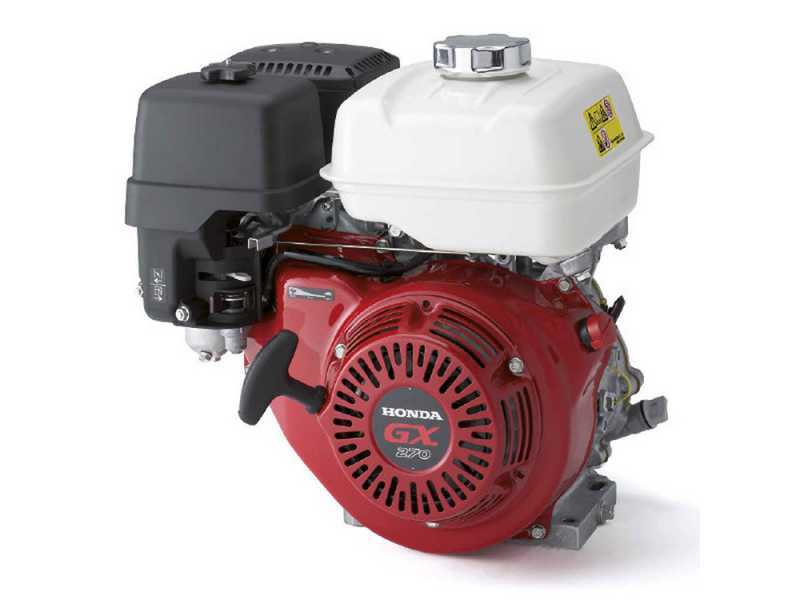

Honda GX 270 Engine

The machine is fitted with a 270cc Honda GX 270 engine.

Features:

Engine type:

4-Stroke - OHV - single cylinder

Cylinder type:

Aluminium

Cubic capacity:

270 cc

Fuel:

Petrol

Max. rpm:

3600 rpm

Starting:

manual

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV” and automatic decompressor starting system.

Focus on the air filter.

Fuel tank

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 8.4 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

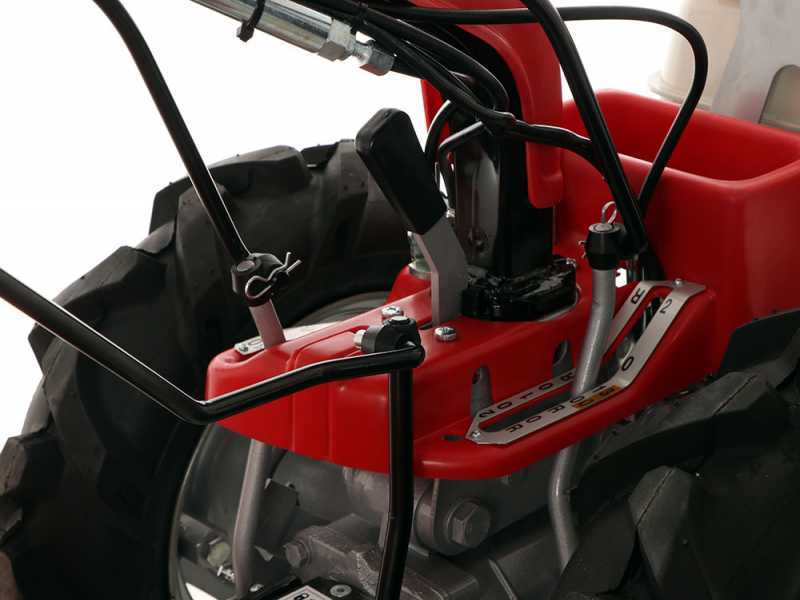

3 + 2 gearbox and transmission

Mechanical gear transmission in oil bath.

Red lever: starts the drive and the cutter simultaneously.

Through the three levers on the machine dashboard you can select the forward or reverse gear and the machine driving speed.

The transmission and gearbox are oil-immersed gears, the best type of gearbox for a machine of this type; it is solid, sturdy and requires very little maintenance.

However, we always recommend to avoid bumps or working on stony soils.

The machine is equipped with 5-speeds, three forward an two reverse gears; however, the second reverse gear can’t be selected in the two-wheel tractor configuration for user safety reasons.

Driving speed:

1° forward: 1.2 Km/h
2° forward: 3.2 Km/h
3° forward: 6.8 Km/h

Reverse gear speed:

1° reverse: 1.9 Km/h
2° reverse: 3.8 Km/h(no two-wheel tractor)

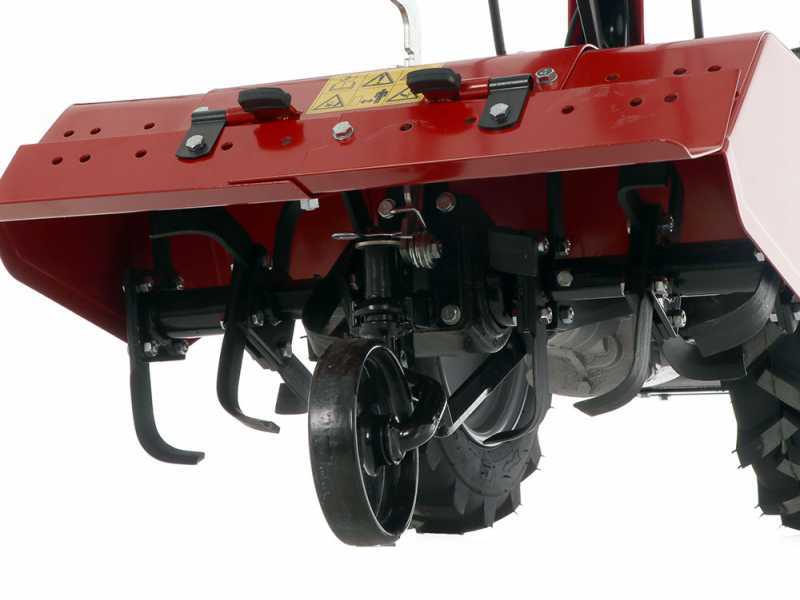

60 cm cutter

Cutter working width: 60 cm with a cutting diameter of 25 cm.

Outer hood made of sheet steel.

Cutter equipped with 4 elements, each with 4 blades, equipped with 4 hoes each

The machine is equipped with a transport wheel for moving on solid, compact ground when not in use.

The cutter spur is adjustable in 3 position, in order to modify the machine cutting depth.

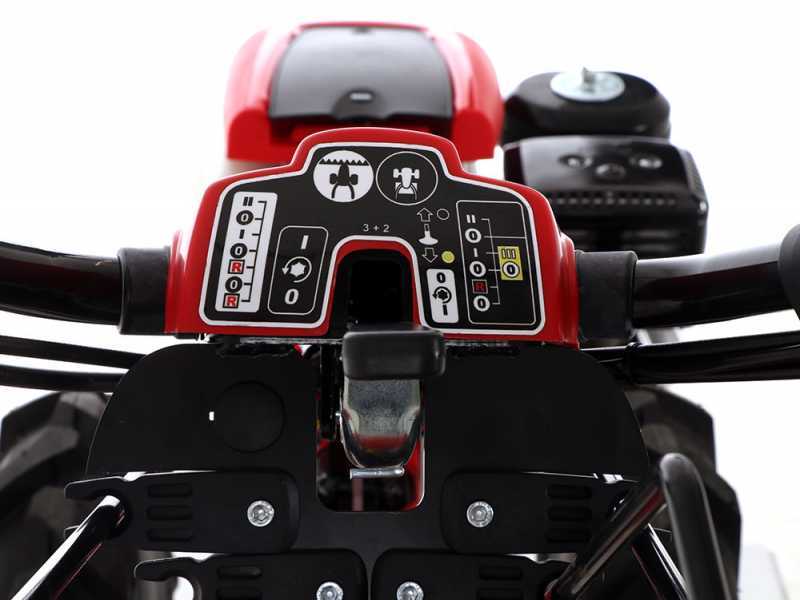

Steering handles and controls

Focus on the steering handles (handlebars) where all the main controls are placed.

Throttle lever

Wheels are equipped with an independent locking system, that allow to steer the machine smoothly in any situation.

The machine handlebars can be adjusted both laterally (1,2,3) and vertically (1,2,3,4).

Treaded Tractor pneumatic drive wheels of large dimensions: 4.00- 10

They guarantee an excellent traction on any kind of surface, even those with gravel or yielding soil

Moreover, the handlebars are mounted on the machine body through an anti-vibrating system, in order to guarantee comfort to the user while using the machine.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
