Name: Barbieri Flex 3+2 - Diesel Two-wheel Tractor - Karma KM178F - 6HP
Brand: Barbieri
SKU: K606505
Price: 3555.53 EUR
Availability: InStock

Description

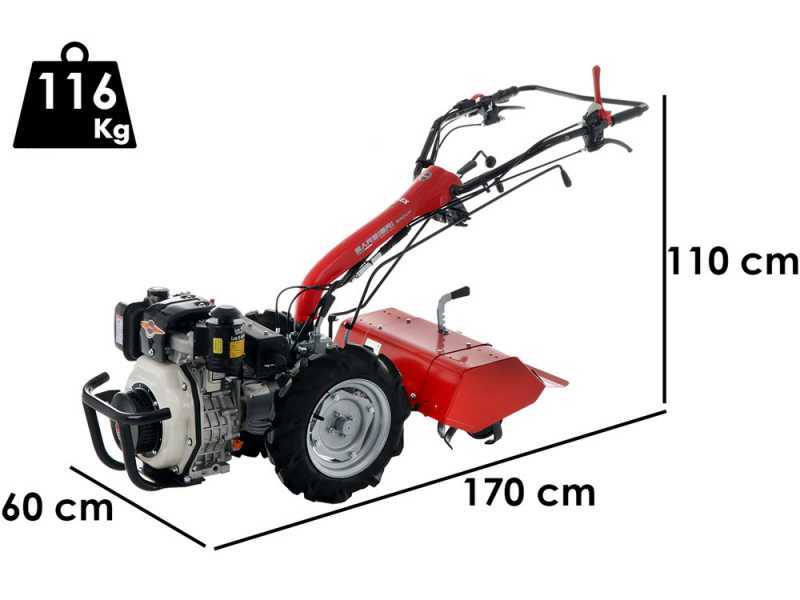

Barbieri Flex 3+2 two-wheel tractor

Barbieri Flex 3+2 two-wheel tractor is an en efficient machine, suitable for everyone, both gardening lovers and sector experts.

This two-wheel tractor provides a rapid direction reversing system, comfortably manageable through the handlebars that allow to change the direction of travel quickly and easily without using the gearbox lever.

The high-performance KOHLER Diesel Karma KD70 engine delivers 6 HP, an impressive power that allows to operate quickly and easily, doing whatever this machine was designed to do.

This model is equipped with 3 forward and 2 reverse gears, an oil-bath lubricated gearbox and a sturdy casing.

Its space-saving dimensions make it suitable for working in greenhouses and cultivating plants in rows

Not only are the handlebars adjustable, but also reversible, allowing the use of the two-wheel tractor with front and rear attachments.

Barbieri Flex 3+2 is equipped with large tractor wheels that ensure an efficient grip transmission to any terrain, both on slopes and flat grounds.

Barbieri Flex 3+2 - Diesel Two-wheel Tractor - Karma KM178F - 6HP

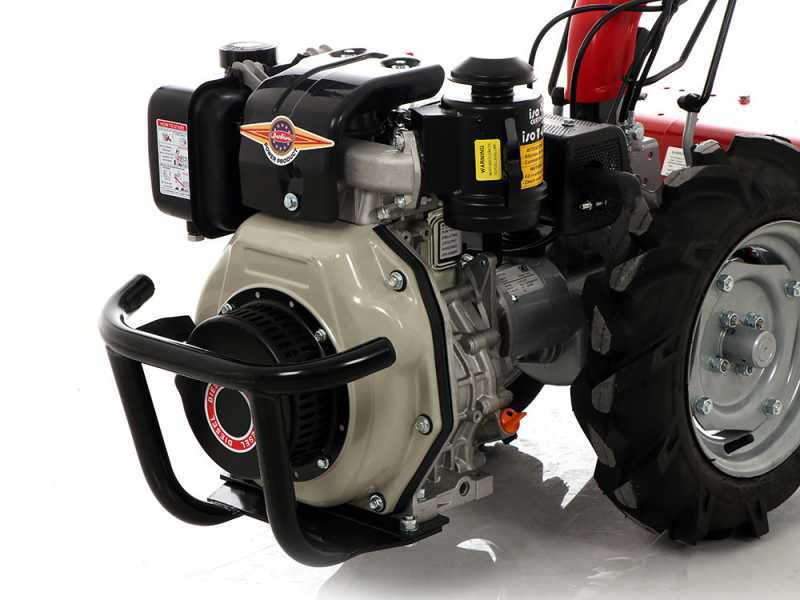

KPC KD178FE Engine

The two-wheel tractor is equipped with a powerful KPC KD178FE diesel engine

Features:

Engine type:

4-Stroke - OHV - single cylinder

Cylinder type:

Aluminium

Cubic capacity:

296 cc³

Compression ratio:

20 : 1

Max. rpm:

3600 rpm

Fuel tank capacity:

3.5 L

Fuel tank capacity:

1.1 L

Nominal Power: 6.0 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.0 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

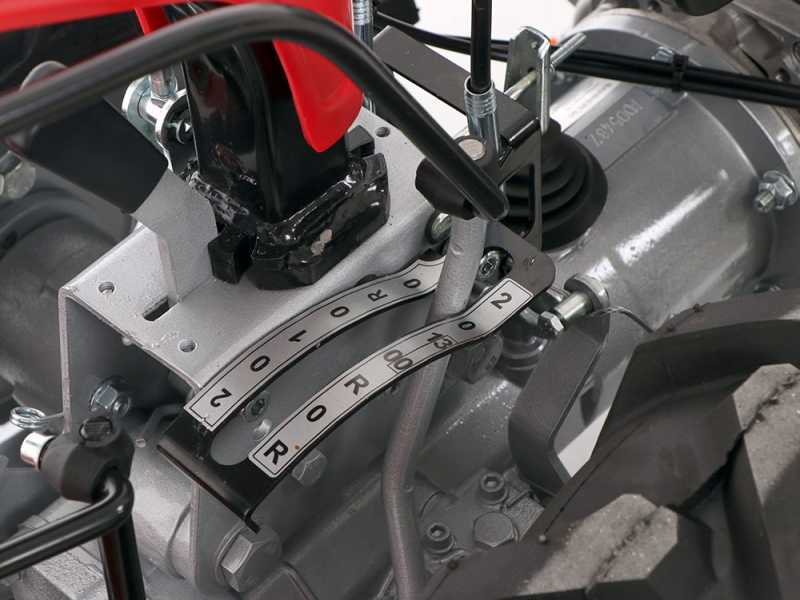

3 + 2 gearbox and transmission

Mechanical gear transmission in oil bath.

Red lever: starts the drive and the cutter simultaneously.

Through the three levers on the machine dashboard you can select the forward or reverse gear and the machine driving speed.

The transmission and gearbox are oil-immersed gears, the best type of gearbox for a machine of this type; it is solid, sturdy and requires very little maintenance.

However, we always recommend to avoid bumps or working on stony soils.

The machine is equipped with 5-speeds, 3 forward an 2 reverse gears; however, the second reverse gear can’t be selected in the two-wheel tractor configuration for user safety reasons.

Driving speed:

1° forward speeds: 1.2 Km/h
2° forward speeds: 3.2 Km/h
3° forward speeds: 6.8 Km/h

Reverse gear speed:

1° reverse speed: 1.9 Km/h
2° reverse speed: 3.8 Km/h(no two-wheel tractor)

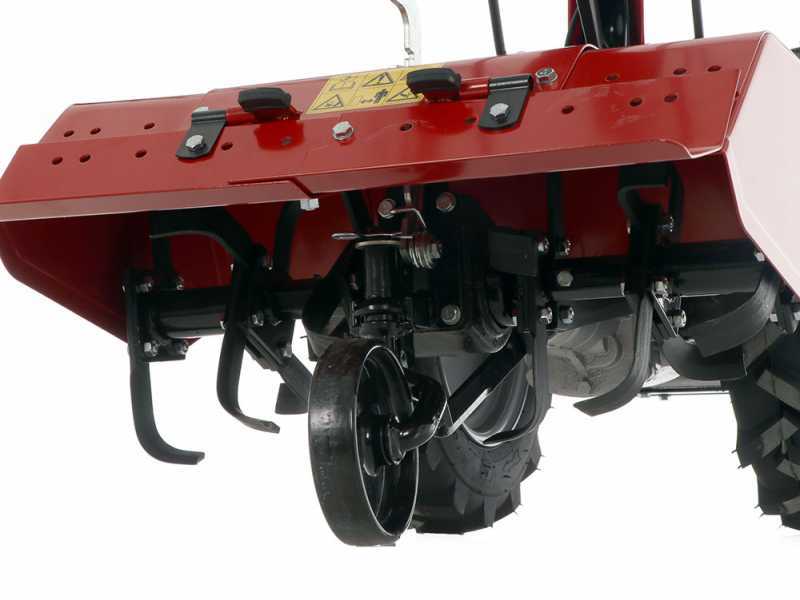

60 cm Cutter

Cutter working width: 60 cm with a cutting diameter of 25 cm.

Outer hood made of sheet steel.

Cutter equipped with 4 elements, each with 4 blades, equipped with 4 hoes each

The machine is equipped with a transport wheel for moving on solid, compact ground when not in use.

The cutter spur is adjustable in 3 position, in order to modify the machine tilling depth.

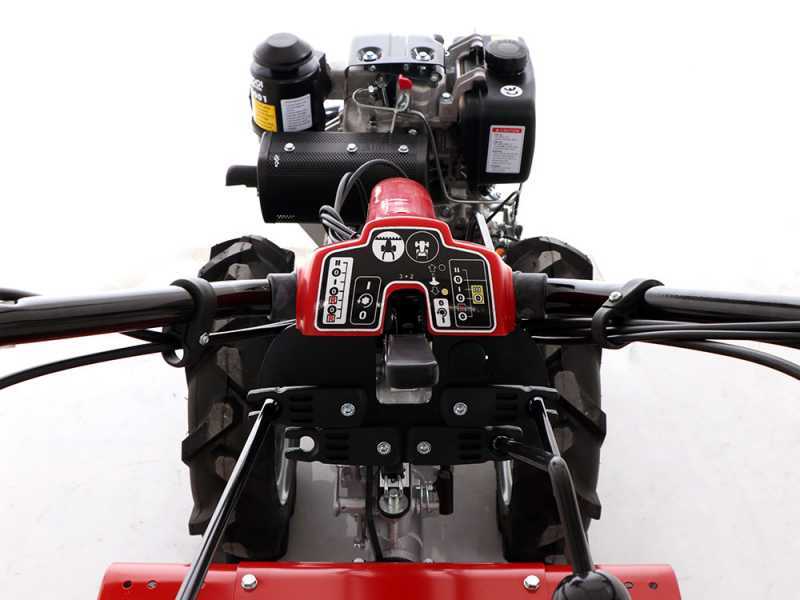

Steering handles and controls

Focus on the steering handles (handlebars) where all the main controls are placed.

Throttle lever

Wheels are equipped with an independent locking system, that allow to steer the machine smoothly in any situation.

The machine handlebars can be adjusted both laterally (1,2,3) and vertically (1,2,3,4).

Treaded Tractor pneumatic drive wheels of large dimensions: 4.00- 10

They guarantee an excellent traction on any kind of surface, even those with gravel or yielding soil

Moreover, the handlebars are mounted on the machine body through an anti-vibrating system, in order to guarantee comfort to the user while using the machine.
