Barbieri C/70 - Multifunctional motor mower - Honda GX200

Questions & Answers (1)
ID: K606520

EAN: 8053435095044

MPN: 5100.11

7,4/10
After-sales assistance & Spare parts
Barbieri C/70 - Multifunctional motor mower - Honda GX200
+40 sold
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Technical data
Blade movement
Single
Cutting width
120 cm
Recommended operating area
10000 s.q. m.
Gear shifting system
Mechanical gearbox
Gears
2+2
Motor brand
Honda
Cubic capacity
196 cm³
Nominal power
6.5 HP
Motor Model
GX 200
Transmission type
Gears in oil-bath
Differential lock
Yes
Multifunctional
Manufacturing country
Italy
Product Features
Model
C/70
Body material
Enamelled steel
Operating mode
Spark ignition
Multifunctional
Recommended operating area
10000 s.q. m.
Differential lock
Yes
Starting mode
Recoil
Manufacturing country
Italy
Motor data
Motor brand
Honda
Motor Model
GX 200
Motor type
4-stroke
Cubic capacity
196 cm³
No. of cylinders
Single-cylinder
Nominal power
6.5 HP
Fuel
Petrol
Power supply
Overhead camshaft
Engine lubrication system
Oil bath
Decompression system
Automatic
Tank capacity
3.1 L
Oil tank capacity
0.6 L
Manufacturing country
Japan
Transmission data
Gear shifting system
Mechanical gearbox
Transmission type
Gears in oil-bath
No. of forward speeds
2
No. of reverse speeds
2
Gears
2+2
Operating mode
Gear lever
Cutting data
No. of blades
1
Blade movement
Single
Swinging blades unit
Yes
Blade engagement
Lever on the handle
Cutting adjustment
2 adjustable sleds
Cutting width
120 cm
Equipment
Sickle bar accessory
Included as standard
Front brush accessory
On request
Snow plough + snow chains accessory
On request
Snow blower accessory
On request
CE Accident prevention system
Yes
Recoil start system (with rope)
Yes
Rear wheels size
16x6.50-8
Height-adjustable handle
Yes
Side-adjustable handle
No
Reversible steering handles
No
Folding/removable handle/s
Yes
Free gifts/extra features
Engine oil bottle for free
2
Bar cover
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
130x170x110 cm
Net weight
100 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
120x80x87 cm
Weight including packaging
100 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
15 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 10/09/2025 - 12/09/2025
€ 2.885,83
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

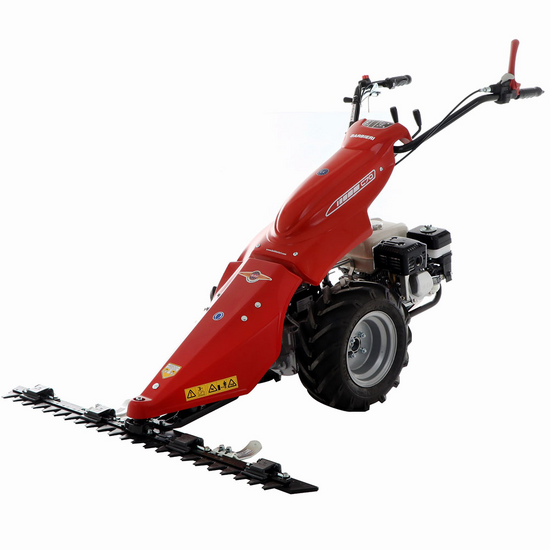

Barbieri C/70 Multi Tool Scythe Mower

The Barbieri C/70 multifunctional scythe mower is perfect for mowing uncultivated and wild grass, even very tall one, or grass to be recovered and used for livestock feed.

In fact, the scythe mower special feature is to preserve, after cutting, the complete integrity of the cut grass, making a single cut of it near the root.

By doing this, it preserves the integrity and the possibility to collect it for feeding farm animals.

It is equipped with a powerful 196cc 4-strokes Honda GX200 engine, with a 6.5 HP nominal power.

The 120 cm cutter bar is connected to the machine by means of a quick hitch, allowing the operator to easily remove it and, thanks also to the reversible handlebars, connect any other compatible attachment to it, making the two wheel tractor a versatile and practical tool for a variety of uses.

Furthermore, the bar is provided with two practical slides that allow the operator to quickly adjust the cutting height.

The gearbox has 4 speeds (2 forward and 2 reverse) that are easily engaged through a lever just below the handlebars.

Furthermore, it is equipped with two large tractor wheels 16x6.50-8, mounted on a rigid axe with adjustable hubs.

This self-propelled, petrol scythe mower can work on all kinds of surfaces, even those with a little slope and not perfectly flat.

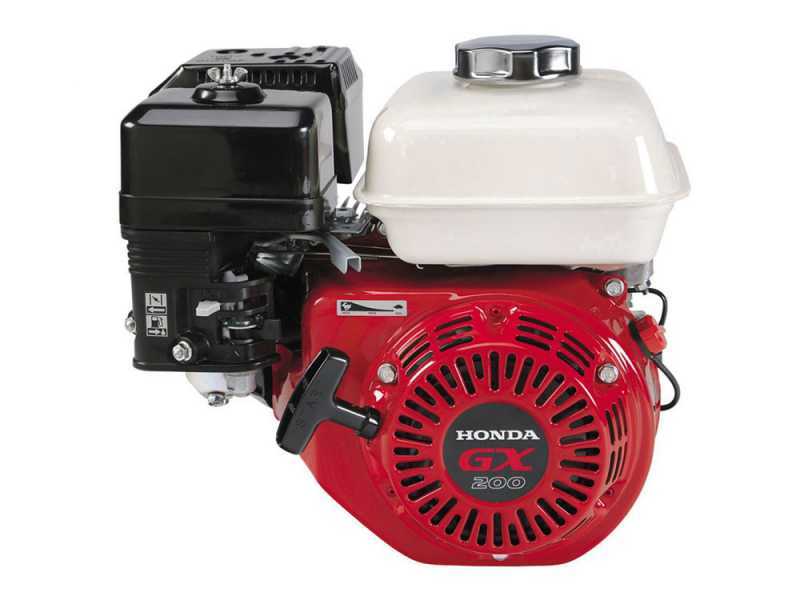

Honda GX 200 engine

Honda GX 200 engine is a
highly-duty, powerful and state-of-the-art engine, with a overhead valve technology (OHV).

Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity:
196cm³
Compression ratio:
8.5 : 1
Max. rpm:
3600 rpm
Torque value
12.4 Nm / 1.26.7 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

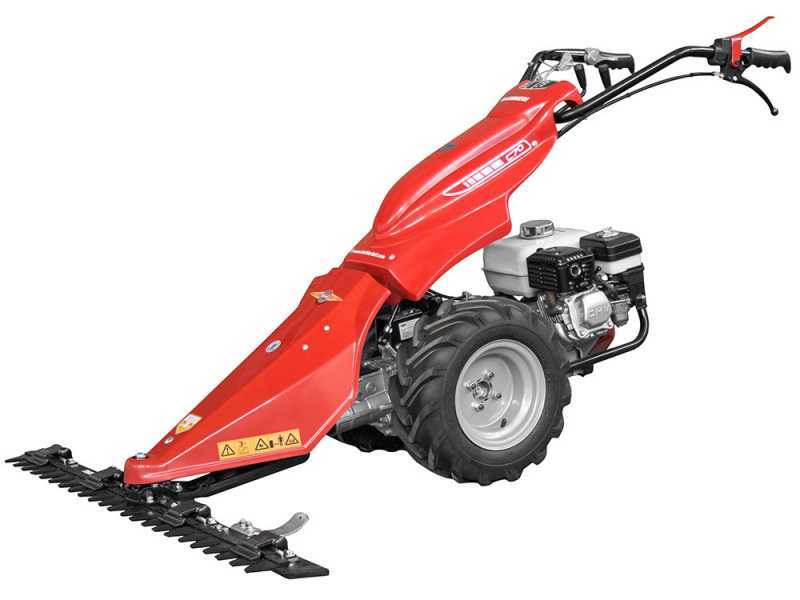

120 cm sickle bar with quick-fit system

Sickle bar cutting width: 120 cm

The cutter bar of this scythe mower is of the tilting type. In fact, it rotates around its own axis of connection to the machine body.

This allows it to work on all types of soil, even quite uneven ones, as it is better able to adapt to its roughness.

Mulching cutting system: the bar is made up of a lower and an upper blade, which moves by oscillating motion in contact with the lower blade, which is static and acts as a counter-blade. This type of sickle bar is renowned as mulching due to the particular clear cut that it carried out, consistency and grass height, obtained thanks to the shape of the blades.The sickle bar is provided with upper blade guides.

Focus on the slides for the cutting adjustment.

Front casing for grass protection.

Equipped with blade guard

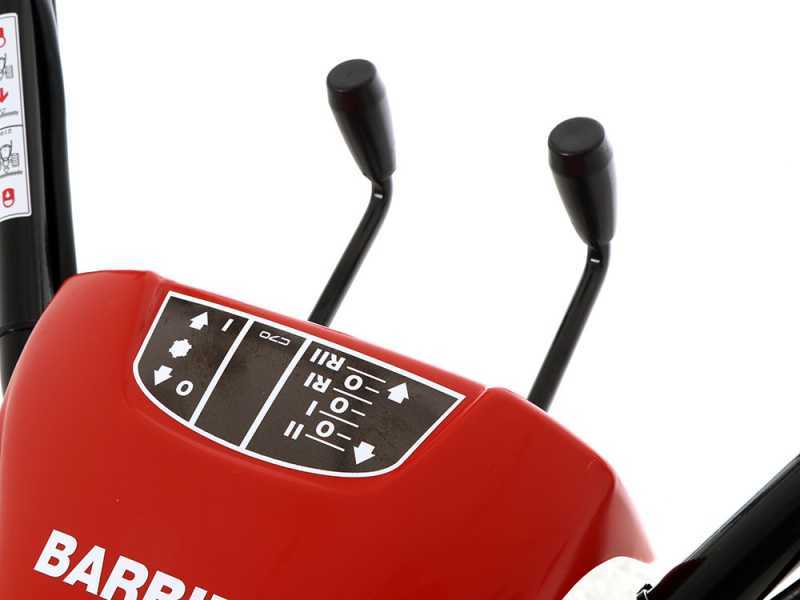

4 speeds gearbox (2 + 2)

The machine is equipped with 4-gear shifting system divided into:
- 2 forward gear
- 2 reverse gear

The speed gears are selectable by means of the specific lever.

The other lever on the right side under the handlebars, is used to engage the PTO

. Central transmission with gears in oil bath. Very sturdy and reliable.

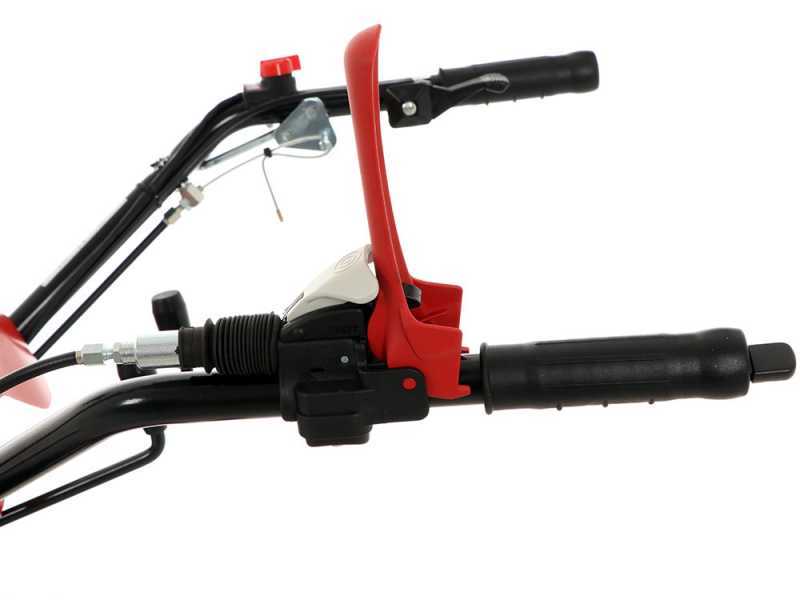

Steering bars and controls

Focus on the steering handles (handlebars) where all the main controls are placed.

Levers below the handlebars to select the gear and the rotation direction.

Red lever: Clutch lever

Throttle lever

Focus on the anti-vibrating system

Focus on the release of the quick coupling

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free items and Extra features

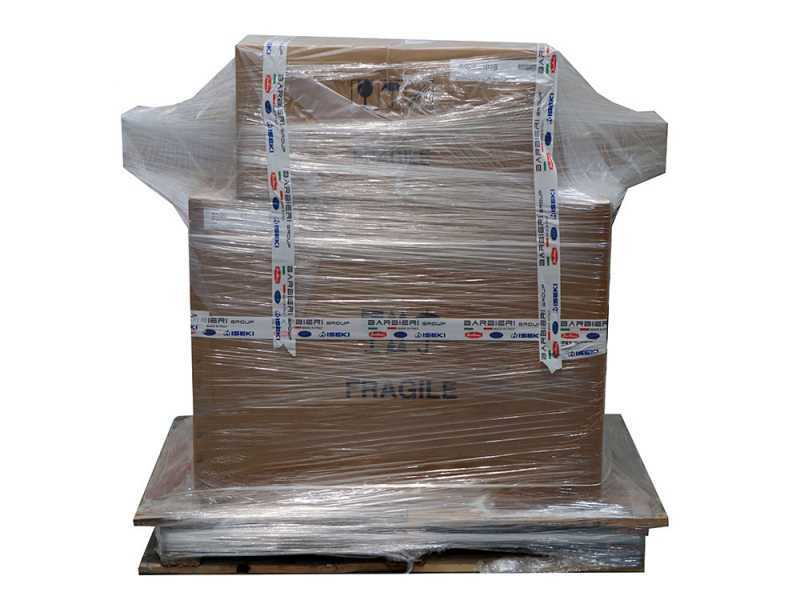

The scythe mower is shipped in its original packaging, that is two packagings on pallet.Instruction manual

Blade guard and height adjustment slides are also included.

Instructions manual

Engine instructions manual included.
