Barbieri B/68 NT - 5.5 HP Petrol Garden Tiller - Honda GX160 Engine

Questions & Answers (1)
ID: K606455

EAN: 8053435094887

MPN: 7200.7

7,4/10
After-sales assistance & Spare parts
Barbieri B/68 NT - 5.5 HP Petrol Garden Tiller - Honda GX160 Engine
Special offer
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 22/10/2026 - 27/10/2026
Lowest price:
€ 1.530,36
-8 %
€ 1.407,93
Vat included
Technical data
Standard milling cutter width
90 cm
Recommended surface
200 m²
Motor type
4-stroke
Motor brand
Honda
Motor Model
GX160
Cubic capacity
163 cm³
Nominal power
5.5 HP
Transmission type
Gears in oil-bath
Gears
2+1
Soil consistency
Hard
Manufacturing country
Italy
Product Features
Model
B/68 NT
Operating mode
Spark ignition
Recommended surface
200 m²
Soil consistency
Hard
Hard soil
yes
Starting mode
Recoil
Manufacturing country
Italy
Motor data
Motor brand
Honda
Motor Model
GX160
Motor type
4-stroke
Cubic capacity
163 cm³
No. of cylinders
1
Nominal power
5.5 HP
Actual power (HP)
4.8 HP
Fuel
Petrol
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Tank capacity
3.1 L
Oil tank capacity
0.6 L
Manufacturing country
Japan
Transmission data
Transmission type
Gears in oil-bath
No. of forward speeds
2
No. of reverse speeds
1
Gears
2+1
Operating mode
Gear lever
Cutting data
Standard milling cutter width
90 cm
Narrow milling cutter width
70 cm
Milling cutter diameter
30 cm
No. of blade holders
6
No. of blades
24
Blade engagement
Lever on the handle
Internal hexagon size
23 mm
Equipment
Milling cutter accessory
Included as standard
Side crop protection discs
Yes
CE Accident prevention system
Yes
Rear stake
Yes
Adjustable stake
Yes
Pair of milling cutter extensions
Yes
Pair of side transfer wheels
No
Clutch
Yes
Battery for electric start
No
Electric start with key
No
Recoil start system (with rope)
Yes
Height-adjustable handle
Yes
Side-adjustable handle
Yes
Rubber-coated soft grip
Yes
Folding/removable handle/s
Yes
Free gifts/extra features
Engine oil bottle for free
2
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions and logistics

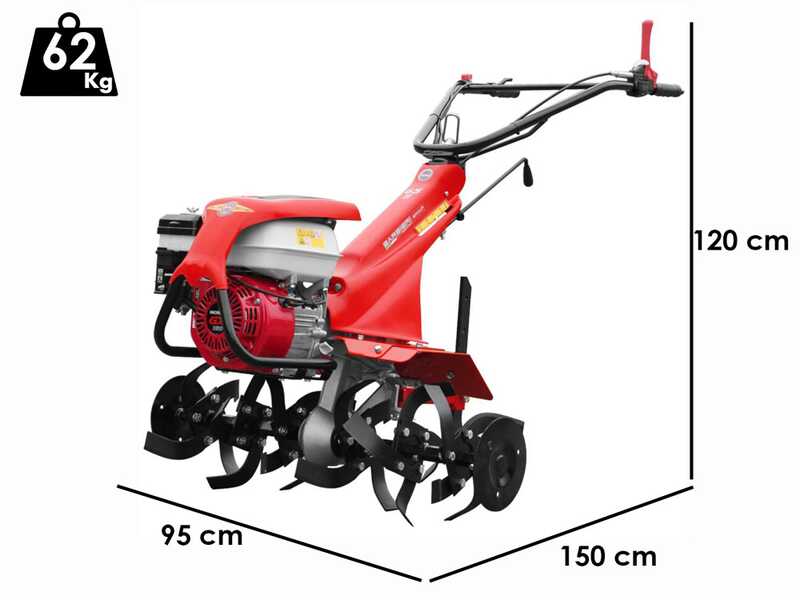

Product dimensions in cm (L x W x H)
150x95x120 cm
Net weight
62 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
120x80x144 cm
Weight including packaging
80 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
30 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

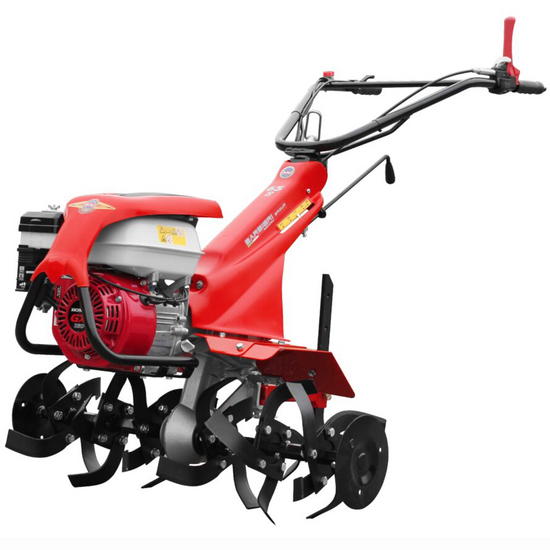

Barbieri B/68 NT Garden Tiller

B68NT Garden Tiller is the perfect model able to meet all the possible user needs. Excellent for tilling on small domestic areas as well as more professional crops, which require a careful soil preparation before the final sowing.

Equipped with a gear transmission in oil bath with three-speed gearbox, it ensures to the user great performance in complete safety, even in the more complex situation.

The standard reverse function facilitates manoeuvring, optimising both speed and comfort to achieve the desired goals.

Thanks to the height- and side-adjustable handlebars, it is possible to move easily even in tight areas without damaging the previously tilled soil.

Thanks to the 6-stars 90 cm cutter with side discs, this garden tiller is able to work on a big soil area in short time.

The Honda GX160 engine, known for its reliability and power, provides the necessary thrust to move the cutter through the harder soil.

The 2-speed forward and 1-speed reverse (2+1) gearbox offers maximum flexibility and control when operating with the garden tiller, allowing the selection of the right speed according to the soil and working conditions.

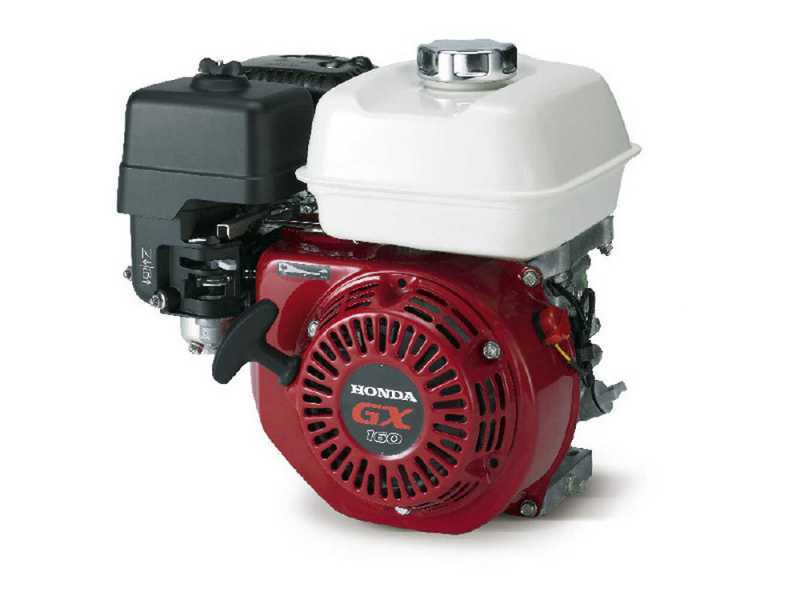

Honda GX 160 Engine

The Honda series GX 160 engine is
super-professional and SUPER-POWERFUL , belonging to the latest overhead valve technology.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity:
163 cc³
Compression ratio:
9.0 : 1
Max. rpm:
3600 rpm
Torque value
10.3 Nm / 1.05 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L
Consumption:
1.4 L/h 3000 rpm
Dry weight
15.1 Kg

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.


ATTENTION!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal power: 5.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

-------------------------------------------------------------------

Focus on the steering handles (handlebars). All the main controls are placed in this area.

All the main controls are placed in this area.

Throttle lever near the power switch.

Height-adjustable handlebars in multiple positions (Example from the higher to the lowest)

Laterally adjustable in three positions (1,2,3).

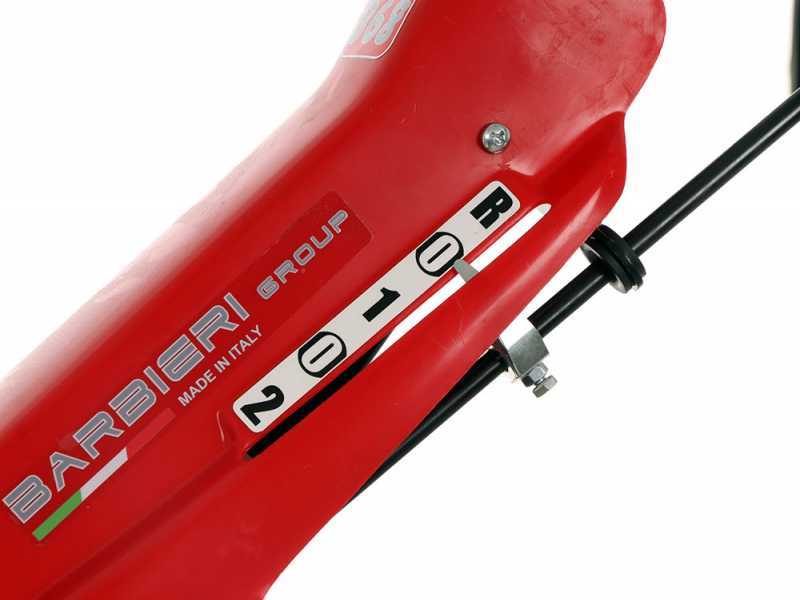

Gearbox detail 2+1

Gearbox, steering handles and controls

Focus on the steering handles (handlebars). All the main controls are placed in this area.

All the main controls are placed in this area.

Throttle lever near the power switch.

Height-adjustable handlebars in multiple positions (Example from the higher to the lowest)

Laterally adjustable in three positions (1,2,3).

Gearbox detail 2+1

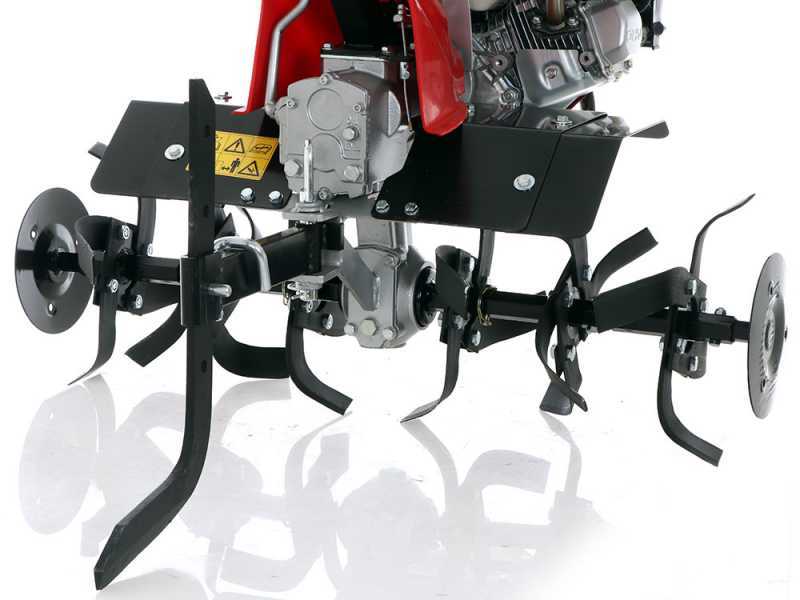

Gear transmission in oil bath

The engine is driven to the cutter through a sturdy gear transmission in an oil bath.

This is the best transmission suitable for a garden tiller. It needs little maintenance; it is the sturdiest transmission and is able to till hard soils also in depth.

It drives the machine quickly and efficiently, while the belt drive system requires the periodical replacement of the belt.

Solid and sturdy gearbox (detail of the oil tank plug)

Cutter: 90 cm, with 3+3 tillers composed of 4 hoes each + side protection discs.

Focus on the cutters attachment.

Hexagon width: 23 mm

Other details

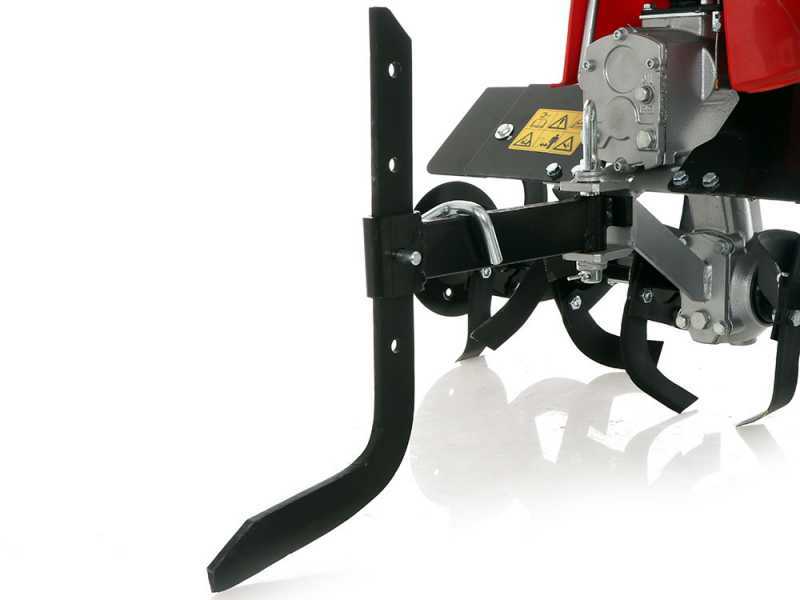

Spur of excellent size, allows the user to exploit the garden tiller at its best.

Front Bull Bar that protects the engine from bumps and accidents.

The tank plug is protected by a plastic flap.

Recommendations for Use - Petrol Garden Tillers

To ensure the correct operation of the petrol garden tiller and maintain its performance over time, it is important to use the machine in accordance with the specified operating conditions and to follow a few simple recommendations.

Before each use, it is advisable to check the general condition of the machine, ensuring that the tines are correctly assembled, the protective guards are intact, fluid levels are correct and the controls are working properly. A pre-use check allows you to work more safely and reduces the risk of malfunctions.

The petrol garden tiller must only be used on ground suitable for tilling. It is not advisable to work on surfaces containing a high number of stones, rocks, roots, debris or other large foreign objects, as these may strike the tines and place excessive strain on the transmission and mechanical components.

On particularly hard, compacted or previously untilled soil, it is preferable to carry out several passes at progressively greater depths, avoiding subjecting the machine to excessive loads during a single operation.

It is also not recommended to use the rotary tiller on excessively damp ground. High moisture levels cause the soil to adhere to the tines, leading to build-up of material, increased resistance to rotation and a reduction in the quality of the tilling.

Where there is tall grass, wild vegetation or unchopped plant residues, it is advisable to prepare the working area in advance. Plant material can wrap around the rotating parts, causing clogging, reduced efficiency and increased wear on components.

To ensure the machine operates correctly, only use tines, tools and accessories that are compatible with the model in use and approved by the manufacturer. Unsuitable or damaged components can cause abnormal vibrations and compromise the service life of the transmission and frame.

While working, it is important to allow the machine to advance at a rate determined by the capacity of the tines and the characteristics of the soil, avoiding forcing the machine forward with excessive pressure. On hard ground, it is preferable to reduce the working depth and proceed gradually.

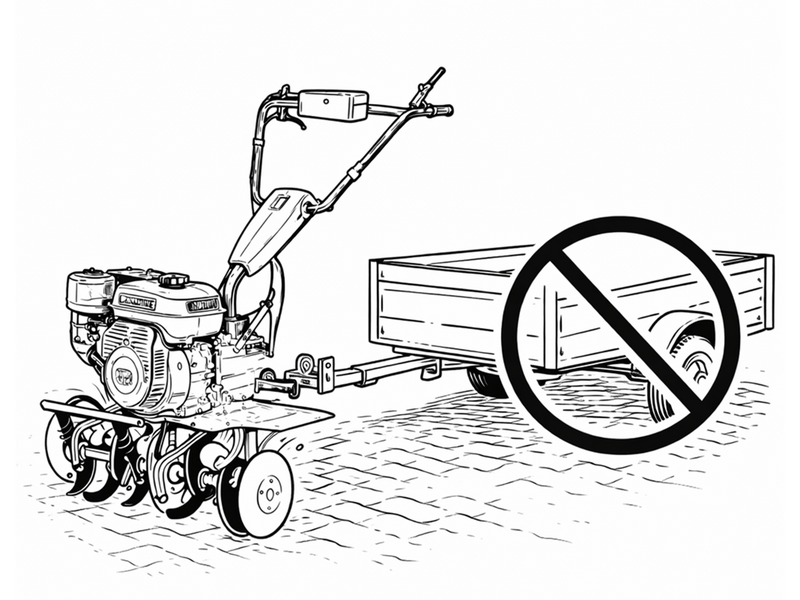

The rotary tiller must be used exclusively for soil cultivation and must not be used to pull, push or perform towing operations with loads, trailers or equipment for which it is not designed. Improper use may result in loss of control, mechanical damage and dangerous situations for the operator.

While in use, all the required guards must remain fitted. Do not touch or work on any  moving parts while the engine is running.

Proper maintenance ensures that the petrol garden tiller continues to perform efficiently. It is advisable to clean the machine regularly, remove any residue from the tines and check the condition of components subject to wear and tear.

It is always important to use fuel and lubricants suitable for the specific model of machine, following the instructions set out in the user and maintenance manual. The use of unsuitable or degraded products may compromise the correct operation of the engine and mechanical components.

If the rotary tiller is to be left unused for a prolonged period, it must be stored in a dry, clean place, protected from the elements.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free items included

The garden tiller is shipped in its original packaging.

The Instructions manual is included in the package.

Maintenance kit included
