Barbieri B/100NT KD - 6 HP Diesel Garden Tiller - Kama KD70 296cc Engine

Add a question
ID: K606466

EAN: 8053435094894

MPN: 7300.8

7,4/10
After-sales assistance & Spare parts
Barbieri B/100NT KD - 6 HP Diesel Garden Tiller - Kama KD70 296cc Engine
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 09/10/2026 - 13/10/2026
€ 1.939,78
Vat included
Technical data
Standard milling cutter width
85 cm
Recommended surface
250 m²
Motor type
Diesel
Motor brand
Producer-manufactured
Motor Model
KM178F
Cubic capacity
296 cm³
Nominal power
6 HP
Transmission type
Gears in oil-bath
Gears
3+1
Soil consistency
Hard
Manufacturing country
Italy
Product Features
Model
B/100NT KD
Operating mode
Spark ignition
Recommended surface
250 m²
Soil consistency
Hard
Hard soil
yes
Starting mode
Recoil
Manufacturing country
Italy
Motor data
Motor brand
Karma
Motor Model
KM178F
Motor type
Diesel
Cubic capacity
296 cm³
No. of cylinders
1
Nominal power
6 HP
Actual power (HP)
5.4 HP
Fuel
Diesel
Power supply
Overhead valve OHV
Engine lubrication system
Oil bath
Decompression system
Automatic
Transmission data
Transmission type
Gears in oil-bath
No. of forward speeds
3
No. of reverse speeds
1
Gears
3+1
Operating mode
Gear lever
Transmission series
medium-heavy (3+1)
Cutting data
Standard milling cutter width
85 cm
Narrow milling cutter width
65 cm
Milling cutter diameter
30 cm
No. of blade holders
6
No. of blades
24
Blade engagement
Lever on the handle
Internal hexagon size
25 mm
Equipment
Milling cutter accessory
Included as standard
Side crop protection discs
Yes
CE Accident prevention system
Yes
Rear stake
Yes
Adjustable stake
Yes
Pair of milling cutter extensions
Yes
Pair of side transfer wheels
No
Pair of iron wheels
No
Pair of cutting rollers
No
Spring rotor
No
Blade rotor
No
Clutch
Yes
Battery for electric start
No
Electric start with key
No
Recoil start system (with rope)
Yes
Height-adjustable handle
Yes
Side-adjustable handle
Yes
Rubber-coated soft grip
Yes
Folding/removable handle/s
Yes
Free gifts/extra features
Engine oil bottle for free
2
Maintenance tool kit
Yes
Instructions manual
Yes
Dimensions and logistics

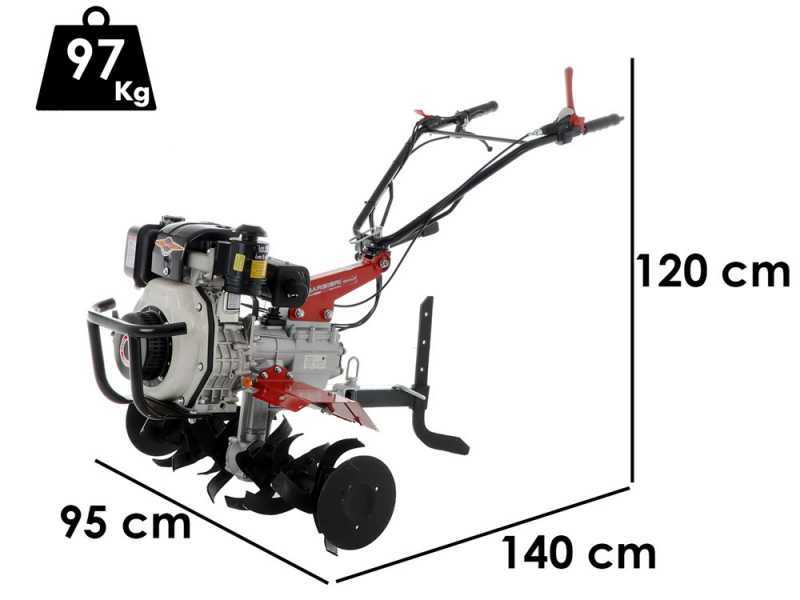

Product dimensions in cm (L x W x H)
140x95x120 cm
Net weight
97 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
120x80x14 cm
Weight including packaging
107 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
30 minutes
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

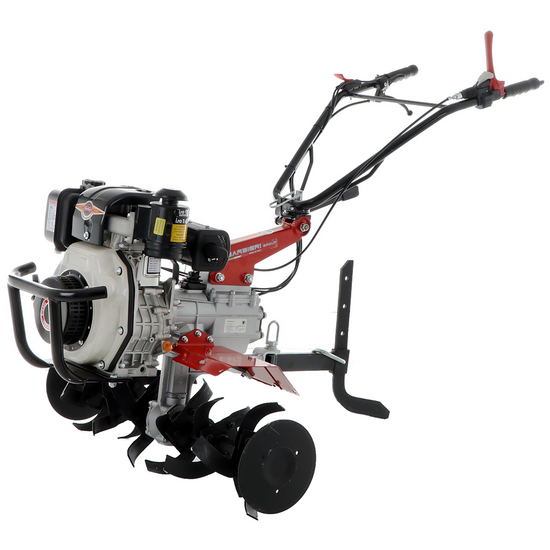

Barbieri B/100NT KD Diesel Garden Tiller

Barbieri B/100NT KD Diesel Garden Tiller

Designed to offer excellent performance in hard and rough soil, both in the agricultural industry and in professional maintenance of green areas.

Thanks to its versatility, power and reliability, this garden tiller can tackle any type of work effortlessly.

Provided with a Karma KD 70 diesel engine, known for its reliability and power, an impressive 10 HP, it provides the necessary thrust to move the cutter through the hardest soil.

The gear transmission in oil bath with four speeds (3+1), guarantees a high resistance and low maintenance level, ensuring an excellent tilling even in the hardest condition. In addition, the standard synchronised PTO allows the use of agricultural towed trailers.

The height- and side-adjustable handlebars guarantee to the user the utmost agility even in tight areas without damaging the previously tilled soil.

In brief, Barbieri B100NT KD Garden Tiller is the ideal choice for those who are looking for a reliable, powerful and versatile machine to till the soil or maintain the green areas in a professional manner.

Thanks to the 6-stars 90 cm cutter with side discs, this garden tiller is able to work on a big soil area in short time.

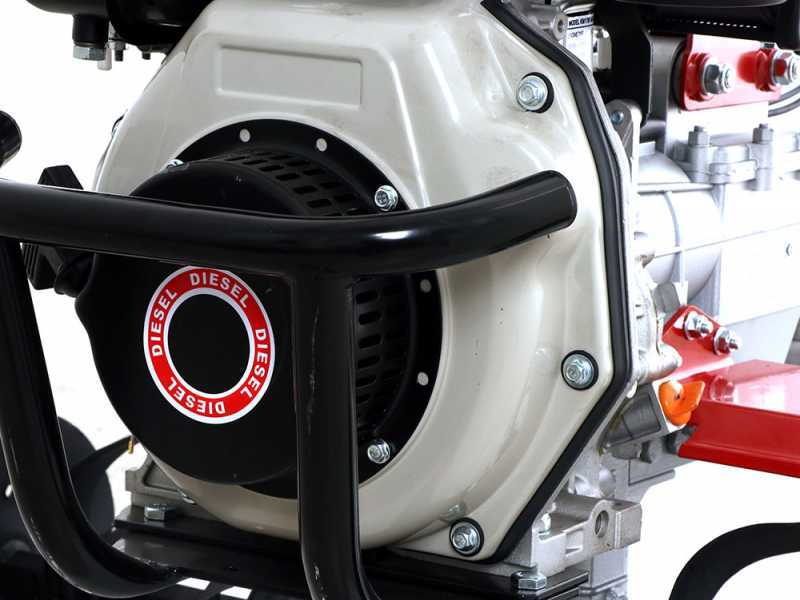

Karma KD178FE Engine

The machine is equipped with a powerful KPC KD178FE diesel engine

Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity:
296 cc
Compression ratio:
20 : 1
Max. rpm:
3600 rpm
Fuel tank capacity:
3.5 L
Fuel tank capacity:
1.1 L

Nominal power: 6 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.0 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Gearbox, steering handles and controls

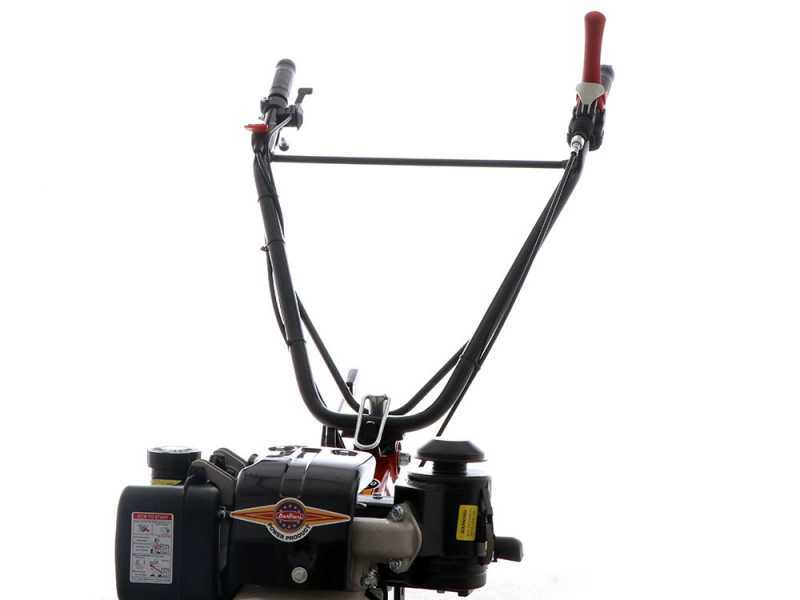

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Red lever: clutch lever that manages the motion of the tillers and the machine forwarding speed.

Throttle lever near the power switch.

Height-adjustable handlebars in multiple positions (Example from the higher to the lowest)

And laterally adjustable in three positions (1,2,3).

Gearbox detail 3+1

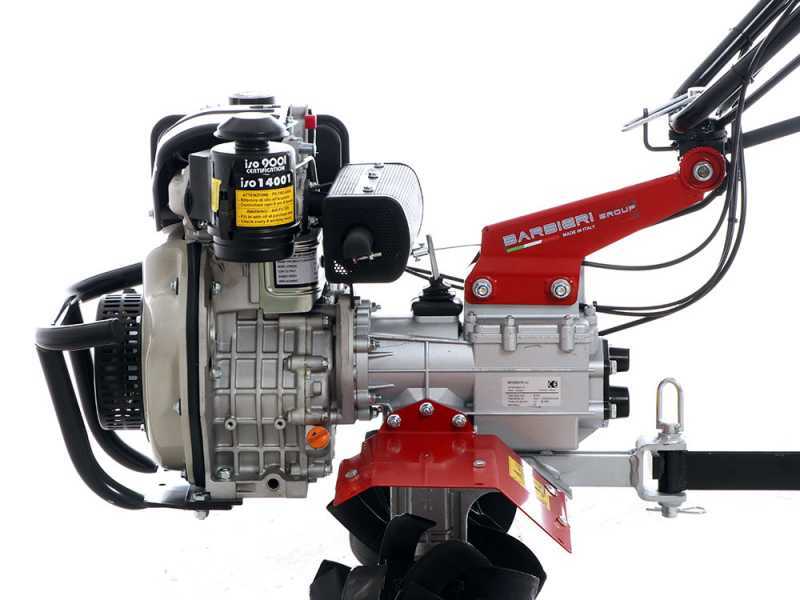

Gear transmission in oil bath

The engine is driven to the cutter through a sturdy gear transmission in an oil bath.

This is the best transmission suitable for a garden tiller. It needs little maintenance; it is the sturdiest transmission and is able to till hard soils also in depth.

It drives the machine quickly and efficiently, while the belt drive system requires the periodical replacement of the belt.

Solid and sturdy gearbox (detail of the oil tank plug)

Cutter: 90 cm, with 3+3 tillers composed of 4 hoes each + side protection discs.

Focus on the cutters attachment.

Hexagon width: 25 mm

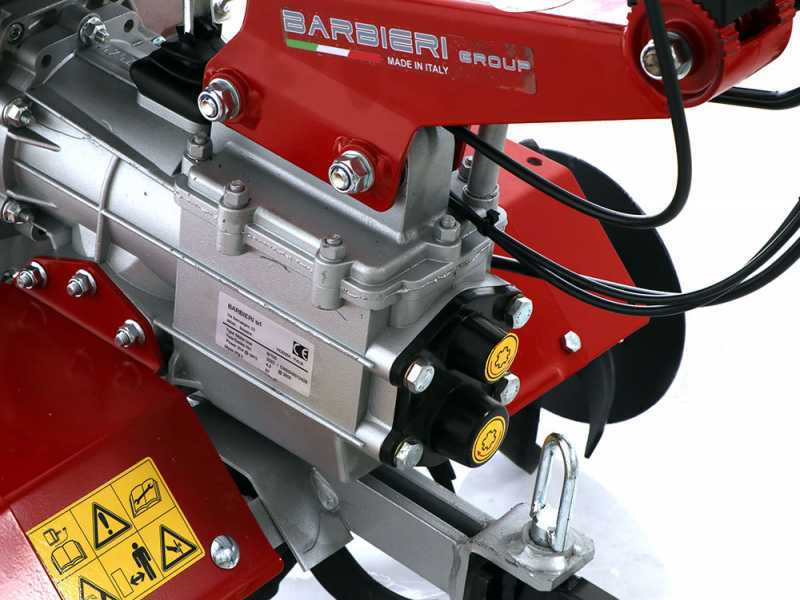

Other details

Spur of excellent size, allows the user to exploit the garden tiller at its best.

Front Bull Bar that protects the engine from bumps and accidents.

The machine is equipped with synchronised power take-offs that allow the use of the rotary tiller to be extended through the use of accessories, e.g. agricultural towed trolleys.

Recommendations for Use - Petrol Garden Tillers

To ensure the correct operation of the petrol garden tiller and maintain its performance over time, it is important to use the machine in accordance with the specified operating conditions and to follow a few simple recommendations.

Before each use, it is advisable to check the general condition of the machine, ensuring that the tines are correctly assembled, the protective guards are intact, fluid levels are correct and the controls are working properly. A pre-use check allows you to work more safely and reduces the risk of malfunctions.

The petrol garden tiller must only be used on ground suitable for tilling. It is not advisable to work on surfaces containing a high number of stones, rocks, roots, debris or other large foreign objects, as these may strike the tines and place excessive strain on the transmission and mechanical components.

On particularly hard, compacted or previously untilled soil, it is preferable to carry out several passes at progressively greater depths, avoiding subjecting the machine to excessive loads during a single operation.

It is also not recommended to use the rotary tiller on excessively damp ground. High moisture levels cause the soil to adhere to the tines, leading to build-up of material, increased resistance to rotation and a reduction in the quality of the tilling.

Where there is tall grass, wild vegetation or unchopped plant residues, it is advisable to prepare the working area in advance. Plant material can wrap around the rotating parts, causing clogging, reduced efficiency and increased wear on components.

To ensure the machine operates correctly, only use tines, tools and accessories that are compatible with the model in use and approved by the manufacturer. Unsuitable or damaged components can cause abnormal vibrations and compromise the service life of the transmission and frame.

While working, it is important to allow the machine to advance at a rate determined by the capacity of the tines and the characteristics of the soil, avoiding forcing the machine forward with excessive pressure. On hard ground, it is preferable to reduce the working depth and proceed gradually.

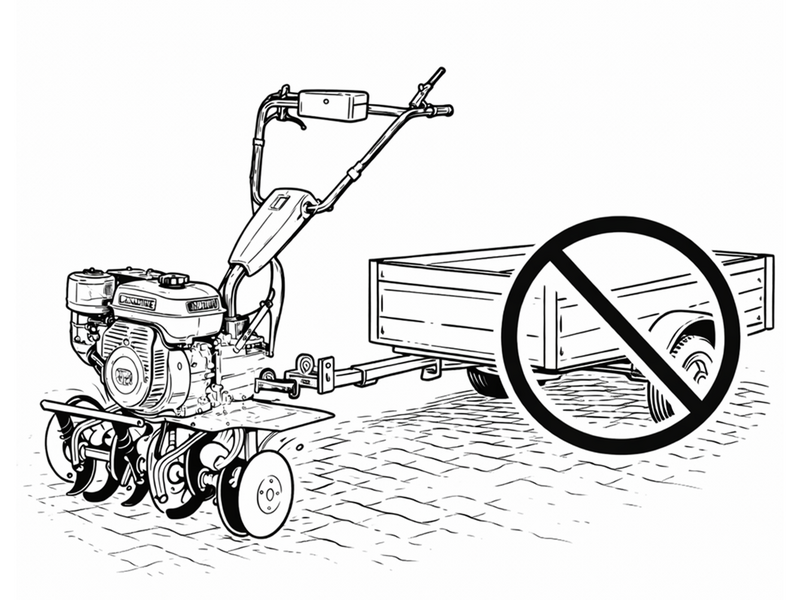

The rotary tiller must be used exclusively for soil cultivation and must not be used to pull, push or perform towing operations with loads, trailers or equipment for which it is not designed. Improper use may result in loss of control, mechanical damage and dangerous situations for the operator.

While in use, all the required guards must remain fitted. Do not touch or work on any  moving parts while the engine is running.

Proper maintenance ensures that the petrol garden tiller continues to perform efficiently. It is advisable to clean the machine regularly, remove any residue from the tines and check the condition of components subject to wear and tear.

It is always important to use fuel and lubricants suitable for the specific model of machine, following the instructions set out in the user and maintenance manual. The use of unsuitable or degraded products may compromise the correct operation of the engine and mechanical components.

If the rotary tiller is to be left unused for a prolonged period, it must be stored in a dry, clean place, protected from the elements.

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free items included

The garden tiller is shipped in its original packaging.

The Instructions manual is included in the package.

Maintenance kit included
