Baesso - Grape Crusher and Destemmer with Supporting Frame and Flywheel

Questions & Answers (5)
ID: 3103

EAN: 8051411790990

MPN: 3103

Baesso - Grape Crusher and Destemmer with Supporting Frame and Flywheel
+600 sold
Technical data
Max. hourly output
1000 Kg/h
Motor type
Hand-operated
Hopper opening size
50 x 90 cm
Stainless steel sieve
Yes
Manufacturing country
Italy
Product Features
Model
MANO SCIVOLO
Type
Grape crusher-destemmer
Body material
Enamel painted steel
Configuration
With support frame
Operating mode
Hand-operated
Hopper opening size
50 x 90 cm
Max. hourly output
1000 Kg/h
Manufacturing country
Italy
Motor data
Motor type
Hand-operated
Transmission data
Transmission type
Gearbox
Gear material
High-strength Teflon
Equipment
Pair of rollers
Yes
Stainless steel sieve
Yes
Centrifugal grate
No
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
120x90x60 cm
Net weight
39 Kg
Packaging
On pallet
Weight including packaging
43 Kg
Assembly time
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/09/2025 - 29/09/2025
€ 508,73
Vat included
You're viewing:
Customers also viewed:
Description

Manual Grape Crusher - Destemmer with Supporting Frame

This grape crusher - destemmer features a simple and modern design, accurately designed structure built with specific techniques that make it a user-friendly and easy to use grape processing equipment.

The long service life of this machine is guaranteed by the very easy maintenance, as all rotating components work on ball bearings or bushings.

The output capacity is approx. 700-800 Kg/h.

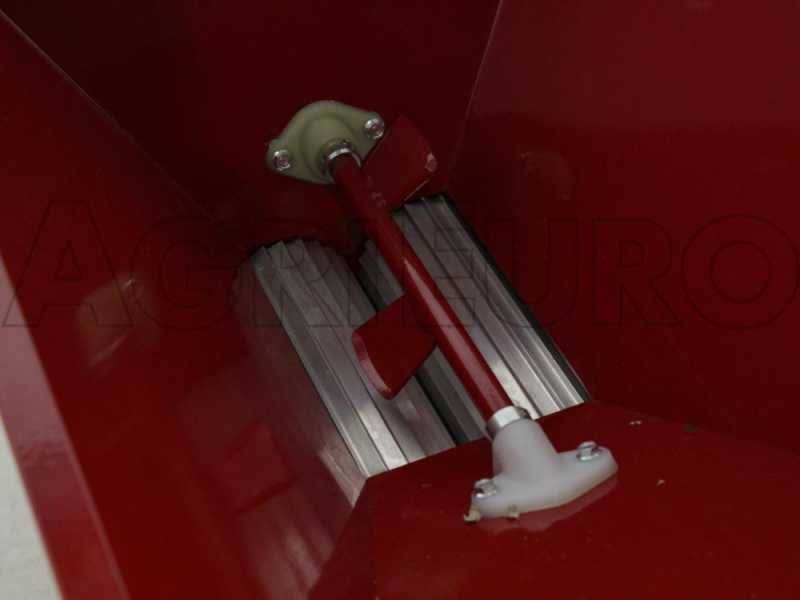

Upper loading hopper

90 x 50 loading hopper

This 50 cm width of the hopper allows to make an easy use of the crusher, facilitating the dropping of the crates of grapes inside the machine.

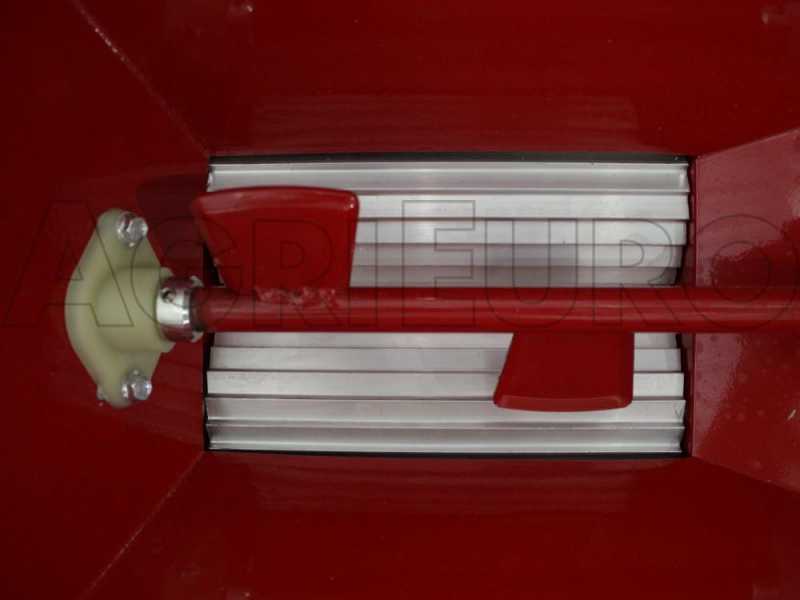

Ø 96 mm rollers
Rollers length: 220 mm

Aluminium rollers

This grape crusher - destemmer is one of the few machines equipped with two counter-rotating rollers in aluminium.

Most of the grape crushers on the market are equipped with plastic rollers.

These rollers carry out an initial processing of the grapes, performing a “first crushing” action that generates small cracks on the surface of the grape and facilitate the overflow of the first pomace.

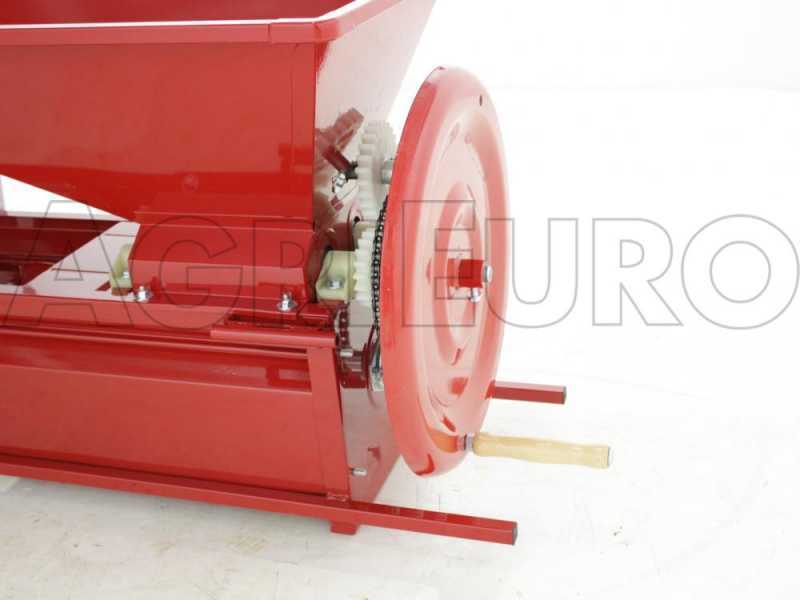

Manual side transmission with gear and chain

The rotary motion is transmitted from the motor to:

- the upper rollers
- the rotor

Equipped with practical wooden knob and flywheel to carry out grape processing.

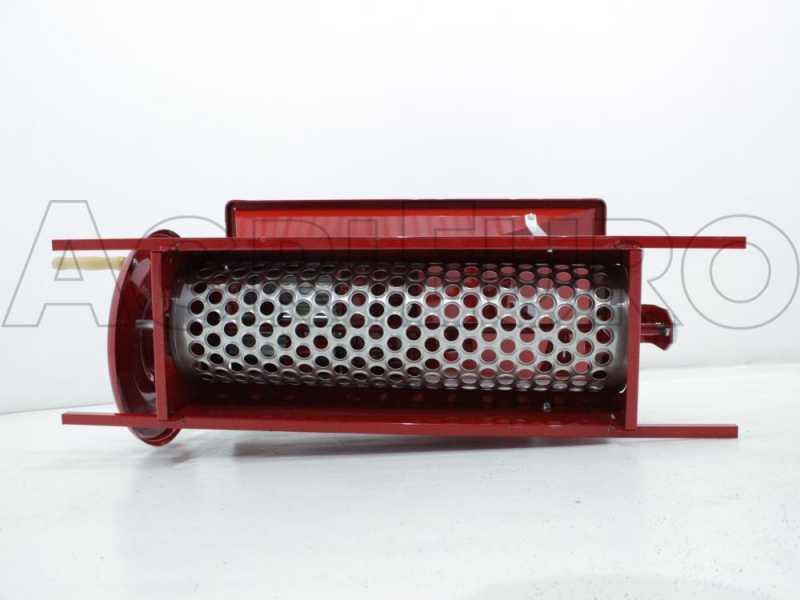

High-quality grate made of stainless steel

The grate can be removed with extreme ease for cleaning operations, thanks to the guides that also act as protection for the grate itself.

Focus on the rotor with paddles in enamelled steel that carries out the destemming process (by pressing the grapes on the grate).

The frame features two guides to which the grate is fixed and on which it slides when it is removed.

Above it is a removable grate cover made of enamelled steel, which is usually detached for cleaning and maintenance operations, and which closes the grate at the top so that all the bunches of grapes fed through the loading hopper remain well grouped inside the crusher and are then pushed towards the grate by the rotating rotor with paddles to be perfectly processed.
