Name: Awelco Mikrotig 150 MMA-TIG Electrode Inverter Welding Machine
Brand: Awelco
SKU: K604240
Price: 247.24 EUR
Availability: InStock
Rating: 4.8 (5 reviews)

Description

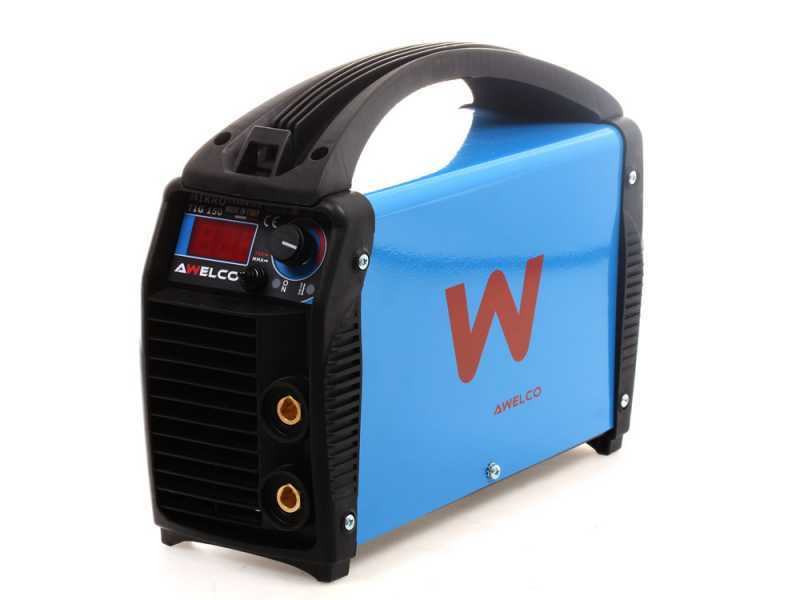

Awelco MIKROTIG 150

The Awelco MIKROTIG 150 inverter electrode welding machine is Made in Italy, equipped with TIG LIFT function, which can be set through the dedicated switch. Ideal product for demanding amateurs looking for quality and ease of use.

Reliable and performing machine, very efficient even for intensive domestic use.

TIG function is ideal for those jobs that require greater precision. Therefore, this machine can meet different needs of the user. The product is easy to use and during standard MMA welding it allows a major duty cycle with an amperage of 130A (35%). The duty cycle during TIG welding is lower.

It featuers good duty cycle, so you can work longer than with other amateur models. Safe, light, compact and reliable product.

The inverter welding machine is suitable for rutile, basic, stainless steel and cast iron 1.6 - 3.25 mm diameter electrodes.

This inverter welding machine is easily transportable thanks to its storing case, ergonomic handle and low weight of 8.2 kg.

Awelco Mikrotig 150 MMA-TIG Electrode Inverter Welding Machine

Technical Features

Power supply: 230 Volts

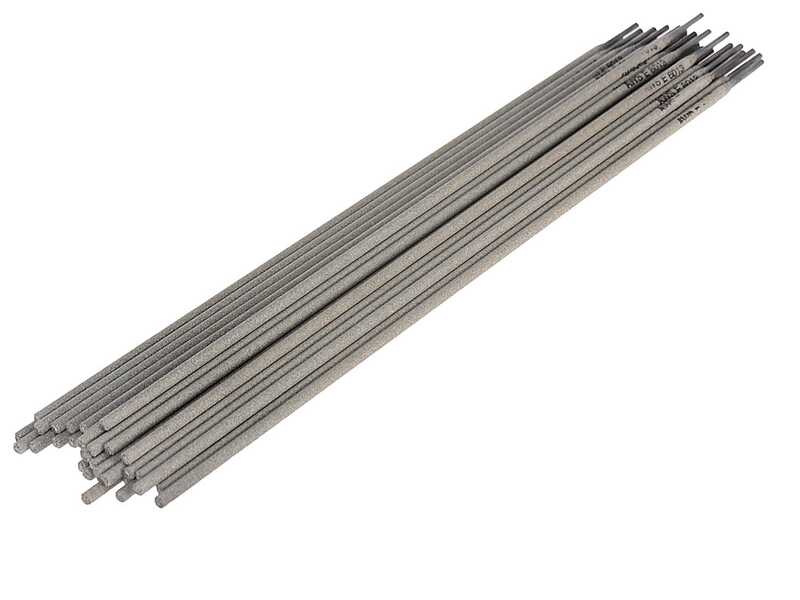

Usable electrodes 1.6 - 3.25 mm (rutile, basic, stainless steel, cast iron)

Open circuit voltage: 60 Volts

Welding current range: 30-130max

Duty cycle at 20°: 60% - 130 Amp (normal cycle)

Duty cycle at 40°: 20% - 130 Amp

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time. Of course, at lower temperatures or when the machine is cold, the welding cycle increases.

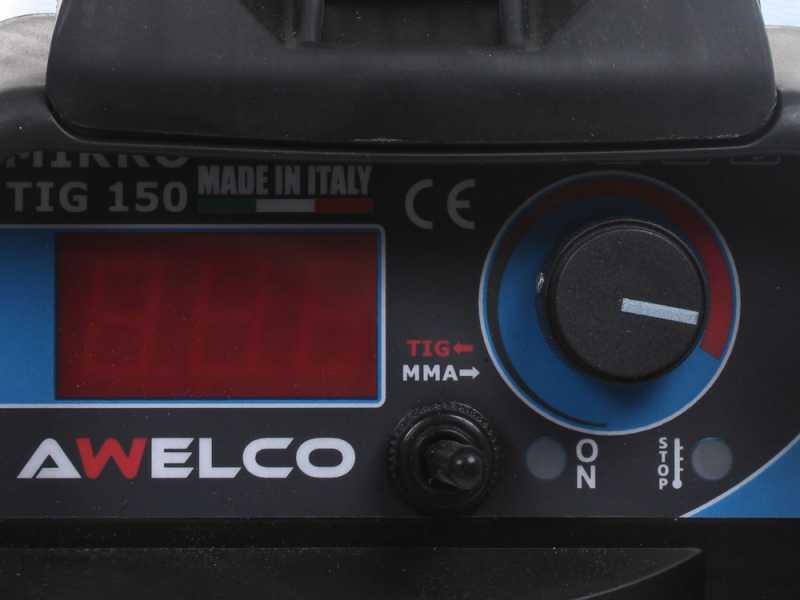

Power switch

Convenient handle for easy transport

Voltage regulator

Switch to select the TIG LIFT function

Brass sockets

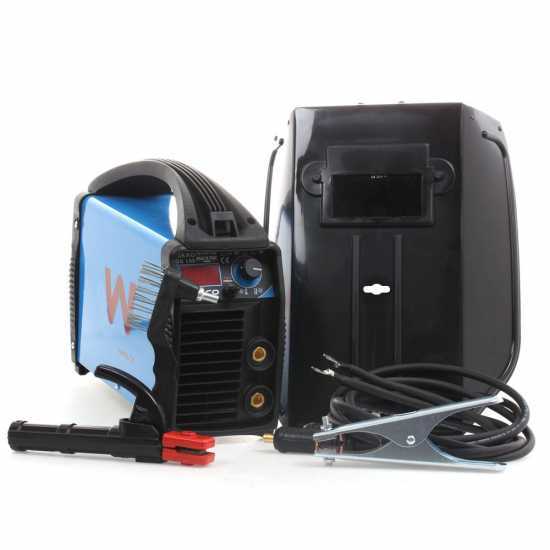

Free items & Standard equipment

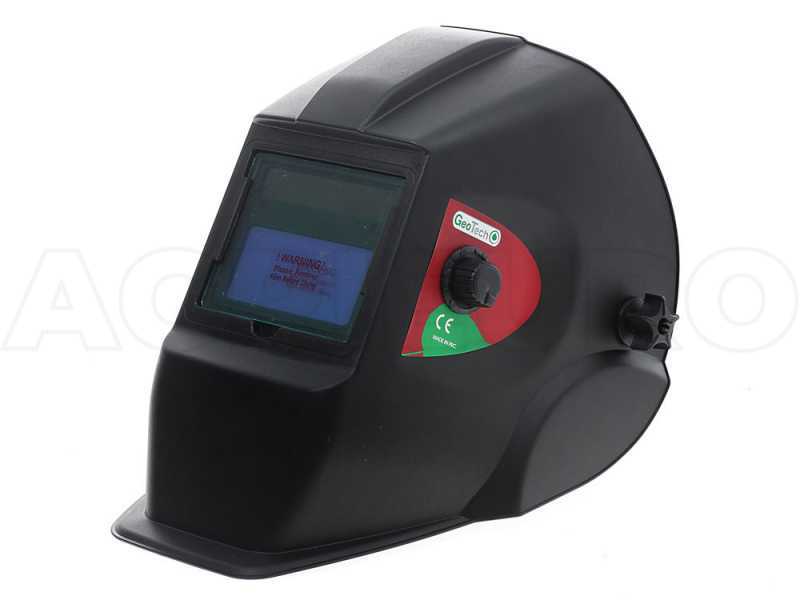

COMPLIMENTARY: heavy-duty welding helmet

Heavy-duty welding helmet, new and innovative product. It is one of the most efficient welding helmets in this category. GeoTech CHARM-380S auto darkening welding helmet features unparalleled value for money. There are no other helmets with such technical features at this price on the whole market.

Light and comfortable, equipped with adjustment system to be comfortably worn via a knob on the back. Suitable for MMA, TIG and MIG-MAG welding. Its shape allows you to operate with your hands free, ensuring maximum safety and ease of use.

SAFETY The auto darkening welding helmet is suitable for most welding operations. This helmet automatically darkens in 1/25,000 seconds the very moment you start welding. No matter what shade the filter is set to, the UV/IR protection is always present.

SHADE ADJUSTMENT You can select the 9-13 shade according to the welding process. The helmet can also be used to protect yourself during grinding (DIN 4). Grinding mode prevents filter from auto darkening.

Viewing area: 92x42 mm
Filter cartridge size: 110x90 mm
Arc sensor: 2
UV/R protection: up to DIN 16 at all times
Clearer filter: DIN 4 (grinding)
Darker filter: Variable external shadow, DIN 9-13
Darkening (from light to dark): 1/25,000 S
Delay (dark to light): 0.1-1-0
Power supply: Solar cell and 2 CR2032 lithium batteries
TIG AMP: DC>10, AC>10
