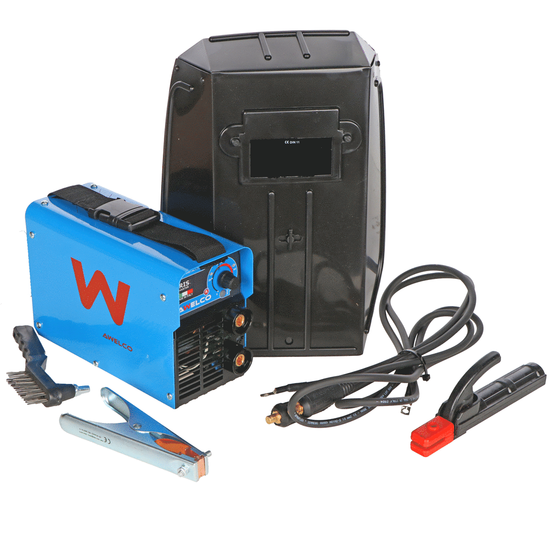

The Awelco IRIS 150 electrode welder is a compact and versatile machine designed for use in both hobby and semi-professional environments. Thanks to MMA (Manual Metal Arc) technology, it allows coated electrode welding, guaranteeing high quality results on various types of metals. Its lightweight and compact design makes it easy to transport, ideal for workshop or outdoor work.
With a single-phase 230V power supply, the Iris 150 develops a power consumption of 5.8 kVA and an effective power of 4.3 kW, ensuring good energy efficiency. The no-load voltage is 90V, allowing a rapid ignition of the welding arc. The welding current range ranges from 15A to 140A, offering flexibility in operations and allowing you to work on materials of different thicknesses.
30% duty cycle at 140A maximum current ensures adequate performance in continuous operation and reduces downtime due to cooling. The welding machine supports electrodes with a diameter of between 1.6 mm and 3.25 mm, making it compatible with a wide range of coated electrodes used in steel, stainless steel and other materials.
Main features:

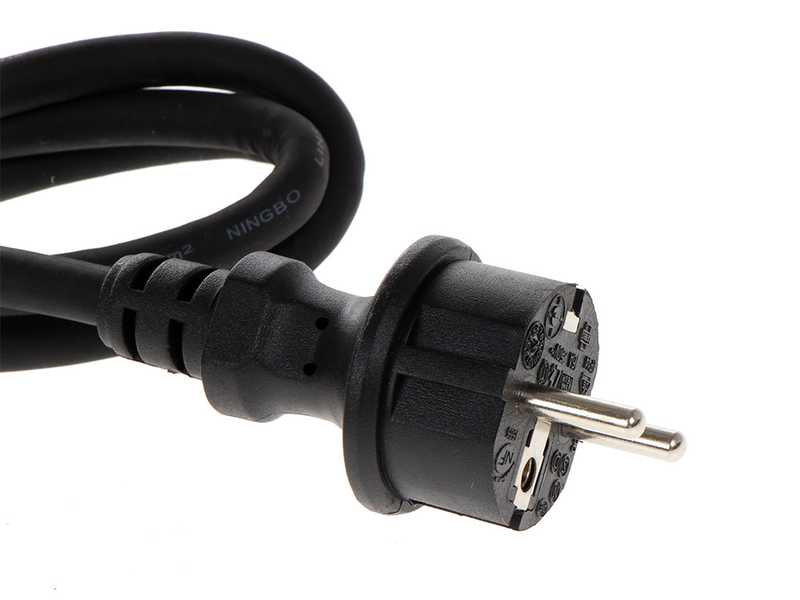

- Input voltage: 230V~1ph
- Power consumption: 5.8 kVA (4.3 kW)
- Vacuum voltage: 90V

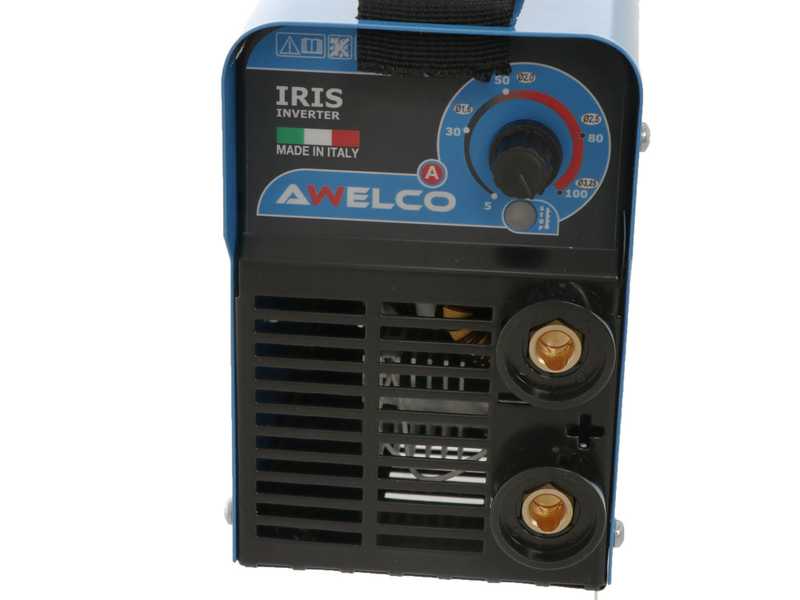

- Welding current: 15-140A
- Working cycle: 30% at 140A
- Electrode Diameter: 1.6 mm - 3.25 mm

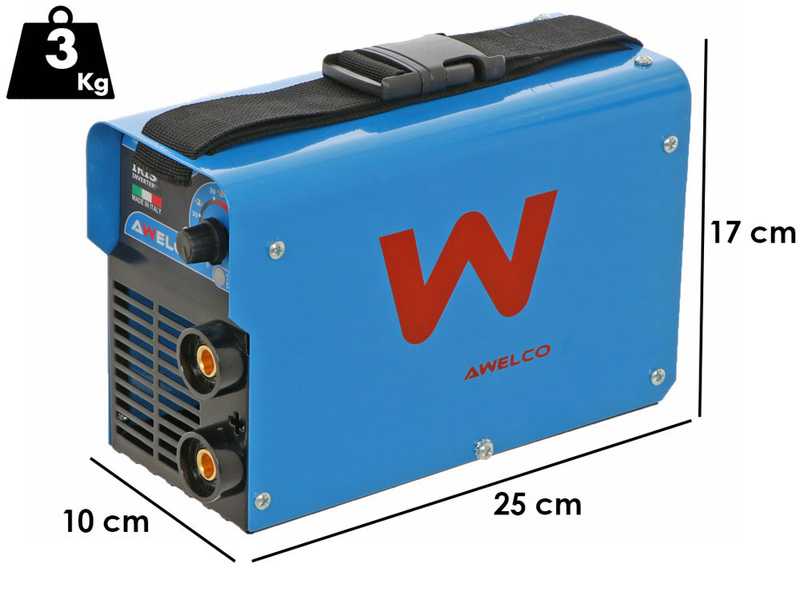

- Low weight and compact design for easy portability.
