Attila ATT 500 D-L - Dumper crawler wheelbarrow - Capacity 500Kg

Add a question
ID: K609191

EAN: 8033655603304

MPN: 060330

8,3/10
After-sales assistance & Spare parts
Attila ATT 500 D-L - Dumper crawler wheelbarrow - Capacity 500Kg
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
500 Kg
Barrow body type
Dumper
Body tipping
Hydraulic
Max. slope
25 %
Type
Tracked
Motor brand
Loncin
Motor Model
G270F
Motor type
4-stroke
Cubic capacity
270 cm³
Nominal power
9 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Body dimensions
95x68x46.5 cm
Product Features
Model:
ATT 500 D-L
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
25 %
Barrow body type:
Dumper
Dumper body:
Body tipping:
Hydraulic
Body dimensions:
95x68x46.5 cm
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G270F
Motor type:
4-stroke
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Hydraulic piston:
Yes
Box:
Dumper
Assisted steering:
Yes
Total rollers no.:
4
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics

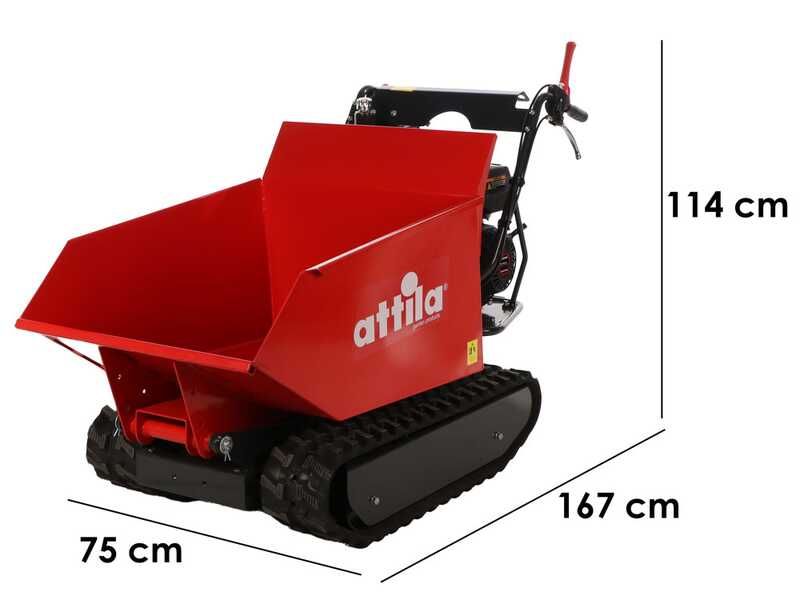

Product dimensions in cm (L x W x H):
167x75x114 cm
Net weight:
275 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
170x76x113 cm
Weight including packaging:
310 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 19/06/2025 - 23/06/2025
€ 2.758,21
Vat included
You're viewing:
Customers also viewed:
Description

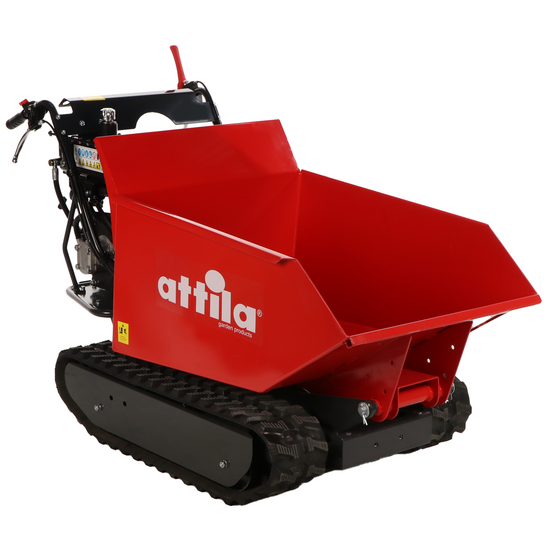

Attila ATT 500 D-L dumper wheelbarrow

The Attila ATT 500 D-L petrol-driven tracked wheelbarrow is a robust and versatile model designed for transport operations even in difficult and sloping terrain. Thanks to its high load capacity of 500 kg and the powerful Loncin 4-stroke 270 cc 9 HP engine , it is ideal for transporting heavy materials in agriculture, construction and forestry. The presence of tracks guarantees greater stability and grip on steep or muddy surfaces, making it suitable for heavy-duty use even on slopes.

The Loncin engine ensures reliable operation and consistent performance, with enough power to tackle steep hills and demanding transport. The wheelbarrow is equipped with a gearbox system with 3 forward and 1 reverse gear, offering simple speed management and precise movement control, which is particularly useful on complex or uneven terrain.

The dump body with hydraulic tipping is one of the main strengths of the ATT 500 D-L model. This system allows material to be unloaded with minimal effort and quickly, improving the efficiency of loading and unloading operations. The robust body structure ensures long life and resistance to wear and tear and impacts, even with heavy and bulky loads.

Key features:

  • Load-bearing capacity : supports up to 500 kg, ideal for heavy materials.
  • Loncin Engine 4-stroke, 270 cc, 9 HP, powerful and reliable.
  • Gearbox: 3 forward gears + 1 reverse for versatile driving.
  • Dumper body: strong structure with hydraulic tipping for rapid unloading.
  • Tracks: grip and stability on difficult terrain and slopes.

These features make the Attila ATT 500 D-L wheelbarrow an indispensable piece of equipment for those who need a safe and high-performance vehicle for demanding transport work in complex terrain.

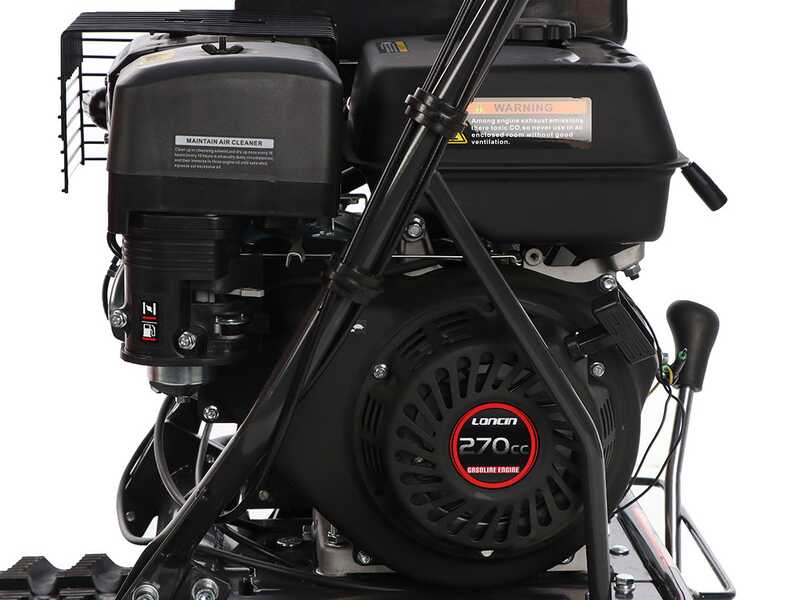

Loncin G200F engine

The Loncin G270F engine is suitable for works requiring great power, and which is obtained thanks to the high displacement of 270 cc.

Features:

Engine type
Single cylinder 4-stroke - OHV
Cylinder type:
Cast iron:
Displacement
270 cm³
Power supply
Petrol
Power output
9 HP

Latest generation 4-stroke petrol engine with ‘OHV overhead valve shaft and automatic decompressor start.

Easy recoil start thanks to automatic fuel priming system.

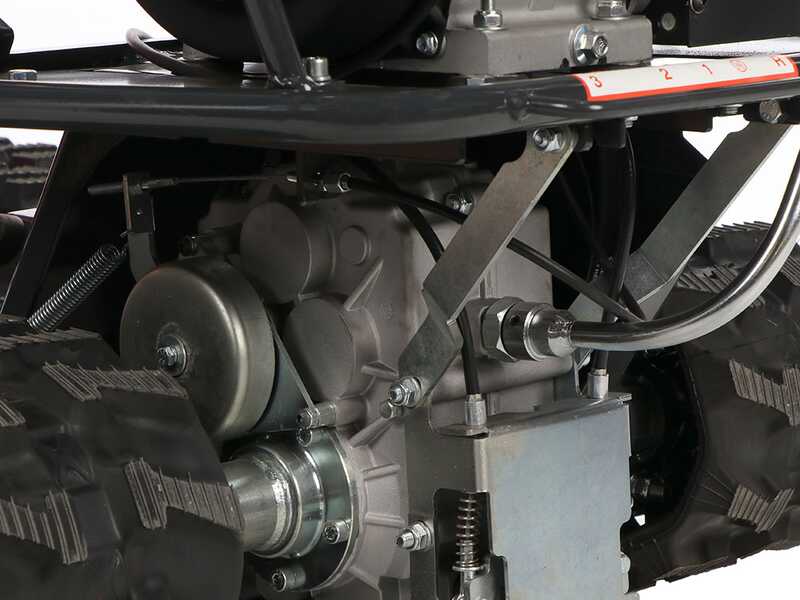

Gearbox, parking brakes and transmission

Gearbox: large, reliable and accurate.

Speeds:
3 forward gears
1 reverse gear


Parking brakes:
connected to the gearbox, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).


Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

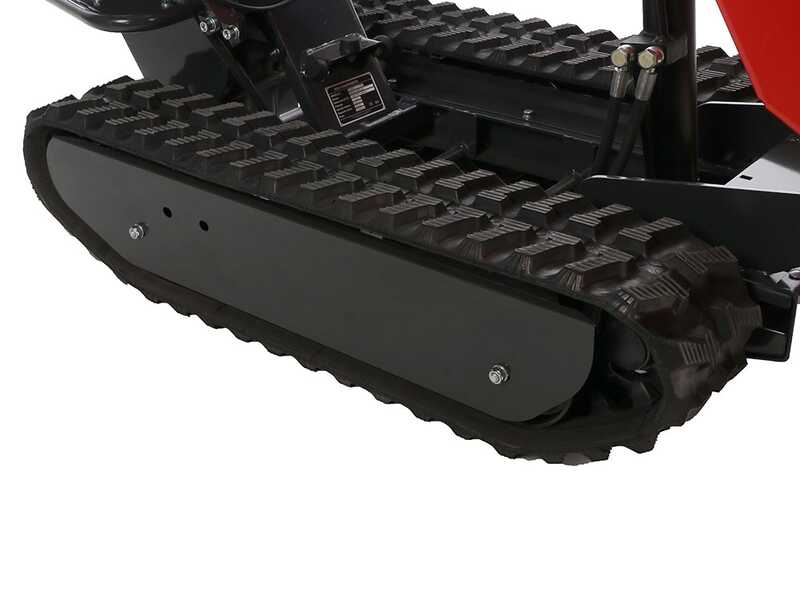

Tracks, carriage and chassis

With their tread width and profile, they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Rear of track with pointed ‘tank-type’ upper corner that allows it to climb steps or other obstacles with ease.

The sturdy frame with steel structure in high thickness which limits the vibrations and noise.

The low centre of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

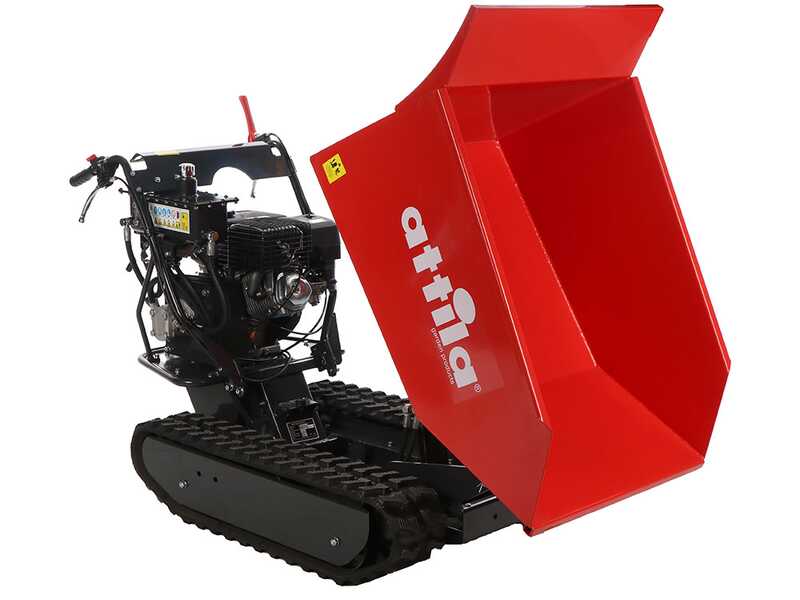

Tilting dumper

Barrow, made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

In addition, the body structure is completely welded and free of holes, making it watertight, which allows the transport of any material with a high liquid content.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the centre of gravity of the machine.

Caisson size: 950x680x465 mm

To facilitate the tipping operation, unloading the operator's weight, and to keep the body in the tipped position, the wheelbarrow is equipped with a hydraulic piston placed under the chassis. This will make all stages of the work much easier. To tip the body, simply operate this lever.

Detail of hydraulic oil tank cap

Details of the porthole for checking the oil level in the hydraulic system

WARNING: the machine comes without oil. The recommended hydraulic oil is 10WAW32,ASLEH-150 or ISO32. The tank capacity is 3 litres.

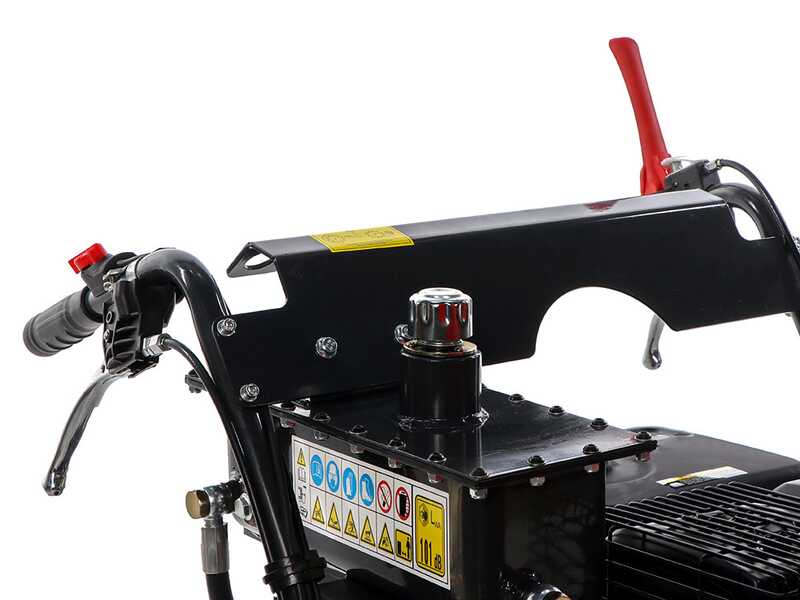

Controls

The machine is provided with two lower levers for steering, respectively on the right and on the left.

Large red lever for motion activation. The two lower levers are for the steering, respectively, right and left.

The steering can be adjusted depending on the control lever and it allows smooth moving. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial. This allows the wheelbarrow to be steered extremely smoothly, without causing abrupt movements.

Throttle lever

Power button

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free items included

The wheelbarrow is shipped in its original packaging.

Instruction manual and spark plug spanner set included.
