Atomizzatore portato Gray 400/70 con attacco a trattore per irrorazione - Capacità 400 L - Pompa AR713

The new agricultural tractor-mounted sprayer Agrieuro Top-Line is a device used for spraying plant protection products and other chemicals on the surface of plants. The sprayer is connected to the agricultural tractor through a three-point hitch, making it easy to transport and use.

The operation of the sprayer is quite simple: the product is mixed with water inside the sprayer's tank, and then sprayed onto the surface of the plants through the large 700mm fan that generates a strong circular air jet pushing the droplets already emitted and atomized by the jets. The nozzles are designed to create a very fine mist, which settles evenly on the surface of the plants.

One of the advantages of the agricultural tractor-mounted sprayer is its versatility. It can be used for spraying a wide range of chemical products, such as fungicides, insecticides, and herbicides. Moreover, the sprayer is capable of covering large areas quickly and efficiently, making it an ideal option for farmers cultivating large fields through its 400lt tank.

Frame made of Swedish steel with hot-dip galvanizing treatment, making it a machine very resistant to rust over time.

However, it is important to use the sprayer responsibly, avoiding excess chemicals and complying with safety standards and local regulations.

Thanks to its versatility and its ability to cover large areas quickly and efficiently, it has become a popular choice among farmers worldwide.

WARNING: It is strongly recommended to carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

Fan group in Swedish steel with hot-dip galvanizing treatment, equipped with oil bath gear multiplier.

Axial fan with rear suction diameter 700mm (9 blades).

The sprayer's fan is the essential element that determines the power of the sprayer, thus determining the ability to push the atomized product in width and height. Blades made of nylon ensure excellent resistance to atmospheric agents.

Thanks to the fan's features, the product can be used in the following fields:

• Citrus groves
• Orchards
• Vineyards
• Greenhouse crops
• Olive groves
• Tall trees
• Berries, blueberries, avocados
• Banana plantations

The sprayer's transmission is oil bath gear, to allow maximum reliability over time.

Detail of engagement lever fan transmission with 1st and 2nd speed + neutral position.

Jet holder rods in stainless steel divided into two sectors, one left with 6 jets and one right with the other 6 jets.

Double anti-drip brass jets with quick closure.

Ceramic nozzles 1.0 / 1.2

It has three clicks that coincide with the positions:

• jet with larger hole (greater liquid delivery)
• central position = closed jet
• jet with smaller hole (less liquid delivery)

Annovi Reverberi AR-713 semi-hydraulic three-diaphragm pump in aluminium used for spraying treatments in medium and large crops.

Parts in contact with pumped liquids in anodized aluminium and AISI 303/304. BlueFlex diaphragms ensure high resistance standards to chemical agents used in plant protection treatments. NBR rubber seals. Die-cast housing with oil bath mechanics, transparent plastic tank for visual level control. Complete with reset overpressure valve and PTO protection.

New concept diaphragm locking system to prevent tearing from contact even under heavy use conditions. Valves with spherical sector profile that offer less resistance to liquid passage and improve volumetric efficiency.

Performance

• Number of diaphragms / pistons: 3
• Flow rate: 76 l/min
• Pressure: 40.0 bar
• Power: 7.3 HP
• RPM: 550
• Weight: 20.5 Kg

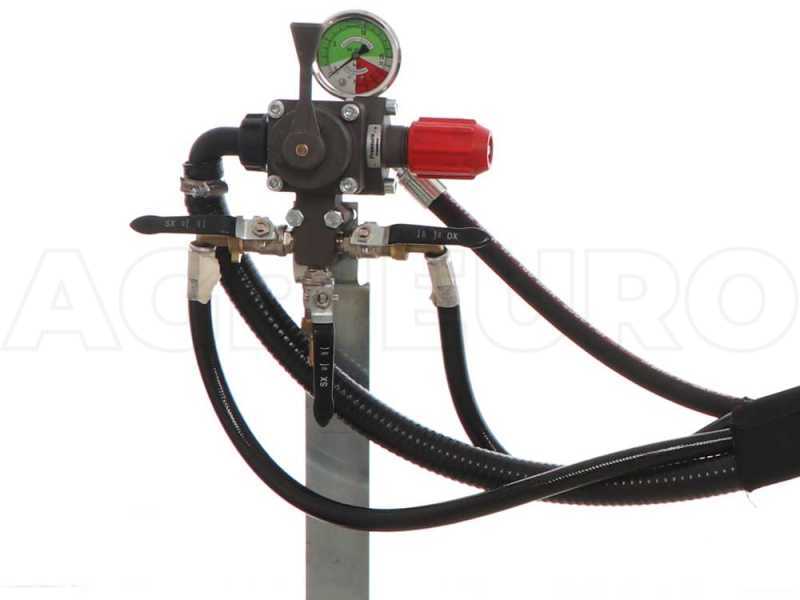

Three-way pressure regulation group.

Knob for pressure adjustment.

Pressure gauge.

The two side taps respectively feed the right sector of the fan and the left sector.

Control lever for opening or closing the pressure.

This means that the delivery of the two sectors can also be activated separately, for example activating only the jets on the right side or only on the left side (for example when treating the boundary of one's plot).

Remote control group equipped with very long cables that allow bringing the control group to the tractor.

Reinforced frame in Swedish steel with complete hot-dip galvanizing treatment and three-point hitch for tractor connection.

The hitch points to the lifter, in three positions, are complete with pins. 1st and 2nd category.

with total emptying, capacity lt. 400.

Supplementary tank for circuit washing (dedicated valve)

for total emptying.

, to constantly mix the solution inside the tank, equipped with a high-pressure jet that shoots at the center of the tank.

Equipped with self-filling system (the hose for self-filling the tank must be purchased separately).

Detail of the water inlet filter.

CE compliant machine
