Ama TRX 421 self-propelled lawn mower - 3 in 1: grass collection mowing + rear discharge + mulching

AMA TRX 421 Self-propelled lawn mower is a 3 in 1 machinery intended for all the mowing operations:

1. Grass collection system: 45 L grass collector
2. Rear discharge
3. Mulching cutting system

Despite its reduced size and weight, this lawn mower is very sturdy and it is provided with a sheet metal housing. Easy to use for everyone thanks to its manoeuvrability and versatility. Particularly suitable for the care of greenery in small-medium gardens.

It is equipped with a 80 cc Y80V OHV 4-stroke petrol engine, which provides the machine all the necessary power to work in any condition.

This lawn mower is equipped with a centralised cutting height adjustment system featuring 6 different positions from 25 mm to 75 mm and it is provided with a 42 cm cutting width with steel blade.

It is equipped with a foldable and adjustable metal handlebar which reduces the overall dimensions facilitating the transport and the storage.

Rear wheels: 177 mm

Front wheels: 152 mm

The packaging also includes the following gifts:

• Engine Maintenance Kit
• Protection set: gloves, safety goggles, dust mask and headphones
• Covering and storage towel

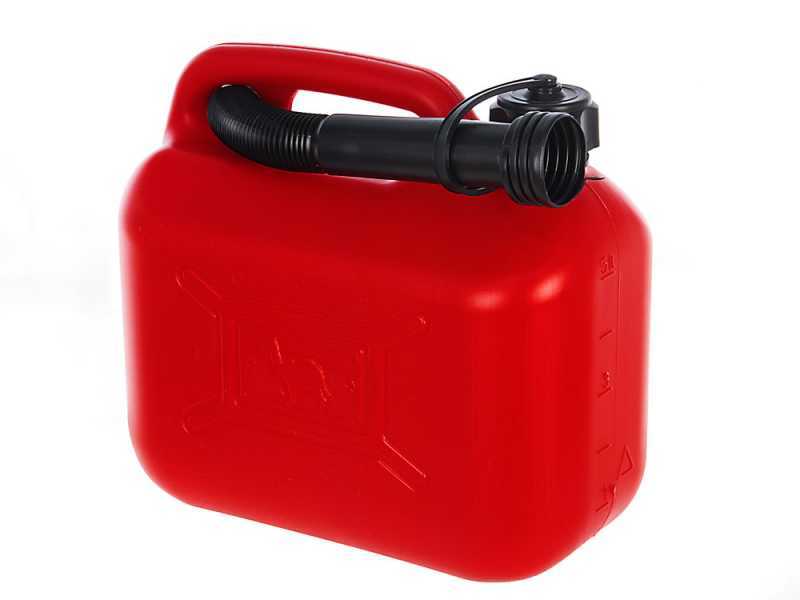

• Fuel tank (5 L)

The Ama TRX 421 lawn mower is powered by the Y80V OHV air cooled 4-stroke petrol engine with an aluminium cylinder.

Technical features:

• Engine type: Petrol, OHV (overhead valve)
• Cylinder type: Aluminium
• Displacement: 80 cm³
• Power supply: Petrol
• Fuel Tank Capacity: 0.8 L
• Oil Tank Capacity: 0.45 L

4-stroke petrol engines with OHV (overhead valve) have many advantages, including:

• Reduced size: This system allows the cylinder head to take up less space.
• Easier system: compared to the DOHC system, it is easier to design due to its smaller size.
• Reduced maintenance times: this is due to the structure and control of the system, which allows gaskets or other components to be replaced without having to disassemble the transmission.

Primer pump which, when pressed several times, frees the fuel lines from air and improves the carburettor acceleration.

Focus on the filter disassembled.

WARNING:
The engine is provided without oil. Check the oil level before the first starting.

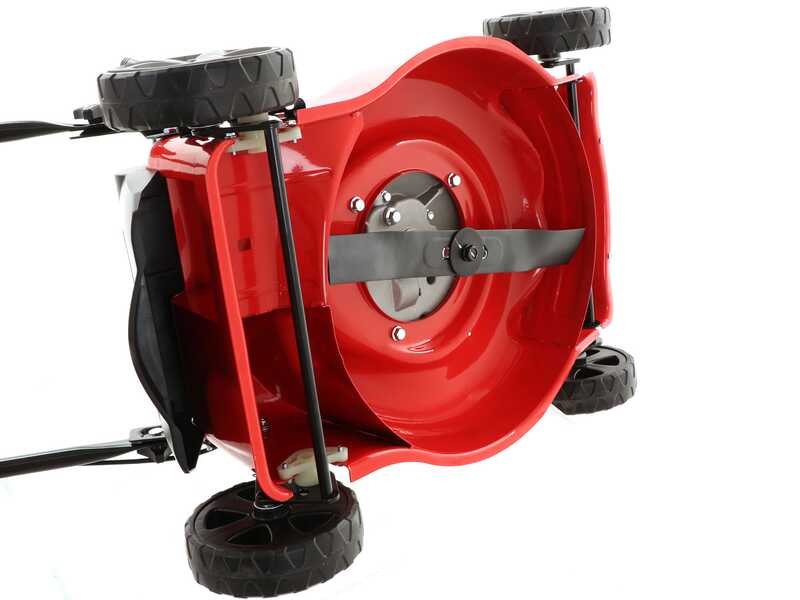

Universal hardened steel blade, suitable for all the cutting systems the lawn mower is equipped with. The 42 cm cutting width allows the operator to achieve excellent results and get satisfaction.

The high-thickness blade on this lawn mower is suitable for: rear discharge and grass collection mowing, while the shock-resistant steel housing guarantees high strength combined with great lightness.

The housing is equipped with a quick eashing joint.

This mower is provided with 6 different cutting height adjustments, from 25 mm to 75 mm.

The centralised cutting height adjustment is incredibly fast and intuitive. Simply pull the proper handle to lift the machine at the desired height. Moreover, thanks to the 125 cm front wheels and the 177 cm rear wheels, the Operator will be able to easily move on different types of ground.

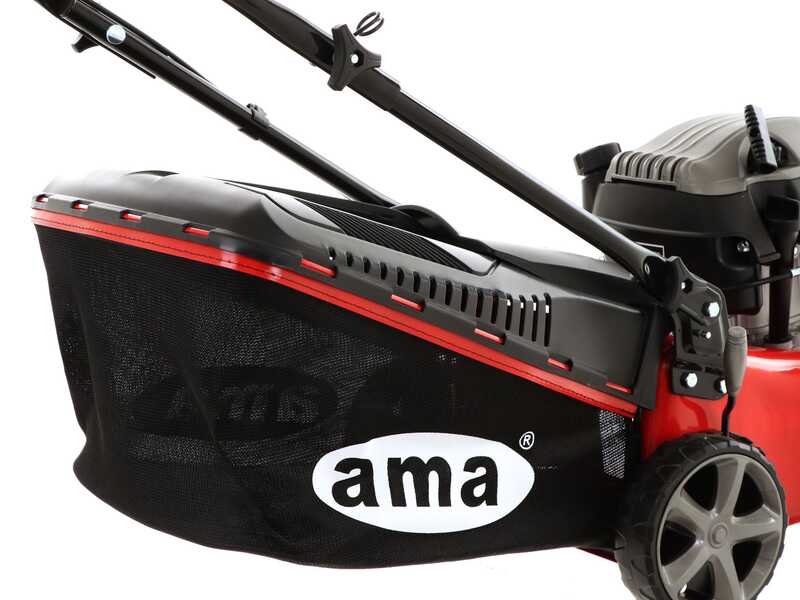

The lawn mower is equipped with a large 45 L hybrid grass collector easy to remove and empty, which makes it sturdy and resistant.

The lower part is made of mesh. The net flexibility allows easy emptying the grass collector when full.

Comfortable handle on the upper side of the grass collector in order to facilitate the collector removal.

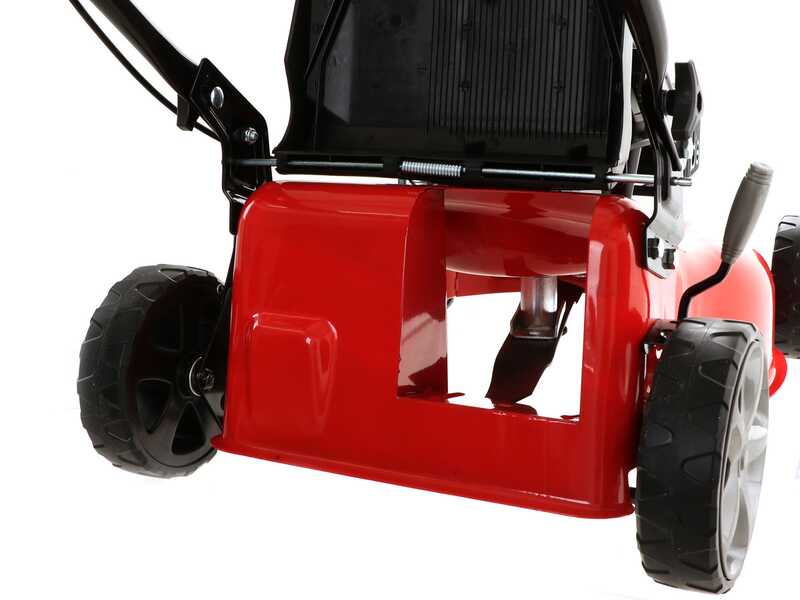

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge system will operate automatically.

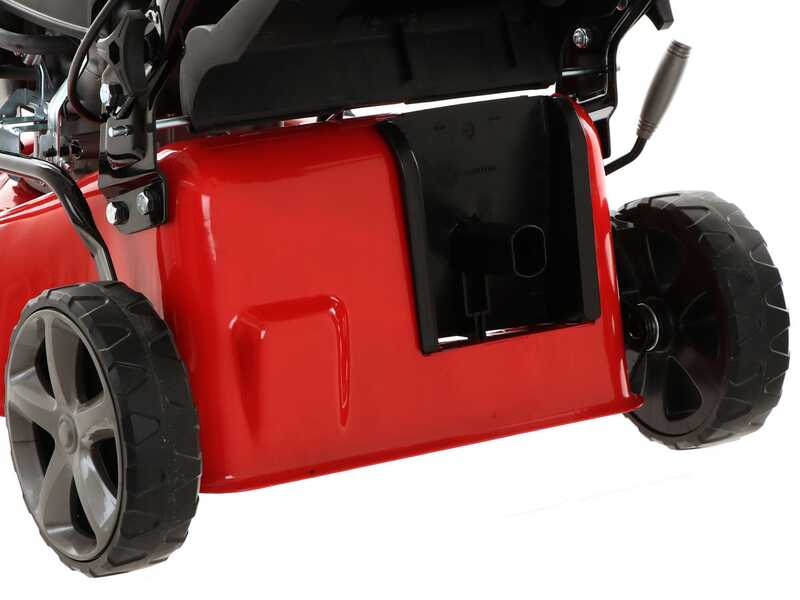

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

To convert the machine for the mulching cut, enter the mulching plug supplied and lower the rear deflector.

WHAT IS MULCHING:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

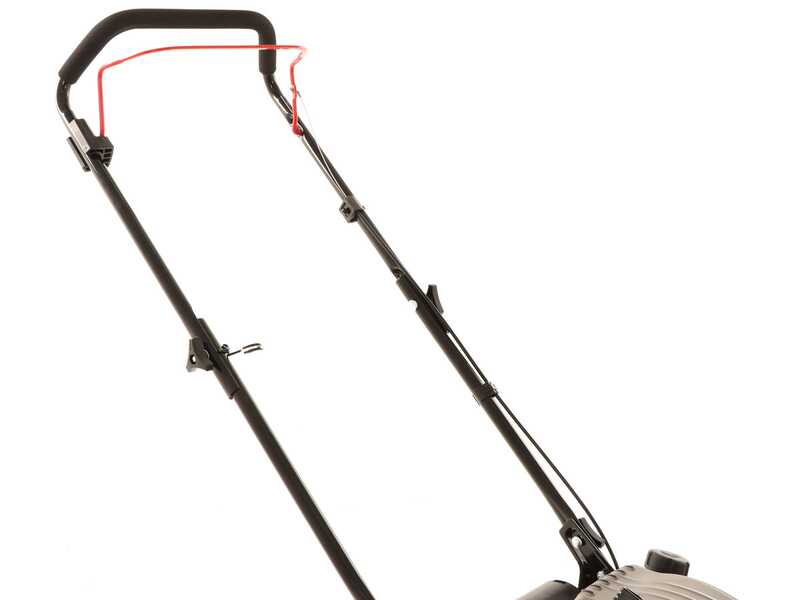

Easy and intuitive controls placed on the handlebar, thanks to the rubber-coated handlebar that ensures optimal working comfort.

Blade engagement lever
