Alpina AL4 46 SA Trailed Lawn Mower - Stiga ST 120 Engine

Add a question
ID: K606872

EAN: 8008984851191

MPN: 2L0482044/A22

Alpina AL4 46 SA Trailed Lawn Mower - Stiga ST 120 Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Grass collector
Rear discharge
Body material
Steel
Motor brand
Producer-manufactured
Motor Model
St 120
Cubic capacity
145 cm³
Nominal power
4.5 HP
Max. recommended area
800 m²
Cutting width
46 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
1 lever
Product Features
Model:
AL4 46 SA
Body material:
Steel
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
46 cm
Grass collection system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
2 in 1 - Collection + Rear discharge
Collection bag capacity:
60 L
Max. recommended area :
800 m²
Recoil start:
Yes
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Slovakia
Motor data
Motor brand:
Stiga
Motor Model:
St 120
Motor type:
4-stroke
Cubic capacity:
145 cm³
No. of cylinders:
1
Nominal power:
4.5 HP
Rated power (HP):
3.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Noise level:
96 dB(A)
Transmission data
Gear shifting system:
Single speed
Gearbox:
Steel gears
No. of forward speeds:
1
Wheel drive:
Rear-wheel
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Steel
Cutting width:
46 cm
Blade type:
Standard
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
65 mm
Min. cutting height:
22 mm
No. of cutting positions:
6
Cutting width:
46 cm
Equipment
Collection bag:
Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
200 mm
Front wheels size:
200 mm
Wheel Type:
Rubber tyre tread
Rubber-coated soft grip:
No
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes

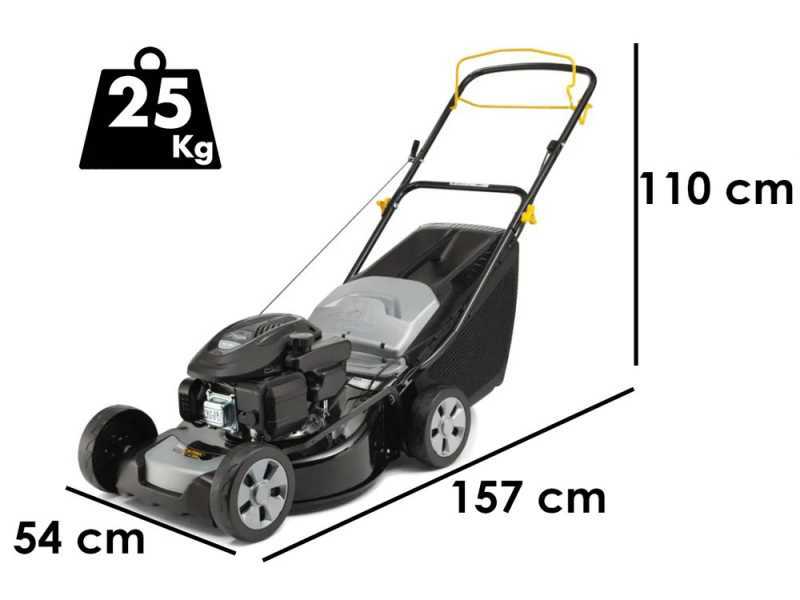

Dimensions and logistics
Product dimensions in cm (L x W x H):
157x54x110 cm
Net weight:
25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
83x56x50 cm
Gross weight (packaging included) :
29 Kg
Assembly time:
15 minutes
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 27/05/2024 - 29/05/2024
€ 385,57
VAT Included

You're viewing:
Customers also viewed:
Description

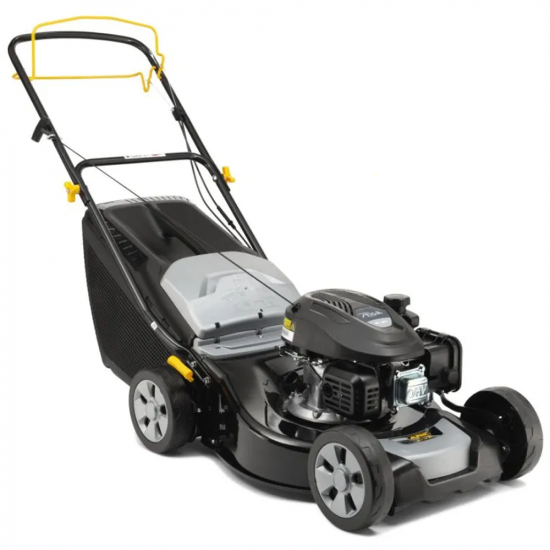

Alpina AL4 46 SA Lawn Mower

The Alpina Al4 46 SA is equipped with rear-wheel drive, making it suitable for gardens on slopes or with rough or uneven areas that are difficult to handle with a self-propelled model.

The Alpina AL4 41 A lawn mower is equipped with a single-cylinder Stiga ST 120 OHV engine with a displacement of 123 cc.

Professional design, with folding handlebar that allows easy storage while not in use.

The cutting height can be adjusted in 6 different positions from 22 mm to 65 mm via a central lever with a single gesture.

It features a cutting width of 46 cm and it is suitable for surfaces up to 800 s.q. m. Equipped with a capacious 60 litre plastic collection bag with full bag indicator and smart top handle for easy emptying.

Equipped with high-wheel system for easy cutting adjustment.

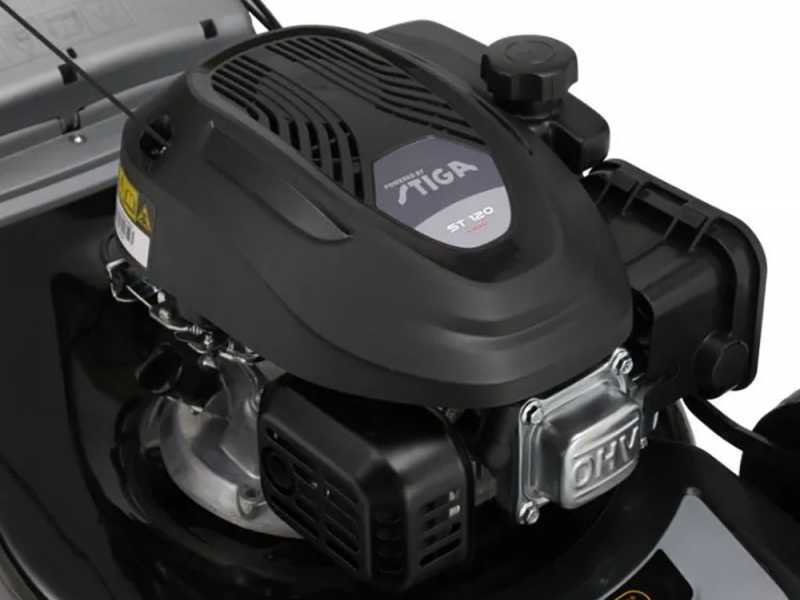

ST 120 OHV engine

The ST 120 OHV is an air cooled 4-stroke petrol engine with overhead valve and

with 123 cc.

It is provided with a 0.85 L fuel tank, which ensures a good working autonomy thanks to the low power consumption.

Technical features:

Engine type:
4-Stroke, single cylinder
Cylinder type:
Aluminium
Cubic capacity:
123 cm³
Fuel supply:
Petrol
Fuel supply:
OHV (overhead valve)
Fuel Tank Capacity:
0.75 L

ATTENTION:
The engine is provided without oil. Check the oil level before starting.

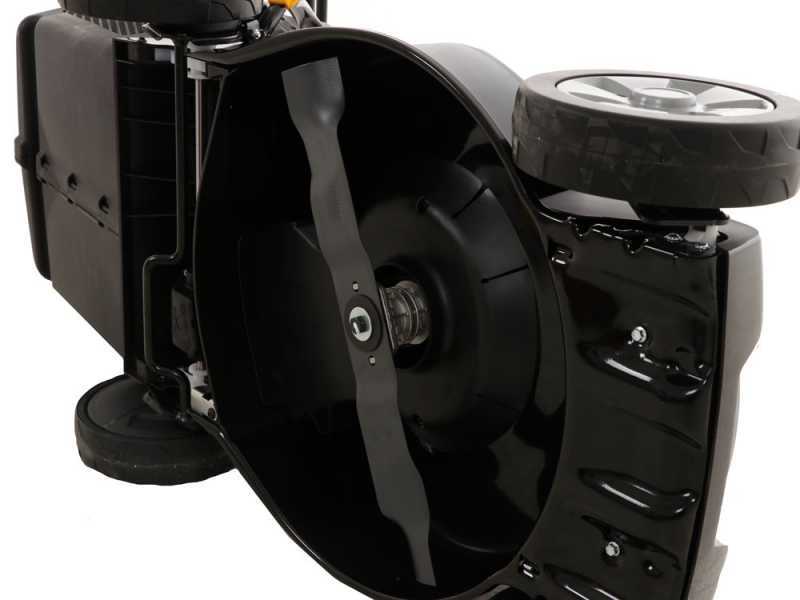

Steel housing and blade

46 cm useful cutting width.

The blade is made of universal hardened steel and it is suitable for 2 cutting systems: rear discharge and grass collection system with the canvas grass collector.

Convenient front comb that lift the grass just before cutting so as to guarantee neat and uniform results.

The steel housing gives this lawn mower a high sturdiness, combined with a great lightness; it only weights 23 Kg.

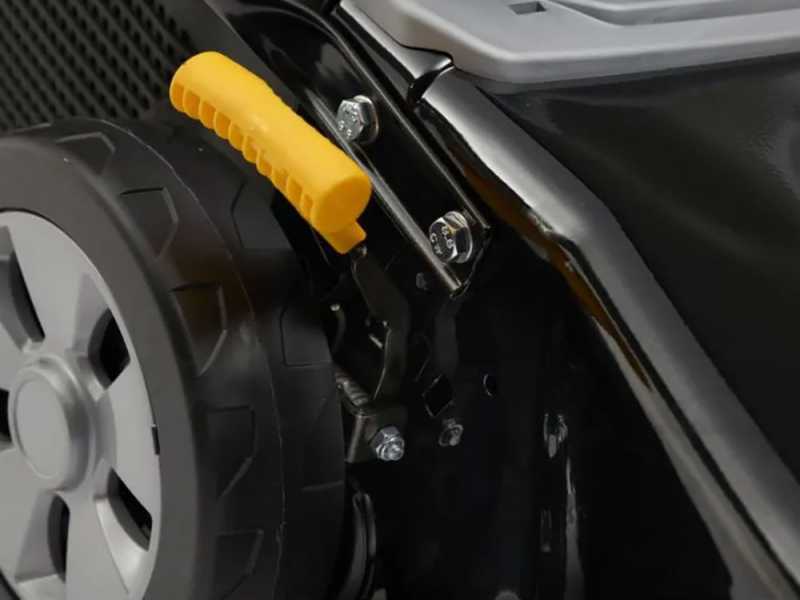

Cutting height adjustment

This lawn mower is equipped with 6 cutting height adjustments, from 22 mm to 65 mm.

The lawn mower is equipped with centralised cutting height adjustment system.

Rubber wheels for a perfect grip to the ground.

Wheels on bushings:

  • Rear wheels diameter: 200 mm
  • Front wheels diameter: 200 mm

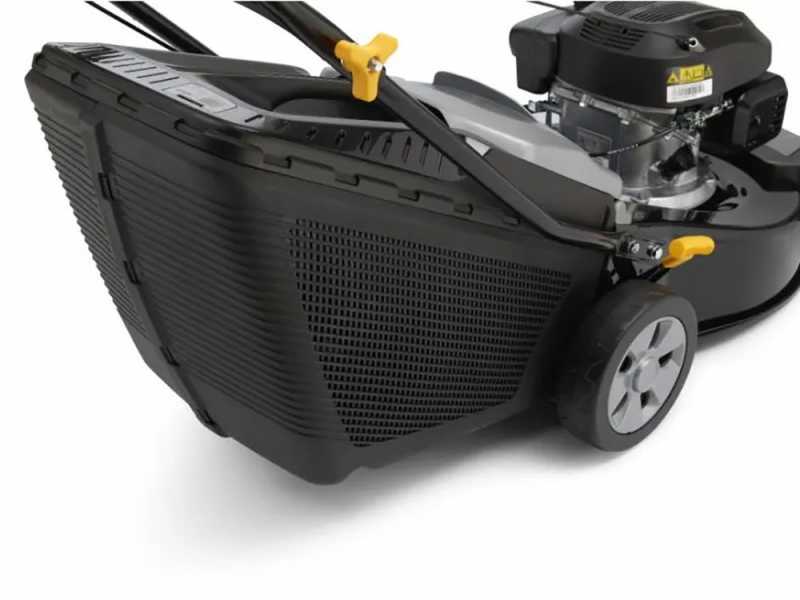

Cutting system: grass collection

GRASS COLLECTION SYSTEM:

The lawn mower is equipped with a large 60 L canvas grass collector, easy to remove and empty. Its flexibility allows easy emptying the grass collector when full.

Comfortable handle on the upper side of the grass collector in order to facilitate the collector removal.

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

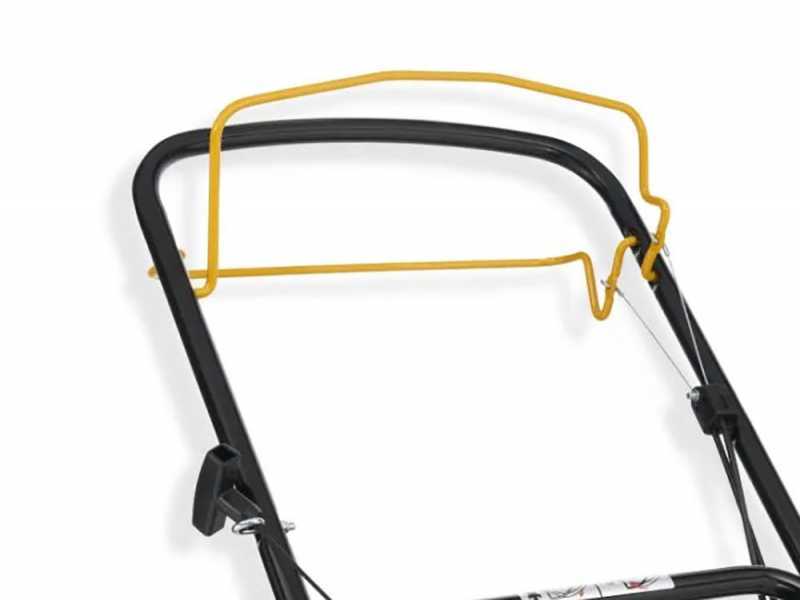

Controls on the handlebar

Easy and user-friendly controls placed on the handlebar.

  • Upper yellow lever for blade engagement.
  • Lower yellow lever for traction activation
  • Rope for engine start-up

Space-saving folding handlebar for easy storage during downtimes.

Free items & Standard equipment

1° GIFT: spare parts and maintenance kit for petrol engines

Spare parts and accessory kit for the maintenance of petrol engines.

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

  • Professional spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel for oil draining and refilling.

2° GIFT: protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.

Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.

Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

AgriEuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: engine oil

FOR FREE: two sae 15W 40 600 ml oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Free items included

The lawn mower is shipped in its original packaging..

Free items included:

  • 60 L rear grass collector
  • The instructions manual is included in the packaging

Warning!

The engine is provided without oil. Read the instructions manual before using the machine.
