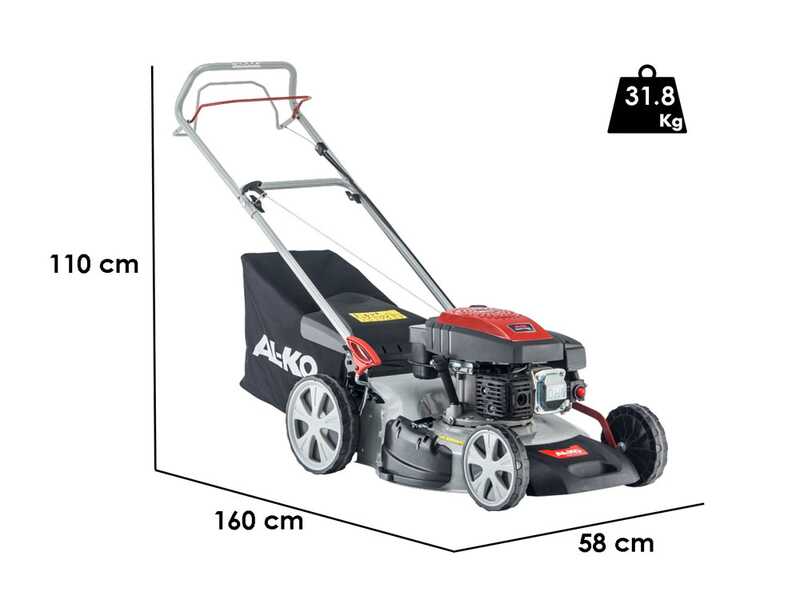

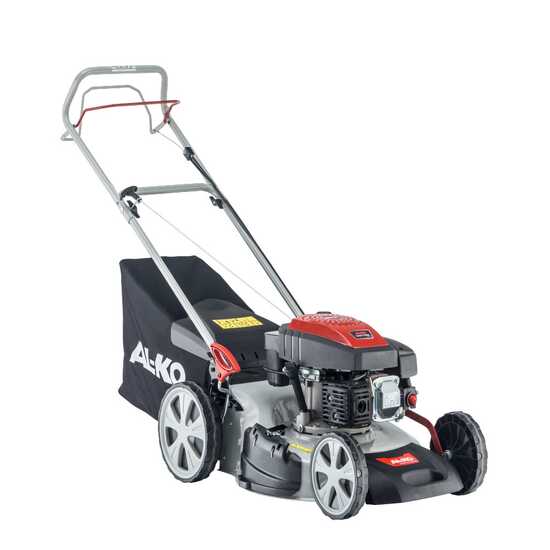

Al-Ko Easy 5.10 SP-S Self-propelled Lawn Mower - 4 in 1 - 160 cc Petrol Engine

The Al-Ko Easy 5.10 SP-S is a self-propelled lawn mower equipped with enamelled steel housing, designed for the most demanding customers. With its reliable technology, the Easy 5.10 SP-S petrol lawn mower allows you to easily mow your home garden. This sturdy and high-performing lawn mower makes it easy to cut the grass and also guarantees a long service life.

It features a 51 cm cutting width.

The Easy 5.10 SP-S lawn mower is equipped with a powerful and reliable engine, which, thanks the other features, make this machine one of the best models for its price range.

The cutting height can be adjusted by means of a comfortable single lever. Possibility to adjust the cutting height in 7 different positions, from 30 mm to 75 mm.

This cutting tool is ideal for taking care of your green area with extreme practicality and efficiency. Thanks to its features, it can operate with 4 cutting systems: grass collection with large 60 L grass collector, side discharge, rear discharge or mulching cutting system.

Comfortable manoeuvrability thanks to the ergonomic handle and rear wheel drive. The large 60 L grass collector will guarantee non-stop grass cutting operations, as its size allows you to avoid having to empty it several times. Furthermore, the 200 mm front and 250 mm rear wheels limit the trampling effect.

Thanks to the 51 cm cutting width and the features mentioned above, this lawn mower is suitable for areas up to 1200 s.q. m.

Al-Ko Tech 160 OHV OHV is an air cooled 4-stroke petrol engine.

It features 160 cc, 2.3 KW and 2900 rpm.

Nominal Power: 5.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.12 Hp (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

51 cm useful blade cutting width.

The blade is made of hardened steel and it is suitable for 4 cutting systems: rear discharge grass collection system into the canvas grass collector, side discharge and mulching.

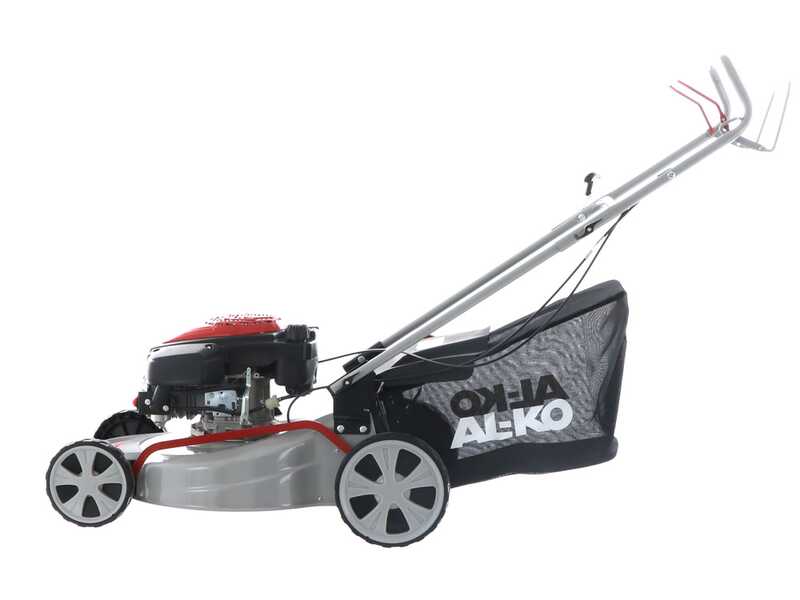

The steel housing gives this machine a high strength combined with a great manoeuvrability.

Focus on the blade.

This lawn mower is provided with 7 different cutting height adjustments from 30 mm to 75 mm.

The centralised cutting height adjustment system by means a single lever is incredibly fast and intuitive.

Simply grab the proper lever, pull it and lift the machine until it reaches the desired height.

Wheels size:

• Front wheels: 20 cm
• Rear wheels: 25 cm

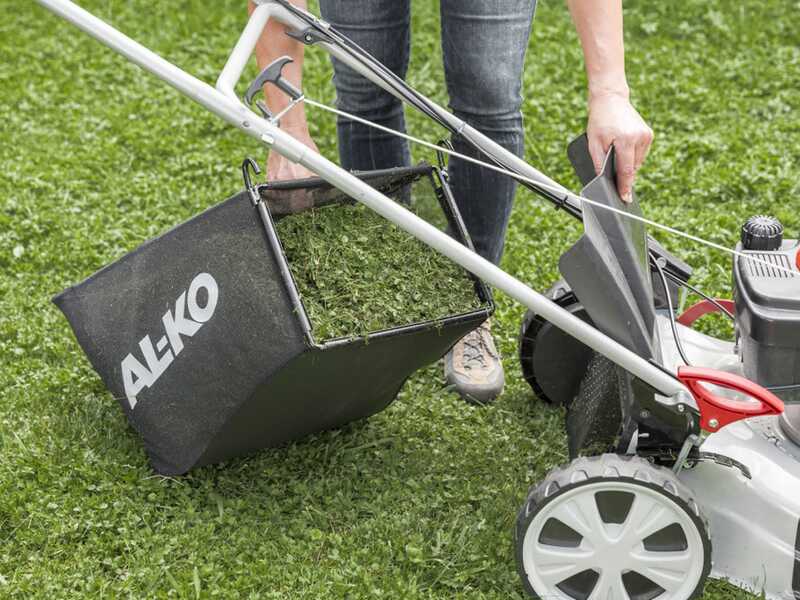

GRASS COLLECTION SYSTEM

The lawn mower is equipped with a large 60 L canvas grass collector, easy to remove and empty.

The grass collector is made of fabric. Its flexibility ensures the possibility to easily empty the grass collector when full.

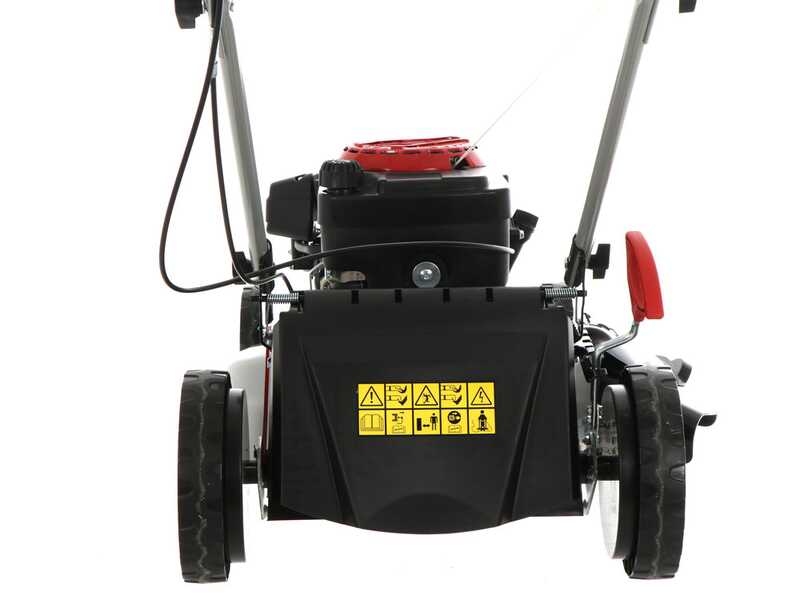

REAR DISCHARGE SYSTEM

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector, leaving the rear discharge opened.

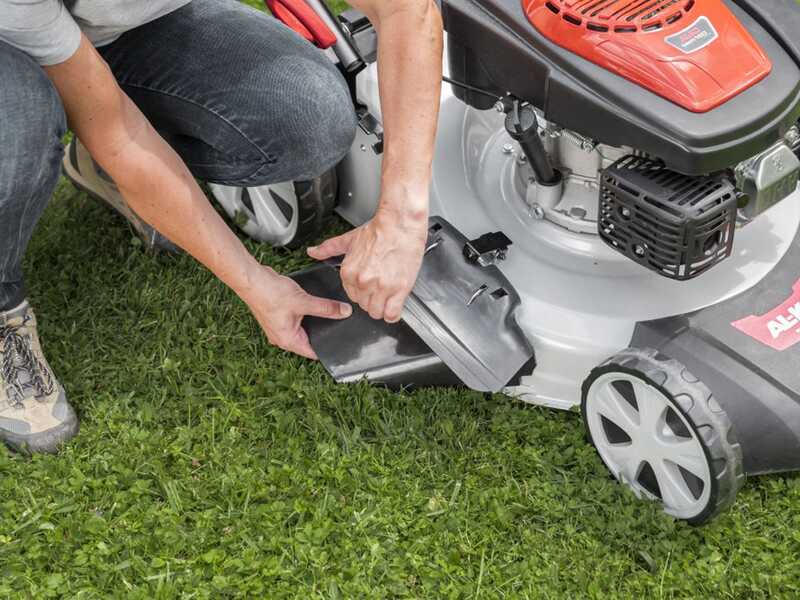

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

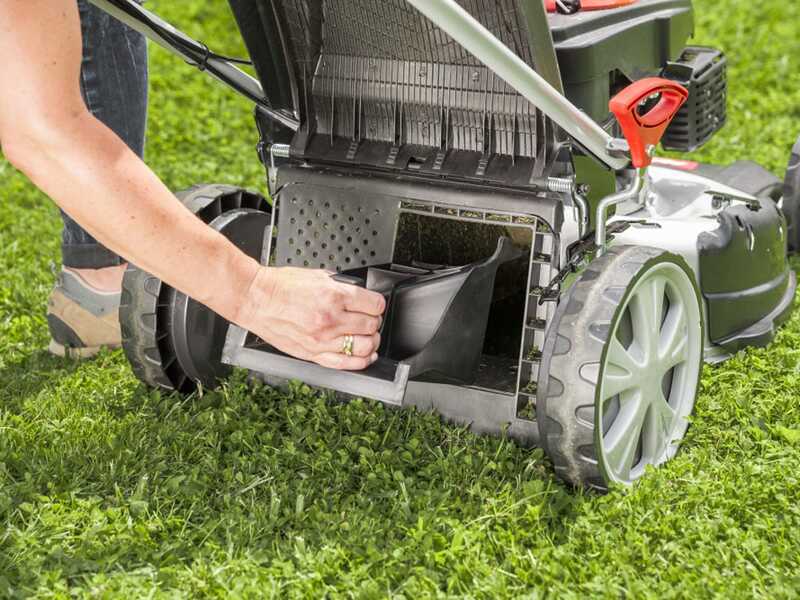

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

Easy and user-friendly controls placed on the handlebar.

Blade engagement upper lever.

Rear wheel-drive and forward speed lower lever.

The handlebar is height adjustable and foldable for storage.

Cutting height adjustment: the lever is placed on the right wheels and allows a centralised cutting height adjustment.
