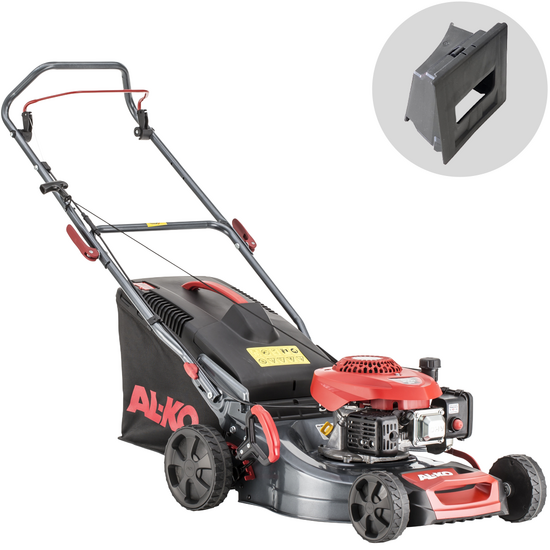

Al-KO Easy 4.16 P-D - Petrol Lawn Mower - 3-in-1 - AL-KO Tech 3000 79.8cc Engine

The AL-KO Easy 4.16 P-D petrol lawn mower is designed for use on surfaces covering up to 300 square metres. This lawn mower is equipped with a 79.8 cc AL-KO Tech 3000 engine, which effectively engages the hardened steel rotating blade.

The lawn mower features a metal housing, which protects the mechanical components from debris on the ground. The 41-centimetre working width allows for quick manoeuvring even in tight spaces.

The 3-IN-ONE technology allows you to manage mowing with three different operating modes: rear grass collection into the 50-litre canvas rear collector with plastic cover, rear discharge mowing, and mulching, which finely shreds the clippings to naturally nourish the soil.

The AL-KO lawn mower features a full level indicator integrated into the grass collector. The front handle makes it easy to lift the machine during loading.

The metal handlebar provides a firm and secure grip while pushing, and features quick-release levers to fold the handlebar down quickly. This solution reduces the machine’s footprint inside the garage or tool shed. It is also possible to adjust the handlebar height to three different positions.

Key features:

• 3-IN-1 function: the mechanical system allows you to choose between rear collection, ground discharge or lawn mulching. The mulching kit finely shreds the grass, depositing it on the ground as fertiliser. This option protects the soil from heat during the summer months.
• Centralised adjustment: a single lever allows you to set the cutting height to 7 different levels simultaneously. The range varies from a minimum of 25 millimetres to a maximum of 75 millimetres. The click mechanism ensures millimetre precision on all types of turf.
• Steel housing: the load-bearing structure uses high-strength steel with a dark grey anti-corrosion finish. The material protects the cutting deck from stones and debris while moving forward.
• Grass collector: the 50-litre container is made of durable canvas with a rigid top cover. A mechanical full level indicator alerts the operator when the internal volume is full. The design of the grass collector allows for quick emptying without spilling clippings.
• Ergonomic handle: the metal handlebar features three-position height adjustment to suit the user’s height. Quick-release levers allow the handlebar to be folded away in seconds. This configuration optimises storage space in domestic settings.

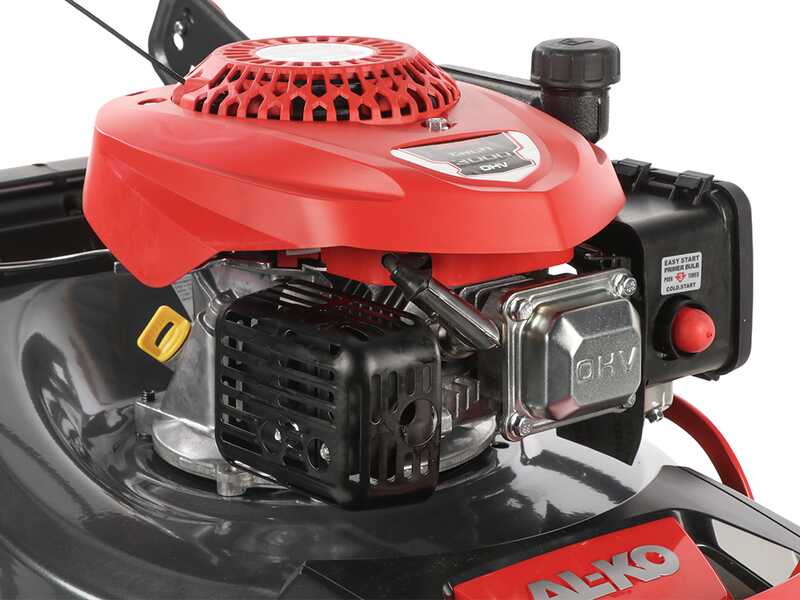

The Al-KO Tech 3000 OHV engine is a 4-stroke, air-cooled petrol engine with overhead valves and an aluminium cylinder.

79.8 cc displacement with a rated power of 2.5 HP

Easy to start thanks to the primer pump and convenient recoil starter.

Close-up of the air filter

0.6 l fuel tank

WARNING:
The engine may be supplied without engine oil. Check that the engine oil level is correct before starting the engine for the first time.

Rated power: 2.5 HP
The more correct term would be ‘Commercial Power’, referring to the classic standard for defining power officially used until a few years ago by all the leading engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 1.6 HP (at 3000 rpm)
This corresponds to the real power delivered at the crankshaft. It is the figure officially stated in the manual or in the engine manufacturer’s technical data.

* This figure may vary for the same engine model depending on the rotational speed that the equipment manufacturer has specified for the engine in question.

Effective cutting width of blade: 41 cm

The blade is made of hardened steel, suitable for performing the three functions of the lawn mower.

The cutting blade is designed to perform the three cutting functions on this lawn mower: rear discharge, collection in the bag and mulching.

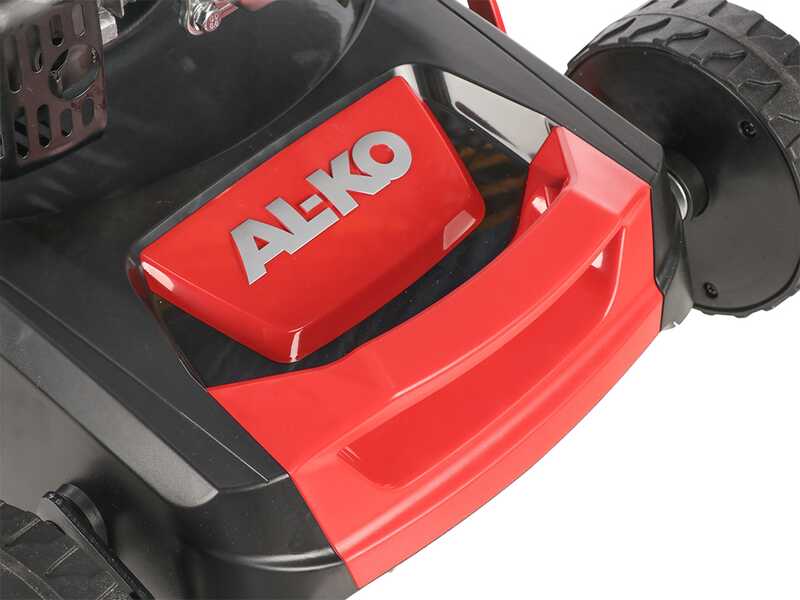

The housing, made of enamelled steel sheet, gives this machine high strength, combined with excellent lightness.

The front handle makes it easy to carry the lawn mower during storage.

Wheel diameter:

Rear: 200 mm

Front: 150 mm

Centralised cutting height adjustment on a lawn mower offers many advantages that improve both the functionality and ease of use of the device. The main benefits are listed below:

• Ease of use: centralised adjustment allows you to change the cutting height of all four wheels simultaneously using a single lever. This eliminates the need to adjust each wheel individually, saving time and effort when preparing the lawn mower for use.
• Cutting precision: with 7 cutting heights available, ranging from 25 mm to 75 mm, the user can easily select the ideal setting for the type of grass and ground conditions, thus ensuring a more uniform cut tailored to the specific needs of the lawn.
• Adaptability: the easily adjustable cutting height make the lawn mower extremely adaptable to different types of terrain and grass varieties, enhancing the machine’s versatility. This is particularly useful in gardens with areas of grass of varying texture or under changing growing conditions.
• Improved efficiency: by adjusting all the wheels in a synchronised manner, a much more balanced and effective cutting surface is achieved, which helps to reduce the number of passes required to cover the entire lawn area. As a result, garden maintenance time is significantly reduced.

Cutting height adjustments:

• S1: 25 mm
• S2: 33 mm
• S3: 42 mm
• S4: 50 mm
• S5: 59 mm
• S6: 67 mm
• S7: 75 mm

The AL-KO Easy 4.16 P-D lawn mower features a 3-in-1 function: cutting, collection and mulching

1. Cutting system with grass collector:

the lawn mower is equipped with a handy 50-litre canvas collector, which is very easy to remove and empty.

The machine features a convenient handle to easily remove and empty the grass box when it is full.

The bag has a full level indicator, allowing you to monitor when it is full.

2. Rear discharge system:

used for cutting the grass and discharging it directly behind the lawn mower, leaving a trail of grass clippings behind it through the dedicated opening at the back of the lawn mower.

3. Mulching cutting system:

this is used to cut the grass without collecting it, finely shredding it before depositing it on the ground. Simply insert the mulching plug into the rear of the lawn mower.

WHAT IS MULCHING:
a cutting system that allows the grass clippings to be shredded and then released onto the lawn, pulverised to such a small extent that they appear almost as if they have been collected. This eliminates the problem of clippings disposal, reducing effort and drastically cutting down the time spent mowing. The grass decomposes and will subsequently turn into nutrients for the lawn and into water (grass is 80% water), ensuring a perfectly balanced biological cycle. However, it is important to remember that, to ensure the system works to its full potential, the lawn must still be watered, and there must be at least one grass clipping per week.

The steel cutting blade on this machine offers a cutting width of 41 cm, allowing for efficient and precise work on large green areas.

This lawn mower guarantees efficient performance on surfaces of up to 300 m².

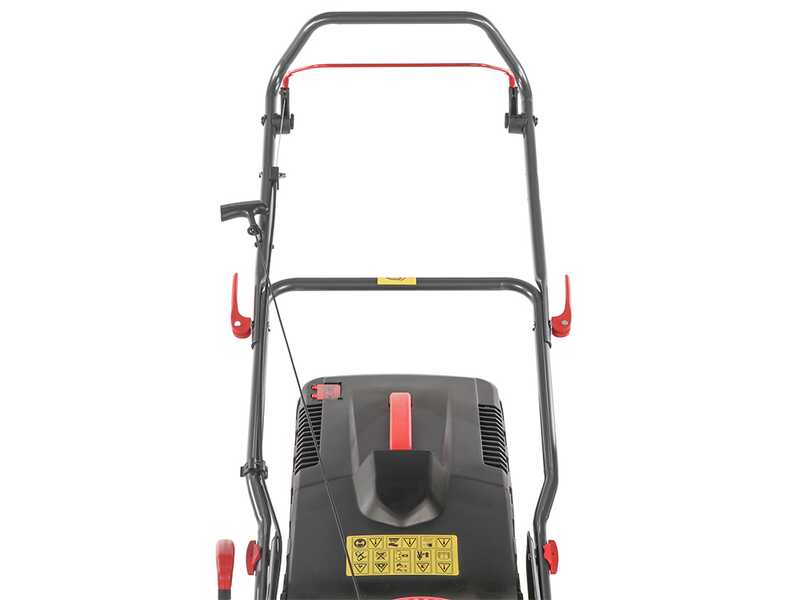

Simple and intuitive controls on the handlebar.

Blade engagement lever (lever in front of the handlebar)

Handlebar tilt adjustment with 3 positions.

The handlebar can be removed for easy storage using the quick-release levers on the handle.

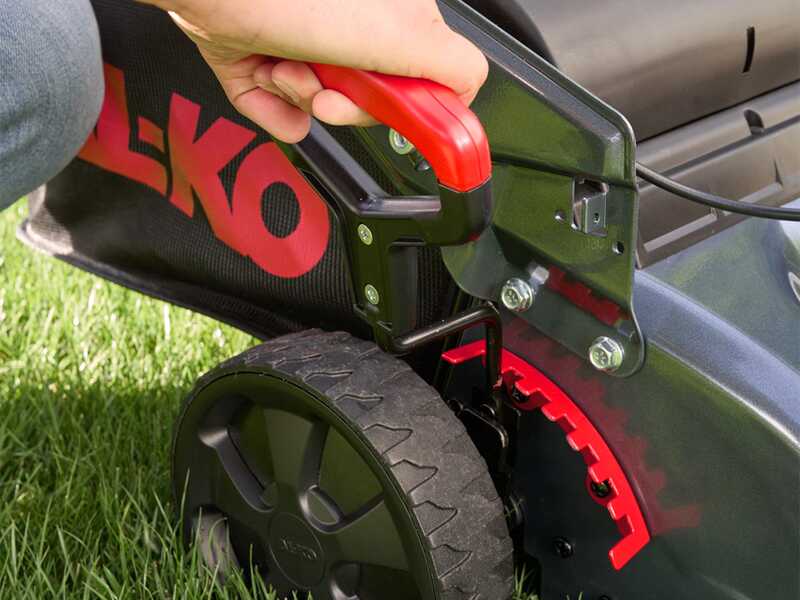

Cutting height adjustment lever located near the right rear wheel.

The LAWN MOWER is designed and intended exclusively for cutting grass in gardens (and not on other types of terrain), characterised by level surfaces without unevenness, the absence of stones or other solid objects, and grass maintained as a ‘lawn’ (i.e. no wild or unkempt grass), which should be cut regularly, ensuring it does not grow beyond 25–30 cm (as most lawn mowers cannot cut grass longer than this). Also avoid slopes steeper than 15% (≈9°), except for 4x4 models.

For more demanding jobs, involving wild grass or grass taller than specified, or surfaces rougher than a garden, consider the alternative product categories “Petrol rough cut mower” or “Brush cutter”.

Please also note that grass should only be cut when both the lawn and the ground beneath are completely dry. Mow the grass only in dry weather, well away from periods of rain or watering, and preferably in the afternoon when it is not saturated with morning moisture. Wet grass tends to bend under the weight of the cutting blades, reducing cutting efficiency, increasing the risk of clogging in the cutting deck and placing excessive strain on the engine.
