Airmec TTS 34110/900 Petrol Engine-driven Air Compressor with HONDA GX 340 Petrol Engine - 11 HP - (900 L/min)

Questions & Answers (1)
ID: 2524

MPN: 141780940

8,6/10
After-sales assistance & Spare parts
Airmec TTS 34110/900 Petrol Engine-driven Air Compressor with HONDA GX 340 Petrol Engine - 11 HP - (900  L/min)
+70 sold
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
34 L
Electric start
Yes
Motor brand
Honda
Motor Model
GX340
Motor type
4-stroke
Cubic capacity
340 cm³
Nominal power
11 HP
Battery type
Lead-acid
Cylinder head brand
Chinook
Air intake flow
900 L/min
Pump type
Two-stage
Cylinder head rpm
1250 RPM
Integrated clutch device
Yes
Automatic throttle
Yes
Operable harvester
Up to 4
Manufacturing country
Italy
Product Features
Model:
TTS 34110/900 HONDA GX340
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
2
Air compressor tank:
34 L
Electric start:
Yes
Operable harvester:
Up to 4
Quantity of powered shears:
Up to 8
Quantity of powered chainsaws:
Up to 2
Manufacturing country:
Italy
Motor data
Motor brand:
HONDA
Motor Model:
GX340
Motor type:
4-stroke
Battery type:
Lead-acid
Cubic capacity:
340 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
11 HP
Rated power (HP):
10.7 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Noise level:
97 dB(A)
Manufacturing country:
Japan
Pump data
Cylinder head brand:
Chinook
Model:
K 30
Air intake flow:
900 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1250 RPM
Integrated clutch device:
Yes
Pulleys material:
Cast iron
Equipment
Battery for electric start:
Yes
Automatic throttle:
Yes
Electric start with key :
Yes
Recoil start system (with rope):
Yes
No. of outlet couplings:
6
Hose reel support/s:
On request (extra price accessory)
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Rear wheels size:
13 x 5.00 - 6
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Starting keys:
Yes
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
113 x 75 x 75 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
117 x 77 x 102 cm
Gross weight (packaging included) :
140 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
€ 3.782,01
VAT Included
You're viewing:
Customers also viewed:
Description

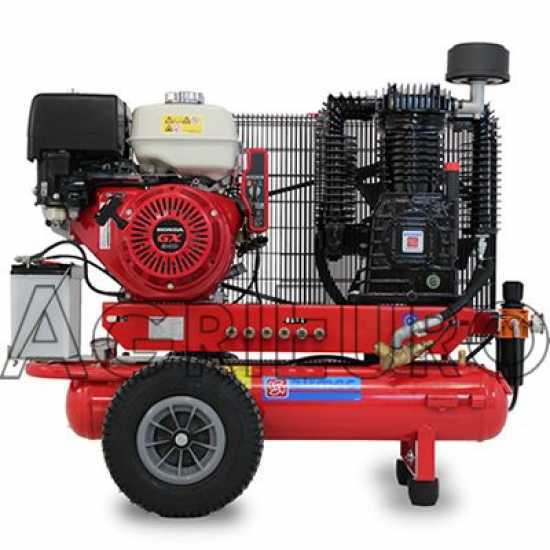

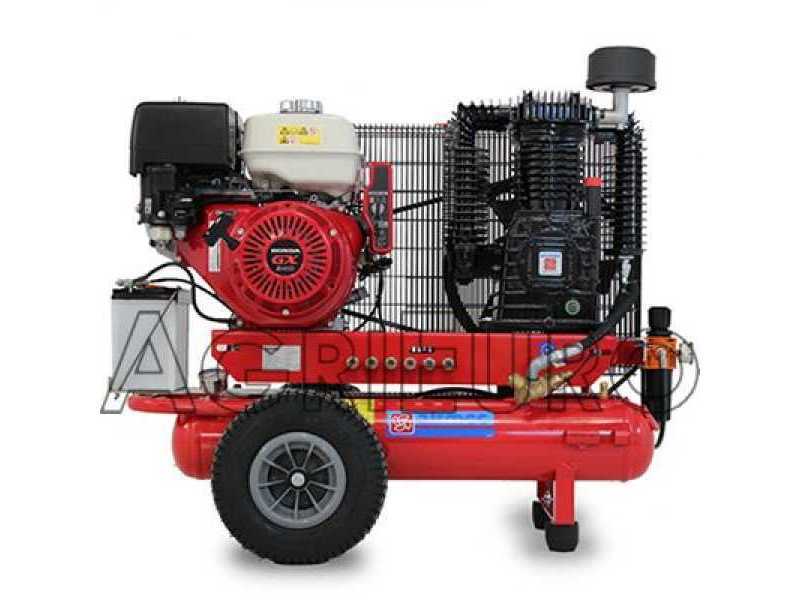

Airmec TTS 34110/900 Petrol Engine-driven Air Compressor (900 L/min) with HONDA GX 340 Petrol Engine

ENGINE-DRIVEN AIR COMPRESSOR MAIN FEATURES: Honda GX 340 petrol engine - 11 HP
Double tank L 17 + 17
Automatic throttle
CHINOOK K30 cylinder head Original HONDA engine equipped with HONDA engine CHINOOK head (made in Italy)
Features:
Air intake flow: 900 L/min. It can operate up to max:
4 pneumatic olive harvesters
10 pneumatic pruning shears
2 pneumatic chainsaws
* it is recommended to purchase an air compressor of a slightly larger size than the minimum amount of equipment to be used. This will allow the air compressor to work at a lower engine speed even when using more than one tool at the same time.
HONDA GX 340 series ENGINE
Displacement: 340 cc - 11 Hp
EXTREMELY POWERFUL
highly-professional series of the latest generation with overhead valve technology. equipped with HONDA engine
The Honda "GX" series is highly professional and has been developed for heavy work in the field of construction, agriculture, generators, welders etc., characterised by great durability and reliability.
Many other air compressors on the market, on the other hand, mount the Honda "GC" series, which has been developed for domestic and more limited work and is qualitatively inferior to the former and less expensive. GX Series GC Series HONDA GX Series engines are regarded as "THE BEST ENGINES ON THE MARKET". Petrol engine-driven air compressors can run for a whole day, so they need reliable and durable engines. On the other hand, air compressors not fitted with Honda engines, almost always mount affordable Chinese engines (recognisable by their unknown brand names).
Electric ignition system.
Ignition panel. Electric ignition system.
Starter motor. CHINOOK twin cylinder head K30 model in cast iron
The highly professional CHINOOK head is of the highest quality, intended for extremely heavy and continuous use.
The outstanding durability of this cylinder head is given by several factors: one of which is the material from which it is made. In fact, this type of cylinder head is built entirely in
cast iron, a material characterised by its excellent resistance and durability. The two-stage type head. The very low number of revolutions of the pumping unit. The presence of three cooling manifolds. In fact, there is no other air compressor on the market with such a capacity for cooling the pumped air.
Thanks to its high air production capacity of 900 litres/min, this CHINOOK head guarantees the operation of 4 olive harvesters, 10 pruning shears or 2 pneumatic chainsaws.
Its two-stage head is equipped with two cylinders connected in series, in which the air is compressed gradually to the final pressure. Between the stages, the compressed air is cooled. This improves efficiency, allowing higher pressures than with a single-stage compressor, making it one of the best compressor heads on the market today.
Three cooling manifolds
The CHINOOK cylinder head is the only one in its class with three cooling manifolds, two on one side and one on the other, next to the air filter. This means that there is no other engine-driven air compressor in this category that cools the pumped air like this model.The cooling of the pumped air is therefore able to considerably improve the efficiency of the compressor itself.
The air, when pumped by the compressor head, is deposited in the tank at a very high temperature.
For this reason, the more the air tends to cool, the more the condensate tends to separate and deposit itself in the bottom of the tank (which must therefore be drained at the end of each day with the appropriate valve). The introduction of pre-cooled air from the manifolds means that the formation of condensate is considerably reduced. The absence or reduced presence of humidity in the air that operate the equipment (olive harvesters, pruning shears, chainsaws) will drastically reduce the problems of freezing inside these tools, resulting in greater operating efficiency and durability over the years. Extremely low revolutions of the head
The large size of the head means that a very low speed is required for the production of 900 L/min of pumped air. The extremely low rpm of the pumping unit is one of the reasons for the extremely long life of this air compressor. This drastically reduces the wear of its components.
1250 RPM. A high RPM of the cylinder head would lead to more maintenance, more wear and less longevity of the cylinder head. Belt drive
Cylinder head operating at very low RPM for exceptional durability. RPM: 1250 RPM
The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are assembled to the motor and to the head unit respectively.
The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the head.The lower the rpm, the longer the life of the compressor.
Cast iron pulley.
Centrifugal clutch system
Mounted on the crankshaft pulley. When the automatic throttle sends the engine to idle speed (i.e. when the tanks are full), the centrifugal clutch is deactivated by automatically stopping the crankshaft pulley, which begins to turn according to a 'freewheel' system. The belt than stops rotating and the cylinder head comes to a complete stop. At this stage, consumption and cylinder head wear are practically reduced to zero.
Automatic throttle
One of the few machines on the market to be equipped with this device. Thanks to this intelligent system, the engine automatically adjusts its level of acceleration according to the air absorption of the equipment being used. When the use of equipment is interrupted, the engine will idle and when the equipment is reactivated, the engine will accelerate just enough to guarantee the production of the air necessary for its operation.
ADVANTAGES:
reduced fuel consumption
reduced wear on the engine and compressor cylinder head
Clutch + Electric Ignition System. Double tank 17 + 17
Double tank (17 + 17 litres).
The two tanks give the engine-driven air compressor two advantages compared to other air compressors equipped with a single tank: a) greater air stock b) greater air cooling and, consequently, more efficient separation of the condensation from the air that then operates the equipment (a feature reinforced by the presence of three cooling manifolds on the head). No load operation system and maximum pressure control by means of a professional pilot check valve. Condensate separation filter with professional aluminum lubricator.
- MADE IN ITALY - Detail of the pressure gauge with stainless steel housing.
Six outlets equipped with output female fittings.
General features:
4 Large-sized anti-vibration rubber pads placed at the base of the pumping unit.
Removable handle for space-saving transport or storage. Pneumatic wheels with inner tube.
Front anti-vibration rubber pads.
It is possible to fix a hose reel on the air compressor (the assembly bracket and the hose reel are sold separately).
Equipped with under-cylinder valves for condensate drain.
Battery for ignition DIMENSIONS Height: 75 cm
Width: 75 cm
Length: 113 cm (without handles) Weight: 140 kg
ATTENTION: This machine is sold without pneumatic equipment (olive harvesters, pruning shears, hoses or other).
