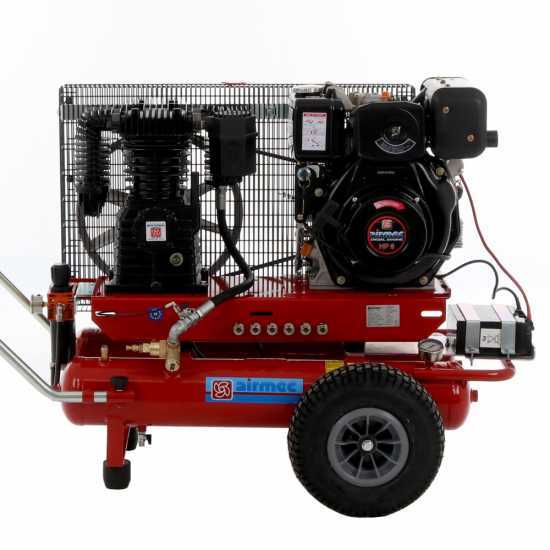

Airmec TTD 3460/650 Petrol Engine-driven Air Compressor - 6 HP Diesel Engine - 650 L/min

The Airmec TTD 3460/650 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting in the agricultural sector.

The air compressor is mounted on a balanced frame with double tank to reduce the condensate effect. This model is equipped with two tanks of 17 L each. It mounts a Chinook K28 two-stage and two-cylinder head with three side cooling manifolds

This model is equipped with automatic throttle. Thanks to this smart system, the engine automatically adjust its acceleration level based on the air intake of the equipment used. When the other equipment are not used, the engine will have lower rpm, when they are switched on again, the engine will accelerate to deliver enough air supply for its operation, thus guaranteeing low consumption and a reduction of wear of the engine and the cylinder head.

It features a EURO 5 HAILIN diesel engine with 306 cc electric start capable of delivering a power of 6 HP. It keeps consumption low even for full working days. It has an air output capacity of 650 L per minute and it can reach a maximum pressure of 11 bar.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during working phases.

This petrol engine-driven air compressor supports the simultaneous use of 3 olive harvesters, up to 7 pneumatic shears and 1 pneumatic chain pruner.

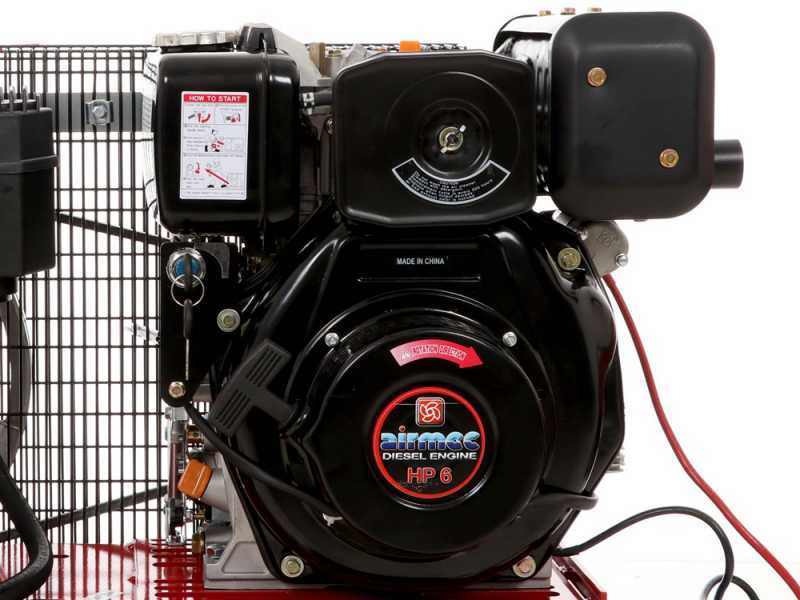

The HAILIN diesel engine delivers 6 Hp of power and its function is to operate the pumping unit. This high performance engine is suitable for works where great power is required and that is easily reached thanks to the 306 cc cubic capacity. The engine meets the EURO 5 standard

Features:

Nominal Power: 6 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

Engine equipped with electric key start

Thanks to the automatic throttle, the engine automatically adjust its acceleration level based on the air intake of the equipment used.

When the other equipment are not used, the engine will have lower rpm, and when they are switched on again, the engine will accelerate to deliver enough air supply for its operation.

Warning:

The engine is provided without oil. Read the instructions before starting the machine

Air intake flow: 650 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1300 rpm

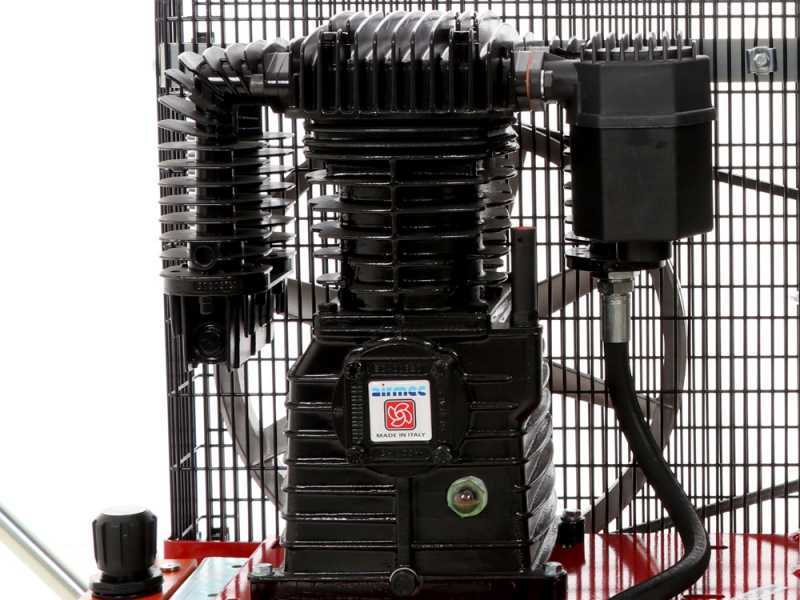

The highly professional top quality CHINOOK cylinder head is intended for heavy-duty continuous work. The two-stage cylinder head is equipped with two cylinders connected in series where the air is compressed gradually until it reaches the final pressure. Made of cast iron, a material characterised by resistance and durability. It also comes with 3 side cooling manifolds. The maxi dimensions of the head allow to keep very low rpm while delivering 650 L/min of pumped air.

This extremely low rpm of the pumping unit guarantees an extremely long service life of the air compressor. This also reduces components wear.

It can operate up to max:

• 3 pneumatic olive harvesters
• 7 pneumatic shears
• 1 pneumatic chainsaw

* it is recommended to purchase an air compressor of a slightly larger size than the minimum amount of equipment to be used. This will allow the air compressor to work at a lower engine speed to operate more than one tool at the same time.

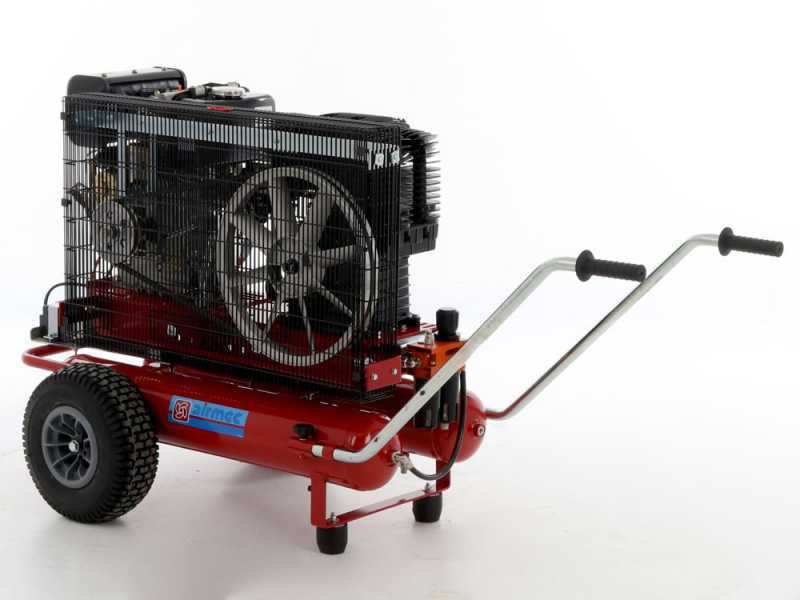

This petrol engine-driven air compressor features a belt drive.

The use of the transmission belt guarantees a very high level of safety. Combined with its powerful diesel engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protection is used to prevent the transmission belt and the belt drive from being damaged by any external objects during operation. It also allows to always have under control the status of the drive belt.

The petrol engine-driven air compressor is mounted on a balanced frame with double tank to reduce the condensation effect. This model features a pair of tanks of 11 L each.

Maximum pressure: 11 bar

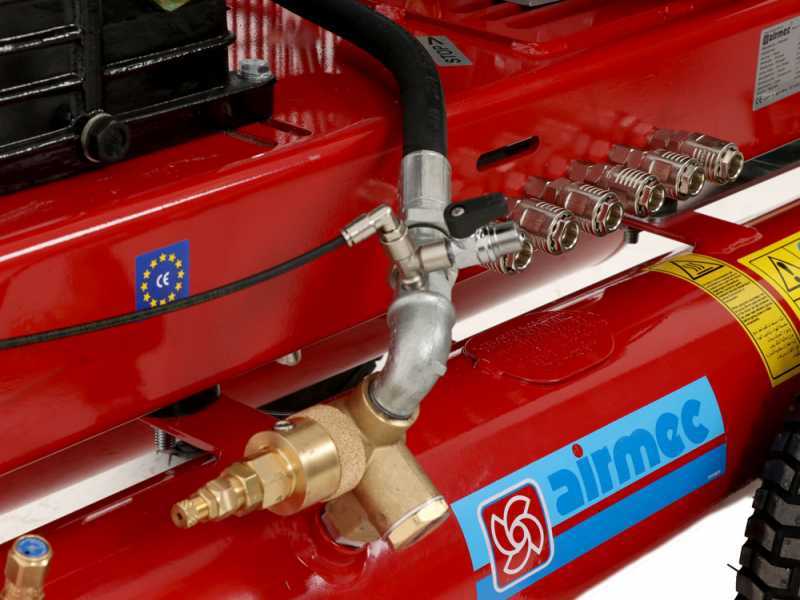

Equipped with pressure gauge directly connected to the 2 tanks that controls the tank air pressure

No load operation system and maximum pressure control by means of professional pilot check valve

6-outlet air divider

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomizes oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valve which allows the discharge of condensate.

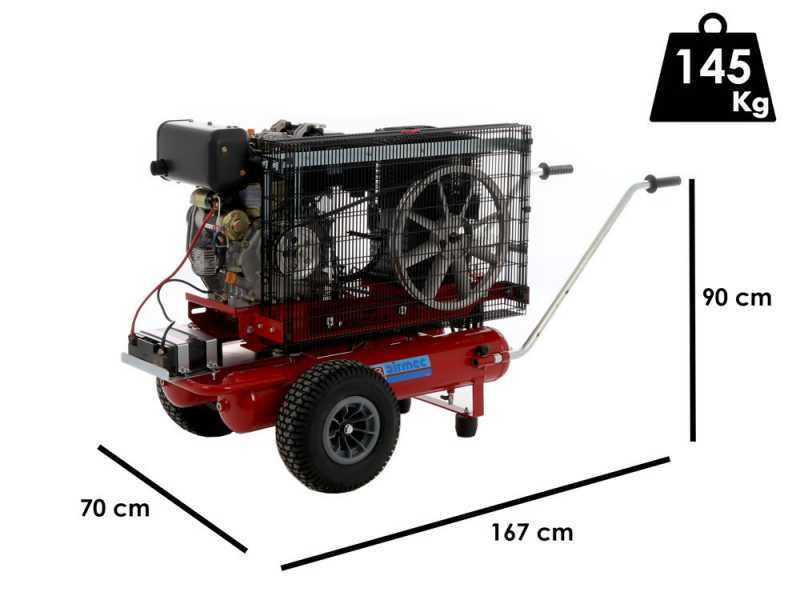

Dimensions (L x W x H): 167 x 70 x 90 cm

Weight: 145 Kg

Equipped with front handle for an easy grip

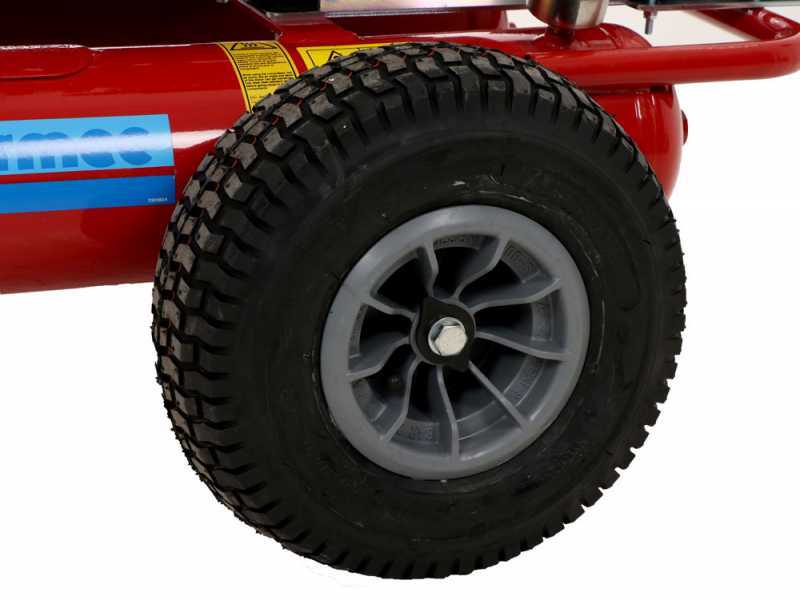

Large rear tractor wheels

Sturdy front legs directly connected to the tanks.
