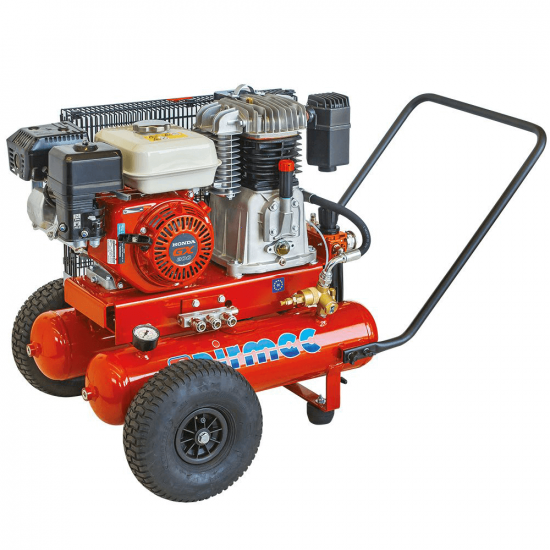

Airmec TEB22-620HO Petrol Engine-driven Air Compressor (620 L/min) with Honda GX 200 Engine

Add a question
ID: 2111

MPN: 141781300

Airmec TEB22-620HO Petrol Engine-driven Air Compressor (620 L/min) with Honda GX 200 Engine
+100 sold
Power supply
Petrol
Max. operating pressure
10 bar
Air compressor tank
22 L
Motor brand
Honda
Motor Model
GX200
Motor type
4-stroke
Cubic capacity
200 cm³
Nominal power
6 HP
Cylinder head brand
Nuair
Air intake flow
620 L/min
Pump type
Two-stage
Cylinder head rpm
1480 RPM
Automatic throttle
Yes
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
TEB 22/620 HO
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
10 bar
Number of tanks:
2
Air compressor tank:
22 L
Electric start:
No
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 6
Quantity of powered chainsaws:
1
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
200 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
6 HP
Rated power (HP):
5.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Noise level:
97 dB(A)
Manufacturing country:
Japan
Pump data
Cylinder head brand:
Nuair
Model:
NB 4
Air intake flow:
620 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (2 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1480 RPM
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
3
Hose reel support/s:
On request (extra price accessory)
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Rear wheels size:
11 x 4.00 - 4
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
88 x 69 x 88 cm
Gross weight (packaging included) :
72 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 31/05/2024 - 04/06/2024
€ 1.879,35
VAT Included
You're viewing:
Customers also viewed:
Description

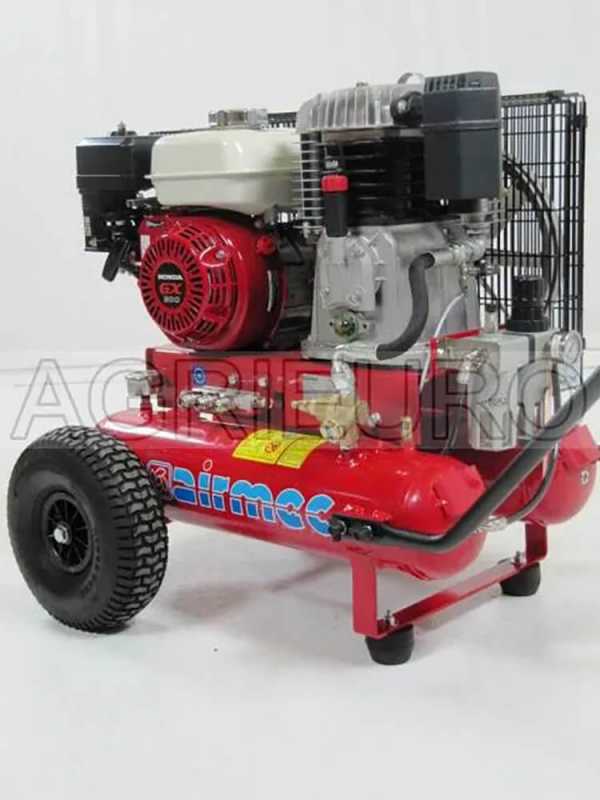

Airmec TEB22-620 HO engine-driven air compressor

The Airmec TEB22-620 HO petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting in the agricultural sector.

The TEB22-620 HO is equipped with the best components, the NuAir NB 4 pumping unit is driven by a powerful 4-stroke HONDA GX 200 petrol engine.

The engine-driven air compressor is mounted on a sturdy frame that connects the two self-supporting tanks with an impressive 11 L each.

This air compressor features a smart automatic throttle system, thanks to which the engine automatically adjusts its acceleration level based on the air intake of the equipment used.

When the other equipment is not used, the engine will have lower rpm, and when it is switched on again, the engine will accelerate to deliver the air production necessary for its operation.

Its large pneumatic wheels and a comfortable handle facilitate transport and movement during work sessions. Practical and easy to handle thanks to its extremely compact dimensions.

This air compressor supports the use of 3 olive harvesters, 6 pruning shears and 1 chainsaw.

GX 200 engine

The TEB 22-620 HONDA engine-driven air compressor is equipped with one of the best engines on the market: Honda GX 200

Cubic capacity: 200 cc
Highly-professional series
Extremely powerful latest-generation overhead valve technology.

The Honda “GX” series is designed for highly-professional use in building and agricultural field for generators, welders and many others, standing out for the high reliability and durability over time.

Many engine-driven air compressors the market, on the other hand, are fitted with Honda “GP” series, which was developed for hobby and more limited operations and features a lower quality to the former and is cheaper.

Engine-driven air compressors run for days on end, so they need reliable and sturdy motors.

Recoil start

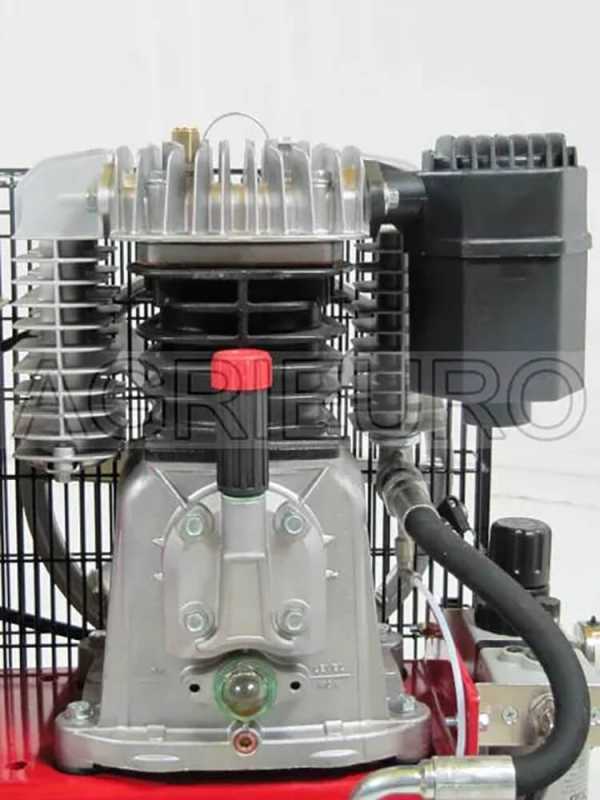

NuAir NB 4 head

Heavy-duty twin-cylinder head with cast iron cylinders

Original NUAIR branded (620 L/min)
- MADE IN ITALY -

Header model - NB 4 twin-cylinder with 2 cast iron cylinders

The highly professional top quality head unit is intended for heavy-duty continuous work.

This head unit is twin-cylinder with cast iron cylinders and guarantees long service life.

High air output: 620 L/minute of suction air, enough to guarantee the operation of 3 harvesters, 6 pruning shears 1 and a pneumatic chainsaw.
The highly professional top quality head unit is intended for heavy-duty continuous work.
Header equipped with a double cooling collector (one on the right and one on the left header), for more effective cooling of the included air produced before it is fed into the tank.

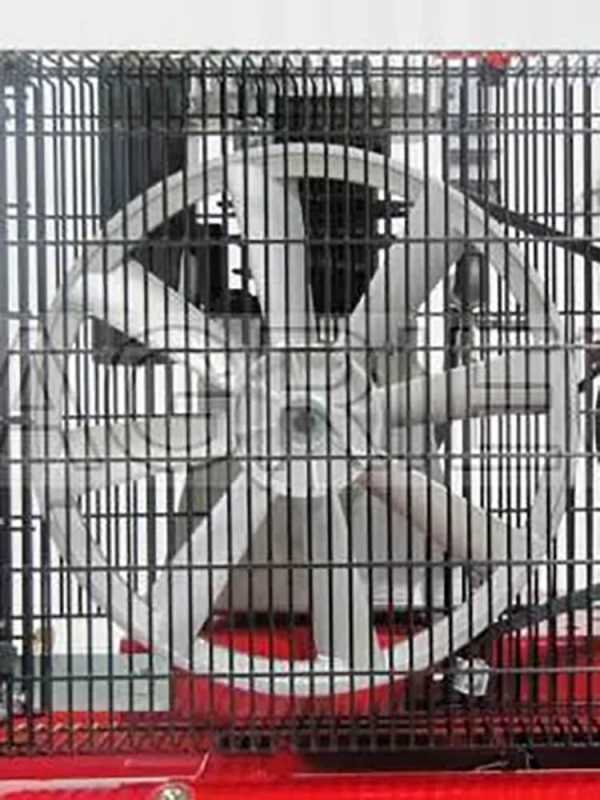

Belt drive

Head working at low rpm for truly exceptional durability.
The only one on the market equipped with an enamelled steel belt guard.
Truly indestructible ensuring long-service life.

All engine-driven air compressors on the market, on the other hand, still fit the traditional metal grid, which tends to loosen and desolder with vibration over the years.

Tank and general features

Double tank (11 + 11 L).
The two tanks give the air compressor two advantages over other models equipped with a single tank:

a) Greater air reserve

b) Greater air cooling with consequent more efficient separation of condensate from the air that then feed the equipment.

*When air is pumped from the air compressor cylinder head, it is fed into the tank at a very high temperature.
The more the air tends to cool, the more the condensation will tend to separate and settle at the bottom of the tank (which must then be emptied at the end of each day by means the proper tap).
The absence or reduced moisture in the air that feeds the equipment (harvesters, pruning shears, chainsaws) will drastically reduce the problems of freezing inside them, resulting in more efficient operation and longer life of the equipment over the years.

No load operation system and maximum pressure control by means of professional pilot check valve.

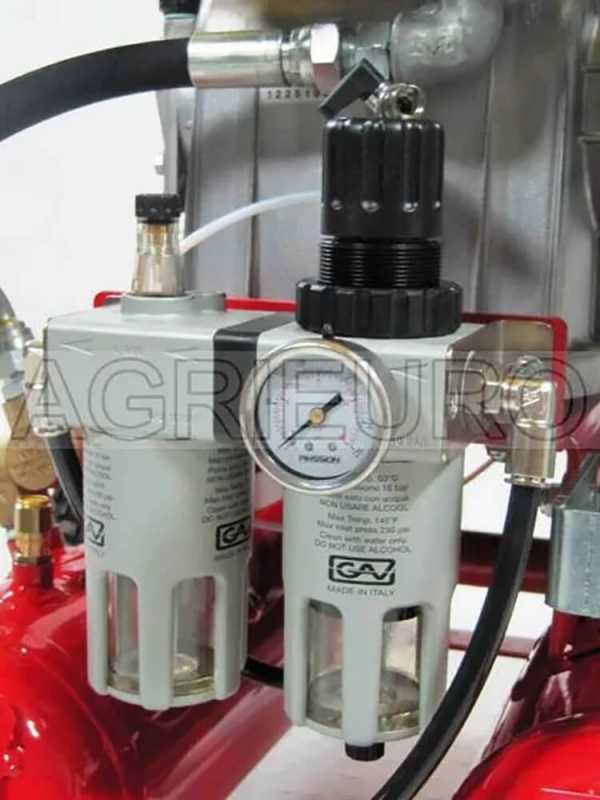

Heavy-duty aluminium condensate separation filter with lubricator - MADE IN ITALY -

All these parts are mounted on a sturdy forged aluminium support.
Three outlets equipped with female quick couplings.

One-piece transport handle: very convenient because it allows the Operator to conveniently pull the compressor behind him with one hand (instead of pushing it forward).
It can be quickly removed for transport and storage.

Pneumatic wheels with air chamber 3.00 - 4 (mm 260x85).
Anti-vibration rubbers at the base of the frame.

This engine-driven air compressor can be fitted with a hose reel (the mounting bracket for attaching it above the air compressor and, of course, the hose reel itself must be purchased separately).

DIMENSIONS:

Height: cm 70
Width: cm 68
Length: cm 83 (without handle)

Weight: 72 Kg
