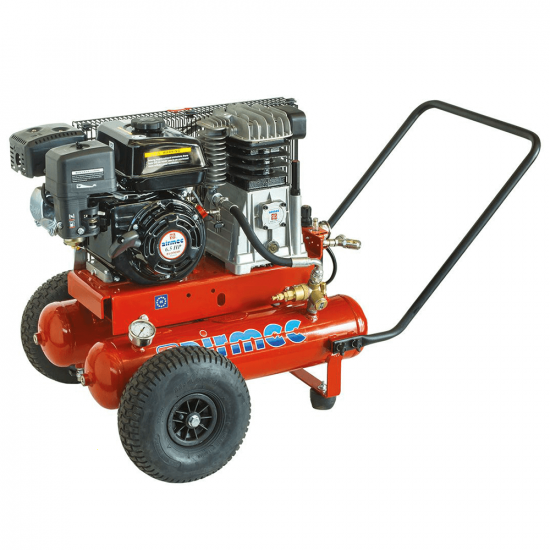

Airmec TEB22-510LO (510 L/min) Petrol Engine-driven Air Compressor with Loncin 6.5 HP Engine

Questions & Answers (11)
ID: 2109

EAN: 9999237533225

MPN: 141781200

8,6/10
After-sales assistance & Spare parts
Airmec TEB22-510LO (510 L/min) Petrol Engine-driven Air Compressor with Loncin 6.5 HP Engine
+500 sold
Power supply
Petrol
Max. operating pressure
10 bar
Air compressor tank
22 L
Motor brand
Loncin
Motor Model
Airmec 6.5
Motor type
4-stroke
Cubic capacity
160 cm³
Nominal power
6.5 HP
Cylinder head brand
Nuair
Air intake flow
510 L/min
Pump type
Single-stage
Cylinder head rpm
1480 RPM
Automatic throttle
Yes
Operable harvester
Up to 2
Manufacturing country
Italy
Product Features
Model:
TEB 22/510 LO
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
10 bar
Number of tanks:
2
Air compressor tank:
22 L
Electric start:
No
Operable harvester:
Up to 2
Quantity of powered shears:
Up to 5
Quantity of powered chainsaws:
1 not for intensive use
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
Airmec 6.5
Motor type:
4-stroke
Cubic capacity:
160 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Noise level:
97 dB(A)
Manufacturing country:
China
Pump data
Cylinder head brand:
Nuair
Model:
SB 38 C
Air intake flow:
510 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1480 RPM
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
2
Hose reel support/s:
On request (extra price accessory)
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Rear wheels size:
3.00 - 4 (mm 260x85)
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Maintenance tool kit:
No
Tool case:
Yes
Instructions manual:
Yes
Dimensions and logistics
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
88 x 69 x 88 cm
Gross weight (packaging included) :
66 Kg
Assembly time:
Assembled
Prompt Delivery
12 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 1.224,78
VAT Included
You're viewing:
Customers also viewed:
Description

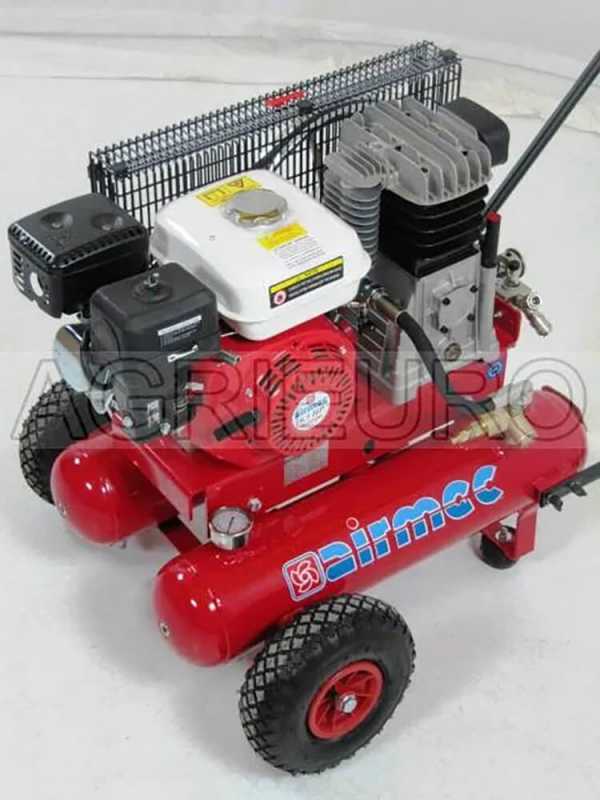

Airmec TEB22-510LO engine-driven air compressor

The Airmec TEB22-510LO engine-driven air compressor is a highly heavy-duty product with a 4-stroke petrol engine. Recoil starter with self-recovery rope.

The folding handle makes it extremely compact and suitable for transport. A practical and manoeuvrable frame with pneumatic wheels facilitates movement even over rough terrain.

Twin-cylinder two-stage head with high air output. Automatic vent and vacuum valve maintains constant pressure in the tank. Complete with filter-reducer-lubricator, glycerine pressure gauge and universal quick taps.

The head is a Nuair twin-cylinder SB 38C model and the engine is a Loncin 6.5 Hp.

The machine is equipped with a 11+11 double tank, giving the engine-driven air compressor a dual advantage over other models equipped with a single tank.

The engine-driven air compressor comes with large pneumatic wheels and a practical handlebar to facilitate transport and movement during working sessions. Practical and easy to handle thanks to its extremely compact dimensions.

This air compressor supports the use of

  • Olive harvesters: 3
  • Pruning shears: 6
  • Chainsaws: 1

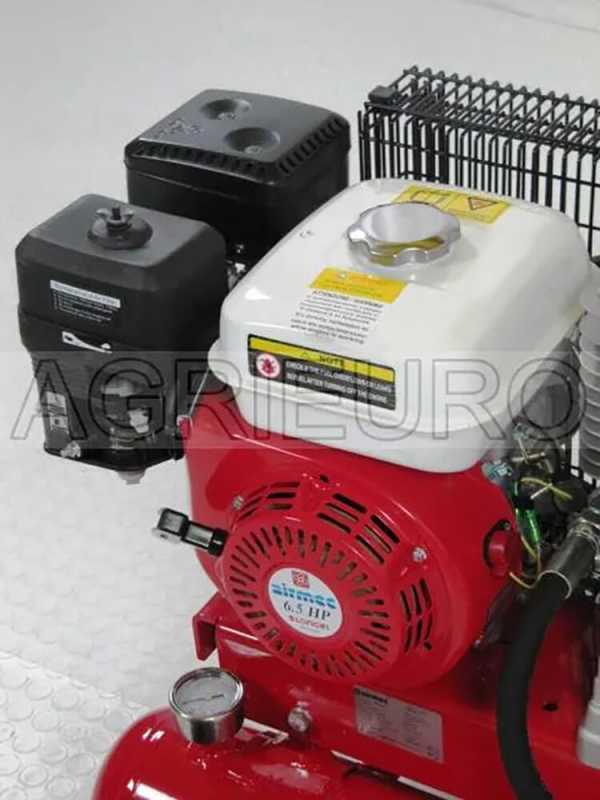

Loncin engine

Latest generation petrol engine with overhead valve technology.

Engine: AIRMEC by LONCIN

Cylinder type: 4-Stroke - OHV - single cylinder

Power: 6.5 Hp

Cubic capacity: 160 cc

Latest generation 4-stroke petrol engine with overhead valve shaft “OHV". It is much more efficient and features a significantly reduced fuel consumption than other side-valve engines on the market.

One of the few machines on the market to be equipped with an automatic accelerator.

Thanks to this smart system, the engine automatically adjust its acceleration level based on the air intake of the equipment used..

When the other equipment is not used, the engine will have lower rpm, and when it is switched on again, the engine will accelerate to deliver the air production necessary for its operation.

ADVANTAGES

  • Reduced fuel consumption
  • Reduced engine and compressor head wear

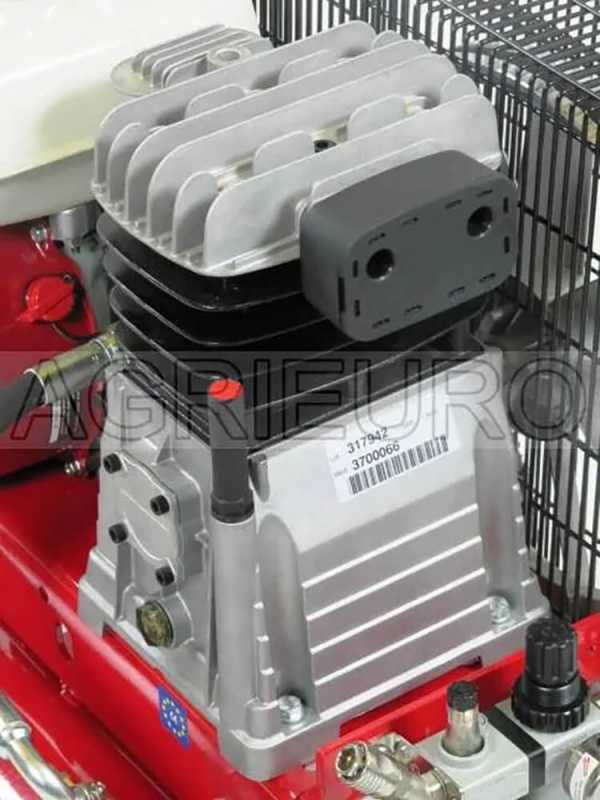

NuAir SB 38 C twin-cylinder head

Original NuAir branded heavy-duty header (510 L/min).

The highly professional top quality head unit is intended for heavy-duty continuous work.

This head unit is twin-cylinder with cast iron cylinders and guarantees long service life. High air output: 510 L/minute of suction air, enough to guarantee the operation of two harvesters, four pruning shears and a chainsaw.

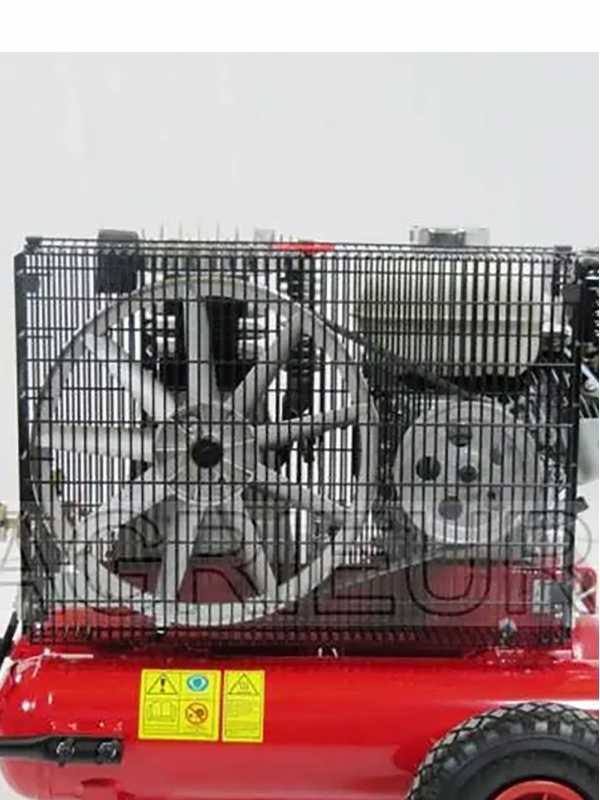

Belt drive

Head working at low rpm for truly exceptional durability.

The reduction ratio of the number of revolutions is obtained by the pulleys of different diameter that are assembled to the motor and to the head unit respectively.
The degree of professionalism and more generally the life of the compressor is largely determined by the number of revolutions per minute of the cylinder head.

A low revolutions number means low wear and longer life of the air compressor.

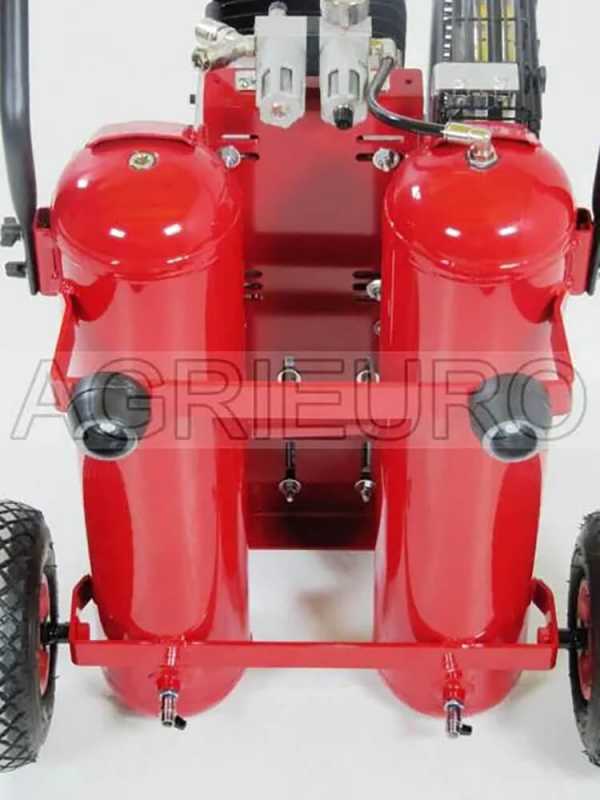

Double tank 11+11

Double tank (11 + 11 L).
The two tanks give the air compressor two advantages over other models equipped with a single tank:

a) Greater air reserve

b) Greater air cooling with consequent more efficient separation of condensate from the air that then feed the equipment (a feature emphasised by the three cooling manifolds on the cylinder head).

No load operation system and maximum pressure control by means of a professional pilot check valve.
- MADE IN ITALY -


Heavy-duty aluminium condensate separation filter with lubricator - MADE IN ITALY -

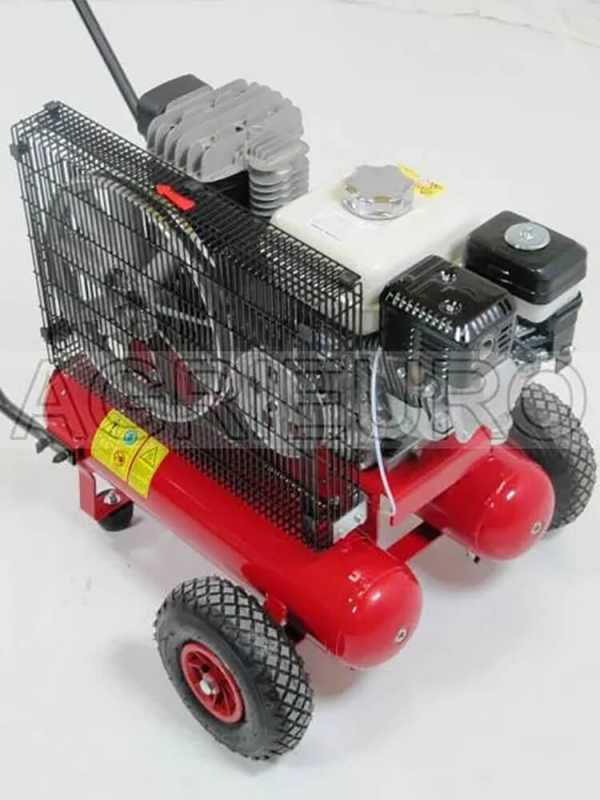

General features

One-piece transport handle: very convenient because it allows the Operator to conveniently pull the compressor behind him with one hand (instead of pushing it forward).

It can be quickly removed for transport and storage.

Pneumatic wheels with air chamber 3.00 - 4

Anti-vibration rubbers at the base of the machine.
This engine-driven air compressor can be fitted with a hose reel (the mounting bracket for attaching it above the air compressor and, of course, the hose reel itself must be purchased separately).

DIMENSIONS
Height: cm 70
Width: cm 68
Length: cm 83 (without handle)

Weight: 66 Kg

WARNING: This machine is sold without pneumatic tools (olive shakers, pruning shears, hoses and others).
