Airmec TEB 34/680 K25-HO (680 L/min) Petrol Engine-driven Air Compressor with Honda GX 200 Engine

Questions & Answers (3)
ID: 1112

EAN: 8006414079856

MPN: 141780600

8,6/10
After-sales assistance & Spare parts
Airmec TEB 34/680 K25-HO (680 L/min) Petrol Engine-driven Air Compressor with Honda GX 200 Engine
+200 sold
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
34 L
Motor brand
Honda
Motor Model
GX200
Motor type
4-stroke
Cubic capacity
200 cm³
Nominal power
6 HP
Cylinder head brand
Chinook
Air intake flow
680 L/min
Pump type
Two-stage
Cylinder head rpm
1300 RPM
Automatic throttle
Yes
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
TEB 34/680
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
2
Air compressor tank:
34 L
Electric start:
No
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 7
Quantity of powered chainsaws:
1
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
200 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
6 HP
Rated power (HP):
5.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Noise level:
97 dB(A)
Manufacturing country:
Japan
Pump data
Cylinder head brand:
Chinook
Model:
K25/C
Air intake flow:
680 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1300 RPM
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
3
Hose reel support/s:
On request (extra price accessory)
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Rear wheels size:
11 x 4.00 - 4
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Tool case:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
133 x 69 x 77 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
79 x 115 x 106 cm
Gross weight (packaging included) :
80 Kg
Assembly time:
Assembled
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 26/06/2024 - 28/06/2024
€ 1.973,08
VAT Included
You're viewing:
Customers also viewed:
Description

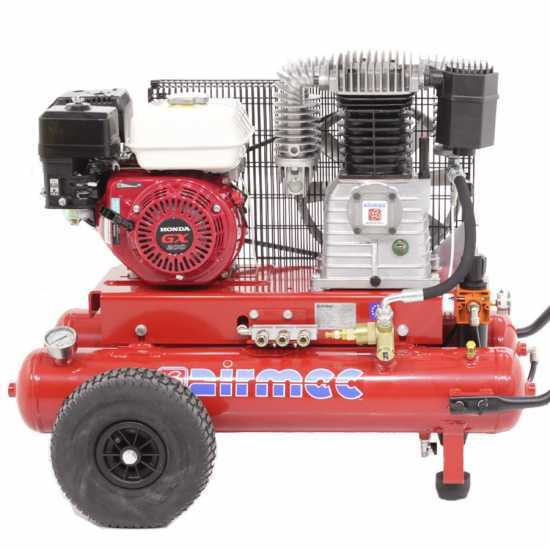

Airmec TEB 34/680 K25-HO Petrol Engine-driven Air Compressor

The Airmec TEB 34/680 K25-HO GX 200 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

The TEB 34/680 is equipped with the best components, the Chinook pumping unit is driven by a powerful Honda GX 200 petrol engine.

The air compressor is mounted on a sturdy self-supporting frame that connects the two tanks with a capacity of 17 L each.

This air compressor features a smart automatic throttle system, thanks to which, the engine automatically adjusts its acceleration level based on the air intake of the equipment used.

When the other equipment are not used, the engine will have lower rpm, and when they are switched on again, the engine will accelerate to deliver enough air production for its operation.

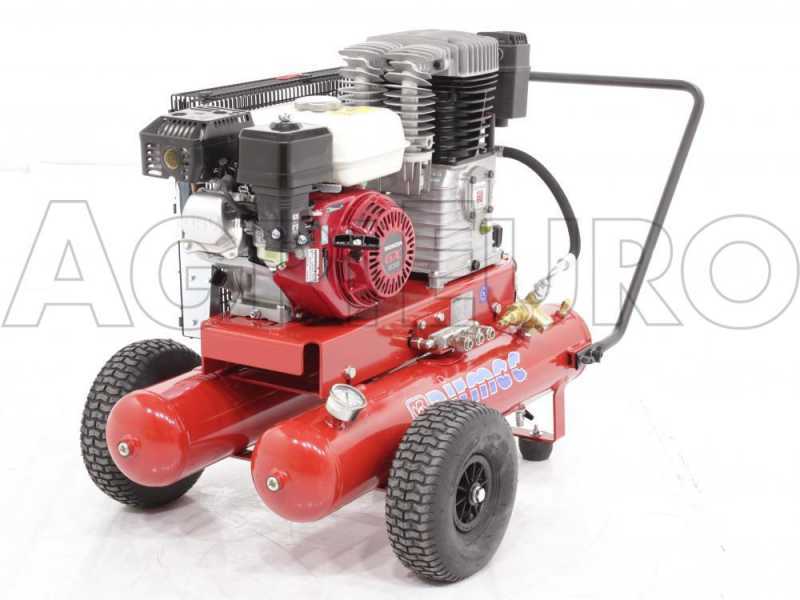

The Airmec TEB 34/680 K25-HO GX 200 engine-driven air compressor is equipped with large pneumatic wheels and a comfortable handle to ease transport and movement during the working phases. Practical and easy to handle thanks to its extremely compact dimensions.

This air compressor supports the simultaneous use of 3 olive harvesters, up to 6 pneumatic pruning shears and 1 pneumatic chainsaw.

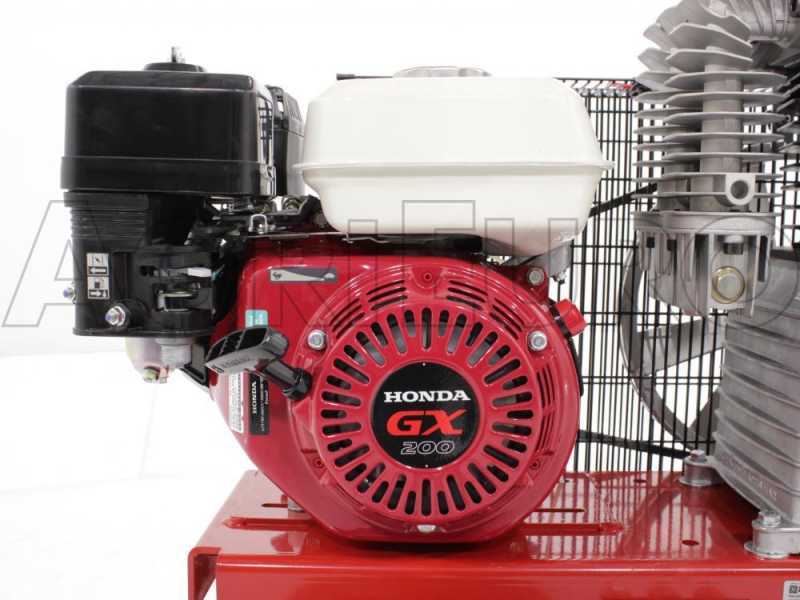

Honda GX 200 engine

The TEB 34/680 K25-HO air compressor is equipped with Honda GX 200 engine, one of the best on the market.

Cubic capacity: 200 cc
Extremely powerful latest-generation super-professional series with overhead valve technology.

The Honda "GX" series is highly professional and has been developed for heavy-duty work in the field of construction, agriculture, generators, welders etc. It is characterised by great durability and reliability.

Many other compressors on the market are fitted with the Honda "GP" series, which has been developed for more limited domestic work and is qualitatively inferior to the former and less-expensive.

Petrol engine-driven air compressors can run for a whole day, so they need reliable and durable engines.

Recoil start

Focus on the automatic throttle.

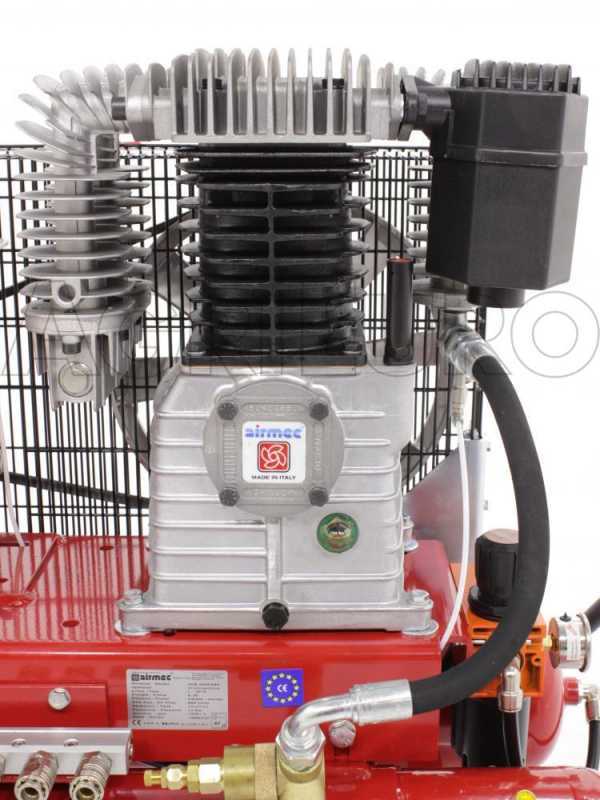

Chinook cylinder head

Air intake flow: 680 L/min
Head type: Twin-cylinder two stage with cast iron cylinders
Lubrication: oil


The pumping unit by the Italian manufacturer Chinook fitted on the Airmec TEB 34/680 is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- shaft and cylinders entirely made of cast iron

die-cast aluminum head

- stainless steel reed valves

Focus on the high performance suction filter

Focus on the oil level indicator in the pumping unit

Focus on the cooling manifold and pilot check valve

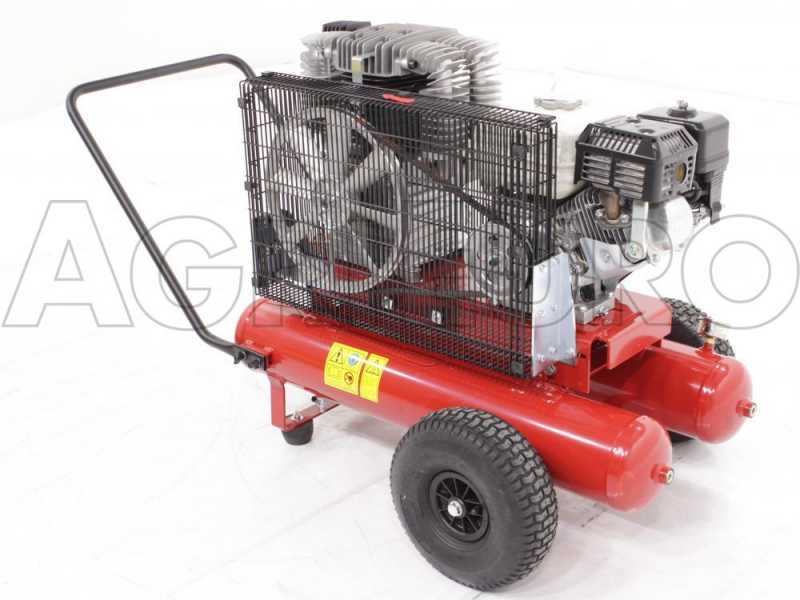

Belt drive

The Airmec air compressor features a belt drive.

The presence of the transmission belt ensures very high levels of safety. Combined with the Honda GX 200 petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective grid housing is made of metal, very solid and robust, it allows excellent cooling, as it is able to convey a high amount of air on the head.

Focus on the flywheel for transmission and cooling made of aluminum

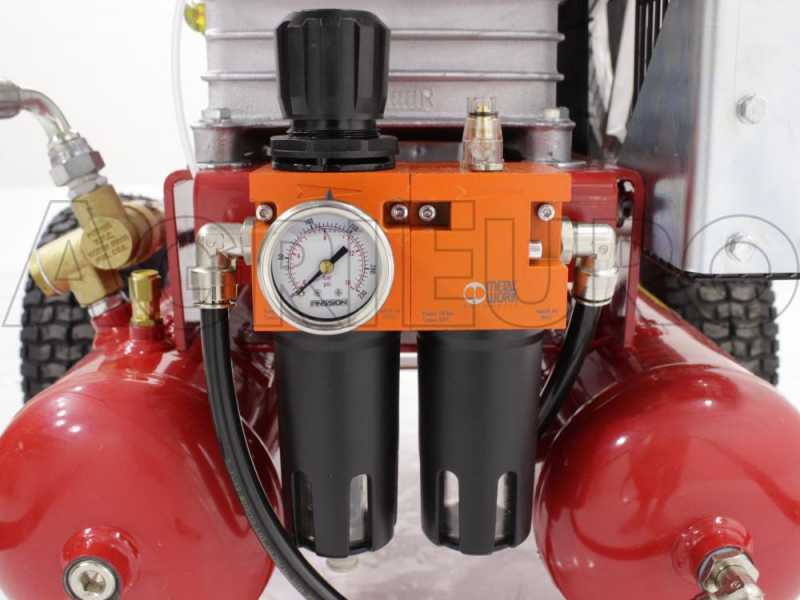

Tank and controls

The petrol engine-driven air compressor is mounted on two self-supporting tanks with a capacity of 17 L each.

Maximum pressure: 11 bar

Equipped with glycerin pressure gauge directly connected to the tank

3-outlet air divider that allows to use 3 pneumatic olive harvesters at the same time

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, lubricator, that atomizes oil in the outlet air to lubricate tools (adjustable lubrication intensity), and drain valve which allows the discharge of condensate. These features are all included in the Metal work control panel

No load operation system and maximum pressure control by means of professional pilot check valve

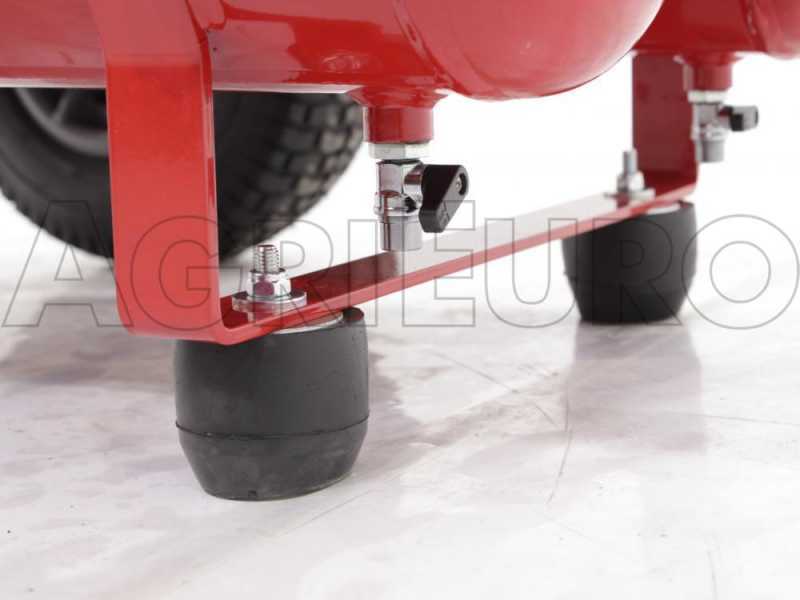

Other features

Equipped with a removable front handle for a comfortable grip and easy storage.

Large rear tractor wheels

Sturdy anti-vibration front supports directly connected to the tanks.

Condensate drain valve on the tank

Free items & Standard equipment

Free items and extra features

Original documents and instructions manual included in the packaging.

The air compressor is shipped in its original packaging on pallet

Document bag

Airmec cap
