Airmec Mini 08/260 Petrol Engine-driven Air Compressor (260 L/min) with Loncin 118 cc Petrol Engine

Questions & Answers (4)
ID: 100745

EAN: 9993089410444

MPN: 141780045

8,6/10
After-sales assistance & Spare parts
Airmec Mini 08/260 Petrol Engine-driven Air Compressor (260 L/min) with Loncin 118 cc Petrol Engine
+100 sold
Power supply
Petrol
Max. operating pressure
10 bar
Air compressor tank
8 L
Motor brand
Loncin
Motor type
4-stroke
Cubic capacity
118 cm³
Nominal power
4 HP
Cylinder head brand
Fiac
Air intake flow
260 L/min
Pump type
Single-stage
Cylinder head rpm
3400 RPM
Operable harvester
1
Manufacturing country
Italy
Product Features
Model:
Mini 08/260
Power supply:
Petrol
Transport:
Portable
Operating mode:
Spark ignition
Max. operating pressure:
10 bar
Number of tanks:
2
Air compressor tank:
8 L
Electric start:
No
Operable harvester:
1
Quantity of powered shears:
Up to 2
Quantity of powered chainsaws:
0
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor type:
4-stroke
Cubic capacity:
118 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
4 HP
Rated power (HP):
3.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Noise level:
96 dB(A)
Manufacturing country:
China
Pump data
Cylinder head brand:
Fiac
Model:
S 15
Air intake flow:
260 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
No
Cylinders material:
Aluminium
Manufacturing country:
Italy
Transmission data
Transmission type:
Coaxial type direct
Transmission protective cover:
No
Cylinder head rpm:
3400 RPM
Integrated clutch device:
No
Equipment
Battery for electric start:
No
Automatic throttle:
No
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
1
Hose reel support/s:
No
Pressure regulator:
No
Pressure regulator with condensate filter:
No
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
Folding/removable handle/s:
No
Lifting handle:
Yes
Free gifts/extra features
Engine oil bottle for free:
No
Maintenance tool kit:
Yes
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
51 x 30 x 50 cm
Net weight:
30 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
55 x 44 x 67 cm
Gross weight (packaging included) :
40 Kg
Assembly time:
Assembled
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
€ 863,86
VAT Included

You're viewing:
Customers also viewed:
Description

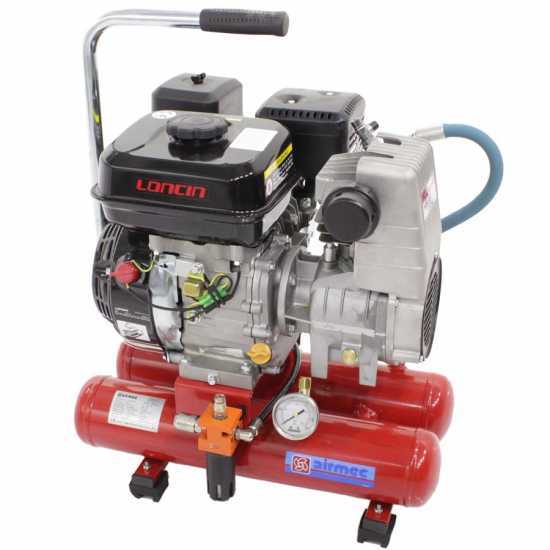

Airmec Mini 08/260 S15 Petrol Engine-driven Air Compressor

The Airmec Mini 08/260 S15 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

The pumping unit is driven by a powerful Loncin 118 cc petrol engine that delivers 4 HP of power.

The air compressor is mounted on a balanced frame with double tank to reduce the condensate effect. This model is equipped with two tanks with a capacity of 4 L each.

The Mini 08/260 S15 petrol engine-driven air compressor comes with a practical handle to ease transport and movement during the working phases. The weight is only 29 Kg.

Thanks to its 275 L/min of air intake flow, the FIAC S15 pumping unit allows to operate a olive harvester or two pneumatic pruning shears.

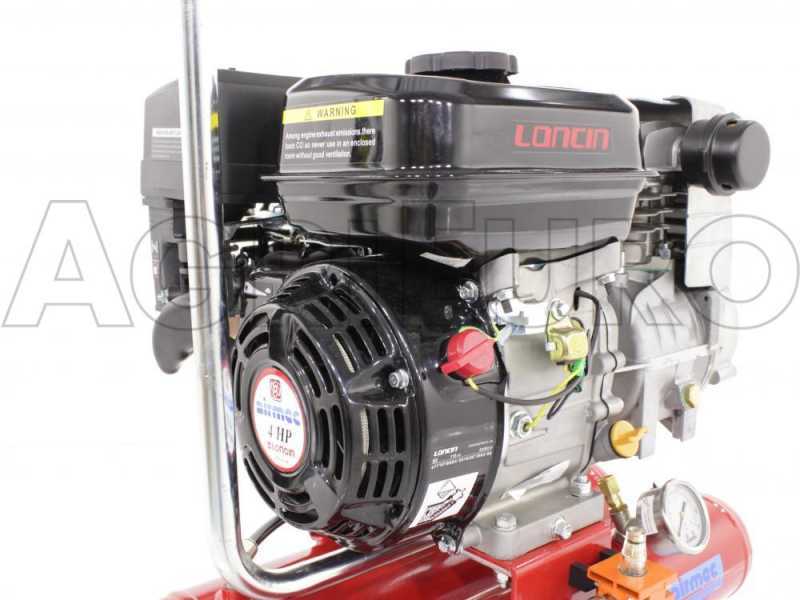

LONCIN 118 cc engine

The LONCIN 118 cc engine is extremely powerful, sturdy and reliable

Features:

Engine type:
Single-cylinder 4-stroke - OHV
Cylinder type:
Aluminium
Cubic capacity:
118 cm³
Power supply:
Petrol
Max. rpm:
3450 rpm
Start-up:
Manual





The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

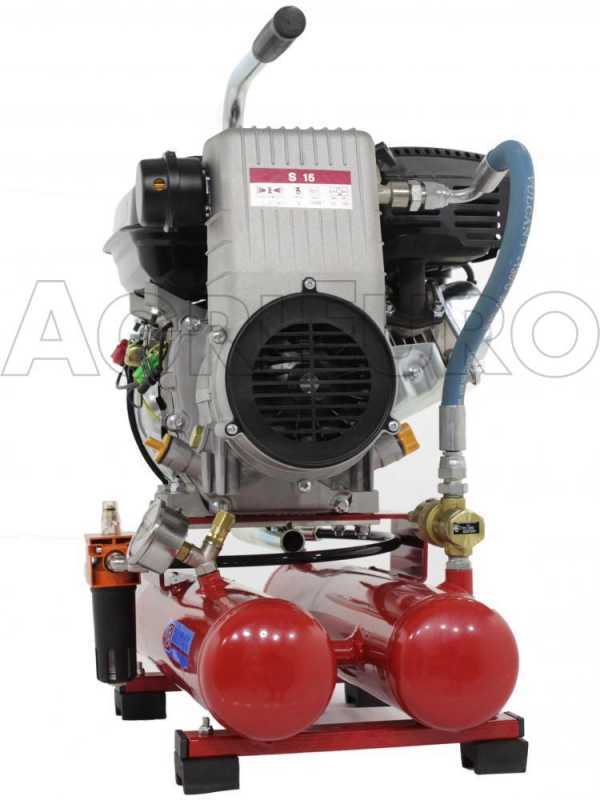

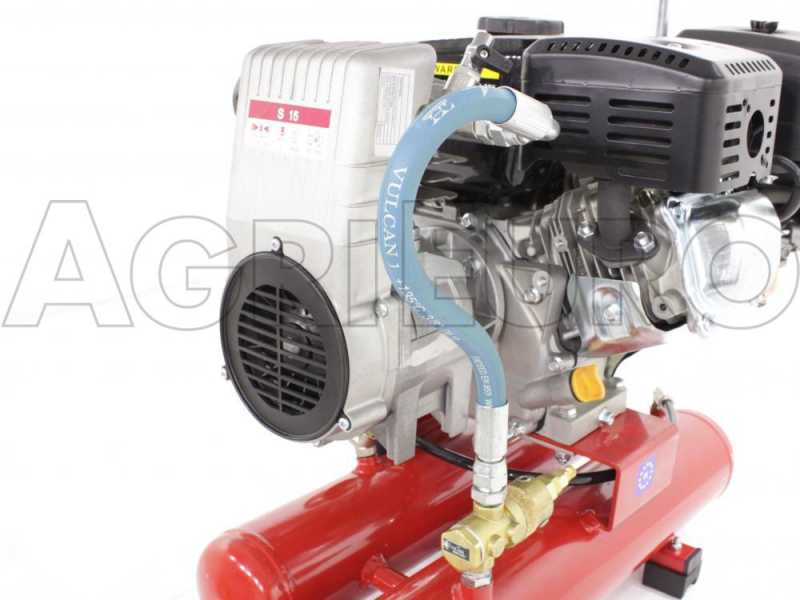

Fiac S15 cylinder head

Air intake flow: 275 L/min
Head type: twin-cylinder with cast iron cylinders


The pumping unit by the Italian manufacturer FIAC fitted on the Airmec Mini 08/260 S15 is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs, stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

Detail of the high performance suction filters with labyrinth air flow pattern for noise reduction

Double tank and controls

The air compressor is mounted on a balanced frame with two tanks to reduce the condensate effect. This model is equipped with two tanks with a capacity of 4 L each.

Maximum pressure: 10 bar

Equipped with glycerin pressure gauge directly connected to the 2 tanks

It features a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and double drain valve which allows the discharge of condensate. These features are all included in the control panel

No load operation system and maximum pressure control by means of professional pilot check valve

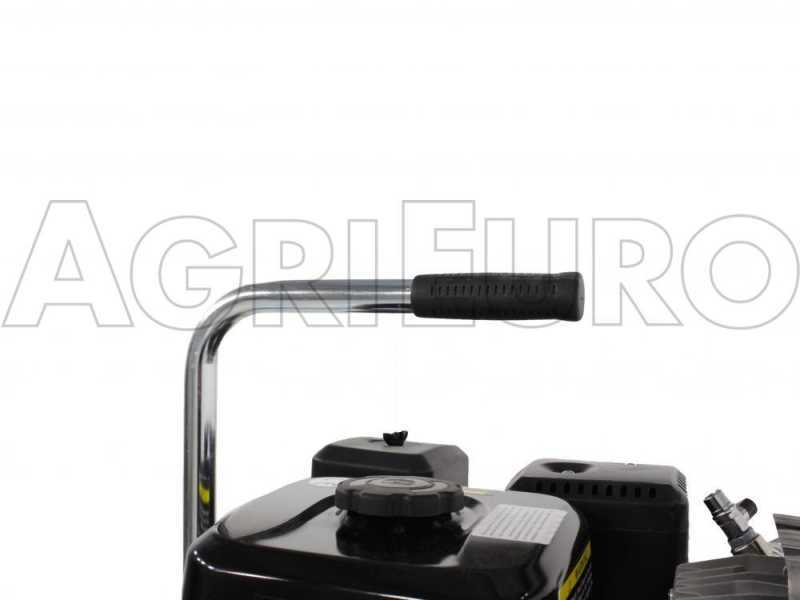

Detail of the ergonomic handle.

Free items & Standard equipment

Free items and extra features

Original documents and instructions manual included in the packaging.

The air compressor is shipped in its original packaging on pallet

Included in the packaging are:

Funnel and plastic hose

Wrench for maintenance

Airmec cap
