Airmec CRS 1065/510 Petrol Engine-driven Air Compressor (510 L/m) with Loncin G 200 Engine

Questions & Answers (1)
ID: 100746

EAN: 9999237539913

MPN: 141780150

8,6/10
After-sales assistance & Spare parts
Airmec CRS 1065/510 Petrol Engine-driven Air Compressor (510 L/m) with Loncin G 200 Engine
+80 sold
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
10 L
Motor brand
Loncin
Motor Model
G200
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Cylinder head brand
Nuair
Air intake flow
510 L/min
Pump type
Single-stage
Cylinder head rpm
1400 RPM
Automatic throttle
Yes
Operable harvester
Up to 2
Manufacturing country
Italy
Product Features
Model:
CRS 1065/510
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
10 L
Electric start:
No
Operable harvester:
Up to 2
Quantity of powered shears:
Up to 4
Quantity of powered chainsaws:
1
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor Model:
G200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
6.5 HP
Rated power (HP):
5.57 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Noise level:
96 dB(A)
Manufacturing country:
China
Pump data
Cylinder head brand:
Nuair
Model:
SB 38 C
Air intake flow:
510 L/min
Pump type:
Single-stage
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Integrated clutch device:
No
Pulleys material:
Metal alloy
Equipment
Battery for electric start:
No
Automatic throttle:
Yes
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
2
Hose reel support/s:
No
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
X
Rear wheels size:
3.00 - 4 (mm 260x85)
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Maintenance tool kit:
No
Tool case:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
61 x 74 x 97 cm
Net weight:
73 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
89 x 72 x 90 cm
Gross weight (packaging included) :
100 Kg
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 1.116,30
VAT Included
You're viewing:
Customers also viewed:
Description

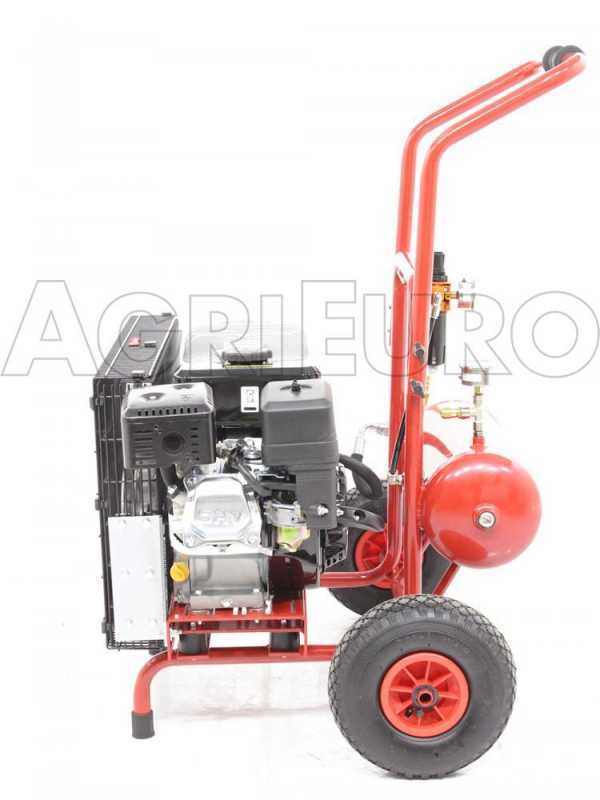

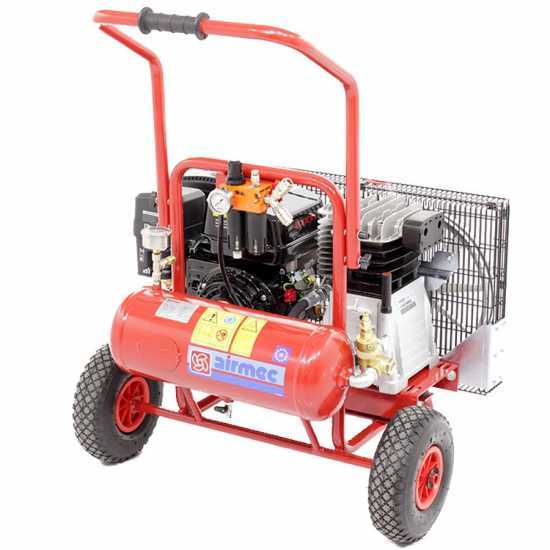

Airmec CRS 1065/510 Petrol Engine-driven Air Compressor (510 L/m)

The Airmec CRS 1065/510 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

The pumping unit is driven by a powerful Loncin G 200 petrol engine that delivers 6.5 Hp of power.

The air compressor is mounted on a structure separated from the frame. This model features a 10 L tank.

The foldable handle makes this petrol engine-driven air compressor really space-saving. Among the most compact in its category.

Equipped with large pneumatic wheels and a comfortable handle to make transport and movement easier during working phases.

This air compressor supports the use of 2 olive harvesters simultaneously, up to 4 pneumatic shears and pneumatic chainsaw.

This petrol engine-driven air compressor is equipped with a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.
This system allows a considerable saving on fuel, a reduction in the wear of the mechanical parts and also a decrease in exhaust emissions.

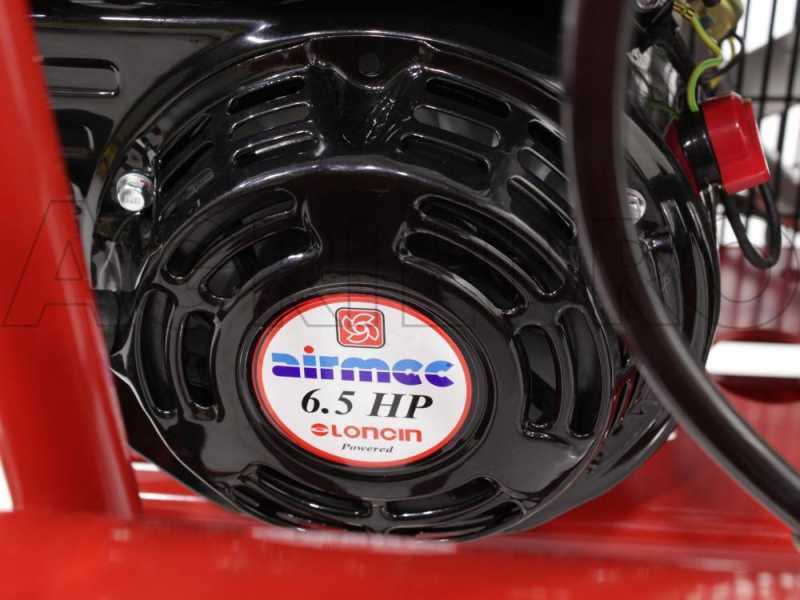

Loncin G 200 engine

Engine brand and model:

Loncin G 200
Engine type:
4-Stroke, single cylinder 4 stroke - OHV
Cylinder type:
Aluminium
Cubic capacity:
196 cm³
Power:
6.5 Hp
Starting:
recoil start

4-stroke engine of the latest generation (over head valves “OHV”). It is much more efficient and uses significant less fuel than other flathead engines on the market.

Recoil start

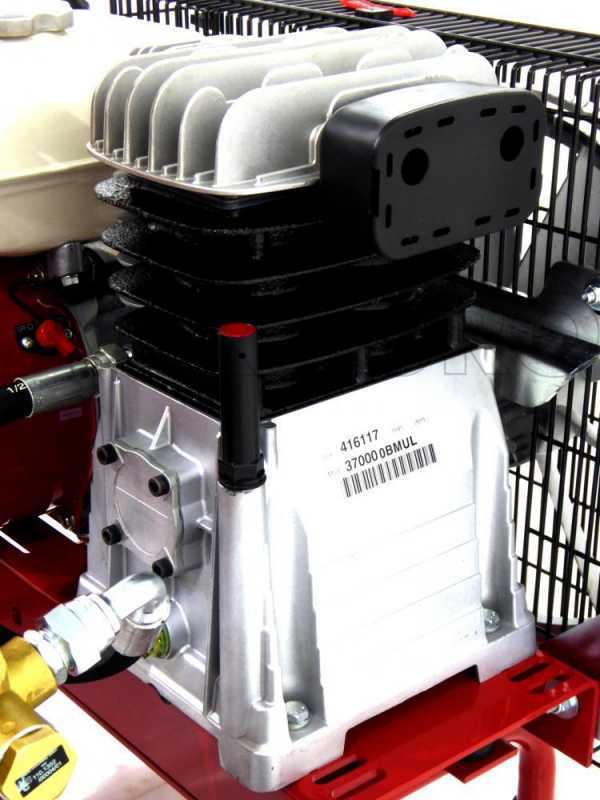

Cylinder head

Air intake flow: 510 L/min
Head type: twin-cylinder with cast iron cylinders
Suction type: single-stage
Lubrication: oil
No. of revolutions: 1400 rpm


The pumping unit by NUAIR fitted on the Airmec CRS 1065/510 is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- shafts and cylinders entirely made in cast iron

- die-cast aluminum heads

- stainless steel reed valves

oil level indicator in the pumping unit

Belt drive

The Airmec air compressor features a belt drive.

The use of transmission belt guarantees a very high level of safety, and makes this machine the top of the range. Combined with a Loncin petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is made of metal, very solid and robust, it allows excellent cooling.

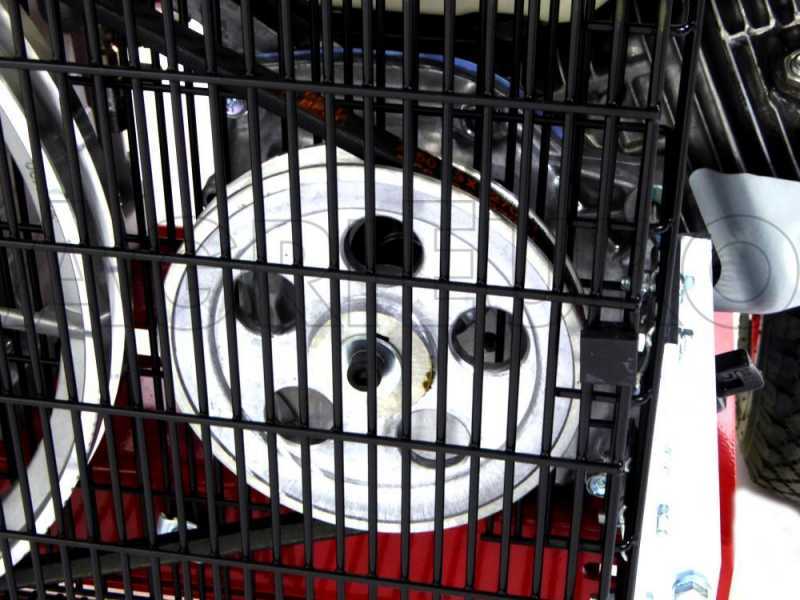

Detail of the driving pulley

Detail of the drive belt

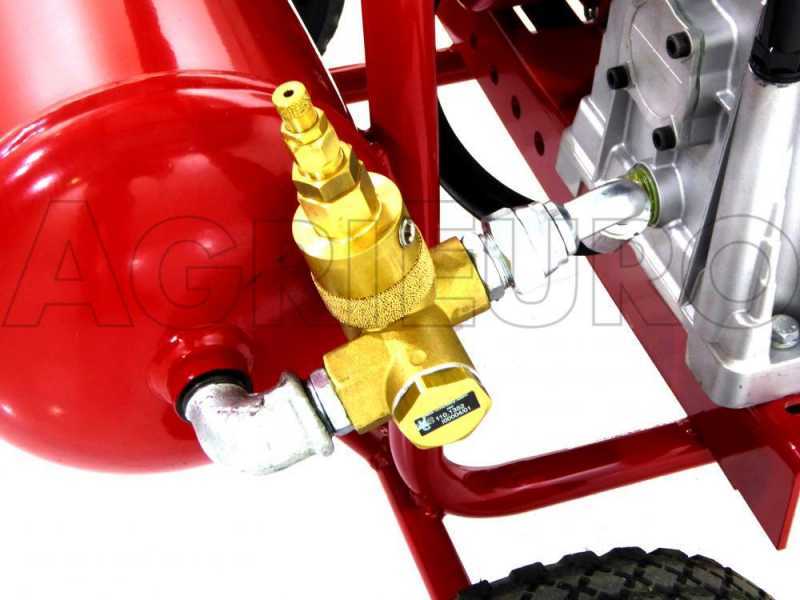

Tank and controls

This petrol engine-driven air compressor features a 10 L tank.

Maximum pressure: 11 bar

Equipped with glycerine pressure gauge directly connected to the tank

A direct drive relief valve is fitted on the tank to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

2-outlet air divider that allows to use 2 pneumatic olive harvesters at the same time

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a drain valve which allows the discharge of condensate. These features are all included in the control panel

Other features

Dimensions (L x W x H): 61 x 74 x 68 cm (without handle)

Weight: 73 kg

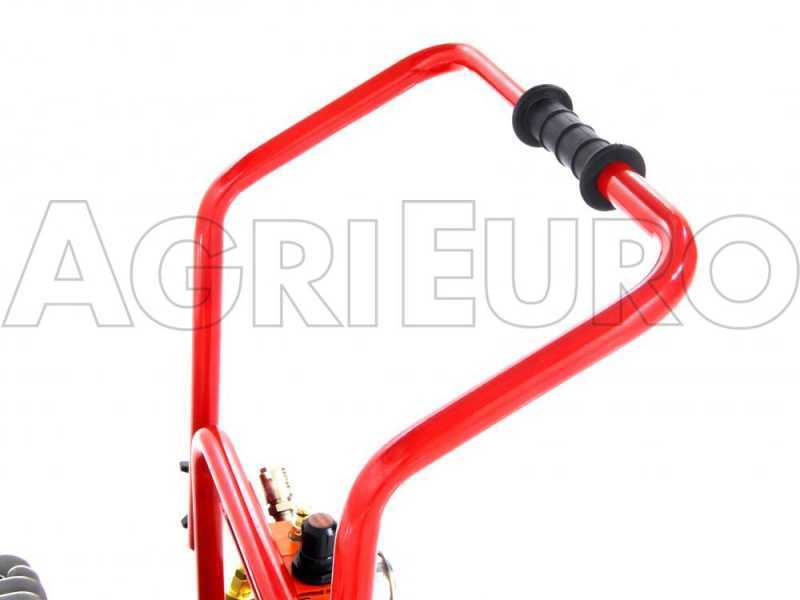

Equipped with foldable handle for comfortable grip and easy storage.

Detail of the folded handle.

The petrol engine-driven air compressor is equipped with a frame isolation system, which helps reducing vibrations and ensures a longer service life of the machine.

Large-sized tractor rear wheels

Sturdy front supporting feet

Free items & Standard equipment

Free items and extra features

The air compressor is shipped in its original packaging

Original documents and instructions manual included in the packaging.

Engine manual and certification

Document bag

Airmec cap
