Airmec CRS 1055/510 (510 L/min) Engine-driven Air Compressor with Honda GX 160 Engine

Questions & Answers (1)
ID: 100241

MPN: 141780160

8,6/10
After-sales assistance & Spare parts
Airmec CRS 1055/510 (510 L/min) Engine-driven Air Compressor with Honda GX 160 Engine
Power supply
Petrol
Max. operating pressure
11 bar
Air compressor tank
10 L
Motor brand
Honda
Motor Model
GX160
Motor type
4-stroke
Cubic capacity
163 cm³
Nominal power
5.7 HP
Cylinder head brand
Nuair
Air intake flow
510 L/min
Pump type
Single-stage
Cylinder head rpm
1480 RPM
Operable harvester
Up to 2
Manufacturing country
Italy
Product Features
Model:
CRS 1055/510
Power supply:
Petrol
Transport:
Hand push on cart frame
Operating mode:
Spark ignition
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
10 L
Electric start:
No
Operable harvester:
Up to 2
Quantity of powered shears:
Up to 4
Quantity of powered chainsaws:
1 not for intensive use
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
5.7 HP
Rated power (HP):
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Noise level:
97 dB(A)
Manufacturing country:
Japan
Pump data
Cylinder head brand:
Nuair
Model:
SB 38 C
Air intake flow:
510 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
No
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1480 RPM
Integrated clutch device:
No
Pulleys material:
Metal alloy
Equipment
Battery for electric start:
No
Automatic throttle:
No
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
2
Hose reel support/s:
No
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
X
Rear wheels size:
3.00 - 4 (mm 260x85)
Folding/removable handle/s:
Yes
Lifting handle:
No
Free gifts/extra features
Engine oil bottle for free:
No
Tool case:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
61 x 74 x 97 cm
Net weight:
73 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
89 x 72 x 90 cm
Gross weight (packaging included) :
78 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
€ 1.358,07
VAT Included
You're viewing:
Customers also viewed:
Description

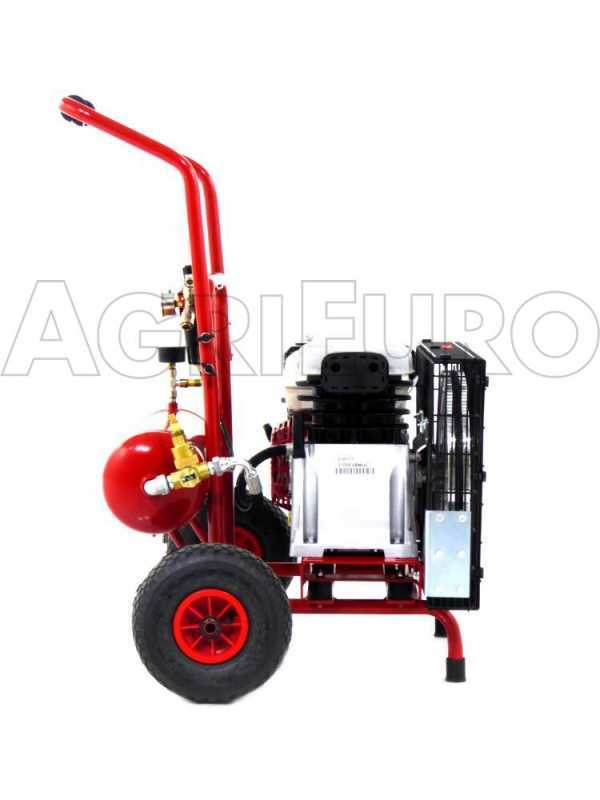

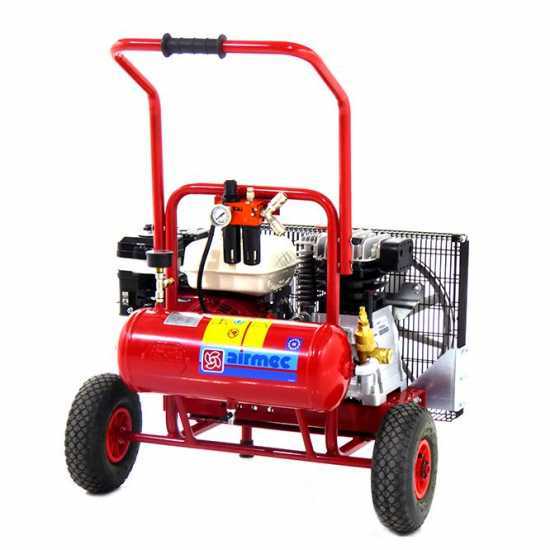

Airmec CRS 1055/510 (510 L/m) Petrol Engine-driven Air Compressor

The Airmec CRS 1055/510 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

The pumping unit is driven by a powerful Honda GX 160 petrol engine that develops 5.7 Hp of nominal power.

The air compressor is mounted on a structure separated from the frame. This model features a 10 L tank.

The foldable handle makes this petrol engine-driven air compressor really space-saving. Among the most compact in its category.

Equipped with large pneumatic wheels and a comfortable handle to make transport and movement easier during working phases.

This air compressor supports the use of 2 olive harvesters simultaneously, up to 4 pneumatic shears and pneumatic chainsaw.

This petrol engine-driven air compressor is equipped with a pneumatic self-regulation device able to bring the engine to operating speed only during the tank refilling time until the maximum pressure is reached.
This system allows a considerable saving on fuel, a reduction in the wear of the mechanical parts and also a decrease in exhaust emissions.

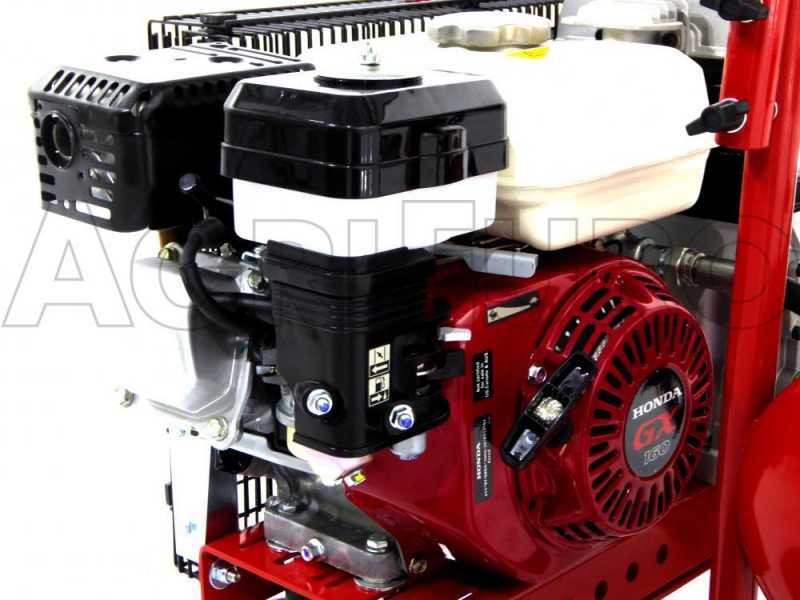

Honda GX 160 engine

The Honda GX 160 is a powerful 4-stroke engine that is capable of developing 4.8 Hp of rated power, and its function is to operate the pumping unit. This high performance engine is suitable for works where great power is required and that is easily reached thanks to the 163 cc cubic capacity.


Features:

Engine type:
4-Stroke
Power:
4.8 HP
Cooling:
Air cooled
Cylinder type:
Aluminium
Cubic capacity:
163 cm³
Max. rpm:
3600 rpm

4-stroke engine of the latest generation (over head valves “OHV”). It is much more efficient and uses significant less fuel than other flathead engines on the market.

Recoil start

The vast majority of agricultural and gardening equipment available on the market today mounts unbranded (or unsuitable) engines made in China.

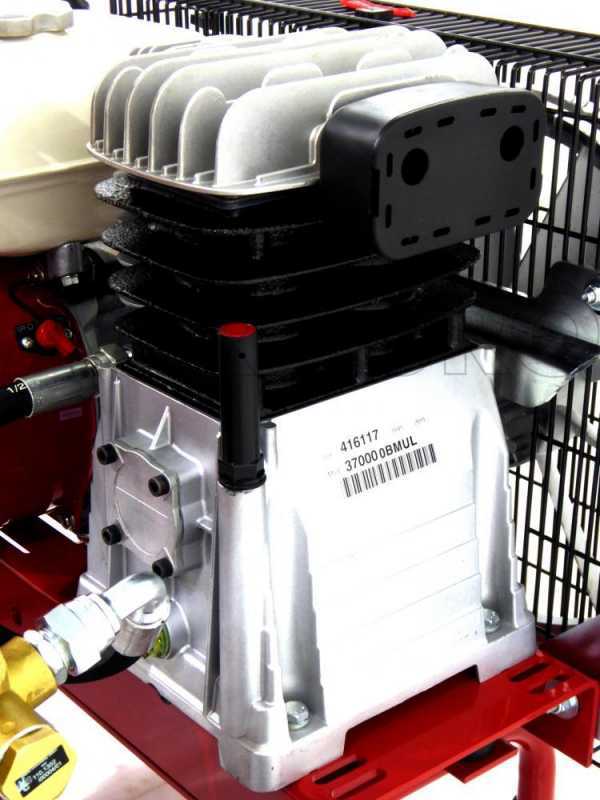

Cylinder head

Air intake flow: 510 L/min
Head type: twin-cylinder with cast iron cylinders
Suction type:single stage
Lubrication: oil
No. of revolutions: 1480 rpm


The pumping unit by NUAIR fitted on the Airmec CRS 1055/510 is the result of high technology and years of experience in the field. The professional line to which this engine-driven air compressor belongs stands out for its exceptional durability and reliability, thanks to the use of components made with innovative quality materials:

- shafts and cylinders entirely made in cast iron

- die-cast aluminum heads

- stainless steel reed valves

oil level indicator in the pumping unit

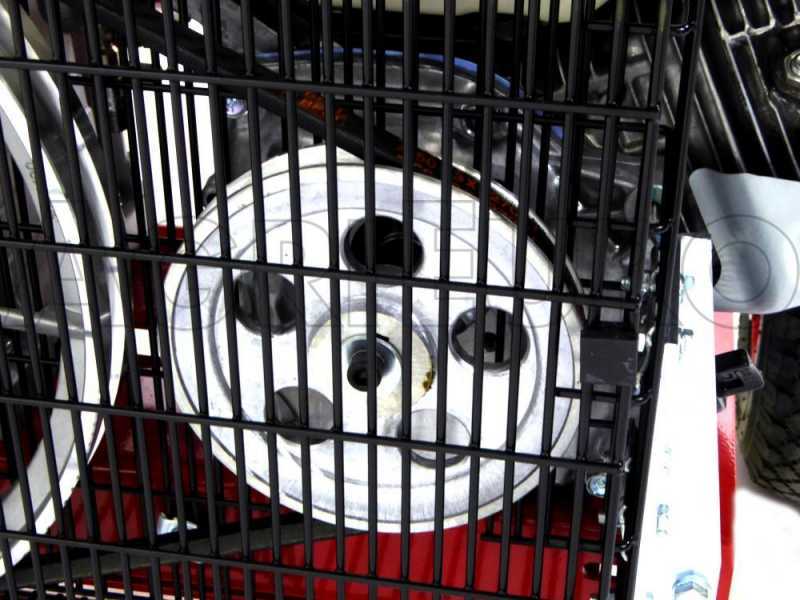

Belt drive

The Airmec air compressor features a belt drive.

The use of transmission belt guarantees a very high level of safety, and makes this machine the top of the range. Combined with Honda petrol engine, the belt drive contributes to the durability of this compressor, drastically reducing the number of revolutions of the cylinder head and reducing wear.

The protective housing is made of metal, very solid and robust, it allows excellent cooling.

Detail of the driving pulley

Detail of the drive belt

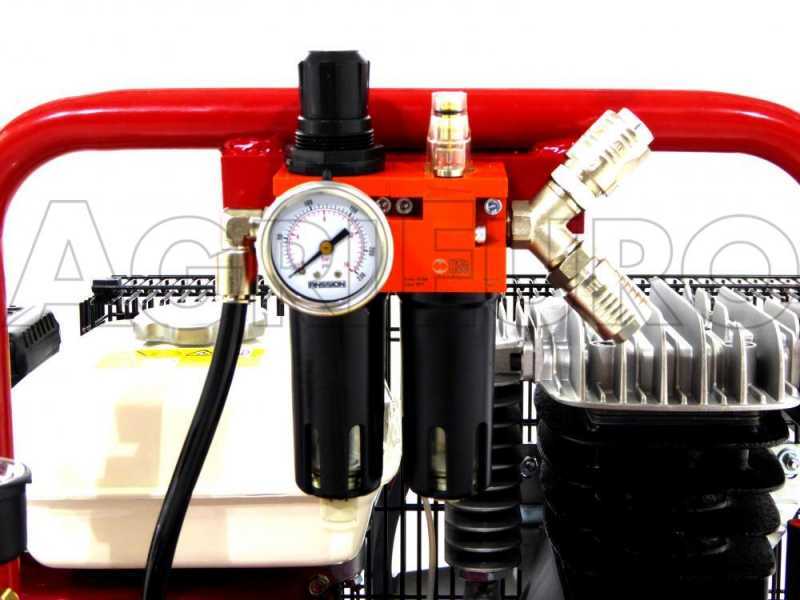

Tank and controls

This petrol engine-driven air compressor features a 10 L tank.

Maximum pressure: 11 bar

Equipped with glycerin pressure gauge directly connected to the tank.

A direct drive relief valve is fitted on the tank to prevent the maximum pressure from exceeding a certain threshold and to avoid breakage.

2-outlet air divider that allows to use 2 pneumatic olive harvesters at the same time

Also equipped with a pressure regulator which adjusts the air outlet pressure for the operation of the tools, a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a drain valve which allows the discharge of condensate. These features are all included in the control panel

Other features

Dimensions (L x W x H): 61 x 74 x 72 cm (without handle)

Weight: 73 kg

Equipped with a foldable handle for comfortable grip and easy storage.

Detail of the folded handle.

The petrol engine-driven air compressor is equipped with a frame isolation system, which helps reducing vibrations and ensures a longer service life of the machine.

Large-sized tractor rear wheels

Sturdy front supporting feet

Free items & Standard equipment

Free items and extra features

The air compressor is shipped in its original packaging

Original documents and instructions manual included in the packaging.

Engine manual and certification

Document bag

Airmec cap
