Airmec Agritech 650 Tractor PTO Driven Air Compressor - Olive Harvesting and Pruning

Add a question
ID: 2154

EAN: 8006414033018

MPN: 141790300

Airmec Agritech 650 Tractor PTO Driven Air Compressor - Olive Harvesting and Pruning
+50 sold
Max. operating pressure
11 bar
Air compressor tank
25 L
Cylinder head brand
Chinook
Air intake flow
650 L/min
Pump type
Two-stage
Cylinder head rpm
1400 RPM
Tractor power
20 to 30 HP
Operable harvester
Up to 3
Manufacturing country
Italy
Product Features
Model:
Agritech 650
Tractor power:
20 to 30 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
25 L
Operable harvester:
Up to 3
Quantity of powered shears:
Up to 7
Quantity of powered chainsaws:
1
Power absorption:
20 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Cylinder head brand:
Chinook
Model:
K 28
Air intake flow:
650 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Aluminium
Equipment
No. of outlet couplings:
5
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
95 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
68 x 67 x 85 cm
Gross weight (packaging included) :
115 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
Suggested price:
€ 1.660,10
€ 1.548,75
VAT Included
You're viewing:
Customers also viewed:
Description

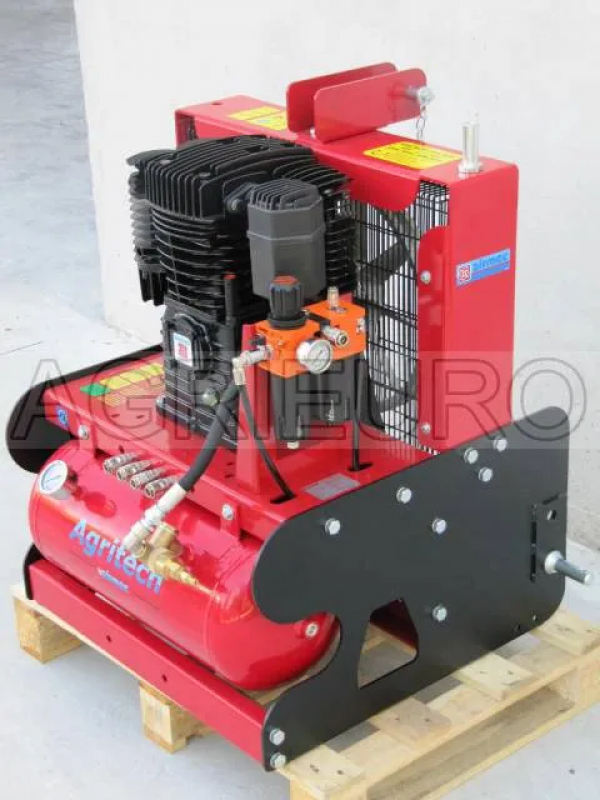

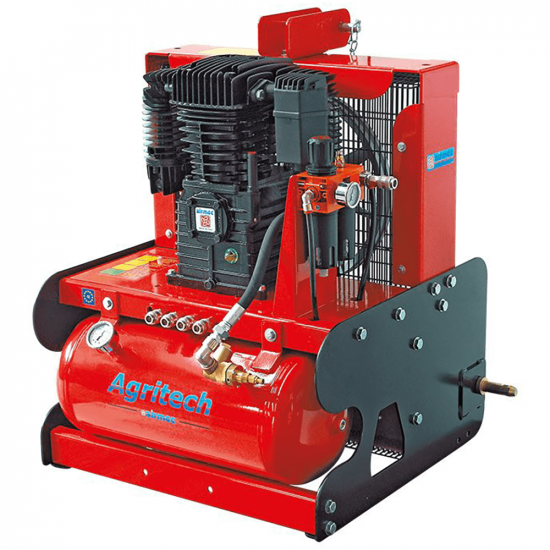

Airmec Agritech 650 Tractor Mounted Air Compressor

The Airmec Agritech 650 tractor PTO driven air compressor is renowned to be a highly professional product.

The large professional twin-cylinder head allows an air flow of 650 L/min with only about 1200 rpm of your tractor engine, this power guarantees the operation of 3 olive harvesters, 7 pruning shears and 1 pneumatic saw.

High strength reinforced steel frame.

Crushproof supporting structure entirely made of heavy-thickness steel

MADE IN ITALY product

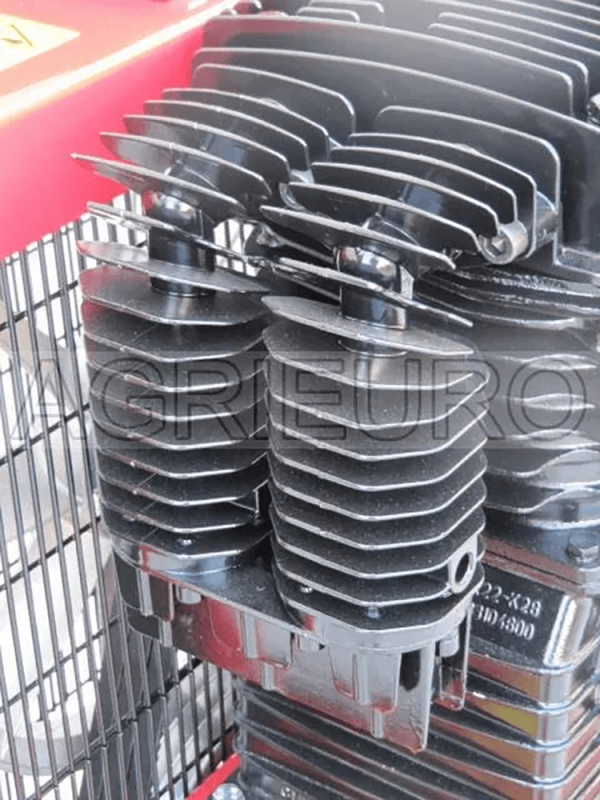

CHINOOK two-cylinder cylinder head model - K28 cast iron cylinder

The highly professional top-quality CHINOOK head unit is intended for heavy-duty continuous work.

These compressor heads are considered by industry professionals to be the ABSOLUTE BEST ON THE MARKET, due to their outstanding durability.

The extreme durability of this cylinder head is given by several factors:

  • The material from which it is made. Equipped with two cylinders in cast iron, a material characterised by resistance and durability.
  • Two-stage head unit.
  • The presence of three cooling manifolds. There is no other motor-compressor on the market with such a capacity for cooling the pumped air.

This air compressor mounts a twin-cylinder head unit with a cast iron cylinder (long life guarantee). High air output: 650 L/min it only takes about 1200 rpm of your tractor engine to operate 3 olive harvesters, 7 pruning shears and 1 pneumatic chainsaw.

Its two-stage head is equipped with two cylinders connected in series where the air is compressed gradually until it reaches the final pressure.

Between the stages, the compressed air is cooled. This improves efficiency, providing higher pressures than those achieved with a single-stage compressor,

making it one of the best compressor heads on the market today.

Three cooling manifolds.

The CHINOOK cylinder head is the only one in its class with three cooling manifolds, two on one side and one on the other, next to the air filter.

Cooling the pumped air is therefore able to significantly improve the efficiency of the compressor itself.
The air, when pumped from the compressor head, is deposited in the tank at a very high temperature.

Condensate tends to accumulate in the bottom of the tank (which must therefore be drained at the end of each day using the condensate drain valve).

The feeding of pre-cooled air from the manifolds means that condensate formation is greatly reduced.

The absence or reduced presence of humidity in the air supplying the equipment (olive harvesters, pruning shears, pneumatic chainsaws) will drastically reduce the risk of freezing inside the equipment, resulting in more efficient operation and longer life.

Main Features

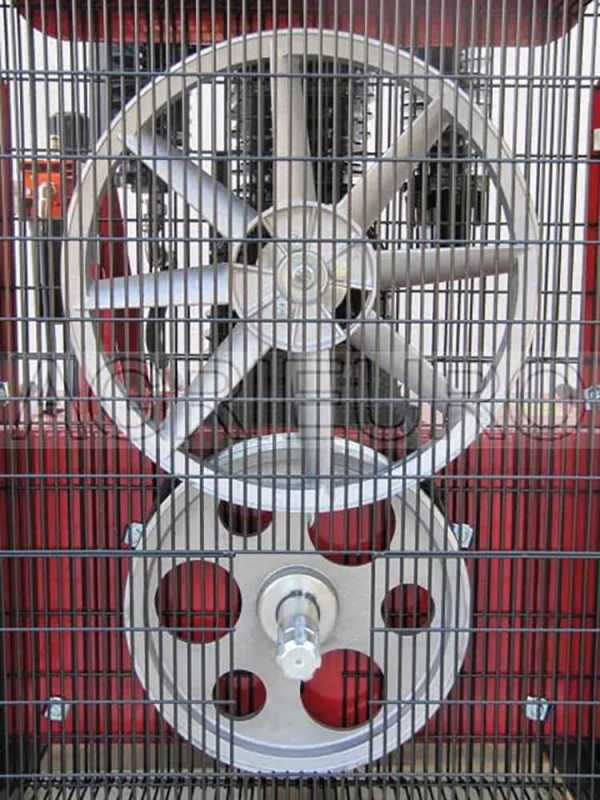

Transmission:

It only takes about 1200 rpm of your tractor engine to obtain the 650 L/min of maximum air pumping performance from your compressor head

Large upper cooling pulley made of aluminium alloy.

Lower PTO pulley made of aluminium alloy.

3-belt large-section drive.

25 L Tank

Vacuum operating system and maximum pressure control by means of a professional isolating valve

Air outlet system

Condensate separation filter with professional aluminum lubricator.
- MADE IN ITALY -


Professional aluminium lubricator
- MADE IN ITALY -

First outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air by means of the lubricator (almost no compressor on the market has this additional outlet)

Air shut-off valve for maintenance operations (such as feeding oil into the lubricator).

Glycerine pressure gauge (not like all those who assemble them dry) which signals the air pressure inside the tank thus indicating the status of the air stock.

No. 4 Quick output joints

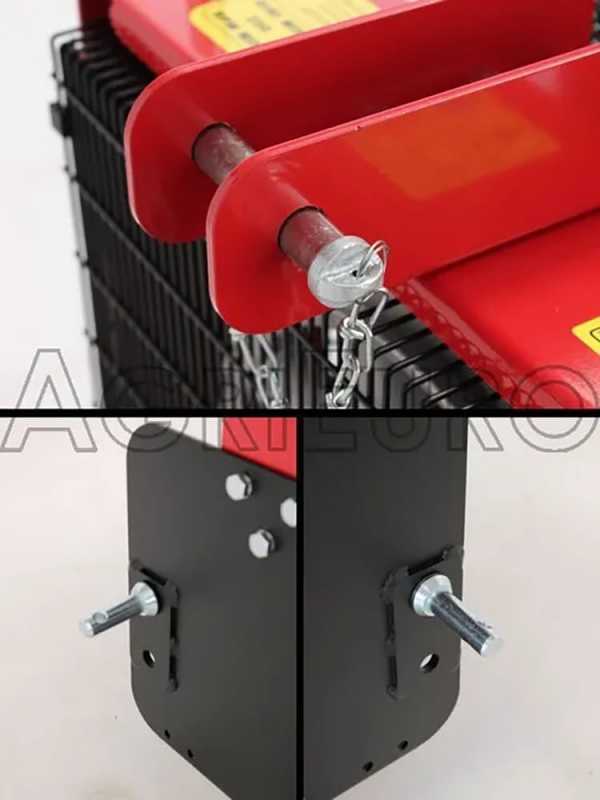

General Features

Standard-supplied support for hose reel

Predisposition for additional hose reel attachment

Tractor three-point-hitch

The air compressor is shipped already assembled and ready for use.


WARNING

Machine supplied WITHOUT pneumatic equipment.
Cardan joint not included.
