Airmec Agritech 540 Tractor PTO Driven Air Compressor - olive harvesting and pruning

Add a question
ID: 2155

EAN: 8006414033001

MPN: 141790200

Airmec Agritech 540 Tractor PTO Driven Air Compressor - olive harvesting and pruning
+40 sold
Max. operating pressure
11 bar
Air compressor tank
25 L
Cylinder head brand
Chinook
Air intake flow
540 L/min
Pump type
Single-stage
Cylinder head rpm
1400 RPM
Tractor power
20 to 25 HP
Operable harvester
Up to 2
Manufacturing country
Italy
Product Features
Model:
Agritech 540
Tractor power:
20 to 25 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
25 L
Operable harvester:
Up to 2
Quantity of powered shears:
Up to 5
Quantity of powered chainsaws:
1
Power absorption:
15 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Cylinder head brand:
Chinook
Model:
K 18/C
Air intake flow:
540 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Aluminium
Equipment
No. of outlet couplings:
5
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
88 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
68 x 67 x 85 cm
Gross weight (packaging included) :
108 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
€ 1.350,03
VAT Included
You're viewing:
Customers also viewed:
Description

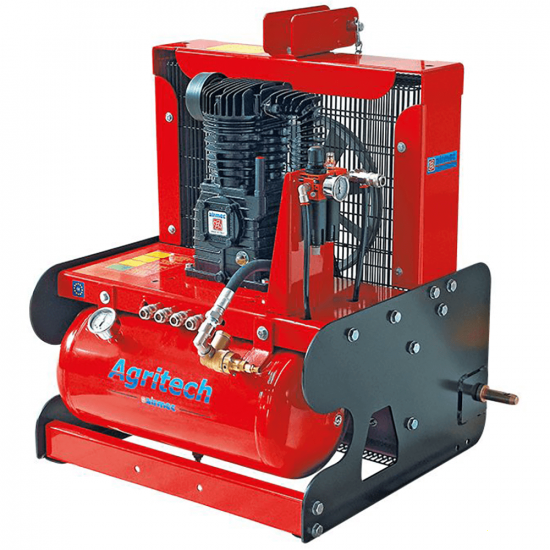

Airmec Agritech 540 Tractor Mounted Air Compressor

The Airmec Agritech 540 tractor PTO driven air compressor is renowned to be a highly professional product.

It has a large air production capacity of 540 L/min

High strength reinforced steel frame

Crushproof supporting structure entirely made of heavy-thickness steel

MADE IN ITALY product

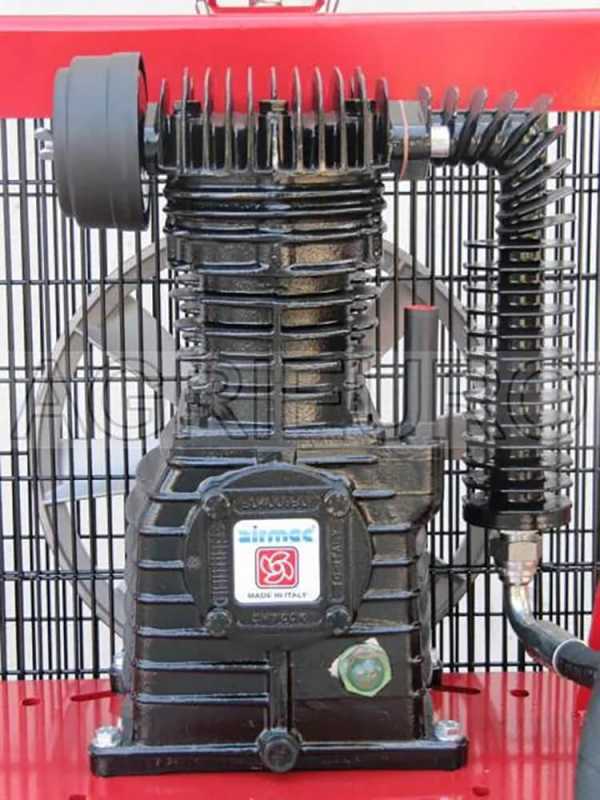

CHINOOK two-cylinder cylinder head model - K18/C cast iron cylinder

The highly professional top-quality CHINOOK head unit is intended for heavy-duty continuous work.

These compressor heads are considered by industry professionals to be the ABSOLUTE BEST ON THE MARKET, due to their outstanding durability. Attention: only the best manufacturers in the sector fit CHINOOK cylinder heads.

The extreme durability of this cylinder head is given by several factors:

  • The material from which it is made. Equipped with two cylinders in cast iron, a material characterised by resistance and durability.
  • Two-stage cylinder head.
  • The presence of a large-sized side cooling manifold.

This air compressor mounts a twin-cylinder head unit with a cast iron cylinder (long life guarantee). High air output: 540 L/min it only takes about 1200 rpm of your tractor engine to operate 2 olive harvesters, 5 pruning shears and 1 pneumatic chain pruner.

Its two-stage header is equipped with a large cooling side manifold in which air is gradually compressed to final pressure.

Between the stages, the compressed air is cooled. This improves efficiency, providing higher pressures than those achieved with a single-stage compressor,

In conclusion, this is one of the best titles on the market in its category to date.

The CHINOOK cylinder head is the only one in its class equipped with a generously sized cooling manifold on the side.

The air intake flow cooling system is able to improve the efficiency of compressor itself.

The air, when pumped by the compressor head, is deposited in the tank at a very high temperature.
For this reason, the more the air tends to cool, the more the condensate tends to separate and deposit itself in the bottom of the tank (which must therefore be drained at the end of each day with the appropriate valve).

The feeding of pre-cooled air from the manifolds means that condensate formation is greatly reduced.

The absence or reduced presence of humidity in the air supplying the equipment (olive harvesters, pruning shears, pneumatic chainsaws) will drastically reduce the risk of freezing inside the equipment, resulting in more efficient operation and longer life.

Main Features

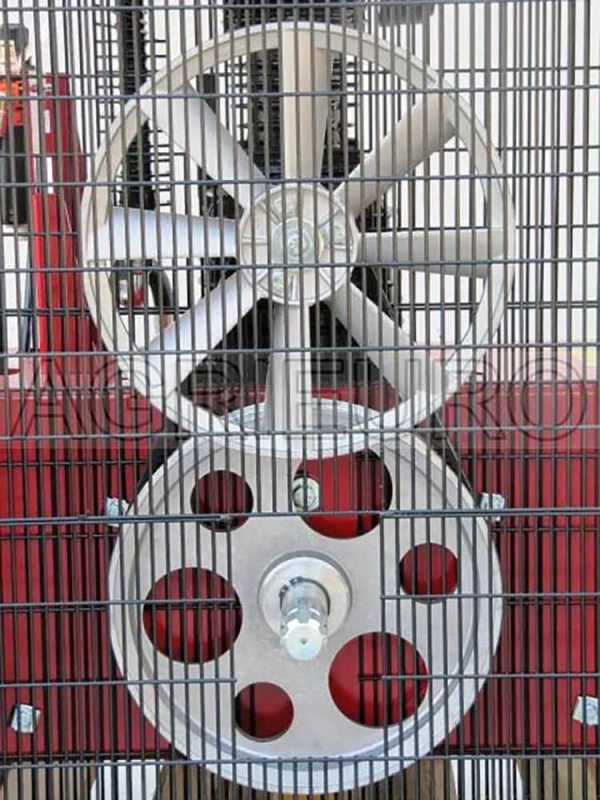

Transmission:

It only takes about 1200 rpm of your tractor engine to obtain the 540 L/min of maximum air pumping performance from your compressor head

Large upper cooling pulley made of aluminium alloy.

Lower PTO pulley made of aluminium alloy.

3-belt large-section drive

25 L Tank

Vacuum operating system and maximum pressure control by means of a professional-type isolating valve.
Air outlet system

Condensate separation filter with professional aluminum lubricator.
- MADE IN ITALY -

Professional aluminium lubricator
- MADE IN ITALY -

First outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air via the lubricator (almost no compressor on the market has this additional outlet).

Air shut-off valve for maintenance operations (such as feeding oil into the lubricator).

Glycerine pressure gauge (not like all those who assemble them dry) which signals the air pressure inside the tank thus indicating the status of the air stock.

No. 04 quick output joints.

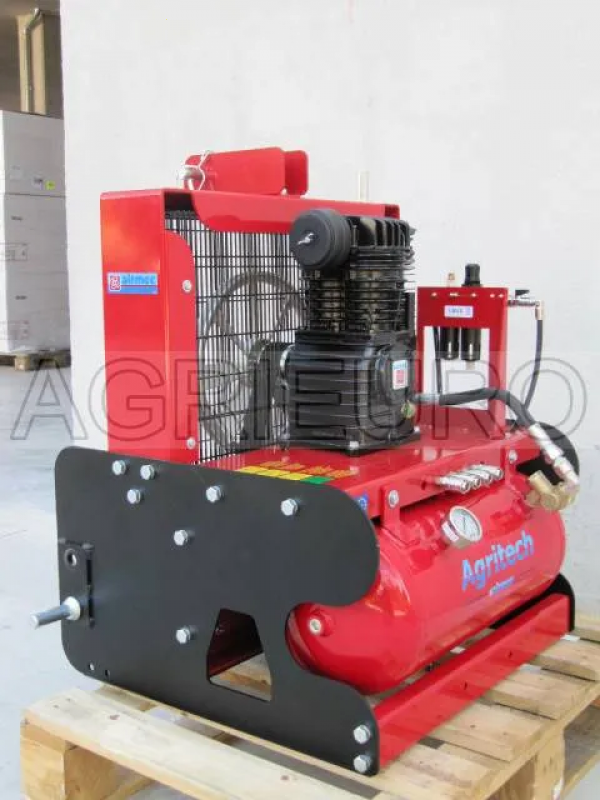

General Features

Standard-supplied support for hose reel
Predisposition for additional hose reel attachment

Tractor three-point-hitch

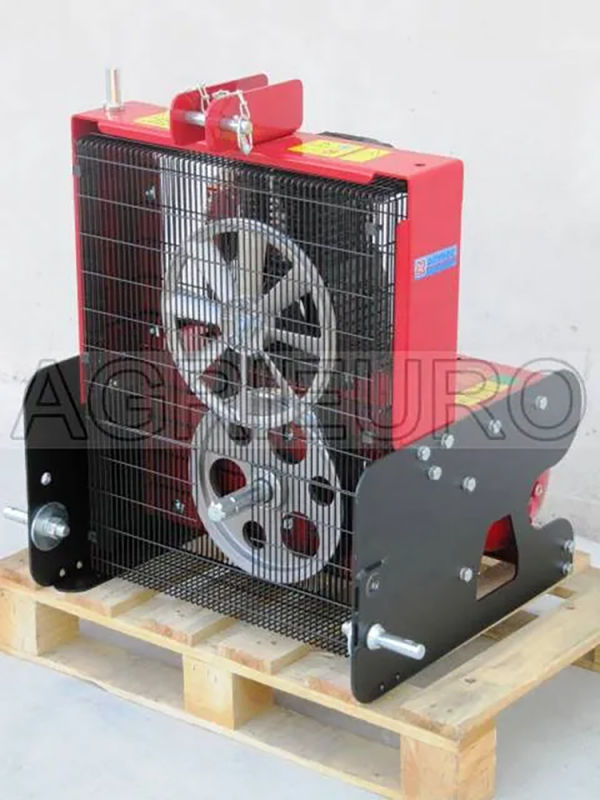

The air compressor is shipped already assembled and ready for use.

ATTENTION: machine supplied WITHOUT pneumatic equipment.
Cardan joint not included
