Airmec Agritech 1000 Trctor PTO Driven Air Compressor with three-point-hitch

Questions & Answers (5)
ID: 0053

MPN: 141790400

8,6/10
After-sales assistance & Spare parts
Airmec Agritech 1000 Trctor PTO Driven Air Compressor with three-point-hitch
+200 sold
Max. operating pressure
11 bar
Air compressor tank
25 L
Cylinder head brand
Chinook
Air intake flow
1020 L/min
Pump type
Two-stage
Cylinder head rpm
1400 RPM
Tractor power
30 to 35 HP
Operable harvester
Up to 5
Manufacturing country
Italy
Product Features
Model:
Agritech 1000
Tractor power:
30 to 35 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
1
Air compressor tank:
25 L
Operable harvester:
Up to 5
Quantity of powered shears:
Up to 9
Quantity of powered chainsaws:
Up to 2
Power absorption:
28 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Cylinder head brand:
Chinook
Model:
K 30
Air intake flow:
1020 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
6
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
106 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
68 x 67 x 85 cm
Gross weight (packaging included) :
126 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 1.875,41
VAT Included
You're viewing:
Customers also viewed:
Description

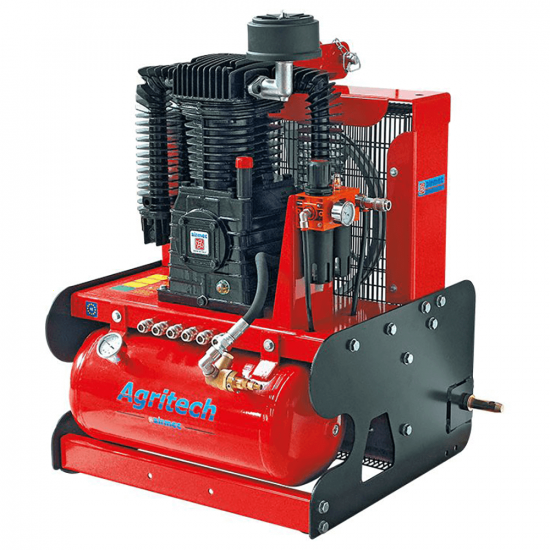

Airmec Agritech 1000 Tractor PTO Driven Air Compressor

The Airmec Agritech 1000 tractor PTO driven air compressor is renowned to be a highly professional product.

The large professional twin-cylinder head allows an air flow of 1020 L/min at 11 bar, such power that it guarantees the operation of 2 harvesters, 5 scissors and 1 pneumatic saw.

High-strength reinforced steel frame.
Non-deformable supporting structure made entirely of thick steel.

MADE IN ITALY product

Low-rpm operation for greater fuel economy

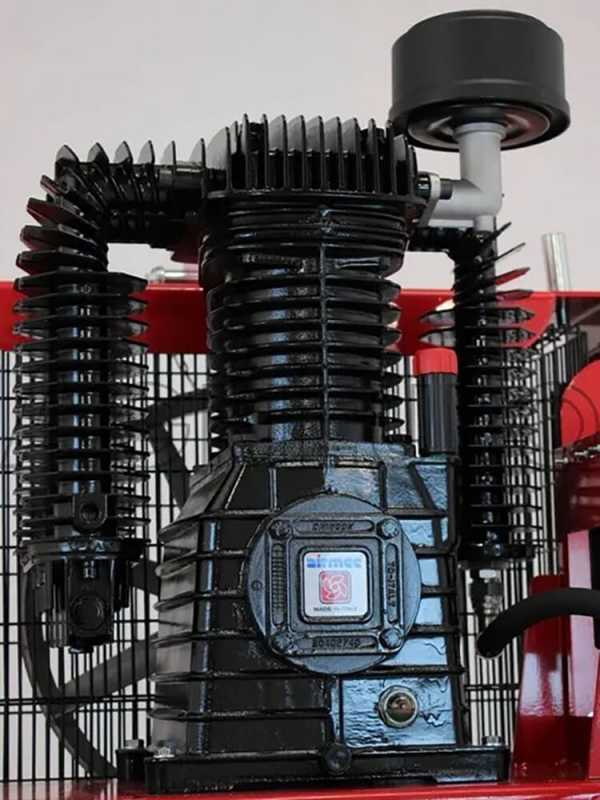

CHINOOK two-cylinder cylinder head model - K50 cast iron cylinder

The highly professional top-quality CHINOOK head unit is intended for heavy-duty continuous work.

These compressor heads are considered by industry professionals to be the ABSOLUTE BEST ON THE MARKET, due to their outstanding durability. Attention: only the best manufacturers in the sector fit CHINOOK cylinder heads.

The extreme durability of this cylinder head is given by several factors:

  • The material from which it is made. Equipped with two cylinders in cast iron, a material characterised by resistance and durability.
  • Two-stage head unit.
  • The presence of three cooling manifolds. There is no other motor-compressor on the market with such a capacity for cooling the pumped air.

Its two-stage head is equipped with two cylinders connected in series where the air is compressed gradually until it reaches the final pressure.

Between the stages, the compressed air is cooled. This improves efficiency, providing higher pressures than those achieved with a single-stage compressor,

Three cooling manifolds

The CHINOOK cylinder head is the only one in its class with three cooling manifolds, two on one side and one on the other, next to the air filter.

This means that there is no other engine-driven air compressor in this category that cools the pumped air like this model.

The air intake flow cooling system is able to improve the efficiency of compressor itself.

The air, when pumped by the compressor head, is deposited in the tank at a very high temperature.
For this reason, the more the air tends to cool, the more the condensate tends to separate and deposit itself in the bottom of the tank (which must therefore be drained at the end of each day with the appropriate valve).

The feeding of pre-cooled air from the manifolds means that condensate formation is greatly reduced.

The absence or reduced presence of humidity in the air supplying the equipment (olive harvesters, pruning shears, pneumatic chainsaws) will drastically reduce the risk of freezing inside the equipment, resulting in more efficient operation and longer life.

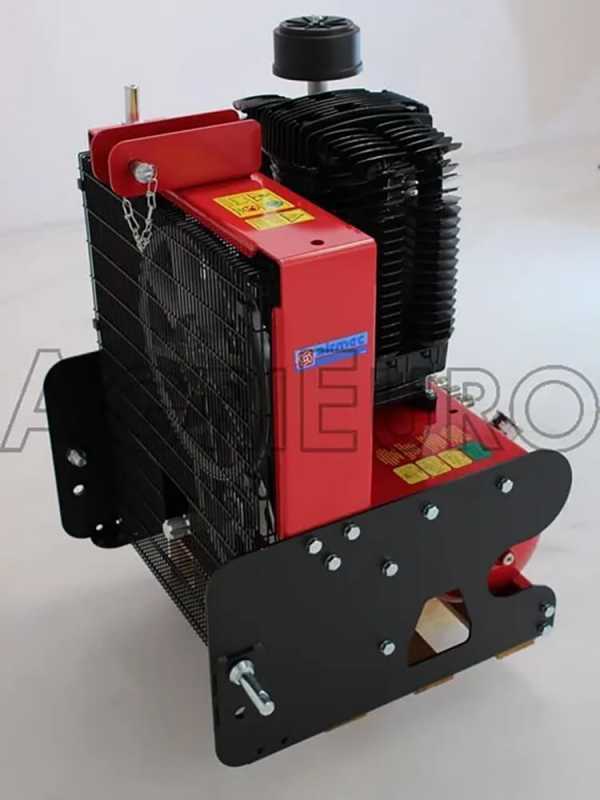

Main Features

Transmission:

Alloy power take-off pulley, large cooling fan made of cast steel.

25 L Tank

No load operating system and maximum pressure control by means of a professional pilot check valve.

Air outlet system

Condensate separation filter with professional aluminium lubricator.
- MADE IN ITALY -

Professional aluminium lubricator
- MADE IN ITALY -

First outlet with female quick coupling, suitable for all uses other than agriculture, which normally do not require oil to be introduced into the air through the lubricator (almost no compressor on the market has this additional outlet).


Air shut-off valve for maintenance operations (such as feeding oil into the lubricator).

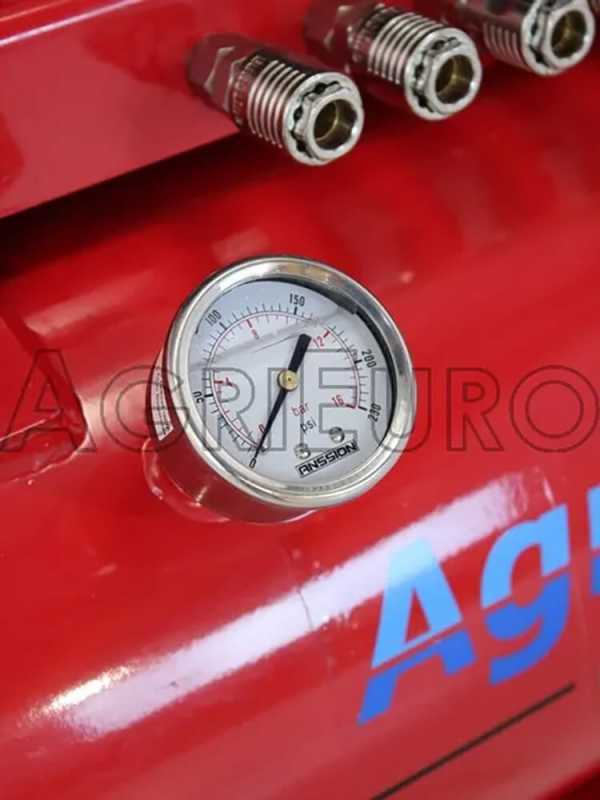

Glycerine pressure gauge (not like all those who assemble them dry) which signals the air pressure inside the tank, thus indicating the status of the air stock.
No. 6 Quick output joints

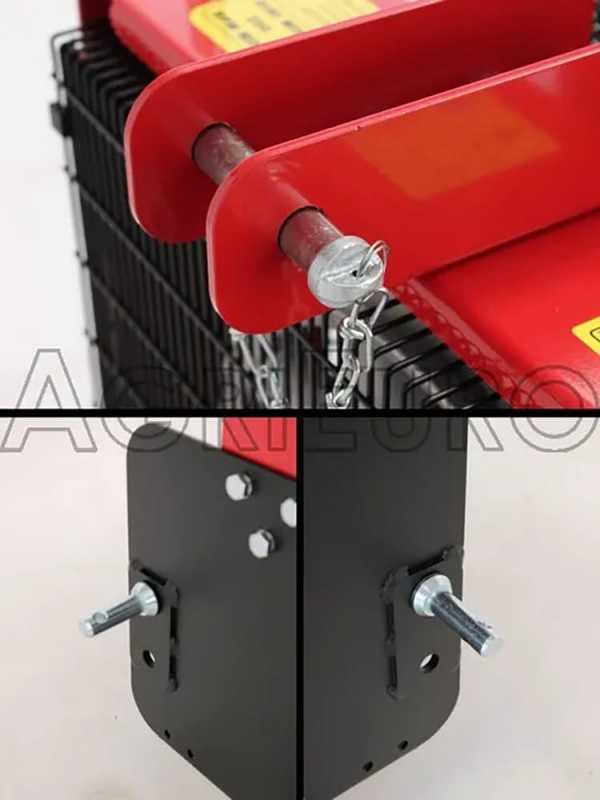

General features

Hose reel support as standard
Second hose reel setting up

Tractor three-point-hitch

The air compressor is shipped already assembled and ready for use.

ATTENTION: machine only, WITHOUT PNEUMATIC EQUIPMENT, Universal joint not included.
