Airmec Agriplus 1500/1000 - Tractor Compressor - head 1500 - tank 1000 L

Questions & Answers (2)
ID: 0045

EAN: 8006414033100

MPN: 141792800

8,6/10
After-sales assistance & Spare parts
Airmec Agriplus 1500/1000 - Tractor Compressor - head 1500 - tank 1000 L
+10 sold
Operating mode
Tractor-driven PTO + maxi tank
Max. operating pressure
14.5 bar
Air compressor tank
1000 L
Cylinder head brand
Chinook
Air intake flow
1500 L/min
Pump type
Two-stage
Cylinder head rpm
1400 RPM
Tractor power
40 to 45 HP
Operable harvester
Up to 7
Manufacturing country
Italy
Product Features
Model:
Agriplus 1500/1000
Tractor power:
40 to 45 HP
Operating mode:
Tractor-driven PTO + maxi tank
Max. operating pressure:
14.5 bar
Number of tanks:
1
Air compressor tank:
1000 L
Operable harvester:
Up to 7
Quantity of powered shears:
Up to 15
Quantity of powered chainsaws:
Up to 3
Power absorption:
40 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Cylinder head brand:
Chinook
Model:
K 50
Air intake flow:
1500 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
14
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
437 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90 x 188 x 181 cm
Gross weight (packaging included) :
457 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 07/05/2025 - 09/05/2025
€ 5.052,71
Vat included
You're viewing:
Customers also viewed:
Description

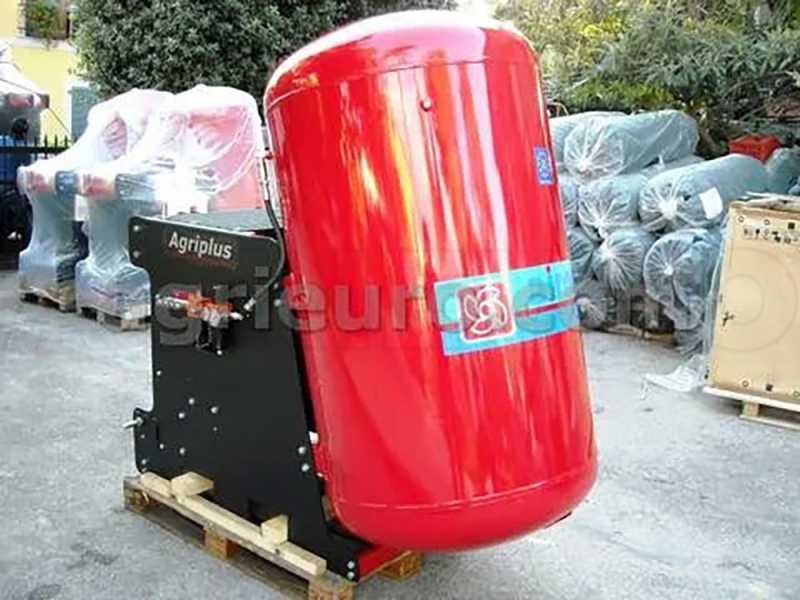

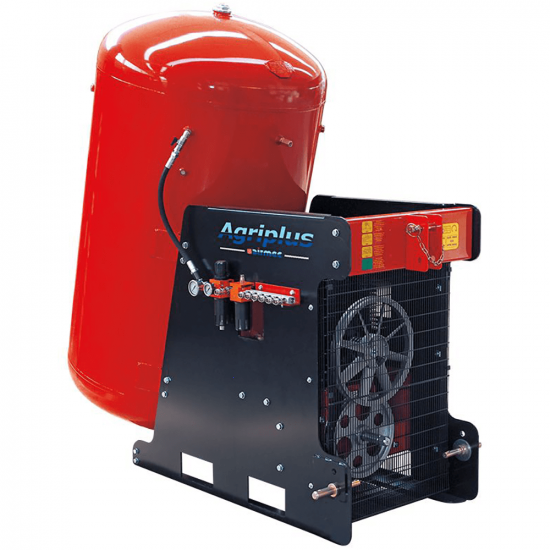

Airmec Agriplus 1500/1000 Compressor

The Airmec Agriplus 1500/1000 tractor compressor is a professional product intended for all those who own a tractor equipped with a power take-off and need to use multiple compressed air devices simultaneously.

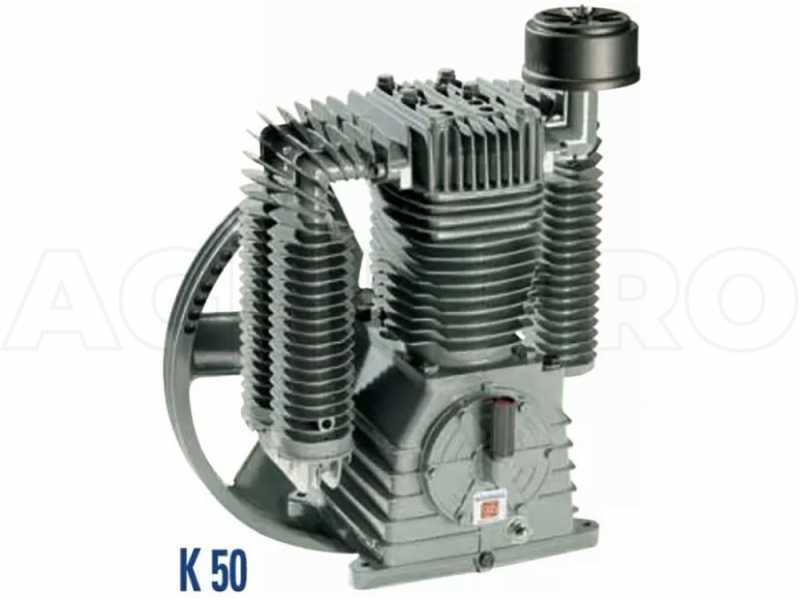

This compressor boasts the super professional head CHINOOK series K50. These heads are considered by industry professionals as the BEST ON THE MARKET for their legendary durability.

This head is twin-cylinder with a cast iron cylinder, ensuring long life. The high air production, 1500 L/min, guarantees the operation of:

  • Olive harvester: 7-8
  • Pruning shears: 15
  • Chainsaw: 3

Characterized by robust and quality construction, it boasts a high-strength reinforced steel supporting frame. Indestructible supporting structure, entirely made of thick steel.

The product guarantees all the quality of Made in Italy.

Technical features and details

Technical features:

  • Maxi head with large air production: 1500 L/min
  • Maxi air reserve tank: 1000 L
  • Maximum pressure: 14.5 bar
  • Weight: 437 KG

Details:

SUPER REINFORCED STEEL SUPPORT FRAME: indestructible supporting cell, entirely made of THICK STEEL, well closed and cowled.
Ensures the overall durability of the product over time.

DUAL AIR OUTLET SYSTEM:

  • One on the right side
  • One on the left side

ADVANTAGES:

  • Allows multiple equipment to be used simultaneously
  • Possibility of simultaneous use of equipment requiring different operating pressures. For example, you can adjust the outlet pressure of one of the two systems to 7 bar and the other to 10 bar
  • Possibility of simultaneous use of equipment requiring different levels of lubrication. For example, the pneumatic saw (good level of lubrication) together with the pneumatic shears (low level of lubrication)
  • Need for lubricating oil refilling for equipment halved (both lubricators are filled each time)

SPECIAL COMPOSITION OF THE 2 AIR OUTLET SYSTEMS:

  • Glycerine manometer indicating the air pressure inside the tank, thus indicating the state of the air reserve
  • Professional pressure regulator MADE IN ITALY with fully aluminium condensate separation filter with glycerine manometer
  • NR. 01 quick outlet coupling, placed before the lubricator.
    Suitable for all other uses other than agricultural, which normally do not require the introduction of oil into the air through the lubricator (this additional outlet is almost non-existent on the market)
  • Professional aluminium lubricator MADE IN ITALY
  • NR. 04 quick outlet couplings

Air tap at the entrance of each outlet system: facilitates maintenance operations, such as topping up oil in the lubricator even with the compressor air tank full.

Low-speed operation for greater fuel savings

Super-robust cooling flywheel made of cast iron.

Drive pulley made of alloy

MODERN AND REFINED MACHINE DESIGN, as only a large industrial group like "Speroni/Airmec" can do.

Idle operation and maximum pressure control system via professional disconnector valve MADE IN ITALY

Nr. 02 Hose reel supports as standard.

Tank drain equipped with a tap with valve.

THE COMPRESSOR IS SHIPPED ASSEMBLED AND READY FOR USE

WARNING: The machine sold in this listing is sold bare, without pneumatic equipment (harvesters, shears, hoses or other)
