Airmec Agriplus 1000/500 Tractor PTO Driven Air Compressor - 1000 Cylinder Head, 500 L Tank

Add a question
ID: 0091

EAN: 8006414033070

MPN: 141792100

Airmec Agriplus 1000/500 Tractor PTO Driven Air Compressor - 1000 Cylinder Head, 500 L Tank
Operating mode
Tractor-driven PTO + maxi tank
Max. operating pressure
14.5 bar
Air compressor tank
500 L
Cylinder head brand
Chinook
Air intake flow
1020 L/min
Pump type
Two-stage
Cylinder head rpm
1400 RPM
Tractor power
30 to 35 HP
Operable harvester
Up to 5
Manufacturing country
Italy
Product Features
Model:
Agriplus 1000/500
Tractor power:
30 to 35 HP
Operating mode:
Tractor-driven PTO + maxi tank
Max. operating pressure:
14.5 bar
Number of tanks:
1
Air compressor tank:
500 L
Operable harvester:
Up to 5
Quantity of powered shears:
Up to 9
Quantity of powered chainsaws:
Up to 2
Power absorption:
30 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Cylinder head brand:
Chinook
Model:
K 30
Air intake flow:
1020 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
14
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Net weight:
340 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
65 x 156 x 195 cm
Gross weight (packaging included) :
360 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
€ 3.847,61
VAT Included
You're viewing:
Customers also viewed:
Description

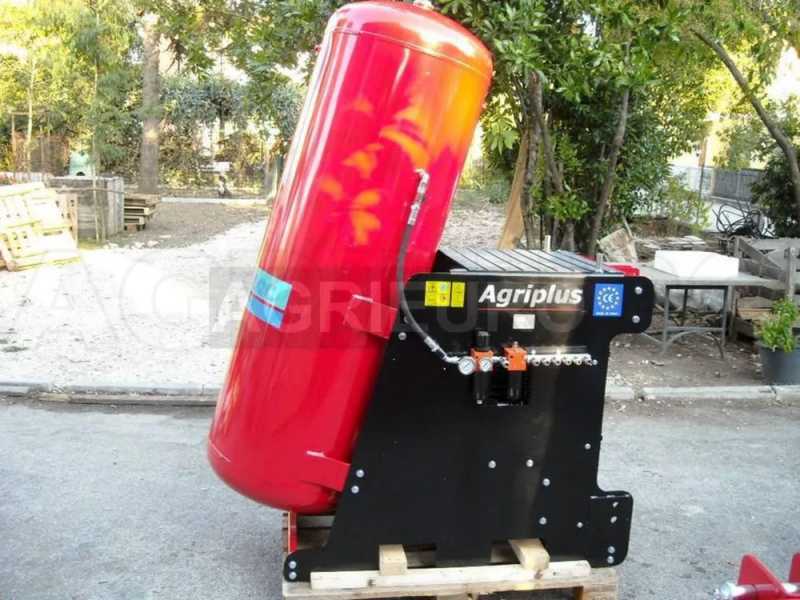

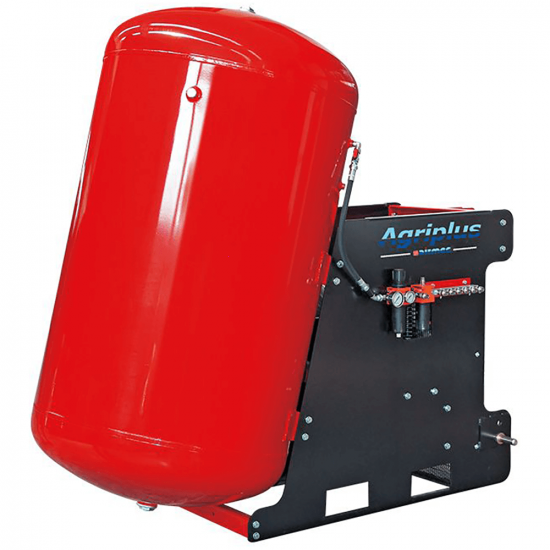

Airmec Agriplus 1000/500 Air Compressor

The Airmec Agriplus 1000/500 tractor-mounted compressor is a product for anyone who owns a tractor equipped with a power take-off and requires the simultaneous use of several compressed air devices.

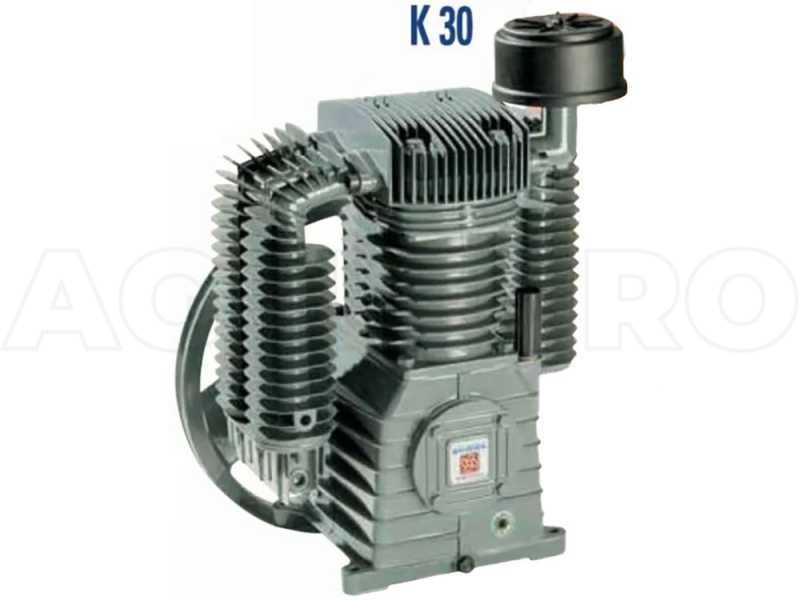

It mounts the heavy-duty CHINOOK series K30 cylinder head. These heads are considered by industry professionals to be the ABSOLUTE BEST ON THE MARKET, due to their proverbial durability.

This cylinder head has two cylinders made of cast iron, which guarantee a long service life. High air output: 1020 L/min. It can operate up to:

  • Olive harvesters: 5
  • Pruning shears: 12
  • Chainsaws: 2

Characterized by a sturdy top-quality construction, it boasts a supporting frame in high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel

The product guarantees all the quality of MADE IN ITALY.

Technical specifications and details

Technical features:

  • Maxi cylinder head with large air output: 1020 L/min
  • Maxi air stock tank: 500 L
  • Maximum pressure: 14.5 bar
  • Weight: 340 KG

Specifics:

SUPER REINFORCED STEEL BEARING FRAME: non-deformable load-bearing cell, made entirely of VERY THICK steel, well closed and fairing.
It guarantees the overall durability of the product over time.

DOUBLE AIR OUTLET SYSTEM:

  • One on the right side
  • One on the left hand side

ADVANTAGES:

  • It allows operating multiple equipment simultaneously
  • Possible simultaneous use of equipment with different operating pressure. For instance, the outlet pressure of one can be set to 7 bar and the other to 10 bar.
  • Possible simultaneous use of equipment requiring different degrees of lubrication. For example, the pneumatic saw (good lubrication level) together with the pneumatic pruning shears (low lubrication level)
  • Need to refill equipment lubricating oil halved (both lubricators are filled each time)

SPECIAL COMPOSITION OF THE 2 AIR OUTLET SYSTEMS:

  • Glycerine pressure gauge that signals the air pressure inside the tank, thus indicating the status of the air stock
  • Heavy-duty pressure gauge MADE IN ITALY with condensate separation filter entirely made in aluminum with glycerine pressure gauge
  • No. 1 Quick outlet fitting, located before the lubricator.
    Suitable for all uses other than agriculture, which do not normally require oil to be fed into the air through the lubricator (almost no compressors on the market have this additional outlet)
  • Heavy-duty aluminium lubricator MADE IN ITALY
  • No. 4 quick output joints

Air tap at the inlet of each outlet system: facilitates maintenance operations, such as topping up oil in the lubricator even when the compressor air tank is full.

Low-speed operation: it only takes about 1200 rpm of your tractor engine to achieve the maximum air pumping performance from your compressor head of 1020 L/min.

Super-robust cooling flywheel made of CAST IRON.

Pulley made of alloy

MODERN MACHINE DESIGN WITH ATTENTION TO DETAILS, proof of the excellent manufacturing quality of a large industrial group like "Speroni/Airmec.

Vacuum operating system and maximum pressure control by means of a professional-type isolating valve MADE IN ITALY

No. 02 Standard-supplied hose reel supports

Tank purge equipped with valve tap.

THE AIR COMPRESSOR IS SHIPPED ALREADY ASSEMBLED AND READY FOR USE

WARNING: This machine is sold without pneumatic equipment (harvesters, scissors, pipes or other).
