Airmec 410 L/min Electric Air Compressor - Air Compressor for Construction Sites

Questions & Answers (4)
ID: 1130

MPN: 141560090

8,6/10
After-sales assistance & Spare parts
Airmec 410 L/min Electric Air Compressor - Air Compressor for Construction Sites
+60 sold
Power supply
Electric
Max. operating pressure
10 bar
Air compressor tank
22 L
Motor brand
Producer-manufactured
Motor type
Induction
Cylinder head brand
Chinook
Air intake flow
410 L/min
Pump type
Single-stage
Cylinder head rpm
1250 RPM
Operable harvester
Up to 2
Manufacturing country
Italy
Product Features
Model:
TT22 MT3017 - 410
Power supply:
Electric
Transport:
Hand push on cart frame
Operating mode:
Electric 230 V
230 V Electric:
Max. operating pressure:
10 bar
Number of tanks:
2
Air compressor tank:
22 L
Electric start:
No
Operable harvester:
Up to 2
Quantity of powered shears:
Up to 4
Quantity of powered chainsaws:
1 not for intensive use
Manufacturing country:
Italy
Motor data
Motor brand:
Speroni
Motor type:
Induction
No. of cylinders:
Single-cylinder
Rated power (HP):
3 HP
Power supply:
220 V electric
Noise level:
97 dB(A)
Manufacturing country:
Italy
Pump data
Cylinder head brand:
Chinook
Model:
K 17/C
Air intake flow:
410 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1250 RPM
Integrated clutch device:
No
Pulleys material:
Aluminium
Equipment
Battery for electric start:
No
Electric start with key :
No
No. of outlet couplings:
4
Hose reel support/s:
On request (extra price accessory)
Pressure regulator:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
X
Rear wheels size:
3.00 - 4 (mm 260x85)
Folding/removable handle/s:
Yes
Lifting handle:
Yes
Free gifts/extra features
Engine oil bottle for free:
No
Tool case:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
60 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
88 x 69 x 88 cm
Gross weight (packaging included) :
80 Kg
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
€ 1.267,04
VAT Included
You're viewing:
Customers also viewed:
Description

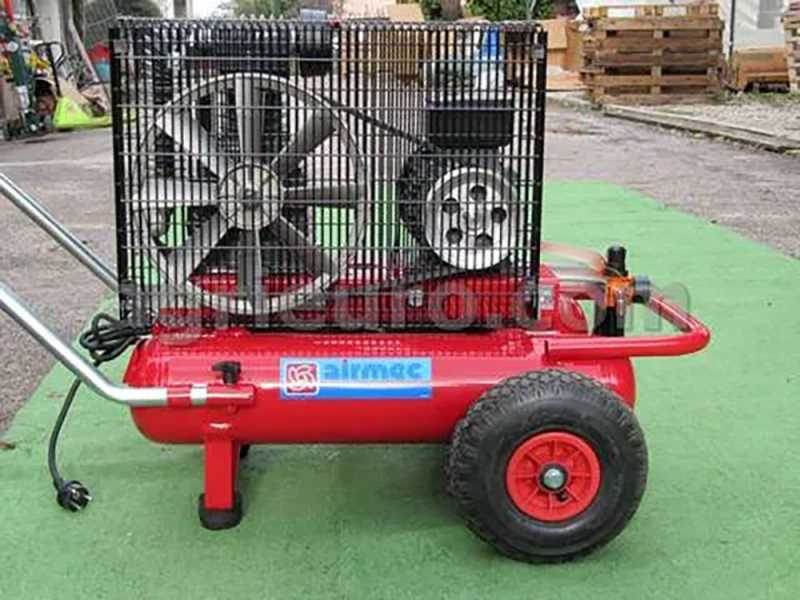

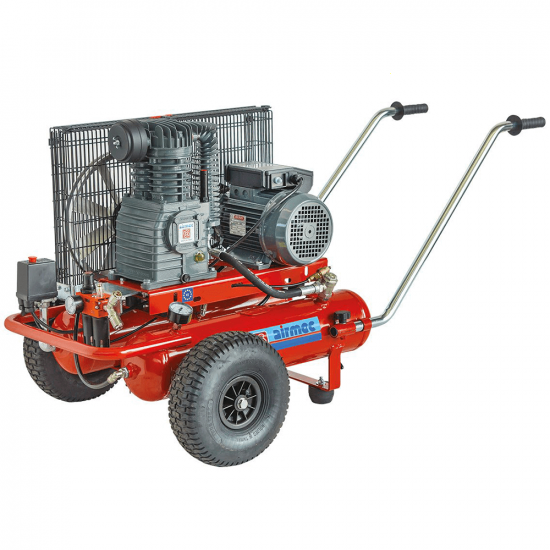

Airmec TT 22 MT 3017 Air Compressor

Airmec TT 22 MT single-stage electric belt driven compressor.

Two-cylinder cast iron head with stainless steel valves. Oversized single-phase electric motor with high-torque protection ends with manual reset.
Unit equipped with handles and two wheels, suitable for service in construction sites and rough terrain.

Effective air output: 410 L/min

Suitable for two different types of use

  • construction: on construction sites and rough terrain
  • agriculture: for olive harvesting and pruning

High power electric motor: 3 HP - Kw 2.2 - V. 230

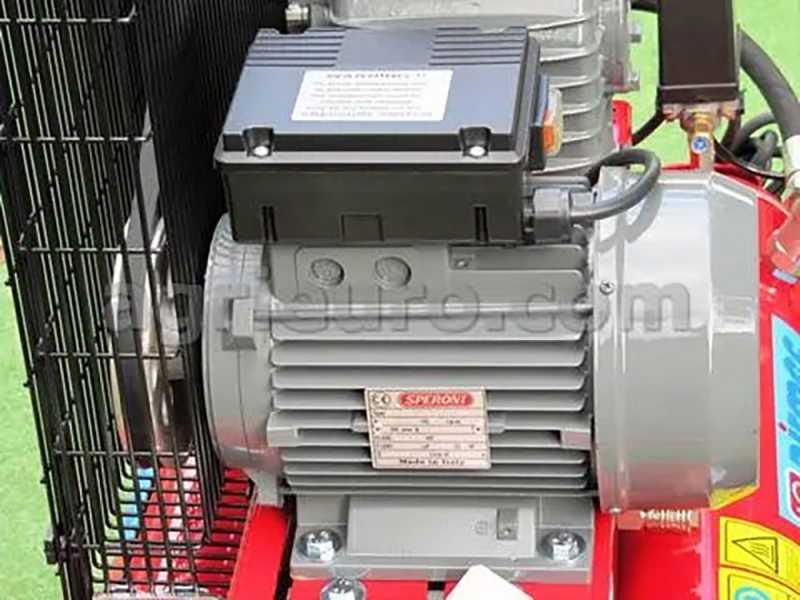

Electric motor and cylinder head

Oversized single-phase electric motor with high starting torque complete with manual reset thermal protection.

Original CHINOOK super-professional head (410 L/min) - MADE IN ITALY.

These compressor heads are considered by industry professionals to be the best on the market, due to their proverbial durability. This cylinder head is bi-cylindrical with a cast iron cylinder (guarantees long service life). High air output: 410 L/min, enough to guarantee the operation of 2 olive harvesters or 4 pruning shears at the same time.

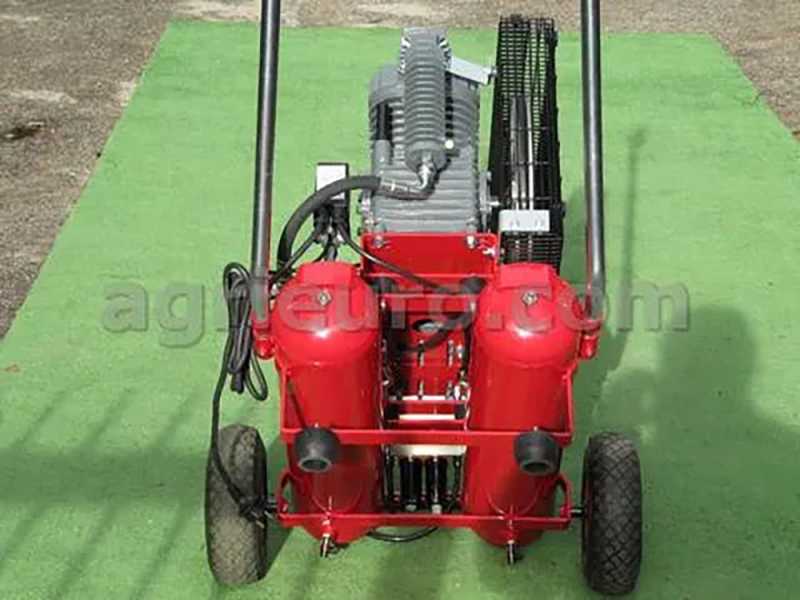

Double Tank

The double tank (11 + 11 L) gives the compressor two advantages over compressors with a single tank: greater air reserve, greater air cooling resulting in more efficient separation of air condensate that then reaches the equipment.

* When air is pumped from the compressor head, it is fed into the tank at a very high temperature. Condensate tends to settle at the bottom of the tank (which must therefore be purged at the end of each day with the appropriate tap) the more it is cooled. The absence or lower presence of humidity in the air that feeds the equipment will drastically reduce the risk of freezing inside the equipment, resulting in greater operating efficiency and durability over the years.

Technical Features

- BELT TRANSMISSION: cylinder head operating at low RPM for eternal durability!

- Condensate separation filter with aluminium lubricant

- Vacuum operating system and maximum pressure control by means of a professional MADE IN ITALY isolating valve

- Electrical on/off control unit plus additional safety valve

- No. 4 outlets with quick couplings

- Removable handles for easy transport

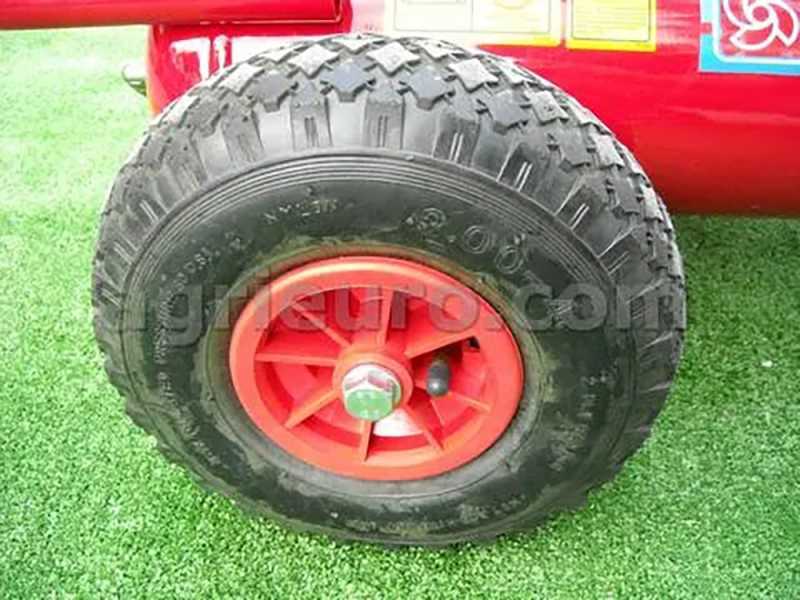

- Pneumatic wheels on roller bearings

Free items & Standard equipment

Standard equipment

The product is shipped in its original packaging along with the instruction manual.
