Airmec 12 volts current generator for battery-operated harvester and shaker

Questions & Answers (4)
ID: 2112

EAN: 8006414060915

MPN: 102271060

8,6/10
After-sales assistance & Spare parts
Airmec 12 volts current generator for battery-operated harvester and shaker
+80 sold
Voltage
12 V
Nominal power
6.5 HP
Motor brand
Producer-manufactured
Cubic capacity
196 cm³
Electric Current
Single-phase
Max. power
1.3 kW
Product Features
Model:
Airmec 12 V
Type:
Fixed
Electric Current:
Single-phase
Single-phase power supply 220 V:
Yes
Alternator brand:
NSM
Max. power:
1.3 kW
Motor data
Motor brand:
Loncin
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Voltage:
12 V
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
92x53x74 cm
Net weight:
44 Kg
Gross weight (packaging included) :
44 Kg
Assembly time:
Assembled
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 11/12/2024 - 13/12/2024
Suggested price:
€ 791,63
€ 752,05
VAT Included
You're viewing:
Customers also viewed:
Description

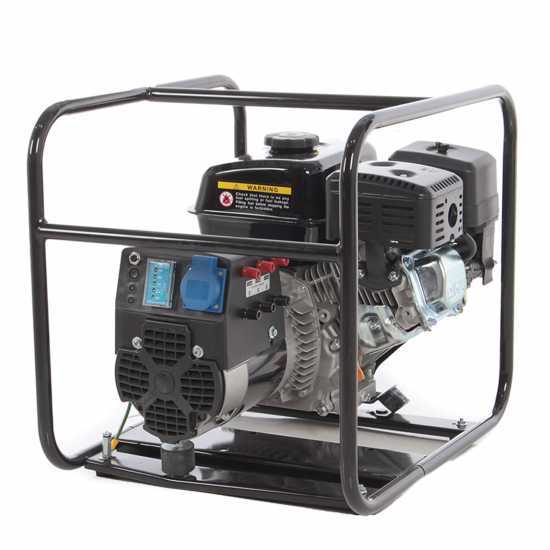

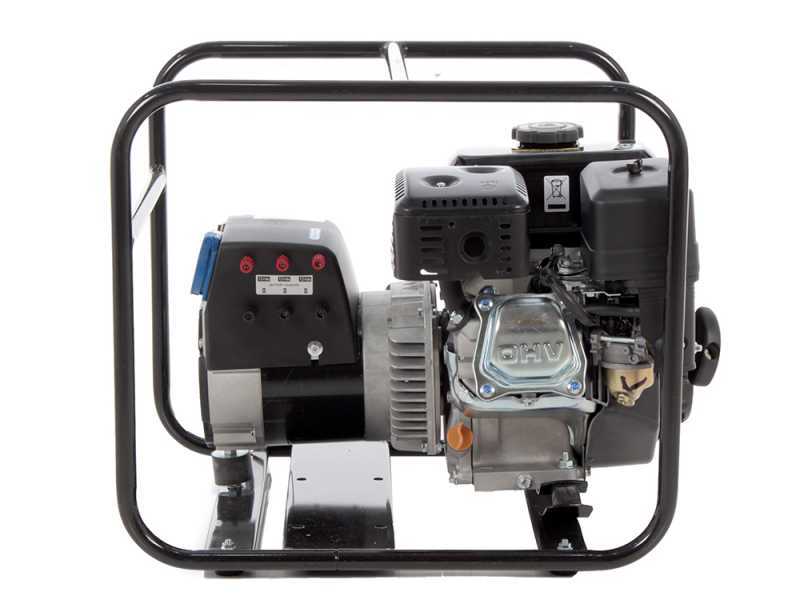

12-volt current generator for powering battery-powered harvesters

The 12 V Airmec LS 1000 can simultaneously power 1 to 3 battery-powered harvesters.

It is equipped with a 6.5 HP Loncin
engine 196 cc

The alternator, on the other hand, is branded NSM (Nuova Saccardo), original Made in Italy.

For a standard use, with up to 2/3 olive harvesters, we advise leaving the motor at idle speed (ensuring optimum results).

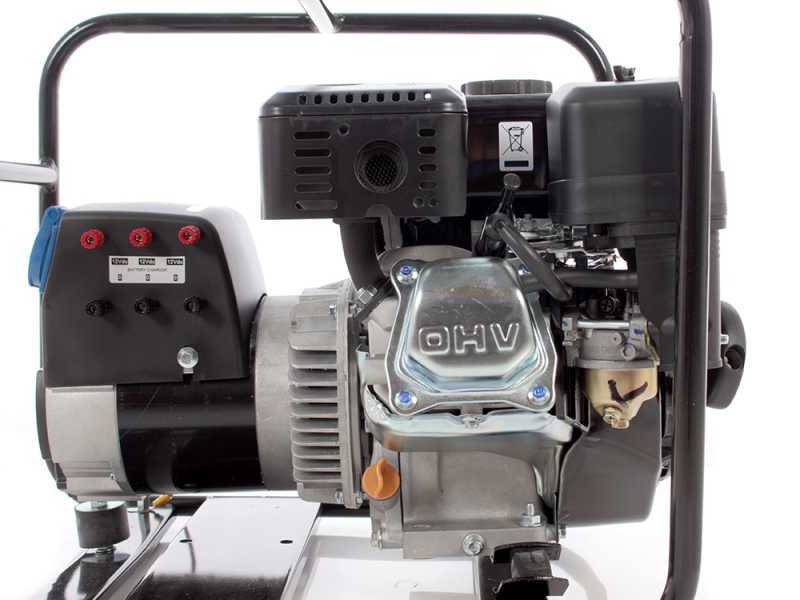

Loncin engine

Features:

Engine model and brand:
Loncin G 200 F
Engine type:
4-Stroke, single cylinder - OHV
Cylinder type:
Aluminium
Cubic capacity
196 cm³
Power
6.5 Hp
Type of start-up
Recoil start

For a standard use, with up to 2/3 olive harvesters, we advise leaving the motor at idle speed (ensuring optimum results).

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

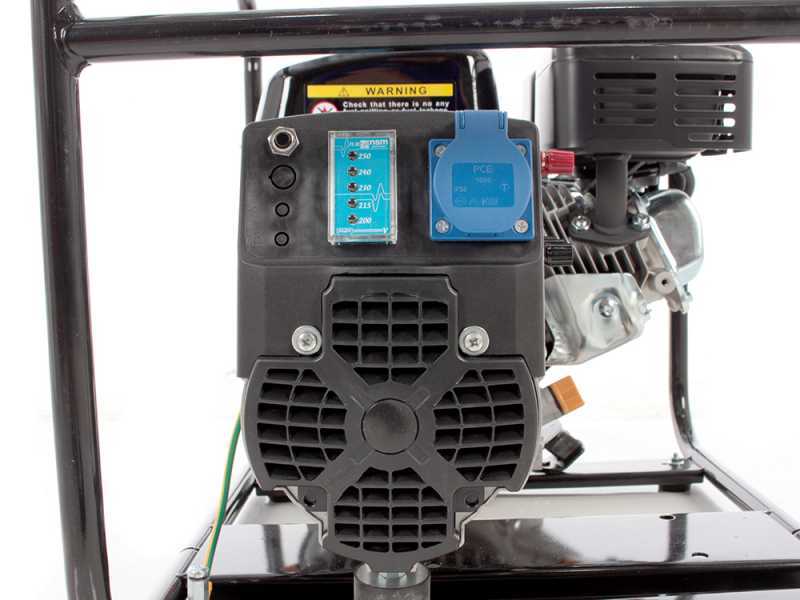

Alternator and Controls

Brand original NSM (Nuova Saccardo) alternator "made in Italy

This company represents the best Italian and European production of alternators. Absolute quality and reliability

Alternator designed and built specifically for 12-volt current supply.

Actual alternator supply: 60 Ah (Ampere)

Equipped with No. 3 pairs of discs;

Power output in the current 220 volts:
1.3 KW


It is the only generator in this respect to offer dual function:

  • 12-volt current supply (for the operation of harvesters or other battery-operated equipment)

  • Standard 220 volts current supply like all standard current generators on the market

Opposite, detail of standard single-phase socket

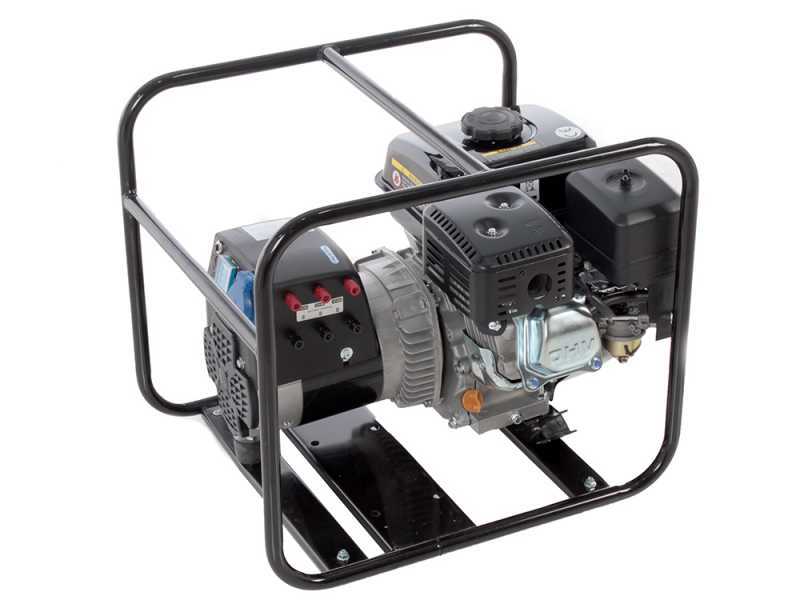

Other features

Robust steel frame.

Anti-vibration rubber pads

Weight (Kg) 44

Size:
L = 920 mm
D = 530 mm
H = 740 mm

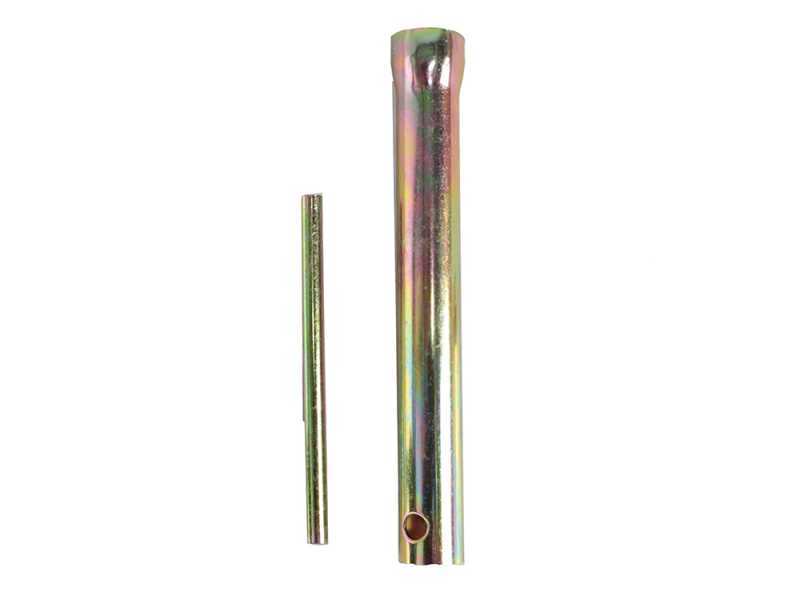

Free items & Standard equipment

Equipment

The pump is shipped in its and with the instruction manual, equipped with tools for assembly and maintenance: are also included.

Everything is accompanied by instructions for use
